PI-G Series P1.86 GOB Indoor LED Display Module | 320×160mm Front Service GOB LED Module for High-Resolution Broadcast Studio LED Displays

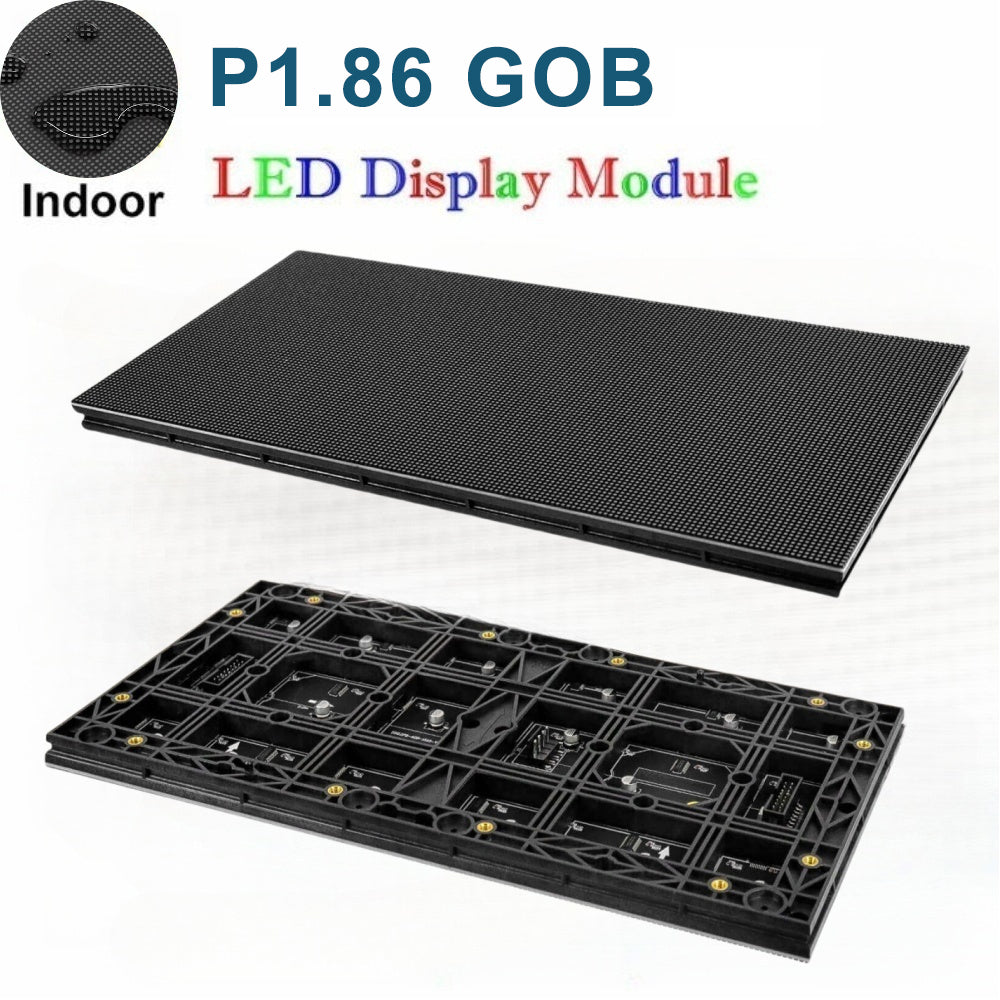

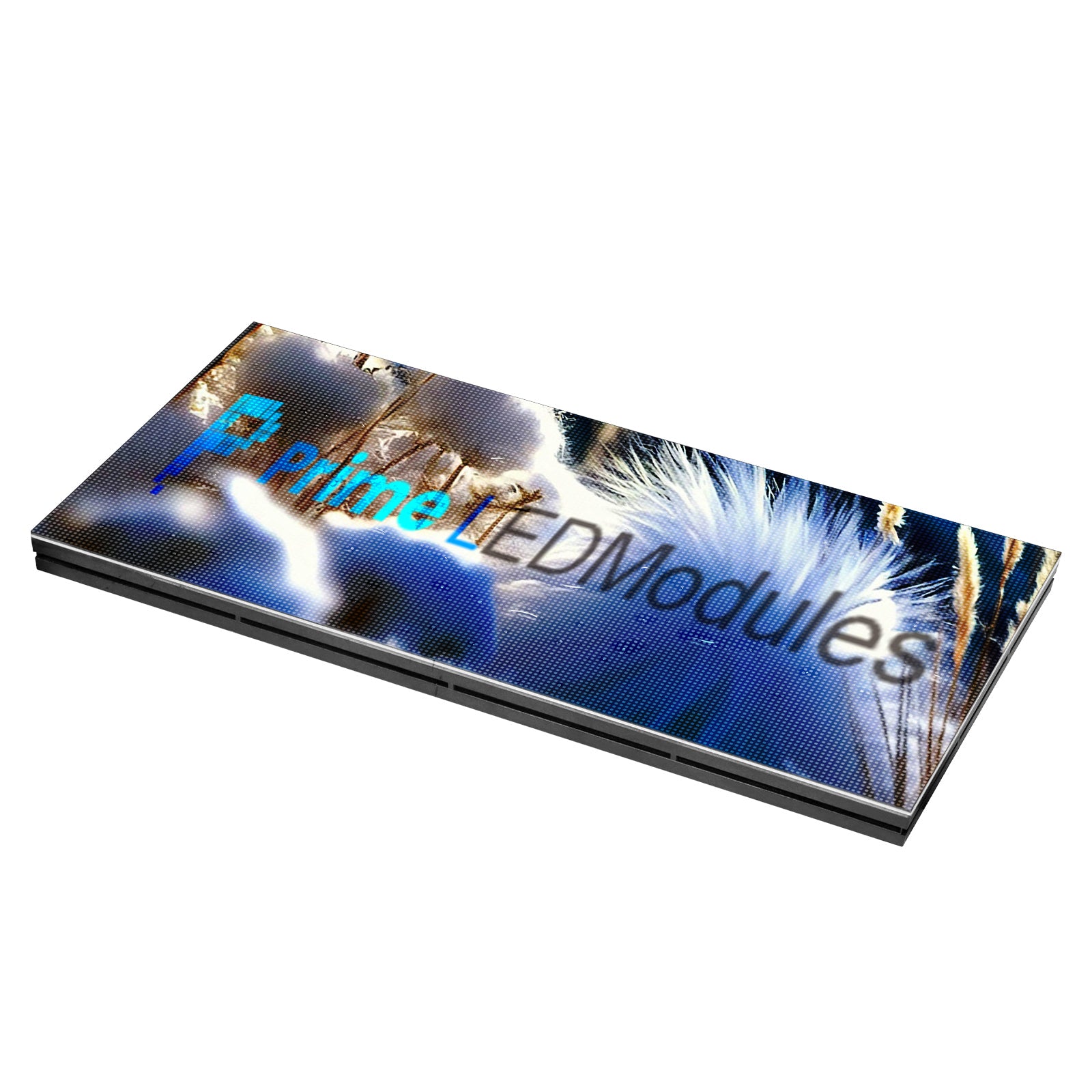

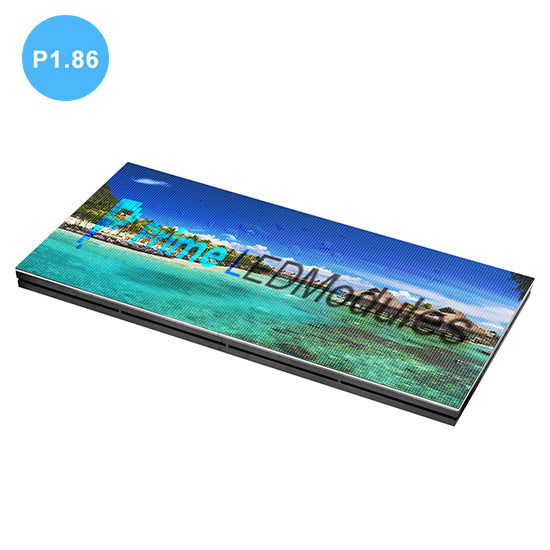

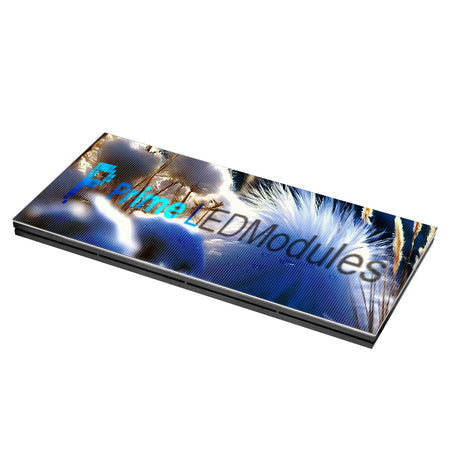

The PI-G Series P1.86 GOB Indoor LED Display Module is a professional 320×160mm GOB LED module designed for high-resolution indoor LED displays, broadcast studio LED walls, and close-viewing commercial LED video wall projects that require both fine image quality and enhanced surface protection. Featuring a 1.86mm pixel pitch, SMD1515 LEDs, GOB encapsulation technology, and a front service structure, it delivers sharp image detail, stable brightness, wide viewing angles, smooth grayscale performance, and stronger resistance to impact, dust, moisture, and daily handling.
As a high-density P1.86 GOB indoor LED module, this product supports broadcast studio contractors, system integrators, AV solution providers, engineering contractors, channel distributors, and commercial project buyers requiring standardized module supply, stable bulk purchasing, and long-term project deployment. It is suitable for broadcast studio LED displays, control room video walls, command center LED screens, corporate lobby LED walls, executive boardroom displays, premium showroom LED screens, and other professional indoor LED display projects where high resolution, durability, and long-term reliability are required.
Package Included
| Version | Package Included |
|---|---|
| 1pc Sample Pack | 1 × P1.86 320×160mm GOB Indoor LED Display Module 1 × 5V Power Cable 1-to-2 Split 1 × Flat Data Cable |
| 40pcs Standard Pack | 40 × P1.86 320×160mm GOB Indoor LED Display Module 20 × 5V Power Cable 1-to-2 Split 40 × Flat Data Cable |
| 200pcs Pack | 200 × P1.86 320×160mm GOB Indoor LED Display Module 100 × 5V Power Cable 1-to-2 Split 200 × Flat Data Cable |
| 500pcs Pack | 500 × P1.86 320×160mm GOB Indoor LED Display Module 250 × 5V Power Cable 1-to-2 Split 500 × Flat Data Cable |
About This Item
- Professional P1.86 High-Resolution GOB Indoor LED Display Module: Designed for premium indoor LED display systems, the 1.86mm pixel pitch combines high-definition image quality with advanced GOB surface protection, making it ideal for broadcast studios, television production, corporate presentation systems, and premium commercial LED video walls.
- Exceptional Visual Performance: Featuring ≥600 nits brightness, a refresh rate above 3840Hz, a 3000:1 contrast ratio, and a wide 160° viewing angle, the module delivers smooth motion, accurate color reproduction, and excellent grayscale performance for both direct viewing and professional camera applications.
- Standard 320×160mm Cabinet Compatibility: The standardized module size is fully compatible with mainstream indoor LED cabinets, enabling efficient cabinet assembly, simplified module replacement, and scalable high-resolution LED video wall construction.
- Front Service Maintenance Design: Supports complete installation and maintenance from the display front, making it an ideal solution for wall-mounted indoor LED displays and professional projects where rear maintenance access is limited.
- Designed for Premium Indoor Applications: Perfect for broadcast studios, television stations, XR production environments, executive boardrooms, corporate lobbies, museums, exhibition centers, and other professional indoor LED display projects requiring outstanding image quality and enhanced display durability.
- Bulk Project Procurement Ready: Available in sample, standard carton, and engineering package options to support product evaluation, channel stocking, engineering procurement, and large-scale commercial indoor LED display deployments.
Order & Logistics
Lead Time
PI-G Series: Handling time 3–5 business days.
Freight & Delivery
Shipping fees are not included in product pricing and will be charged separately based on actual freight cost.
- Available shipping methods: Standard shipping / Express shipping / Project logistics.
- Estimated shipping time: Standard delivery takes 9–18 business days, while express delivery takes 5–9 business days.
- Express options: DHL / UPS / FedEx options may be available depending on destination and order quantity.
- Shipping Terms: DDP TERM, all fees included, except for destination countries where this service is unavailable.
- Project logistics: This product supports bulk purchasing, channel stocking orders, engineering procurement, and project-based delivery.
For large quantity orders, please contact us to confirm freight arrangements, production schedules, and delivery plans.
Specifications
| Specification | Value |
|---|---|
| Module Size | 320×160 mm |
| Pixel Pitch | 1.86 mm |
| LED Type | SMD1515 |
| Module Resolution | 172×86 |
| Module Pixels | 14,792 dots |
| Scan Rate | 1/43 |
| Pixel Density | 284,444 dots/㎡ |
| Brightness | ≥600 nits |
| Contrast Rate | 3000:1 |
| Color Depth | 16 bit |
| Grey Level | 16,384 |
| Refresh Frequency | >3840 Hz |
| Driving IC | MBI/ICN |
| Color Uniformity | ≥97% |
| Protection Rating | IP30 |
| Life Span | ≥100,000 hours |
| Operating Temperature | -20°C ~ 60°C (-4°F ~ 140°F) |
| Operating Humidity | 10% ~ 90% |
| Voltage | DC 5V |
| Viewing Angle | H:160°, V:160° |
| Power Consumption | Max. 20 W |
| Blind Spot Rate | ≤0.0003 |
Protection & Design Features
- Advanced GOB Encapsulation Technology: Built with professional Glue-on-Board (GOB) encapsulation technology to improve resistance against accidental impact, dust, moisture, electrostatic contact, and frequent handling while maintaining stable image quality and dependable long-term performance.
- Standard Front Service Module Structure: The standardized 320×160mm front service module architecture supports efficient cabinet installation, simplified maintenance, convenient module replacement, and seamless compatibility with mainstream indoor LED cabinet systems.
- Reinforced Surface Protection Design: The fully encapsulated LED surface provides enhanced mechanical protection and long-term operational stability, helping minimize LED damage during transportation, installation, maintenance, and continuous operation in demanding professional indoor display environments.
Installation Guide
- Confirm the cabinet size, module size, pixel pitch, receiving card layout, power supply capacity, and front service structure before installation.
- Install the P1.86 GOB indoor LED modules according to the cabinet layout and ensure each module is securely fixed in position.
- Connect the flat data cables according to the signal direction, receiving card configuration, and indoor LED screen wiring plan.
- Connect the DC 5V power cables correctly and check polarity before powering on the LED display system.
- For front service maintenance, remove and replace the GOB LED module from the front side using proper tools and anti-static handling methods.
- Avoid scratching, pressing, bending, or impacting the LED surface during transportation, cabinet assembly, installation, and maintenance.
Applications
- High-Resolution GOB Indoor LED Displays
- P1.86 GOB Indoor LED Display Modules
- Fine Pitch GOB LED Video Walls
- Broadcast Studio LED Displays
- Commercial Indoor LED Video Walls
- Control Room Video Walls
- Command Center LED Screens
- Corporate Lobby LED Displays
- Executive Boardroom LED Screens
- Conference Room LED Walls
- Premium Showroom LED Displays
- Indoor Digital Signage Systems
- Security Monitoring Center Displays
- Financial Trading Center LED Walls
- Government Command Center Displays
- Exhibition and Trade Show LED Displays
- Museum Digital Display Systems
- Broadcast Production LED Walls
- Professional AV LED Display Projects
- Commercial LED Display Installations
