PID-G Series P2.5 Indoor LED Module – 320×160mm GOB Panel | 2.5mm Pixel Pitch | Impact-Resistant Stage Displays | 1pcs / 40pcs

In stock
SKU: PLM-MZ01-PID-G-P2.5-01
$24.85
Pixel Pitch
Surface Type
Package Qty

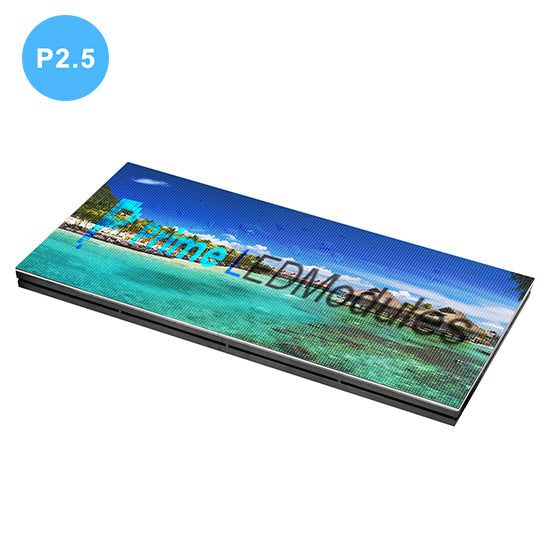

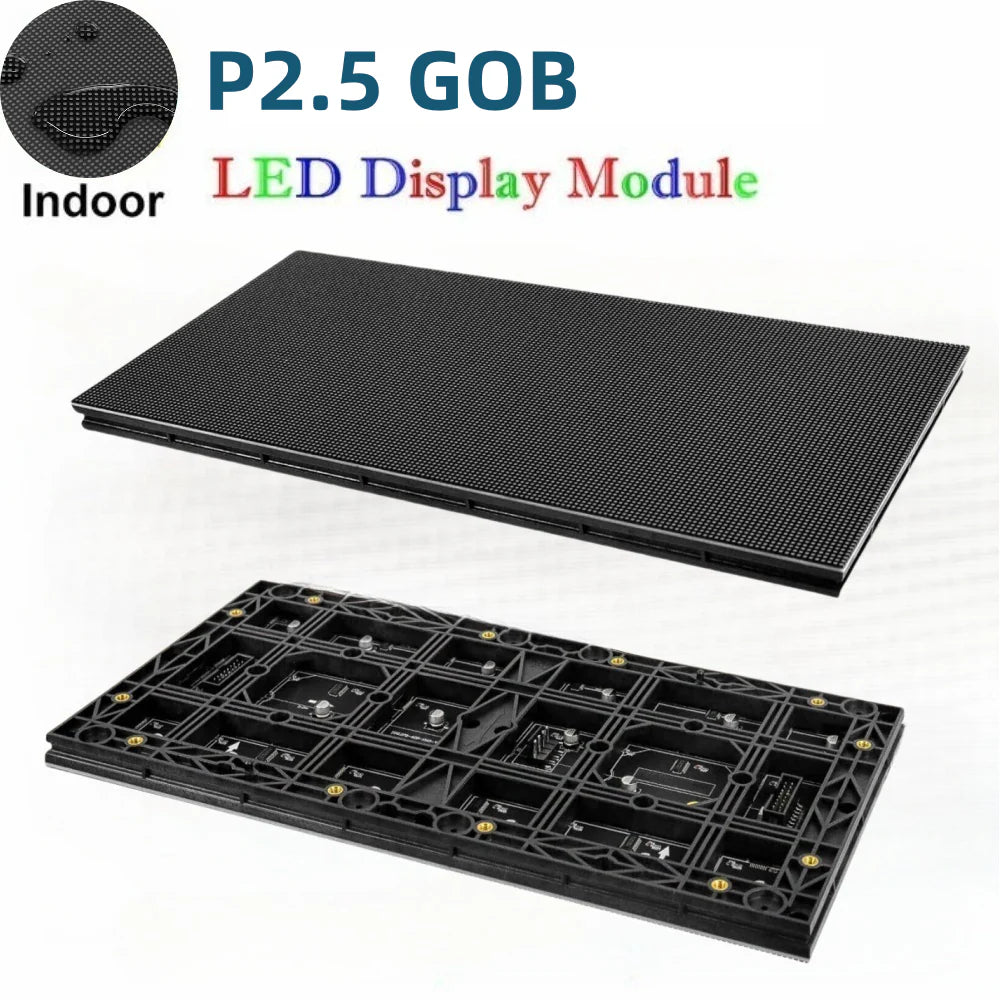

PID-G Series P2.5 Indoor LED Module – 320 × 160 mm GOB Panel, Impact-Resistant Stage Displays

The PID-G Series P2.5 indoor LED module features GOB encapsulation technology for superior protection, impact resistance, and surface durability.
Designed for rental stages and high-traffic indoor environments, it delivers stable image quality with enhanced reliability and longer service life.

Package & Packing Details

Version Package Included
1-Pack Sample Kit 1 × Power Supply Cable
1 × Data Cable
1 × P2.5 GOB Indoor LED Module
40-Pack Standard Pack 40 × Power Supply Cables
40 × Data Cables
40 × P2.5 GOB Indoor LED Modules

About this item

  • Advanced GOB (Glue on Board) technology provides excellent impact resistance and surface protection

  • 2.5 mm pixel pitch balances high resolution and cost efficiency for professional indoor LED screens

  • GOB coating enhances waterproof, dustproof, and anti-collision performance

  • High durability makes it ideal for rental stages, exhibition halls, and frequent-installation scenarios

  • Standard 320 × 160 mm size ensures seamless compatibility with mainstream LED cabinets

  • Uniform brightness and consistent color reproduction ensure premium visual output

  • High refresh rate ensures flicker-free performance for filming and live broadcasting

  • Long service life with reduced maintenance frequency and lower operational risk

Quick Specs

Specification Detail
Pixel Pitch 2.5 mm
Module Size 320 × 160 mm
Resolution 128 × 64 dots
LED Type GOB
Pixel Density 160,000 dots/m²
Brightness ≥ 1,000 nits
Refresh Rate ≥ 3,840 Hz
Scan Mode 1/32
Viewing Angle 140° (H) / 120° (V)
Input Voltage DC 5 V
Maintenance Rear Service
Protection Grade IP40 (surface), IP20 (module body)

Installation & Maintenance Tips

  • Always install modules from the same batch to ensure consistent color and brightness

  • Avoid bending or pressing the GOB surface during handling

  • Ensure cabinet structure is flat and stable before installation

  • Use high-quality power supplies and signal cables to ensure stable operation

  • Clean the surface gently using a soft cloth, avoiding sharp tools or chemical solvents

  • Maintain proper ventilation inside cabinets for long-term stability

Shipping Information

  • Lead Time: In-stock products ship within 1–3 business days

  • Packaging: Shock-absorbing packaging with foam protection

  • Shipping Origin: Shipped directly from warehouse

  • Standard Shipping: 9–18 days

  • Express Shipping: 5–9 days

  • Shipping Costs: Calculated automatically based on destination, weight, and dimensions

Full Specifications

Specification Detail
Series PID-G
Product Type Indoor GOB LED Module
Pixel Pitch 2.5 mm
LED Configuration SMD with GOB encapsulation
Module Resolution 128 × 64 dots
Pixel Density 160,000 dots/m²
Module Dimensions 320 × 160 × 14 mm
Module Weight 0.52 kg
Connector Type HUB75
Color Processing 12-bit
Gray Level 16–4096
Refresh Rate ≥ 3,840 Hz
Scan Mode 1/32
Brightness ≥ 1,000 nits
Viewing Angle 140° horizontal / 120° vertical
Input Voltage DC 5 V
Max Power Consumption 18 W per module
Operating Temperature −20 °C to 40 °C
Storage Temperature −20 °C to 50 °C
Operating Humidity 20%–75% RH
Lifetime ≥ 100,000 hours
Maintenance Method Rear service
IP Rating IP40 surface / IP20 module
Impact Resistance Excellent, suitable for rental environments
Color Uniformity ≥ 97%
Dead Pixel Rate ≤ 0.0003

Applications

  • Indoor rental LED screens

  • Stage performance backdrops

  • Exhibition and trade show displays

  • Event production and touring systems

  • High-traffic commercial LED installations

  • Broadcast studios and presentation stages
