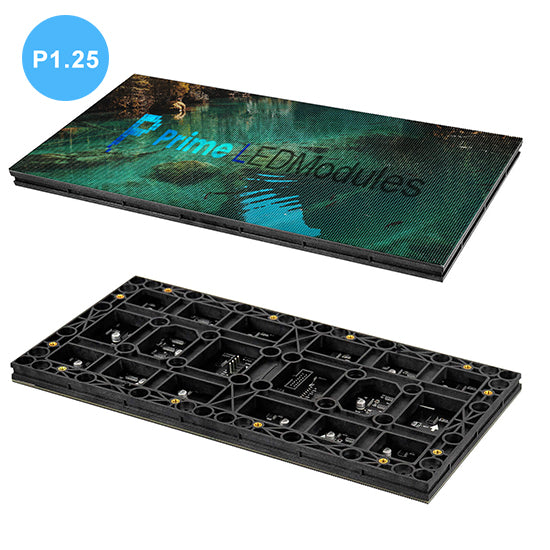

P1.25 Indoor LED Display Module – 320×160mm SMD1010 Front Service Module for Ultra Fine Pitch LED Video Walls

The P1.25 Indoor LED Display Module is a professional 320mm × 160mm ultra fine pitch LED module designed for command center LED displays, control room video walls, broadcast studio LED screens, and high-resolution indoor visualization projects requiring exceptional image precision and stable long-term operation. Featuring a 1.25mm pixel pitch, SMD1010 RGB full-color LED technology, 1/64 scan mode, and front service maintenance design, this indoor LED module delivers fine image detail, smooth visual performance, and reliable professional display quality.

The standardized 320×160mm indoor LED module format provides a 256×128 pixel resolution and supports high-density LED video wall construction for close-viewing applications. With 640,000 pixels/m² pixel density, ≥3840Hz refresh rate, 14bit grayscale performance, and a front maintenance structure, this P1.25 indoor LED display module is suitable for mission-critical visualization systems, commercial LED video walls, and premium indoor display projects.

Package Included

About This Item

• P1.25 Ultra Fine Pitch Indoor LED Display Module: Designed with a 1.25mm pixel pitch and 320×160mm module size, this LED module provides ultra-high pixel density and exceptional image detail for close-viewing indoor LED video wall applications.
• SMD1010 RGB Full Color LED Technology: Equipped with high-density SMD1010 LED packaging technology, the module delivers accurate color reproduction, excellent brightness uniformity, and smooth visual performance for professional indoor display systems.
• High Resolution 256×128 Pixel Structure: The standardized module design provides 256×128 pixel resolution and 640,000 pixels/m² density, enabling detailed images and fine visual presentation for demanding indoor applications.
• Front Service Maintenance Design: The front maintenance structure allows installation and module replacement from the display front side, making it suitable for wall-mounted LED screens and projects with limited rear access.
• High Refresh Rate & Professional Image Performance: With ≥3840Hz refresh rate, 14bit grayscale, and 5000:1 contrast ratio, the module provides smooth motion, accurate colors, and stable image output for professional visualization environments.
• Bulk Project Procurement Ready: Available in sample, standard carton, and engineering package options to support LED display integrators, distributors, system contractors, and large-scale indoor LED projects.

Order & Logistics

Lead Time

PI-S Series: Handling time 3–5 business days.

Freight & Delivery

Shipping fees are not included in product pricing and will be charged separately based on actual freight cost.

• Available shipping methods: Standard shipping / Express shipping / Project logistics.
• Estimated shipping time: Standard delivery takes 9–18 business days, while express delivery takes 5–9 business days.
• Express options: DHL / UPS / FedEx options may be available depending on destination and order quantity.
• Shipping Terms: DDP TERM, all fees included, except for destination countries where this service is unavailable.
• Project Procurement: This product supports bulk purchasing, channel stocking orders, engineering procurement, system integration, and project-based delivery.

For large quantity orders, please contact us to confirm freight arrangements, production schedules, and delivery plans.

Specifications

Protection & Design Features

• Ultra Fine Pitch SMD1010 Display Platform: The high-density SMD1010 LED structure provides precise image rendering, smooth color transitions, and excellent uniformity for premium indoor LED video walls.
• Standard Front Service Module Structure: The 320×160mm standardized module design supports efficient cabinet integration, simplified maintenance, and convenient module replacement for professional indoor LED systems.
• High Precision Indoor Display Performance: The module combines 14bit grayscale, ≥3840Hz refresh rate, and 5000:1 contrast ratio to deliver stable image quality for close-viewing professional applications.
• Reliable Modular Project Supply: Designed for system integrators and engineering projects requiring consistent module specifications, stable production supply, and scalable deployment.

Installation Guide

• Confirm the cabinet size, module layout, receiving card configuration, power supply capacity, and front service structure before installation.
• Install the P1.25 320×160mm indoor LED modules according to the cabinet layout and ensure accurate alignment between modules.
• Connect HUB320 signal interfaces and VH4P power interfaces according to the LED display system wiring plan.
• Connect the 4.5–5V power supply correctly and check polarity before powering on the LED display system.
• Perform module replacement and maintenance from the front side using proper tools and anti-static handling methods.
• Avoid pressing, scratching, or impacting the LED surface during transportation, installation, and maintenance.

Applications

• Ultra Fine Pitch Indoor LED Displays
• P1.25 Indoor LED Display Modules
• Command Center LED Video Walls
• Control Room LED Displays
• Security Operation Center Displays
• Broadcast Studio LED Walls
• Financial Trading Center LED Displays
• Executive Boardroom LED Screens
• Government Visualization Systems
• Premium Indoor Digital Signage
• Museum Digital Display Systems
• High-Resolution Commercial LED Projects
