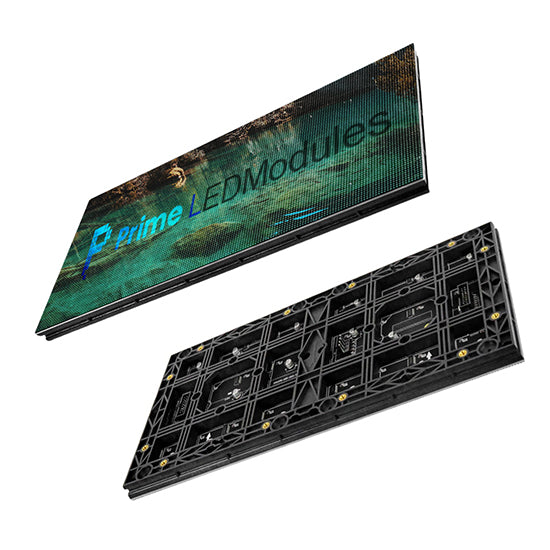

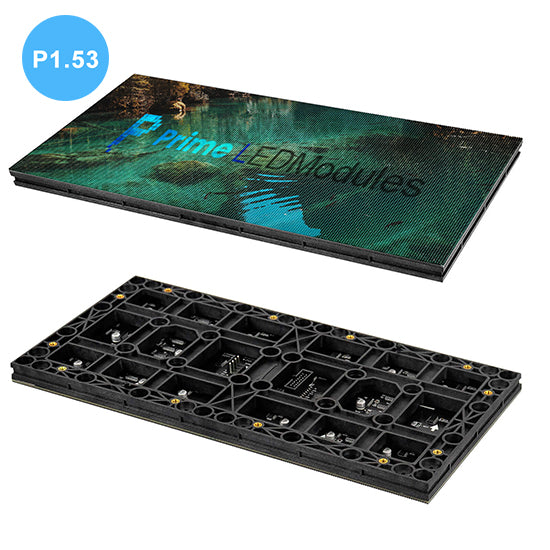

PI-S Series P1.53 Indoor LED Display Module | 320×160mm SMD Front Service LED Module for Ultra Fine Pitch Indoor LED Displays

The PI-S Series P1.53 Indoor LED Display Module is a professional 320mm × 160mm SMD front service LED module designed for ultra fine pitch indoor LED displays, high-resolution LED video walls, commercial indoor LED screens, and close-viewing professional display systems. Featuring a 1.53mm pixel pitch, SMD1212 LEDs, a 1/52 scan rate, and a standardized front service module structure, it delivers sharp image detail, stable brightness, wide viewing angles, and dependable long-term performance for demanding indoor LED display applications.

This P1.53 indoor LED display module is suitable for control room video walls, command center LED displays, monitoring center screens, broadcast studio LED walls, executive boardroom displays, corporate presentation systems, financial trading centers, and premium indoor digital signage. It supports system integrators, AV solution providers, engineering contractors, channel distributors, and commercial project buyers requiring reliable bulk purchasing, standardized module supply, and long-term project deployment.

Package Included

About This Item

• Professional P1.53 Ultra Fine Pitch Indoor LED Display Module: Designed for premium indoor LED display systems, the 1.53mm pixel pitch delivers ultra-high image definition and exceptional close-viewing performance, making it ideal for mission-critical control rooms, monitoring centers, and professional visualization environments.
• Exceptional Image Quality for Critical Viewing: Featuring ≥600 nits brightness, a refresh rate above 3840Hz, a 3000:1 contrast ratio, and 16-bit color processing, the module delivers smooth motion, accurate color reproduction, and excellent grayscale performance for professional control room and camera applications.
• Standard 320×160mm Cabinet Compatibility: The standardized module size is fully compatible with mainstream indoor LED cabinets, supporting efficient cabinet assembly, convenient module replacement, and scalable ultra fine pitch LED video wall construction.
• Front Service Maintenance Design: Supports complete installation and maintenance from the display front, making it ideal for wall-mounted indoor LED displays and control room installations where rear maintenance access is restricted.
• Designed for Professional Control Room Applications: Perfect for control room LED video walls, command centers, security monitoring centers, broadcast studios, operation centers, executive boardrooms, and other high-resolution indoor LED display applications requiring continuous and reliable operation.
• Bulk Project Procurement Ready: Available in sample, standard carton, and engineering package options to support product evaluation, channel stocking, engineering procurement, and large-scale commercial indoor LED display deployments.

Order & Logistics

Lead Time

PI-S Series: Handling time 3–5 business days.

Freight & Delivery

Shipping fees are not included in product pricing and will be charged separately based on actual freight cost.

• Available shipping methods: Standard shipping / Express shipping / Project logistics.
• Estimated shipping time: Standard delivery takes 9–18 business days, while express delivery takes 5–9 business days.
• Express options: DHL / UPS / FedEx options may be available depending on destination and order quantity.
• Shipping Terms: DDP TERM, all fees included, except for destination countries where this service is unavailable.
• Project logistics: This product supports bulk purchasing, channel stocking orders, engineering procurement, system integration, and project-based delivery.

For large quantity orders, please contact us to confirm freight arrangements, production schedules, and delivery plans.

Specifications

Protection & Design Features

• Mature SMD1212 Technology Platform: Built with proven SMD1212 LED packaging technology, providing excellent luminous consistency, accurate color reproduction, and dependable long-term stability for ultra fine pitch indoor LED display applications.
• Standard Front Service Module Structure: The standardized 320×160mm front service module architecture supports efficient cabinet installation, simplified maintenance, convenient module replacement, and seamless compatibility with mainstream indoor LED cabinet systems.
• High-Precision PCB & Modular Design: Engineered with a precision PCB layout and standardized modular construction to optimize signal transmission, improve display uniformity, and maintain stable performance across large ultra fine pitch indoor LED video wall installations.

Installation Guide

• Confirm the cabinet size, module size, pixel pitch, receiving card layout, power supply capacity, and front service structure before installation.
• Install the P1.53 320×160mm indoor LED modules according to the cabinet layout and ensure each module is securely fixed and accurately aligned.
• Connect the flat data cables according to the signal direction, receiving card configuration, and indoor LED screen wiring plan.
• Connect the DC 5V power cables correctly and check polarity before powering on the LED display system.
• For front service maintenance, remove and replace the LED module from the front side using proper tools and anti-static handling methods.
• Avoid bending, pressing, scratching, or impacting the LED surface during transportation, cabinet assembly, installation, and maintenance.

Applications

• Ultra Fine Pitch Indoor LED Displays
• P1.53 Indoor LED Display Modules
• High-Resolution LED Video Walls
• Indoor LED Video Walls
• Control Room LED Displays
• Control Room Video Walls
• Command Center LED Displays
• Monitoring Center LED Screens
• Security Operations Center Displays
• Broadcast Studio LED Displays
• Television Production LED Walls
• Corporate Presentation LED Walls
• Executive Boardroom LED Displays
• Premium Showroom LED Displays
• Commercial Indoor LED Displays
• Indoor Digital Signage Systems
• Financial Trading Center LED Walls
• Airport Information Displays
• Museum Digital Display Systems
• Large-Scale Commercial LED Display Projects
