PI-S Series P1.86 Indoor LED Display Module | 320×160mm SMD Front Service LED Module for High-Resolution Indoor LED Displays

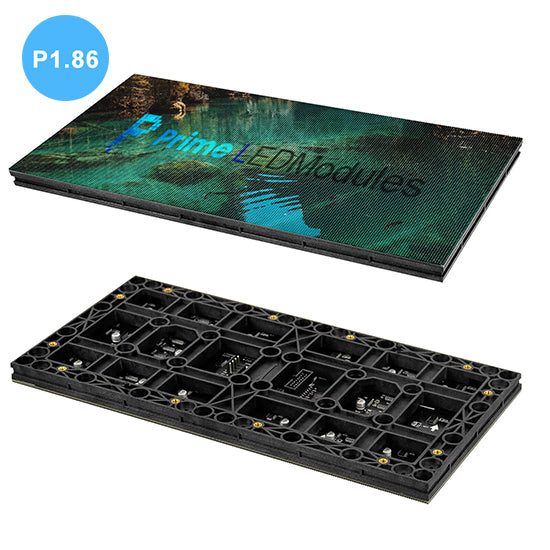

The PI-S Series P1.86 Indoor LED Display Module is a professional 320mm × 160mm SMD LED module designed for high-resolution indoor LED displays, fine pitch LED video walls, and close-viewing commercial display projects that require high pixel density, stable image quality, and dependable long-term operation. Featuring a 1.86mm pixel pitch, SMD1515 LEDs, a 172 × 86 module resolution, and a front service standard module structure, it delivers sharp visual detail, consistent color performance, and smooth image output for professional indoor LED screen systems.

With 284,444 dots/m² pixel density, brightness of at least 600 nits, a 3000:1 contrast ratio, and a refresh frequency above 3840Hz, this P1.86 indoor LED module is suitable for broadcast studio LED displays, control room video walls, command center screens, corporate lobby displays, executive boardrooms, premium showrooms, and other high-definition indoor LED display projects where close viewing and camera-friendly image performance are important.

Package Included

About This Item

• Professional P1.86 High-Resolution Indoor LED Display Module: Designed for high-definition indoor LED display systems, the 1.86mm pixel pitch delivers exceptional image sharpness and fine visual detail, making it ideal for broadcast studios, television production, corporate presentation systems, and premium commercial LED video walls.
• Outstanding Visual Performance: Featuring ≥600 nits brightness, a refresh rate above 3840Hz, 16-bit color processing, and a 3000:1 contrast ratio, the module provides smooth motion, rich grayscale performance, and accurate color reproduction for both direct viewing and professional camera applications.
• Standard 320×160mm Cabinet Compatibility: The standardized module size supports mainstream indoor LED cabinets, enabling efficient cabinet assembly, convenient module replacement, and flexible expansion for high-resolution LED video wall systems.
• Front Service Maintenance Design: The front service architecture allows installation and maintenance entirely from the display front, making it ideal for wall-mounted indoor LED screens and professional projects with restricted rear maintenance space.
• Designed for High-End Indoor Applications: Ideal for broadcast studios, television stations, control rooms, command centers, executive boardrooms, corporate lobbies, premium showrooms, and other indoor environments requiring exceptional image quality and long-term operational reliability.
• Bulk Project Procurement Ready: Available in sample, standard carton, and engineering package options to support product evaluation, channel stocking, engineering procurement, and large-scale commercial indoor LED display deployments.

Order & Logistics

Lead Time

PI-S Series: Handling time 3–5 business days.

Freight & Delivery

Shipping fees are not included in product pricing and will be charged separately based on actual freight cost.

• Available shipping methods: Standard shipping / Express shipping / Project logistics.
• Estimated shipping time: Standard delivery takes 9–18 business days, while express delivery takes 5–9 business days.
• Express options: DHL / UPS / FedEx options may be available depending on destination and order quantity.
• Shipping Terms: DDP TERM, all fees included, except for destination countries where this service is unavailable.
• Project logistics: This product supports bulk purchasing, channel stocking orders, engineering procurement, and project-based delivery.

For large quantity orders, please contact us to confirm freight arrangements, production schedules, and delivery plans.

Specifications

Protection & Design Features

• Mature SMD1515 Technology Platform: Built with proven SMD1515 LED packaging technology, providing excellent light consistency, accurate color reproduction, and dependable long-term stability for high-resolution indoor LED display applications.
• Standard Front Service Module Structure: The standardized 320×160mm front service module architecture supports efficient cabinet installation, simplified maintenance, convenient module replacement, and seamless compatibility with mainstream indoor LED cabinet systems.
• High-Precision PCB & Modular Design: Engineered with a precision PCB layout and standardized modular construction to optimize signal integrity, improve display uniformity, and maintain stable performance across large high-resolution indoor LED video wall installations.

Installation Guide

• Confirm the cabinet size, module size, pixel pitch, receiving card layout, power supply capacity, and front service structure before installation.
• Install the P1.86 320×160mm indoor LED modules according to the cabinet layout and ensure each module is securely fixed and accurately aligned.
• Connect the flat data cables according to the signal direction, receiving card configuration, and indoor LED screen wiring plan.
• Connect the DC 5V power cables correctly and check polarity before powering on the LED display system.
• For front service maintenance, remove and replace the LED module from the front side using proper tools and anti-static handling methods.
• Avoid bending, pressing, scratching, or impacting the LED surface during transportation, cabinet assembly, installation, and maintenance.
