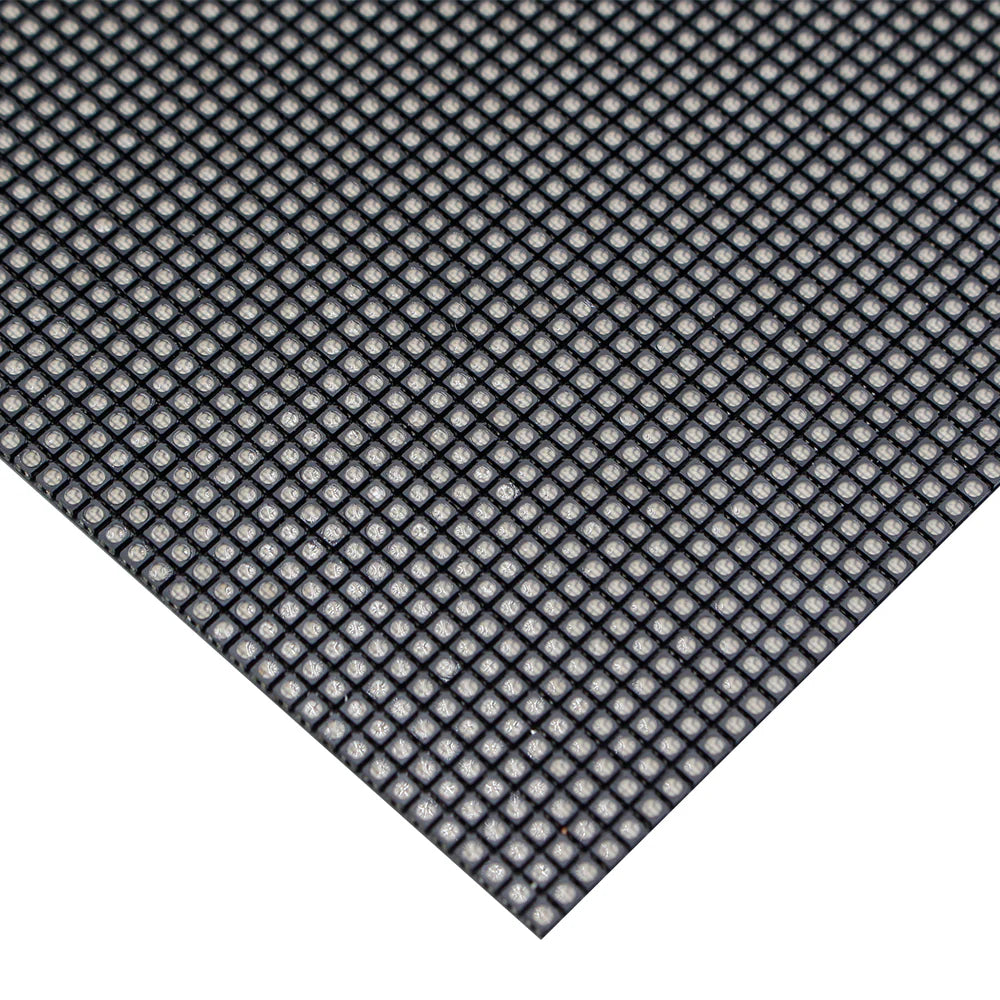

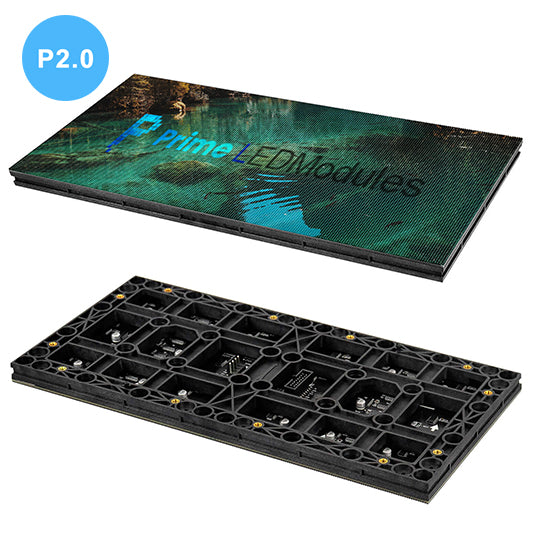

PID-S Series P2.0 Indoor LED Module – 320 × 160 mm SMD Panel for Ultra-Fine Indoor LED Displays
The PID-S Series P2.0 indoor LED module is designed for ultra-fine pixel pitch applications that demand exceptional image clarity and stable long-term performance. With a 2.0 mm pixel pitch and standard 320 × 160 mm module size, it delivers sharp visuals and smooth color transitions for premium indoor LED screens.
Ideal for control rooms, broadcast studios, and high-end commercial displays where precision and reliability are essential.
Package & Packing Details
| Version | Package Included |
|---|---|
| 1-Pack Sample Kit | 1 × Power Supply Cable 1 × Data Cable 1 × P2.0 Indoor LED Module |
| 40-Pack Standard Pack | 40 × Power Supply Cables 40 × Data Cables 40 × P2.0 Indoor LED Modules |
About this item
-
Ultra-fine 2.0 mm pixel pitch provides extremely high image resolution for close-viewing indoor applications
-
Standard 320 × 160 mm module size ensures broad compatibility with most indoor LED cabinets and control systems
-
High-quality SMD LEDs deliver uniform brightness, accurate color reproduction, and long service life
-
High refresh rate ensures flicker-free performance for filming, broadcasting, and professional presentations
-
Excellent grayscale performance enhances image depth and smooth color gradients
-
Modular structure allows easy installation, fast replacement, and flexible screen size configuration
-
Designed for ultra-fine indoor LED video walls, control rooms, studios, exhibitions, and premium commercial displays
Quick Specs
| Specification | Detail |
|---|---|
| Pixel Pitch | 2.0 mm |
| Module Size | 320 × 160 mm |
| Resolution | 160 × 80 dots |
| LED Type | SMD |
| Pixel Density | 250,000 dots/m² |
| Brightness | ≥ 800 nits |
| Refresh Rate | ≥ 3,840 Hz |
| Scan Mode | 1/20 |
| Viewing Angle | 140° (H) / 120° (V) |
| Input Voltage | DC 5 V |
| Maintenance | Rear Service |
| Protection Grade | IP20 |
Installation & Maintenance Tips
-
Use LED modules from the same production batch to maintain consistent brightness and color uniformity
-
Ensure the cabinet frame is flat, stable, and rigid before installing the modules
-
Use stable power supplies and high-quality signal cables to ensure reliable operation
-
Avoid excessive pressure or impact on the LED surface during installation
-
Check all power and data connectors carefully before powering on
-
Maintain proper ventilation inside the cabinet for effective heat dissipation
Shipping Information
-
Lead Time: In-stock products ship within 1–3 business days
-
Packaging: Shock-absorbing packaging with foam protection
-
Shipping Origin: Shipped directly from warehouse
-
Standard Shipping: 9–18 days
-
Express Shipping: 5–9 days
-
Shipping Costs: Calculated automatically based on destination, weight, and dimensions
Full Specifications
| Specification | Detail |
|---|---|
| Series | PID-S |
| Product Type | Indoor LED Module |
| Pixel Pitch | 2.0 mm |
| LED Configuration | SMD |
| Module Resolution | 160 × 80 dots |
| Pixel Density | 250,000 dots/m² |
| Module Dimensions | 320 × 160 × 14 mm |
| Module Weight | 0.48 kg |
| Connector Type | HUB75 |
| Color Processing | 12-bit |
| Gray Level | 16–4096 |
| Refresh Rate | ≥ 3,840 Hz |
| Scan Mode | 1/20 |
| Brightness | ≥ 800 nits |
| Viewing Angle | 140° horizontal / 120° vertical |
| Input Voltage | DC 5 V |
| Max Power Consumption | 20 W per module |
| Operating Temperature | −20 °C to 40 °C |
| Storage Temperature | −20 °C to 50 °C |
| Operating Humidity | 20%–75% RH |
| Lifetime | ≥ 100,000 hours |
| Maintenance Method | Rear service |
| IP Rating | IP20 |
| Color Uniformity | ≥ 97% |
| Dead Pixel Rate | ≤ 0.0003 |
Applications
-
Ultra-fine indoor LED video walls
-
Control rooms and monitoring centers
-
Broadcast studios and television production
-
Corporate showrooms and brand experience centers
-
Exhibition halls and trade show displays
-
Premium commercial digital signage systems
