PI-S Series P3.076 Indoor LED Display Module – 320×160mm | SMD | Front Service | Standard Module | Indoor LED Screen & Shopping Malls
Regular price
$19.99
Couldn't load pickup availability

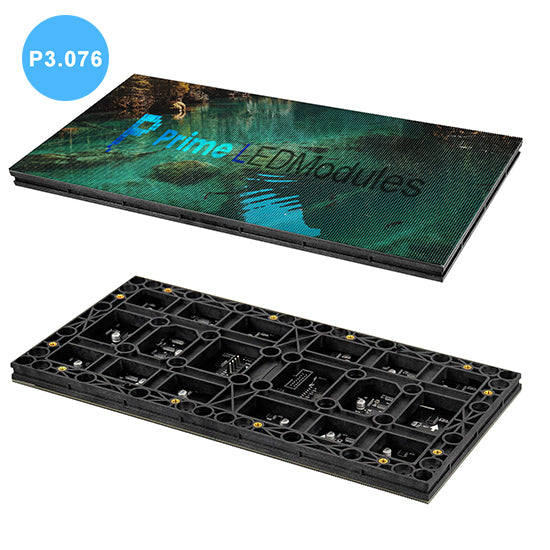

PI-S Series P3.076 Indoor LED Display Module | 320×160mm SMD Front Service LED Module for High-Resolution Indoor LED Displays
The PI-S Series P3.076 Indoor LED Display Module is a professional 320×160mm SMD LED module designed for high-resolution indoor LED display projects. Featuring a 3.076mm pixel pitch, front service maintenance, and a standard module structure, it delivers clear image detail, stable brightness, and reliable long-term performance for commercial indoor LED screens.
As a professional P3.076 indoor LED module, this product is suitable for indoor LED video walls, shopping mall LED displays, retail digital signage, conference room LED displays, corporate presentation screens, and commercial indoor advertising projects. It supports LED display manufacturers, system integrators, distributors, and engineering contractors in bulk procurement and project installation.
Package Included
| Version | Package Included |
|---|---|
| 1pc Sample Pack | 1 × P3.076 320×160mm Indoor LED Display Module 1 × 5V Power Cable 1-to-2 Split 1 × Flat Data Cable |
| 40pcs Standard Pack | 40 × P3.076 320×160mm Indoor LED Display Module 20 × 5V Power Cable 1-to-2 Split 40 × Flat Data Cable |
| 200pcs Pack | 200 × P3.076 320×160mm Indoor LED Display Module 100 × 5V Power Cable 1-to-2 Split 200 × Flat Data Cable |
| 500pcs Pack | 500 × P3.076 320×160mm Indoor LED Display Module 250 × 5V Power Cable 1-to-2 Split 500 × Flat Data Cable |
About This Item
- Professional P3.076 Indoor LED Display Module: Built with SMD2121 LED technology for commercial indoor LED displays, retail LED screens, indoor LED video walls, and long-term engineering projects.
- High-Resolution Indoor LED Screen Performance: The 3.076mm pixel pitch provides finer image detail than larger-pitch indoor LED modules, making it suitable for closer viewing distances and high-clarity indoor display applications.
- Standard 320×160mm LED Module: The standard module size supports mainstream indoor LED cabinet integration, fast module replacement, scalable LED screen assembly, and project expansion.
- Front Service LED Module Design: Supports front-side installation and maintenance, ideal for wall-mounted indoor LED screens, shopping mall displays, and fixed installations with limited rear service space.
- High Refresh and Stable Display Quality: Refresh rate over 3840Hz helps deliver smooth video playback and camera-friendly image performance for conference displays, exhibitions, retail displays, and commercial presentation screens.
- OEM and Bulk Project Procurement Ready: Available in sample pack, standard carton, and bulk project packaging for LED display manufacturers, LED screen distributors, system integrators, and engineering contractors.
Order & Logistics
Lead Time
PI-S Series: Handling time 3–5 business days.
Freight & Delivery
Shipping fees are not included in product pricing and will be charged separately based on actual freight cost.
- Available shipping methods: Standard shipping / Express shipping / Project logistics.
- Estimated shipping time: Standard delivery takes 9–18 business days, while express delivery takes 5–9 business days.
- Express options: DHL / UPS / FedEx options may be available depending on destination and order quantity.
- Shipping Terms: DDP TERM, all fees included, except for destination countries where this service is unavailable.
- Project logistics: This product supports bulk purchasing, channel stocking orders, OEM procurement, and project-based delivery.
For large quantity orders, please contact us to confirm freight arrangements, production schedules, and delivery plans.
Specifications
| Specification | Value |
|---|---|
| Module Size | 320×160mm |
| Pixel Pitch | 3.076mm |
| LED Type | SMD2121 |
| Module Resolution | 104×52 pixels |
| Module Pixels | 5,408 dots |
| Scan Rate | 1/26 |
| Pixel Density | 105,625 dots/m² |
| Brightness | ≥600 nits |
| Contrast Ratio | 3000:1 |
| Color Depth | 16bit |
| Grey Level | 16,384 |
| Refresh Rate | >3840Hz |
| Driving IC | ICN / FM |
| Color Uniformity | ≥97% |
| Protection Rating | IP30 |
| Life Span | ≥100,000 hours |
| Operating Temperature | -20°C ~ 60°C (-4°F ~ 140°F) |
| Operating Humidity | 10% ~ 90% |
| Input Voltage | DC 5V |
| Viewing Angle | H: 160° / V: 160° |
| Power Consumption | Max. 20W |
| Blind Spot Rate | ≤0.0003 |
Protection & Design Features
- Premium SMD2121 Technology: Provides stable brightness, accurate color reproduction, and reliable image quality for professional indoor LED display applications.
- High-Resolution P3.076 Layout: Designed for finer image detail and closer viewing distances, making it suitable for indoor LED video walls, retail digital signage, and conference LED screens.
- Standard 320×160mm Indoor LED Module: Compatible with mainstream indoor LED cabinets for easier cabinet assembly, replacement maintenance, and future screen upgrades.
- Front Service Maintenance Structure: Enables fast module replacement from the front side, reducing service time for fixed indoor LED screen installations.
- Commercial Project Supply Support: Suitable for OEM manufacturing, channel distribution, engineering procurement, and international bulk LED display projects.
Installation Guide
- Confirm the cabinet size, module size, pixel pitch, receiving card layout, and front service structure before installation.
- Install the P3.076 indoor LED modules according to the cabinet layout and make sure each module is securely fixed in position.
- Connect the flat data cables according to the signal direction and receiving card configuration.
- Connect the DC 5V power cables correctly and check polarity before powering on the indoor LED display system.
- For front service maintenance, remove and replace the LED module from the front side using proper tools and handling methods.
- Avoid bending, pressing, or impacting the LED surface during transportation, cabinet assembly, installation, and maintenance.
Applications
- High-Resolution Indoor LED Displays
- Indoor LED Video Walls
- Commercial Indoor LED Screens
- Retail LED Display Screens
- Shopping Mall LED Displays
- Indoor Digital Signage
- Conference Room LED Displays
- Corporate Lobby LED Displays
- Exhibition and Trade Show LED Displays
- Broadcast Studio LED Screens
- Control Room LED Displays
- Command Center LED Screens
- Hotel Digital Display Systems
- Education LED Display Systems
- Indoor Advertising LED Screens
- Brand Experience Center Displays
