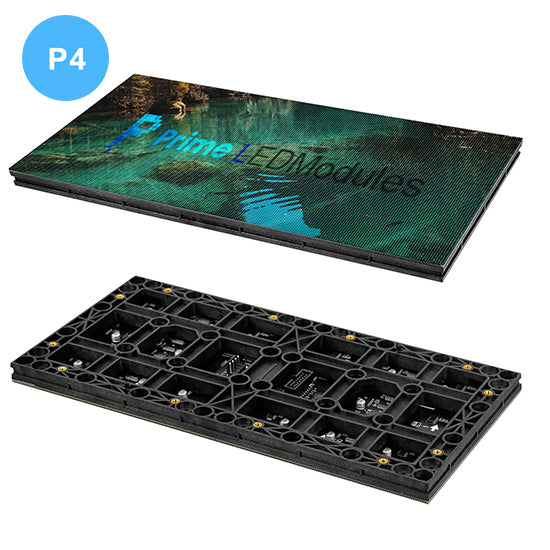

PID-S Series P4 Indoor LED Module – 320 × 160 mm SMD Panel for Commercial and Stage Display Applications
The PID-S Series P4 indoor LED module is designed for stable, high-brightness commercial and stage display projects that require reliable performance and easy installation. With a 4.0 mm pixel pitch and a standard 320 × 160 mm cabinet format, it delivers smooth image output and excellent visual uniformity for medium and large indoor LED screens.
Ideal for shopping malls, event stages, conference halls, and rental LED systems that demand durability and consistent display quality.
Package & Packing Details
| Version | Package Included |
|---|---|
| 1-Pack Sample Kit | 1 × Power Supply Cable 1 × Data Cable 1 × P4 Indoor LED Module |
| 40-Pack Standard Pack | 40 × Power Supply Cables 40 × Data Cables 40 × P4 Indoor LED Modules |
About this item
-
4.0 mm pixel pitch is optimized for commercial and stage applications with balanced image clarity and viewing distance
-
Standard 320 × 160 mm module size ensures compatibility with most indoor LED cabinets and systems
-
High-quality SMD LEDs provide uniform brightness, stable color consistency, and long operational lifespan
-
High refresh rate ensures smooth video playback and flicker-free performance for stage and camera shooting
-
Modular design enables easy installation, fast replacement, and flexible screen size configuration
-
Consistent color calibration and excellent grayscale performance enhance visual uniformity across the entire display
-
Designed for commercial LED screens, stage rental displays, exhibitions, and indoor advertising projects
Quick Specs
| Specification | Detail |
|---|---|
| Pixel Pitch | 4.0 mm |
| Module Size | 320 × 160 mm |
| Resolution | 80 × 40 dots |
| LED Type | SMD |
| Pixel Density | 62,500 dots/m² |
| Brightness | ≥ 800 nits |
| Refresh Rate | ≥ 3,840 Hz |
| Scan Mode | 1/10 |
| Viewing Angle | 140° (H) / 120° (V) |
| Input Voltage | DC 5 V |
| Maintenance | Rear Service |
| Protection Grade | IP20 |
Installation & Maintenance Tips
-
Use modules from the same production batch to maintain consistent brightness and color uniformity
-
Ensure the cabinet frame is flat and rigid before mounting the LED modules
-
Use stable power supplies and high-quality signal cables to guarantee reliable operation
-
Avoid direct impact or excessive pressure on LED surfaces during installation
-
Regularly check power and data connectors to prevent signal interruption
-
Keep proper ventilation inside cabinets to maintain optimal operating temperature
Shipping Information
-
Lead Time: In-stock products ship within 1–3 business days
-
Packaging: Shock-absorbing packaging with foam protection
-
Shipping Origin: Shipped directly from warehouse
-
Standard Shipping: 9–18 days
-
Express Shipping: 5–9 days
-
Shipping Costs: Calculated automatically based on destination, weight, and dimensions
Full Specifications
| Specification | Detail |
|---|---|
| Series | PID-S |
| Product Type | Indoor LED Module |
| Pixel Pitch | 4.0 mm |
| LED Configuration | SMD |
| Module Resolution | 80 × 40 dots |
| Pixel Density | 62,500 dots/m² |
| Module Dimensions | 320 × 160 × 14 mm |
| Module Weight | 0.48 kg |

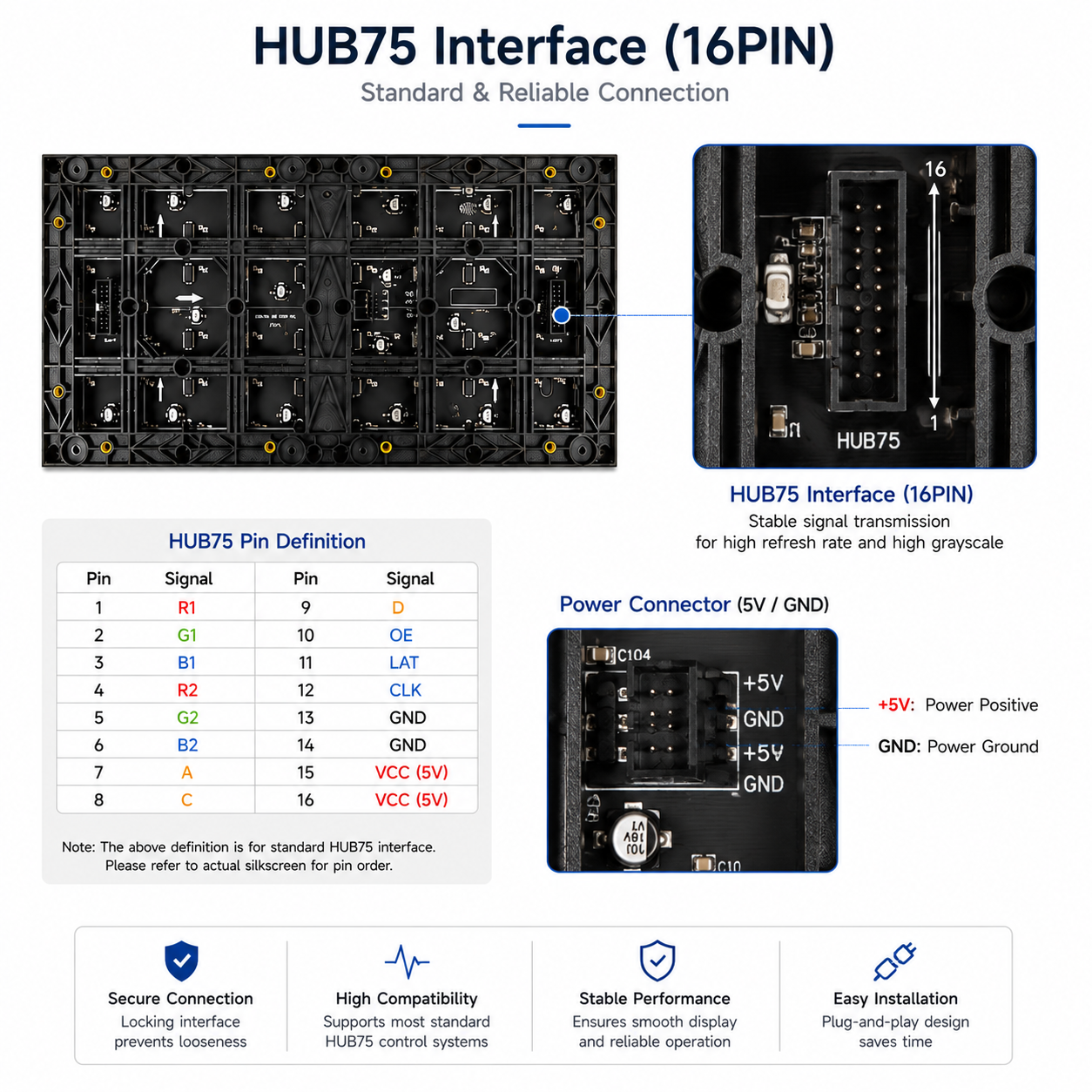

| Connector Type | HUB75 |
| Color Processing | 12-bit |
| Gray Level | 16–4096 |
| Refresh Rate | ≥ 3,840 Hz |
| Scan Mode | 1/10 |
| Brightness | ≥ 800 nits |
| Viewing Angle | 140° horizontal / 120° vertical |
| Input Voltage | DC 5 V |
| Max Power Consumption | 20 W per module |
| Operating Temperature | −20 °C to 40 °C |
| Storage Temperature | −20 °C to 50 °C |
| Operating Humidity | 20%–75% RH |
| Lifetime | ≥ 100,000 hours |
| Maintenance Method | Rear service |
| IP Rating | IP20 |
| Color Uniformity | ≥ 97% |
| Dead Pixel Rate | ≤ 0.0003 |
Applications
-
Commercial indoor advertising LED screens
-
Stage rental LED displays and concert backdrops
-
Shopping malls and retail advertising walls
-
Conference rooms and exhibition halls
-
Corporate lobbies and brand showrooms
-
Indoor information display systems
