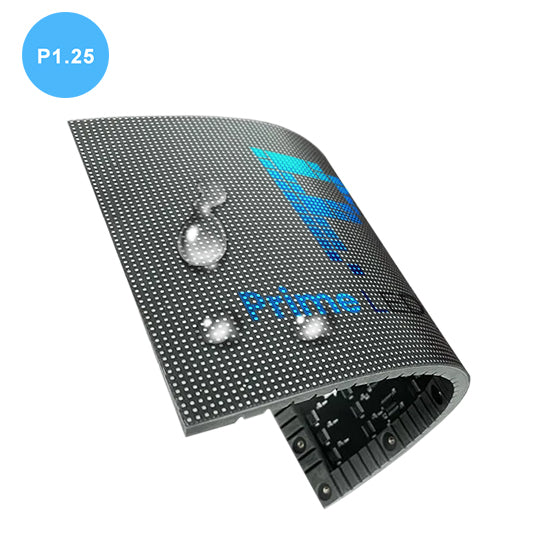

P1.25 Indoor Flexible GOB LED Display Module – 240×120mm SMD1010 GOB Module with Soft Back Shell & Magnetic Mounting for Ultra Fine Pitch LED Displays

The P1.25 Indoor Flexible GOB LED Display Module is a professional 240mm × 120mm ultra fine pitch flexible LED module designed for premium indoor LED displays, fine pitch LED video walls, experience centers, and creative visual projects requiring enhanced surface protection, exceptional image detail, and flexible installation capability. Featuring a 1.25mm pixel pitch, SMD1010 LED technology with GOB protection, 700 nits brightness, and 3840–4200Hz refresh rate, this flexible GOB LED module delivers high-resolution image performance, smooth visual output, and reliable operation for professional indoor LED applications.

With a compact 240×120mm flexible GOB LED module design, this P1.25 module provides an ultra-high-resolution 192×96 pixel layout with 640,000 dots/m² pixel density. Supporting front and rear bending directions with up to 169° bending capability, the module combines GOB surface protection, flexible PCB structure, soft back shell, magnetic mounting, and flexible front or rear service capability to support ultra fine pitch LED video walls, curved LED displays, digital art installations, museum displays, experience centers, and customized indoor flexible LED projects.

Package Included

About This Item

• P1.25 Ultra Fine Pitch Flexible GOB LED Display Module: Designed with a 1.25mm pixel pitch and 240×120mm flexible module structure, this GOB LED module provides exceptional image detail for premium indoor LED video walls, experience centers, digital art displays, and professional visualization projects.
• SMD1010 LED Technology with GOB Surface Protection: Built with SMD1010 LED packaging technology and GOB encapsulation, the module delivers 700 nits brightness, 3840–4200Hz refresh performance, improved LED surface durability, and stable visual performance for high-end flexible indoor LED display applications.
• Ultra High Pixel Density for Close Viewing Applications: With 192×96 module resolution and 640,000 dots/m² pixel density, this P1.25 flexible GOB LED module provides refined image detail and excellent visual consistency for close-viewing indoor display environments.
• Flexible PCB Structure with 169° Bending Capability: The flexible PCB structure supports front and rear bending directions with up to 169° bending capability, allowing integration into curved LED walls, creative display structures, immersive environments, and customized architectural installations.
• Soft Back Shell with Magnetic Mounting: The soft back shell and magnetic mounting system simplify installation and module replacement while supporting curved and customized flexible display structures.
• 16PIN HUB75 Input for Professional Control Systems: Each 240×120mm P1.25 module uses a 16PIN HUB75 signal input for connection to a compatible LED receiving card. This model does not provide module-to-module signal cascade output, so each module requires an appropriate receiving-card HUB output connection according to the control system design and loading limits.
• Project-Based Flexible GOB LED Module Supply: Available in sample, standard, and bulk package options to support product testing, system integration, engineering procurement, channel supply, and large-scale flexible GOB LED display projects.

Order & Logistics

Lead Time

PIF-G Series: Handling time 15–20 business days.

Freight & Delivery

Shipping fees are not included in product pricing and will be charged separately based on actual freight cost.

• Available shipping methods: Standard shipping / Express shipping / Project logistics.
• Estimated shipping time: Standard delivery takes 9–18 business days, while express delivery takes 5–9 business days.
• Express options: DHL / UPS / FedEx options may be available depending on destination and order quantity.
• Shipping Terms: DDP TERM, all fees included, except for destination countries where this service is unavailable.
• Project logistics: This product supports bulk purchasing, engineering procurement, system integration, and project-based delivery.

For large quantity orders, please contact us to confirm freight arrangements, production schedules, and delivery plans.

Specifications

Protection & Design Features

• GOB Surface Protection Technology: The GOB protection layer enhances LED surface durability and reliability, helping reduce damage from accidental contact, dust, moisture, and frequent handling in professional indoor environments.
• Flexible PCB Structure with Magnetic Mounting: The flexible PCB combined with a soft back shell and magnetic installation enables curved display construction, efficient assembly, convenient module replacement, and flexible front or rear maintenance depending on the installation structure.
• 169° Flexible Bending Capability: Front and rear bending support allows the module to adapt to curved LED walls, creative display structures, immersive environments, and customized indoor LED screen installations.
• Ultra Fine Pitch GOB Display Technology: Combining SMD1010 LED technology, GOB surface protection, 700 nits brightness, and 3840–4200Hz refresh performance, the module provides detailed image reproduction and stable operation for premium flexible LED applications.
• 16PIN HUB75 Signal Input: The 240×120mm P1.25 module uses a 16PIN HUB75 input interface for connection with compatible receiving cards and professional LED display control systems. The module does not provide a signal cascade output, and each module should be assigned an appropriate HUB output according to the receiving card configuration and loading capacity.

Installation Guide

• Confirm the LED screen design requirements, module layout, cabinet structure, receiving card configuration, receiving-card loading capacity, HUB output allocation, and power supply capacity before installation.
• Install the P1.25 240×120mm flexible GOB LED modules according to the designed curved or creative display structure and ensure accurate alignment.
• Secure the modules using the magnetic mounting system and ensure each module is properly positioned on the installation structure.
• Connect each module's 16PIN HUB75 input to the designated output of a compatible receiving card. This model does not support module-to-module signal cascading.
• Connect the DC 5V power cables correctly and verify signal and power connections before powering on the LED display system.
• Configure the receiving card according to the actual screen layout, module resolution, driver IC, scan mode, and receiving-card loading limits.
• The exact driver IC model may vary between production batches. Receiving-card configuration files should be matched to the actual hardware version supplied with the order.
• For maintenance, remove and replace modules using suitable tools and proper anti-static handling procedures according to the installation structure.
• Avoid excessive bending, impact, pressure, scratching, or surface damage during transportation, installation, and maintenance.

Applications

• Indoor Flexible GOB LED Display Screens
• P1.25 Ultra Fine Pitch GOB LED Modules
• Experience Center LED Displays
• Fine Pitch LED Video Walls
• Curved LED Display Projects
• Digital Art LED Displays
• Museum Digital Display Systems
• Exhibition LED Display Systems
• Architectural LED Installations
• Immersive Experience Spaces
• Corporate Lobby LED Displays
• Brand Experience LED Displays
• Premium Commercial Indoor LED Displays
• Custom Flexible GOB LED Screen Projects
• Large-Scale Ultra Fine Pitch GOB LED Display Projects
