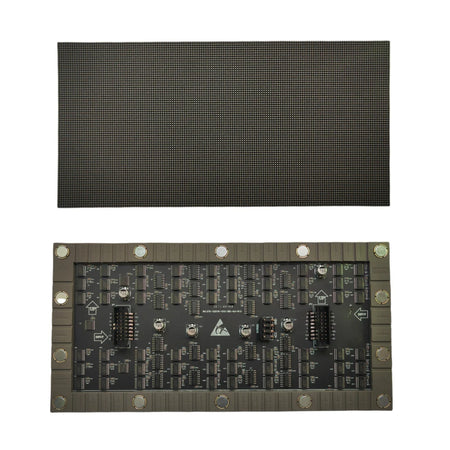

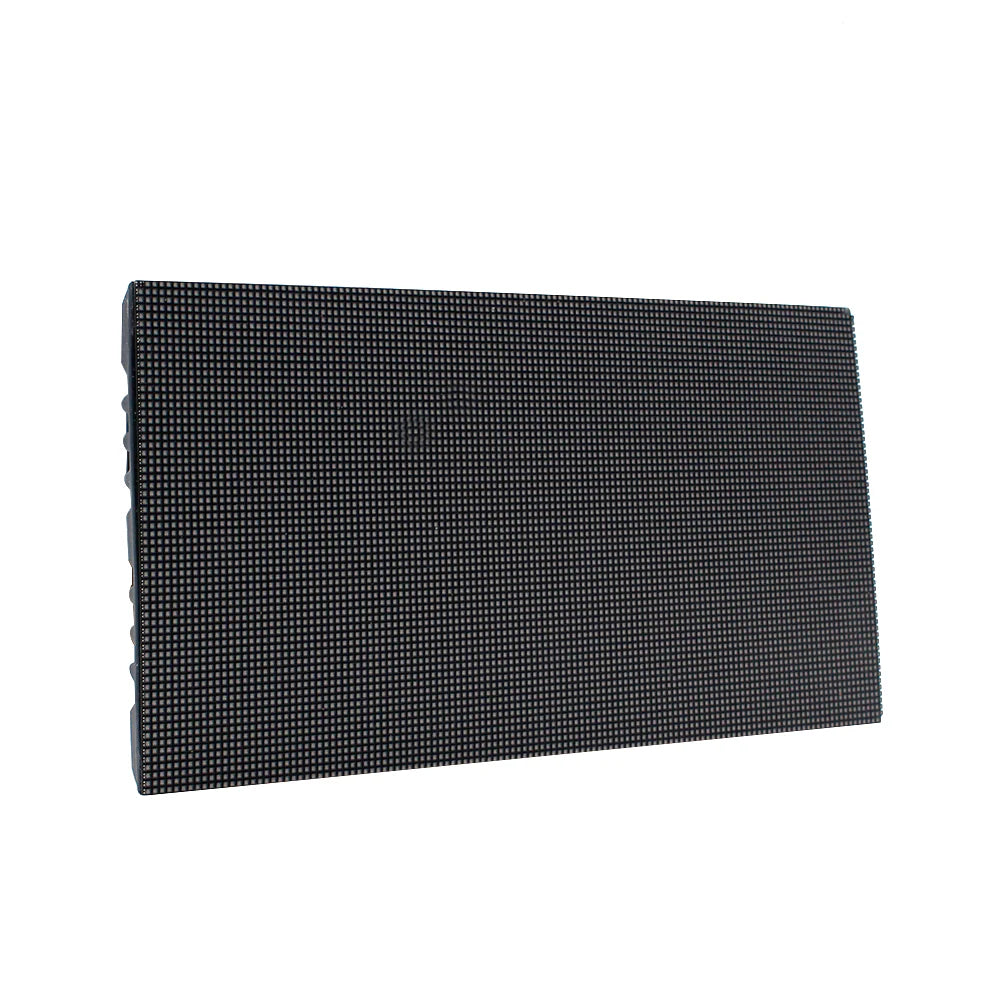

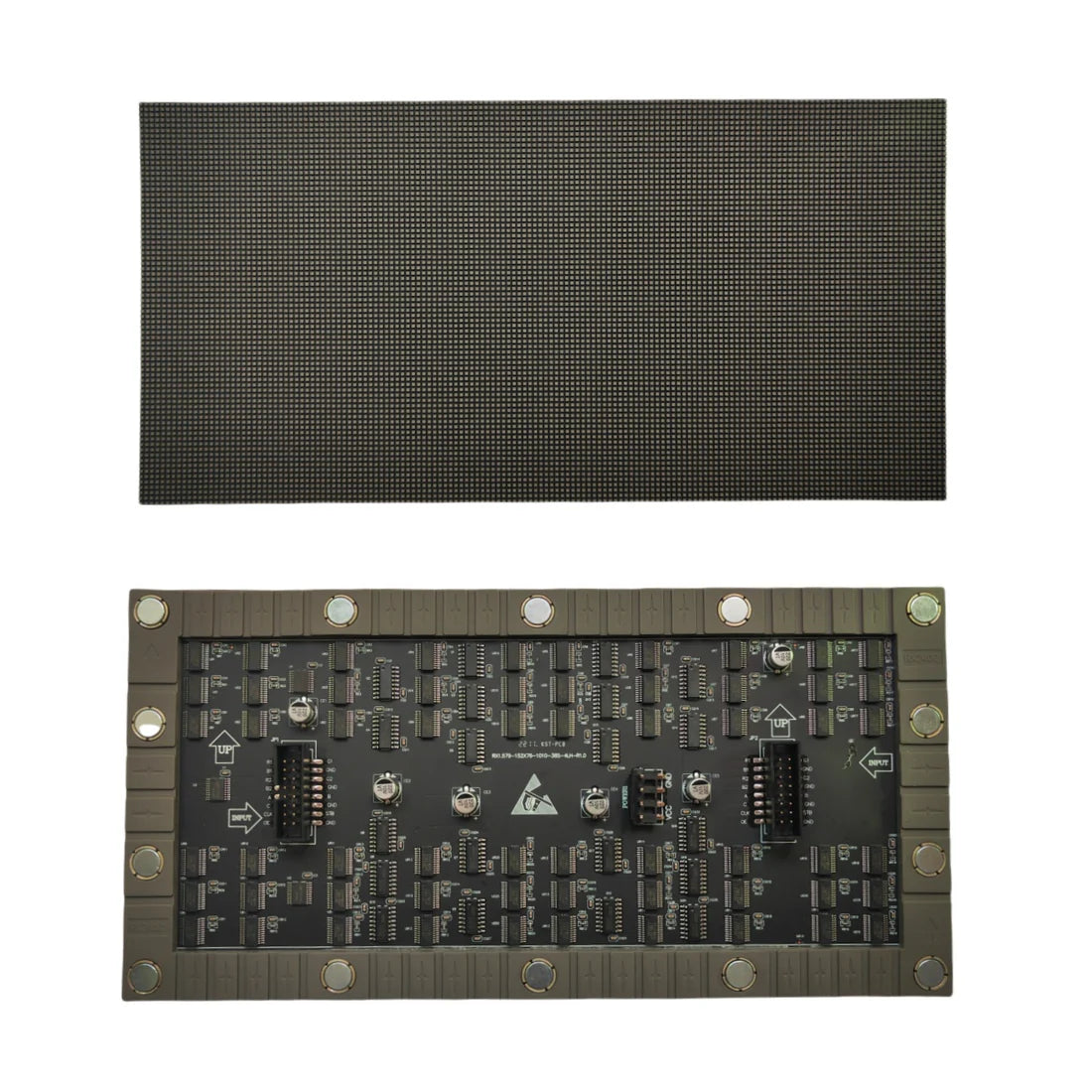

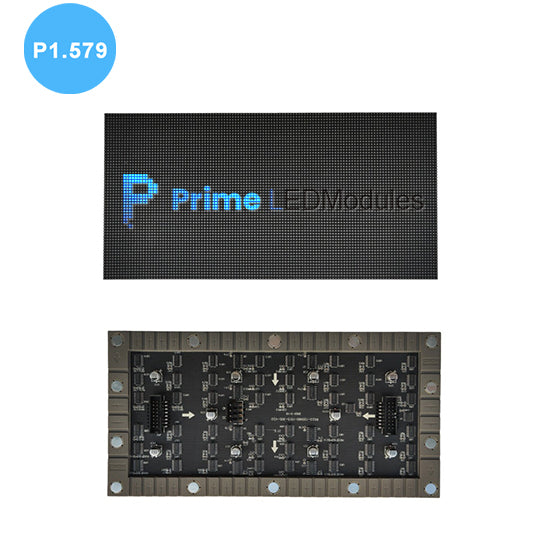

PIF-2S Series P1.579 Indoor Flexible LED Display Module – 240 × 120 mm Bendable LED Screen Panel
The PIF-2S Series P1.579 Indoor Flexible LED Module delivers ultra-fine resolution with a 1.579 mm pixel pitch, designed for premium curved LED walls and high-end stage display projects. Its bendable structure and exceptional image clarity make it ideal for immersive indoor environments that demand precise visual performance.
Perfect for ultra-fine stage displays, broadcast studios, luxury retail spaces, and creative digital installations.
Package & Packing Details
| Version | Package Included |
|---|---|
| 1-Pack Sample Kit | 1 × Power Supply Cable 1 × Data Cable 1 × P1.579 Flexible LED Module |
| 84-Pack Standard Pack | 84 × Power Supply Cables 84 × Data Cables 84 × P1.579 Flexible LED Modules |
About this item
-
Ultra-fine 1.579 mm pixel pitch provides outstanding image detail and crystal-clear visuals for close-viewing applications
-

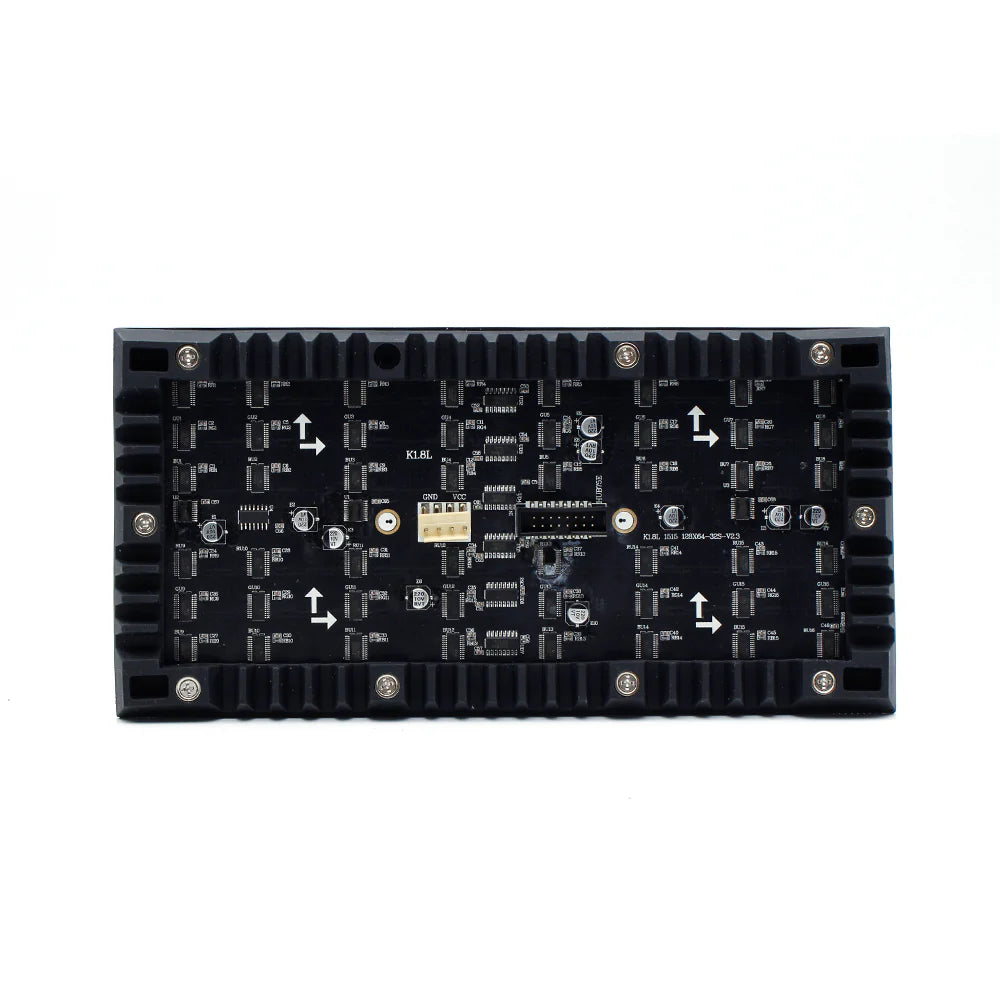

Flexible soft PCB structure supports curved, cylindrical, wave-shaped, and custom creative LED screen designs
-
High refresh rate up to 3840 Hz ensures flicker-free, stable video playback for stage filming and broadcast environments
-
Premium SMD LED technology delivers uniform brightness, accurate color reproduction, and long-term reliability
-
Magnetic front maintenance design allows fast installation and convenient module replacement without rear access
-
Designed for ultra-fine stage displays, broadcast studios, luxury exhibitions, premium retail, and immersive architectural LED projects
Quick Specs
| Specification | Detail |
|---|---|
| Pixel Pitch | 1.579 mm |
| Module Size | 240 × 120 mm |
| Resolution | 152 × 76 dots |
| LED Configuration | SMD |
| Pixel Density | 401,600 dots/m² |
| Brightness | ≥ 600 nits |
| Refresh Rate | 3840 Hz |
| Scan Mode | 1/38 |
| Viewing Angle | 140° (H) / 120° (V) |
| Port Type | HUB75 |
| Input Voltage | DC 5 V |
| Maintenance Method | Magnetic Front Access |
| Curvature Capability | ≥ 135° |
| Protection Rating | IP20 |
Installation & Maintenance Tips
-
Always use LED modules from the same production batch to ensure uniform brightness and color consistency across the entire LED wall
-
Ensure the mounting surface is flat, smooth, and stable to protect the flexible PCB structure
-
Do not exceed the recommended bending radius to prevent damage to internal circuits and solder joints
-
Magnetic front access allows quick replacement of faulty modules, especially suitable for curved or enclosed installations
-
Use compatible controllers, stable power supplies, and high-quality signal cables to guarantee optimal display performance
-
Regularly inspect module alignment and magnetic contact to maintain a seamless visual appearance
Shipping Information
-
Lead Time: In-stock products ship within 1–3 business days
-
Packaging: Safe packaging with foam padding to ensure safe transport
-
Shipping Origin: All products ship directly from our warehouse
-
Standard Shipping: 9–18 days
-
Express Shipping: 5–9 days
-
Shipping Costs: Calculated based on cart weight, dimensions, and destination
Full Specifications
| Specification | Detail |
|---|---|
| Model Series | PIF-2S Series |
| Item Type | Flexible Indoor LED Module |
| Pixel Pitch | 1.579 mm |
| LED Configuration | SMD |
| Module Resolution | 152 × 76 dots |
| Pixel Density | 401,600 dots/m² |
| Module Size | 240 × 120 × 8.6 mm |
| Module Weight | 0.2 kg |
| Port Type | HUB75 |
| Curvature Capability | ≥ 135° |
| Color Processing | 12-bit adjustable |
| Gray Level | 16–4096 adjustable |
| Refresh Rate | 3840 Hz |
| Scan Mode | 1/38 |
| Brightness | ≥ 600 nits |
| Viewing Angle (H/V) | 140° / 120° |
| Input Voltage | DC 5 V |
| Max Power Consumption | 15 W per module |
| Operating Temperature | −20 °C to 40 °C |
| Storage Temperature | −20 °C to 40 °C |
| Operating Humidity | 20% to 75% RH |
| Lifetime | ≥ 100,000 hours |
| Maintenance Method | Magnetic Front Access |
| Protection Rating | IP20 |
| Color Uniformity | ≥ 97% |
| Blind Spot Rate | ≤ 0.0003 |
Applications
This P1.579 flexible indoor LED module is ideal for:
-
Ultra-fine stage LED screens and premium performance backdrops
-
Broadcast studios and television production environments
-
High-end exhibitions and trade show LED displays
-
Luxury retail stores, flagship shops, and brand showrooms
-
Architectural LED art installations and immersive interior projects
-
Custom-shaped indoor video walls requiring ultra-high resolution and flawless visual quality
