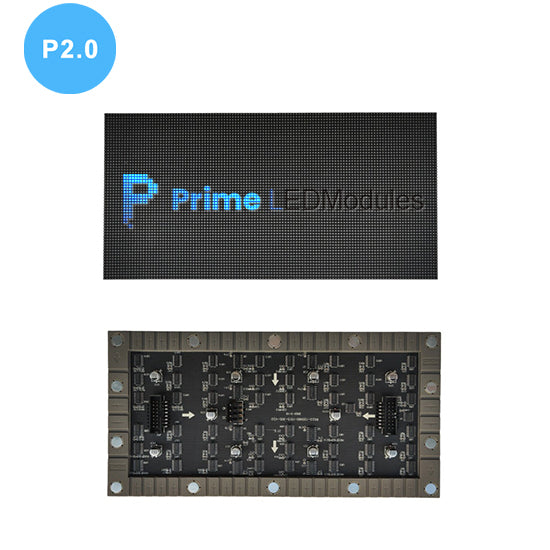

PIF-2S Series P2.0 Indoor Flexible LED Module – 240×120mm

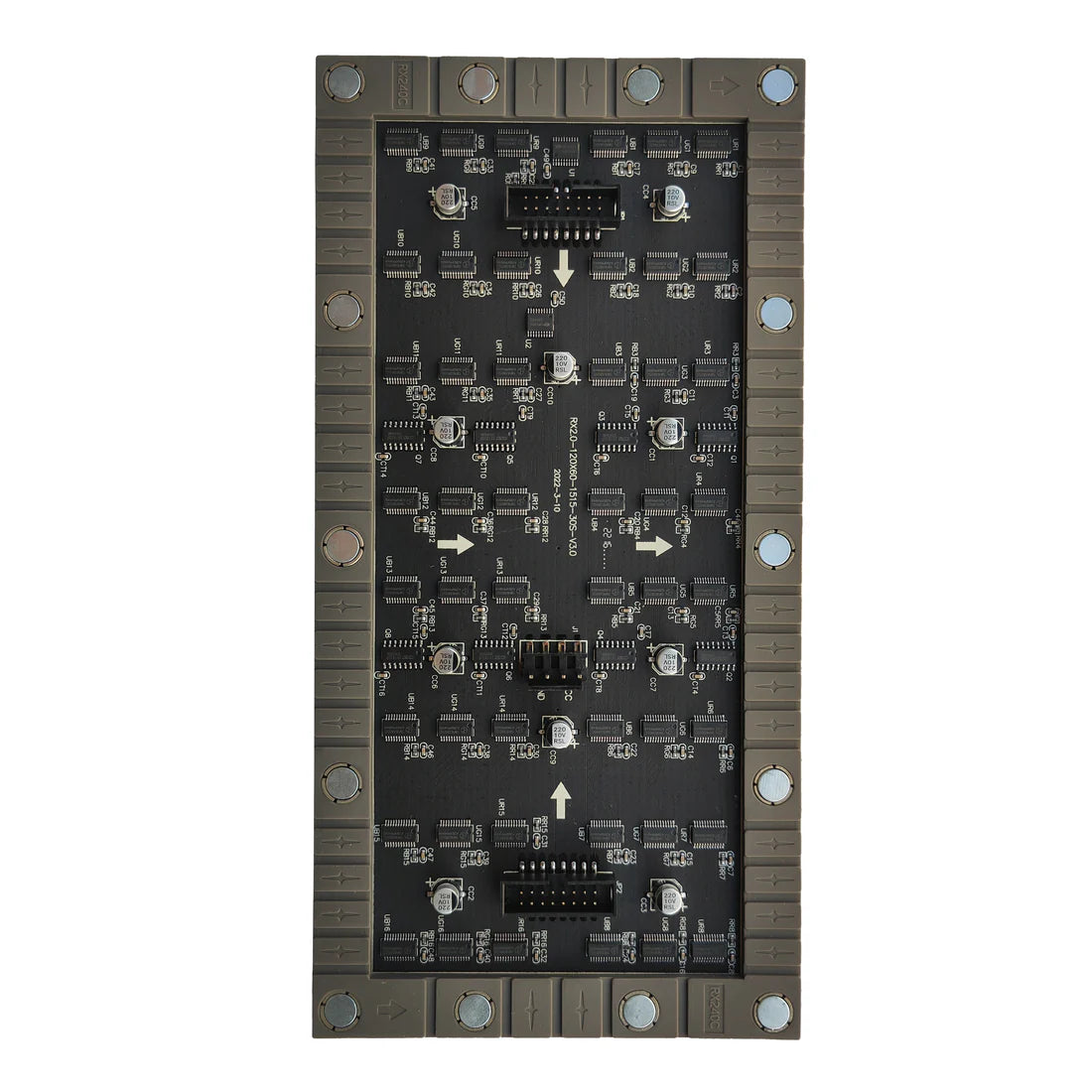

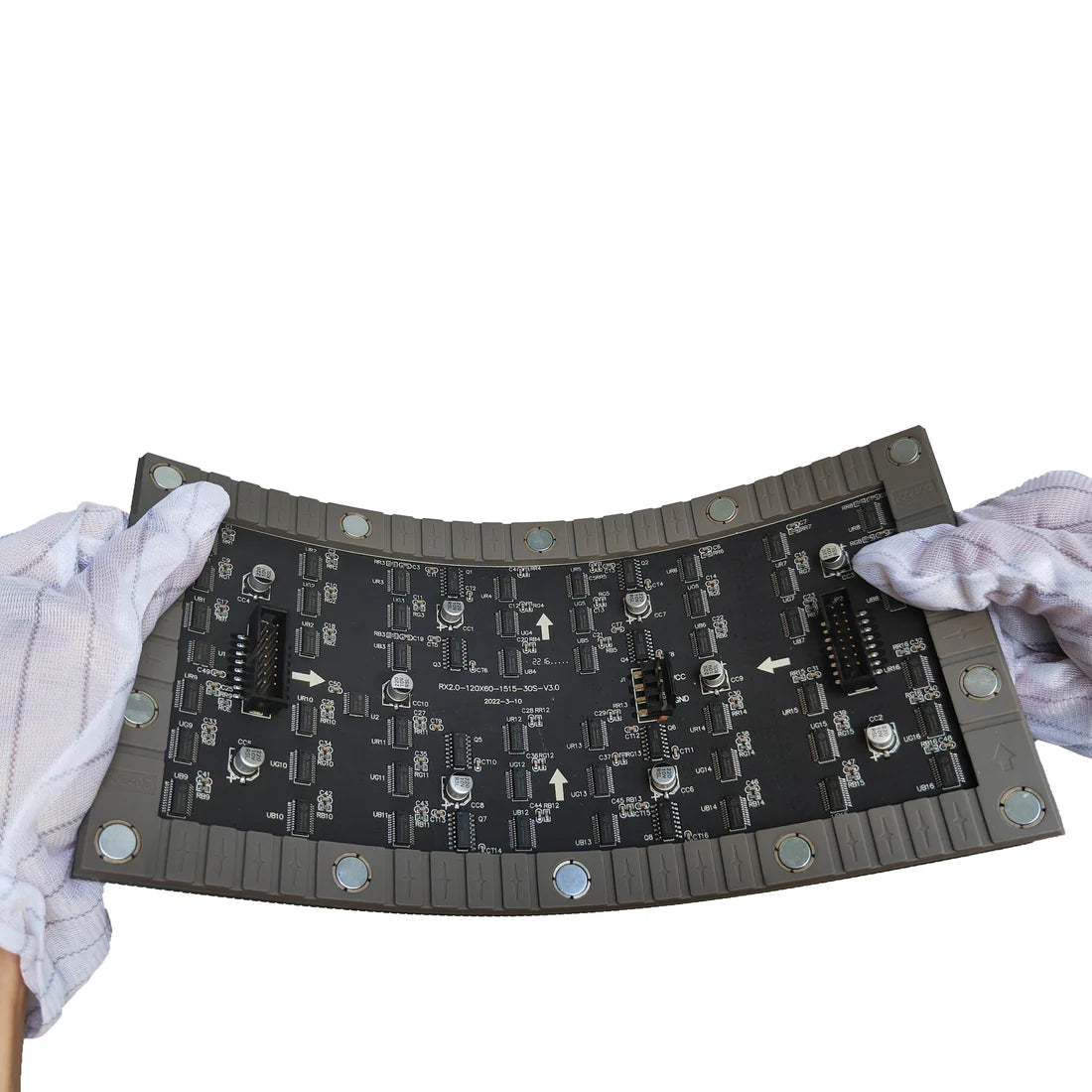

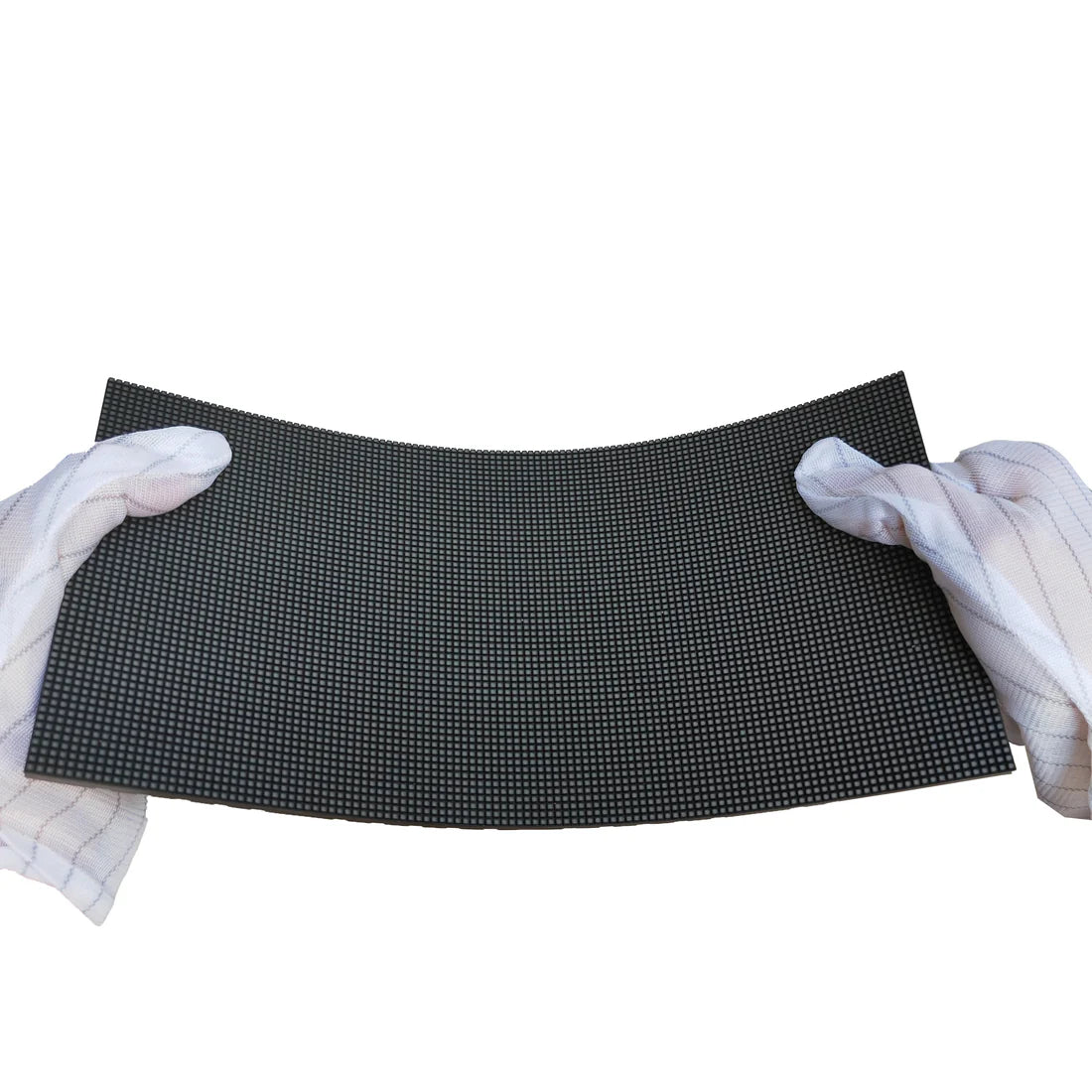

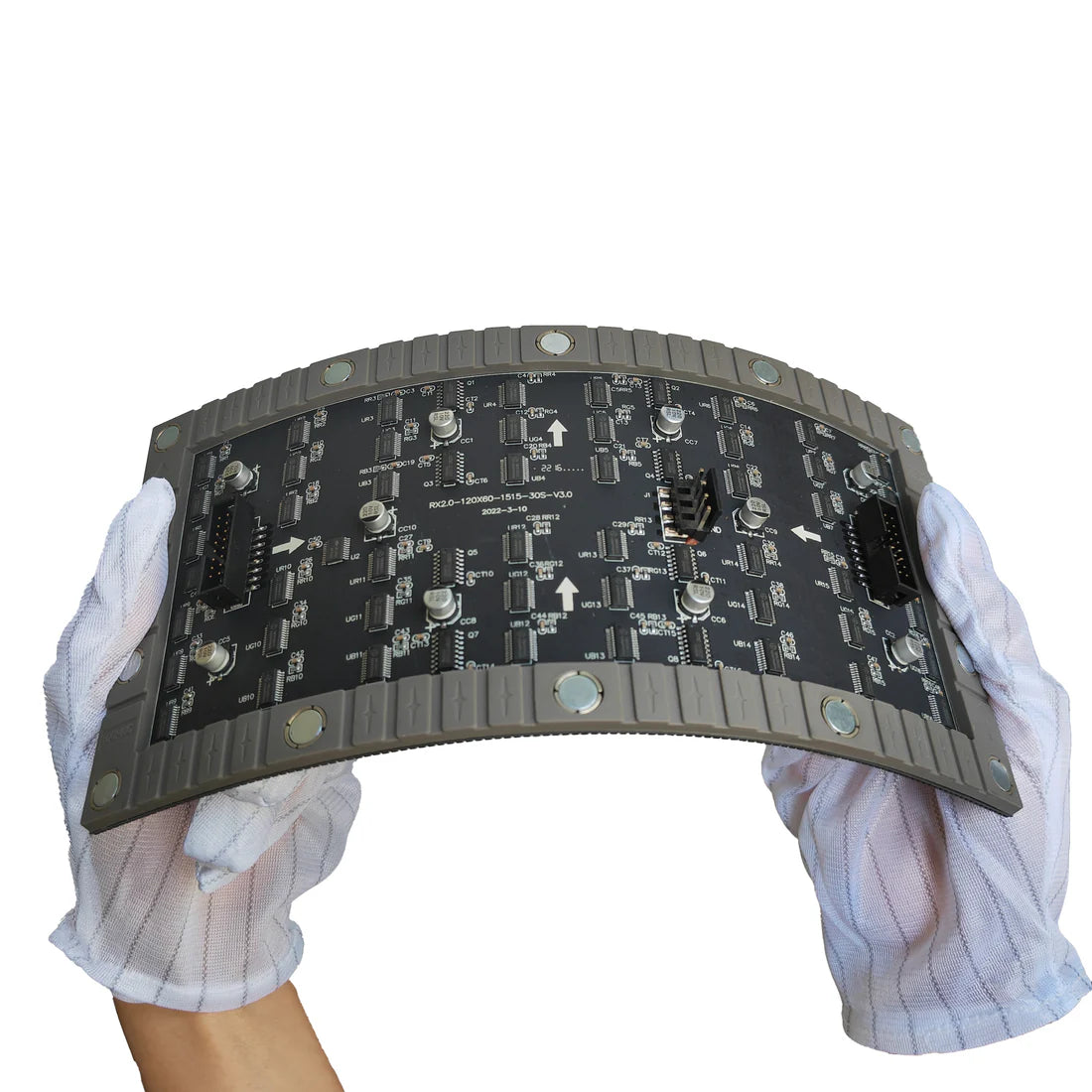

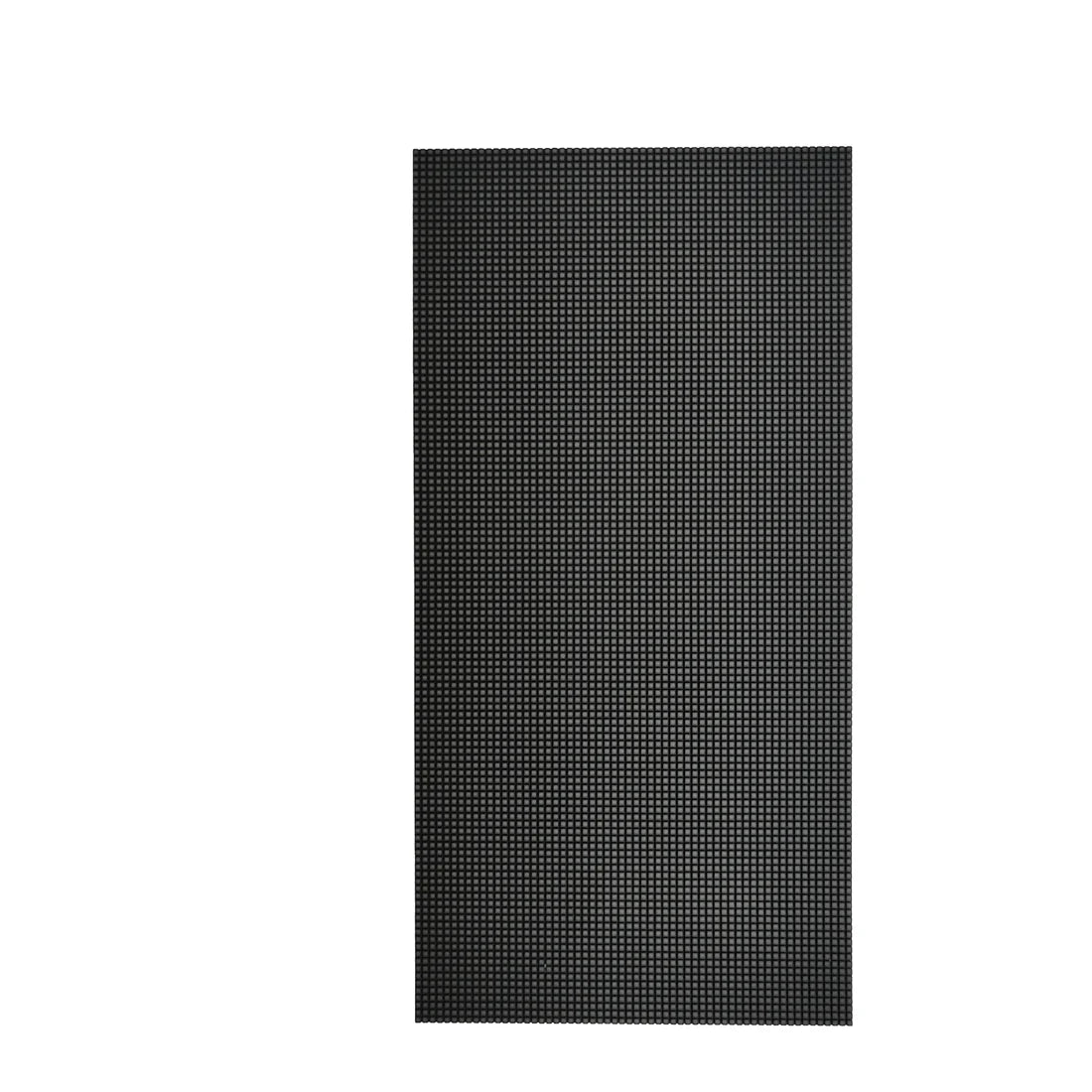

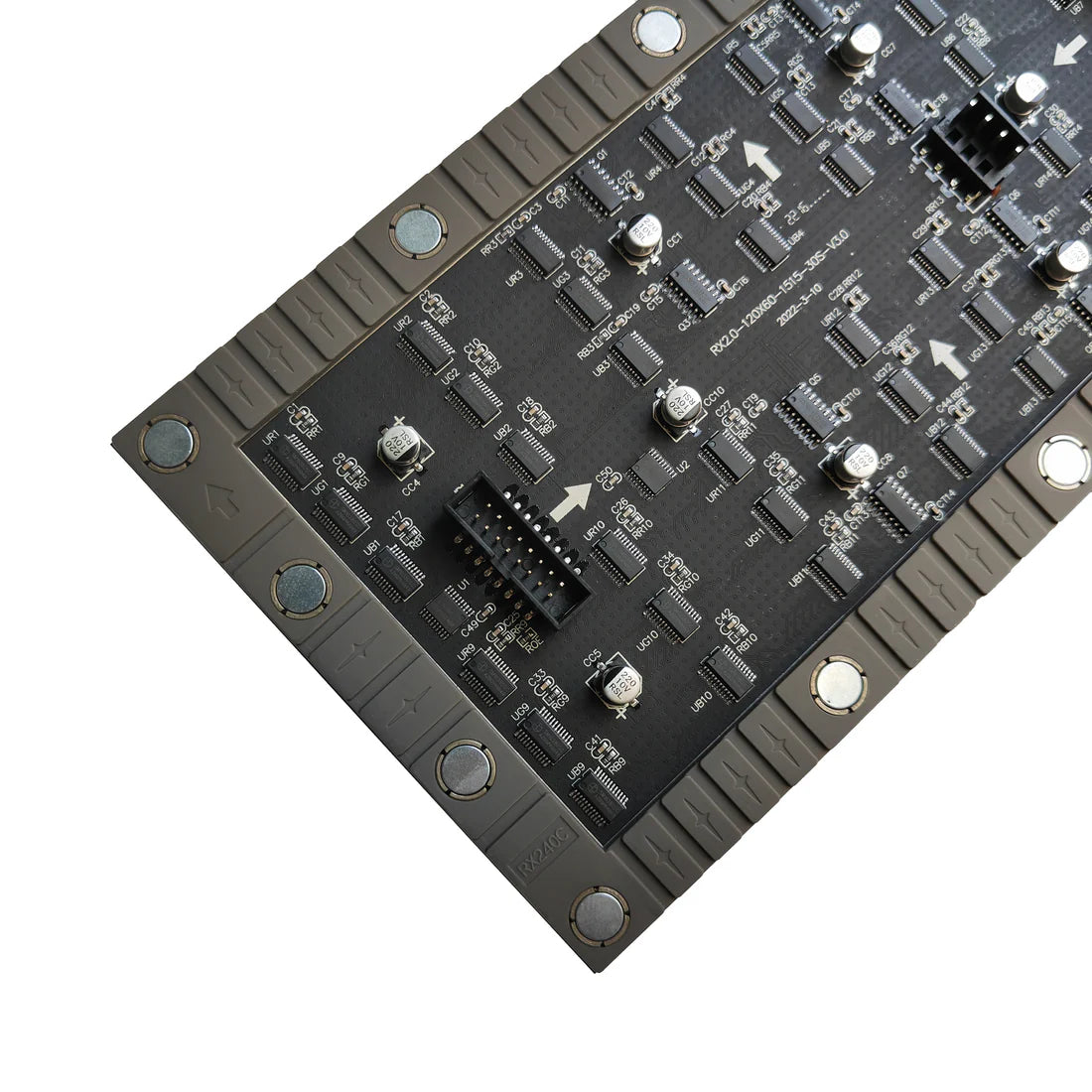

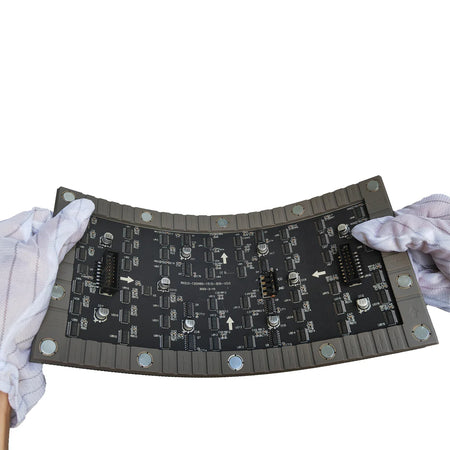

The PIF-2S Series P2.0 SMD Indoor Flexible LED Module is a versatile and flexible display solution, designed for indoor applications. With a size of 240mm x 120mm and a pixel resolution of 120 x 60 dots (96 dots vertically), this module features flexible SMD technology that can be easily integrated into custom metal enclosures or creative curved wall structures, offering a seamless and visually engaging display experience.
Packing Details
| Version | Package Included |
|---|---|
| 1-Pack Sample Kit | 1 x Power Supply Cable 1 x Data Cable 1 x Flexible P2.0 LED Module |
| 84-Pack Standard Pack | 84 x Power Supply Cable 84 x Data Cable 84 x Flexible P2.0 LED Modules |
Purchase Recommendations and Importation Information
-
Same Batch Purchase: To ensure optimal performance and consistency, we recommend purchasing LED modules from the same production batch. This will help avoid discrepancies in brightness, color display, and configuration between different batches.
-
Spare Parts: Ordering extra modules as spare parts is advised for maintenance, ensuring consistent display quality in the long term.
-
Full Project Purchases: To ensure uniformity in your LED screen project, we recommend purchasing enough modules and necessary spare parts at once.
Shipping Information
-
Lead Time: In-stock products ship within 1–3 business days
-
Packaging: Safe packaging with foam padding to ensure safe transport.
-
Shipping Origin: All products ship directly from our warehouse.
-
Standard Shipping: 9–18 days
-
Express Shipping: 5–9 days
-
Shipping Costs: Calculated based on cart weight, dimensions, and destination
Technical Specifications
| Specification | Details |
|---|---|
| Model | P2.0 |
| Item | Flexible Indoor LED Module |
| Pixel Pitch | 2.0 mm |
| LED Configuration | Copper Wired SMD1515 |
| Module Resolution | 120 × 60 dots |
| Pixel Density | 250,000 dots/m² |
| Module Size | 240 × 120 × 8.6 mm |
| Port Type | HUB75 |
| Curvature | ≥158° |
| Module Weight | 0.21 kg (PLM) |
| Color Processing (Bit) | 12–16 bit adjustable (PLM 16-bit + LLW 12–13-bit → 综合统一) |
| Gray Level | 16–65536 adjustable levels |
| Refresh Rate | 3840 Hz |
| Frame Rate | 60 Hz |
| Driving Mode (Scan) | 1/30 |
| Brightness | ≥600 nits |
| Color Temperature | 3000–10000 K adjustable |
| Viewing Angle (H/V) | ≥160° (H) / ≥140° (V) |
| Contrast Ratio | ≥5000:1 |
| Brightness Uniformity | ≥97% |
| Input Voltage (DC) | DC 5V |
| Working AC Voltage | AC110–220V ±10% |
| Max Current / Module | 3 A |
| Max Power Consumption | 14–15 W per module |
| Peak Power Consumption | 490 W/m² |
| Average Power Consumption | 140 W/m² |
| Operating Temperature | -10°C ~ 70°C (PLM 数据更宽，优先使用) |
| Storage Temperature | -20°C ~ 40°C |
| Operating Humidity | 10% ~ 90% RH (no condensation) |
| Storage Humidity | 10% ~ 85% RH (no condensation) |
| Lifetime | ≥100,000 hours |
| Usage Environment | Creative Wall-Mounted |
| Maintenance Method | Magnetic Front Access |
| Assembly / Maintenance | Front & Rear Assembly / Maintenance |
| Cabinet Material | Powder-coated sheet metal steel cabinet |
| Cabinet Evenness | ≤0.5 mm |
| IP Rating | IP20 |
| Color Uniformity | ≥97% |
| Blind Spot Rate | ≤0.0003 |
Applications
-
Creative Displays: Curved walls, artistic installations, and custom-shaped designs.
-
Retail & Commercial Signage: Store displays, product showcases, and advertising.
-
Event & Stage Backdrops: Eye-catching displays for concerts, exhibitions, and events.
-
Indoor Digital Signage: Ideal for malls, airports, museums, and public spaces.
