Home » PIF-2S Series P2.5 Indoor Flexible LED Module – 240×120mm Soft Bendable SMD Panel | 2.5mm Pixel Pitch | Creative LED Displays | 1pcs / 84pcs
PrimeLEDModules

PIF-2S Series P2.5 Indoor Flexible LED Module – 240×120mm Soft Bendable SMD Panel | 2.5mm Pixel Pitch | Creative LED Displays | 1pcs / 84pcs

In stock
SKU: PLM-MZ02-PIF-2S-P2.5-01
$13.85
Pixel Pitch
Package Qty

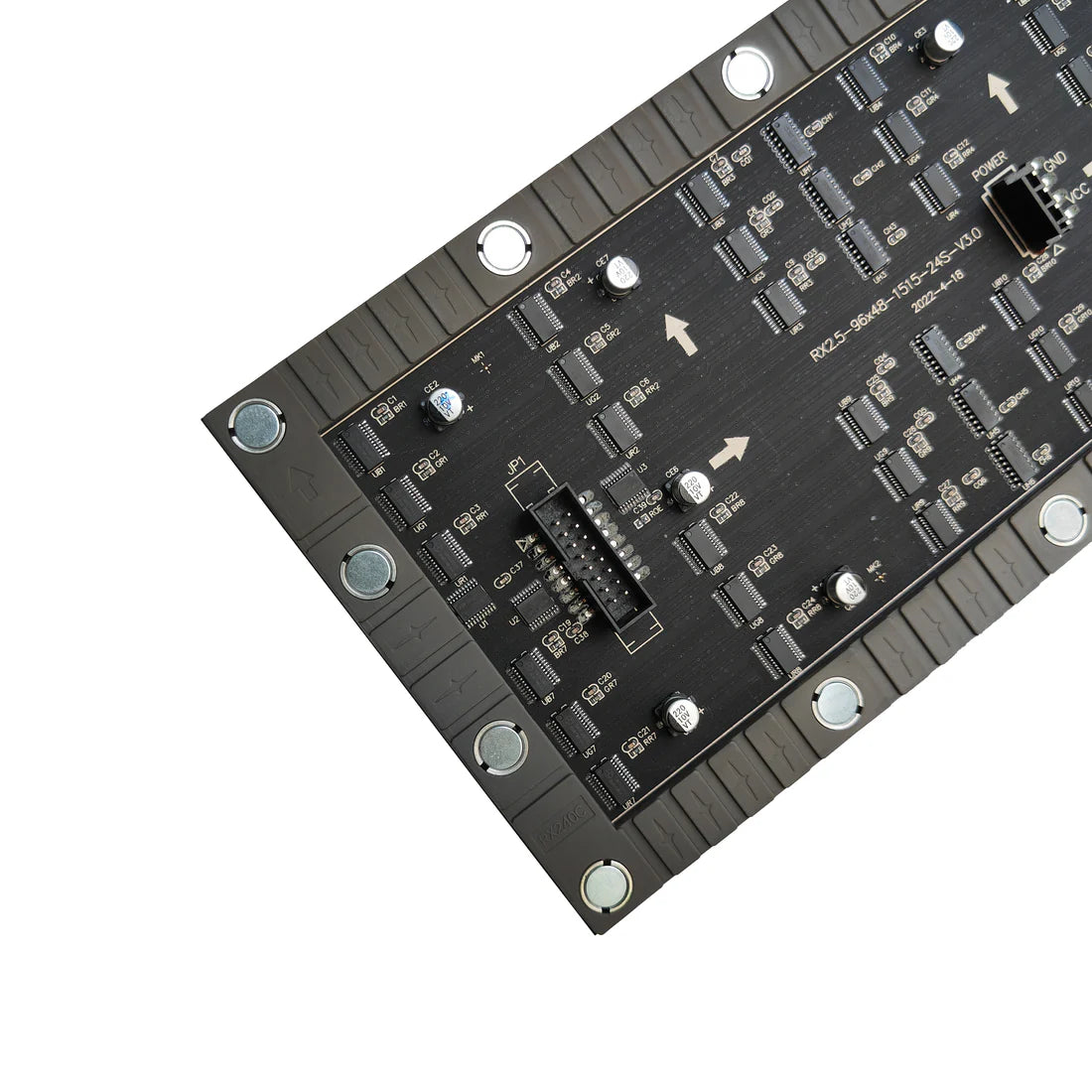

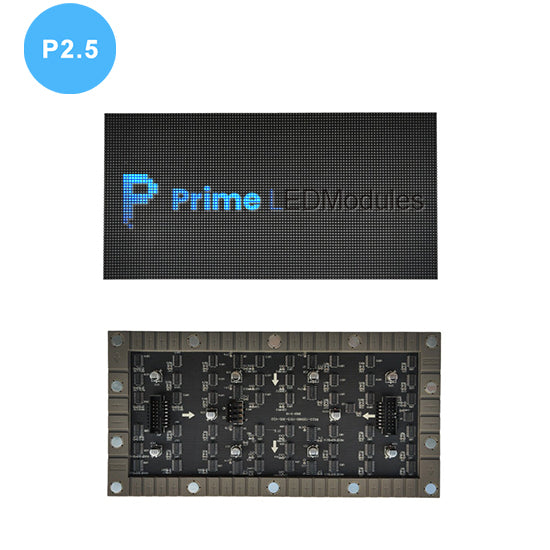

PIF-2S Series P2.5 Indoor Flexible LED Display Module – 240 × 120 mm Bendable LED Screen Panel

The PIF-2S Series P2.5 Indoor Flexible LED Module features a fine 2.5 mm pixel pitch and a soft bendable structure, designed for high-definition creative LED walls and curved indoor display projects. It delivers sharper image detail, excellent color uniformity, and smooth visual performance for artistic installations, retail signage, and immersive digital environments.

Ideal for custom-shaped video walls, exhibition displays, and premium indoor LED applications where image clarity and flexibility are essential.

Package & Packing Details

Version Package Included
1-Pack Sample Kit 1 × Power Supply Cable
1 × Data Cable
1 × P2.5 Flexible LED Module
84-Pack Standard Pack 84 × Power Supply Cables
84 × Data Cables
84 × P2.5 Flexible LED Modules

About this item

  • Fine 2.5 mm pixel pitch delivers sharper image quality and more detailed visual performance for close-viewing indoor applications

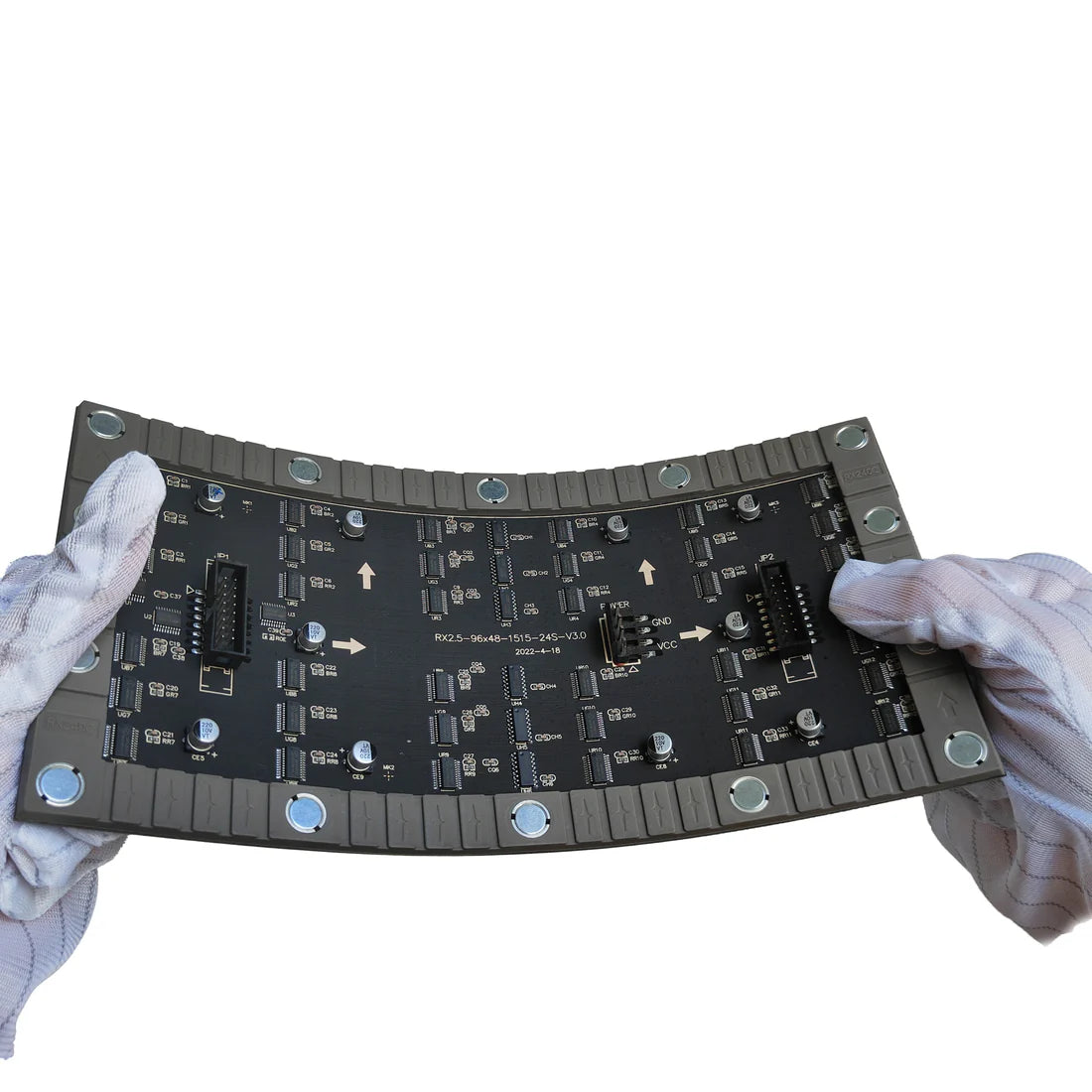

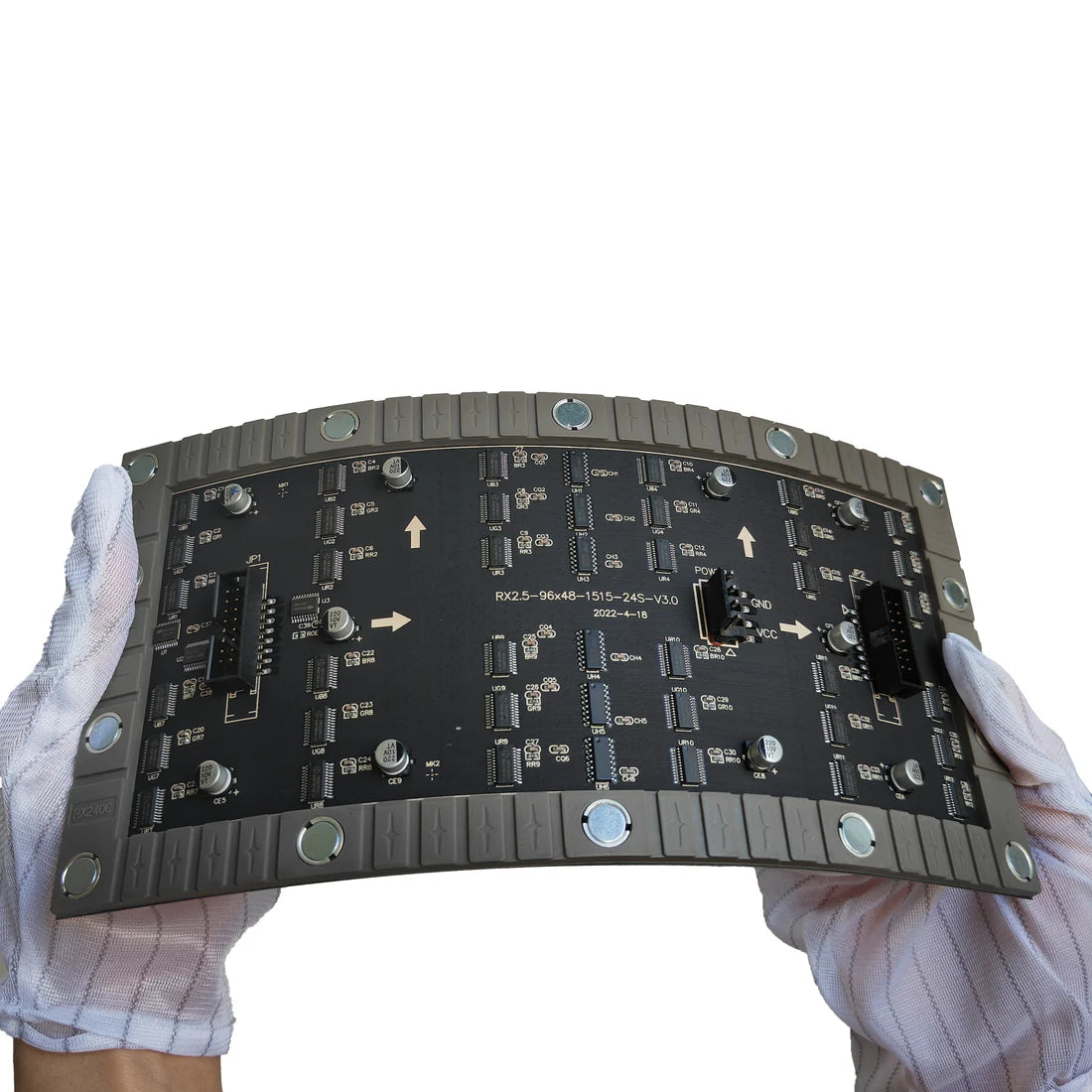

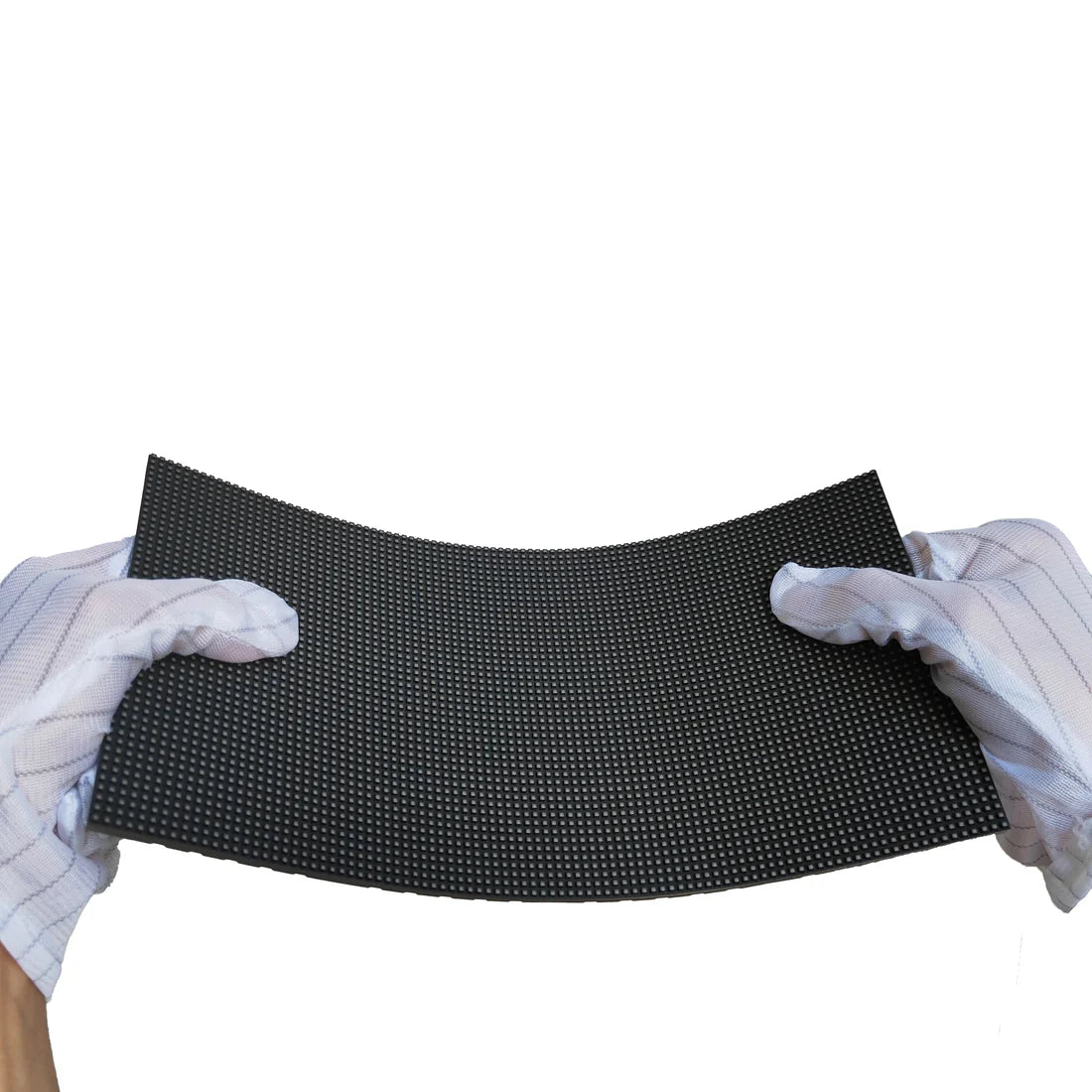

  • Flexible soft PCB structure supports curved, cylindrical, wave-shaped, and custom creative LED screen designs

  • High refresh rate up to 3840 Hz ensures flicker-free, stable video playback for professional displays and camera use

  • High-quality SMD LED technology provides uniform brightness, vivid colors, and excellent long-term stability

  • Magnetic front maintenance design allows fast installation and easy module replacement without rear access

  • Designed for creative LED walls, retail visual merchandising, exhibitions, stage backdrops, and immersive architectural displays

Quick Specs

Specification Detail
Pixel Pitch 2.5 mm
Module Size 240 × 120 mm
Resolution 96 × 48 dots
LED Configuration SMD
Pixel Density 160,000 dots/m²
Brightness ≥ 600 nits
Refresh Rate 3840 Hz
Scan Mode 1/24
Viewing Angle 140° (H) / 120° (V)
Port Type HUB75
Input Voltage DC 5 V
Maintenance Method Magnetic Front Access
Curvature Capability ≥ 135°
Protection Rating IP20

Installation & Maintenance Tips

  • Use LED modules from the same production batch to ensure consistent brightness and color uniformity across the entire LED wall

  • Ensure the mounting surface is flat and stable to prevent excessive stress on the flexible PCB

  • Do not exceed the recommended bending radius to avoid damaging internal circuits and solder joints

  • Magnetic front access allows fast replacement of faulty modules, especially suitable for curved and enclosed installations

  • Use compatible controllers, stable power supplies, and quality signal cables to guarantee reliable display performance

  • Regularly inspect module alignment and magnetic fixation to maintain a seamless visual appearance

Shipping Information

  • Lead Time: In-stock products ship within 1–3 business days

  • Packaging: Safe packaging with foam padding to ensure safe transport

  • Shipping Origin: All products ship directly from our warehouse

  • Standard Shipping: 9–18 days

  • Express Shipping: 5–9 days

  • Shipping Costs: Calculated based on cart weight, dimensions, and destination

Full Specifications

Specification Detail
Model Series PIF-2S Series
Item Type Flexible Indoor LED Module
Pixel Pitch 2.5 mm
LED Configuration SMD
Module Resolution 96 × 48 dots
Pixel Density 160,000 dots/m²
Module Size 240 × 120 × 8.6 mm
Module Weight 0.2 kg
Port Type HUB75
Curvature Capability ≥ 135°
Color Processing 12-bit adjustable
Gray Level 16–4096 adjustable
Refresh Rate 3840 Hz
Scan Mode 1/24
Brightness ≥ 600 nits
Viewing Angle (H/V) 140° / 120°
Input Voltage DC 5 V
Max Power Consumption 15 W per module
Operating Temperature −20 °C to 40 °C
Storage Temperature −20 °C to 40 °C
Operating Humidity 20% to 75% RH
Lifetime ≥ 100,000 hours
Maintenance Method Magnetic Front Access
Protection Rating IP20
Color Uniformity ≥ 97%
Blind Spot Rate ≤ 0.0003

Applications

This P2.5 flexible indoor LED module is ideal for:

  • High-definition curved LED walls and creative digital installations

  • Premium retail stores, shopping malls, and showroom visual displays

  • Exhibition booths and trade show LED backdrops

  • Stage backgrounds and event LED screens

  • Architectural LED art projects and immersive interior spaces

  • Custom-shaped indoor video walls requiring fine image detail and flexibility
