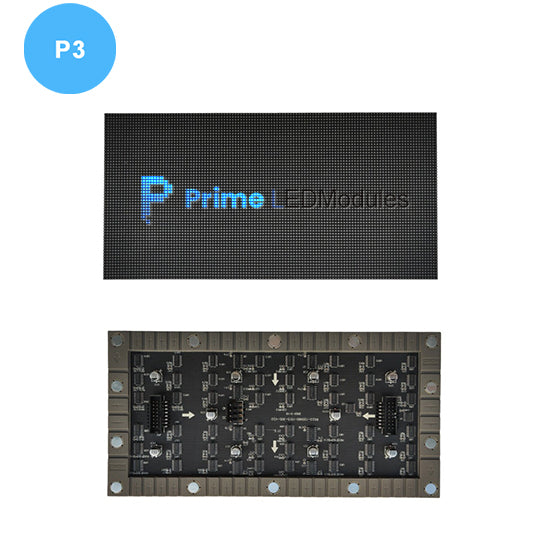

PIF-2S Series P3 Indoor Flexible LED Display Module – 240 × 120 mm Bendable LED Screen Panel
The PIF-2S Series P3 Indoor Flexible LED Module delivers vivid, dynamic visuals with a 3.0 mm pixel pitch and bendable design for creative indoor video walls, artistic curved installations, and retail signage. Engineered for superior image clarity and uniform brightness, this flexible LED display panel supports custom shapes and immersive display environments.
Perfect for events, exhibitions, architectural walls, and creative commercial spaces.
Package & Packing Details
| Version | Package Included |
|---|---|
| 1-Pack Sample Kit | 1 × Power Supply Cable 1 × Data Cable 1 × P3 Flexible LED Module |
| 84-Pack Standard Pack | 84 × Power Supply Cables 84 × Data Cables 84 × P3 Flexible LED Modules |
About this item
-

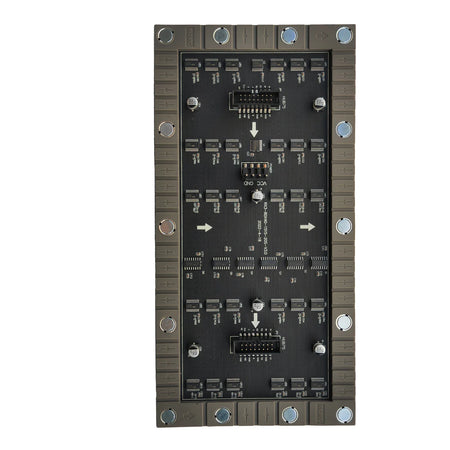

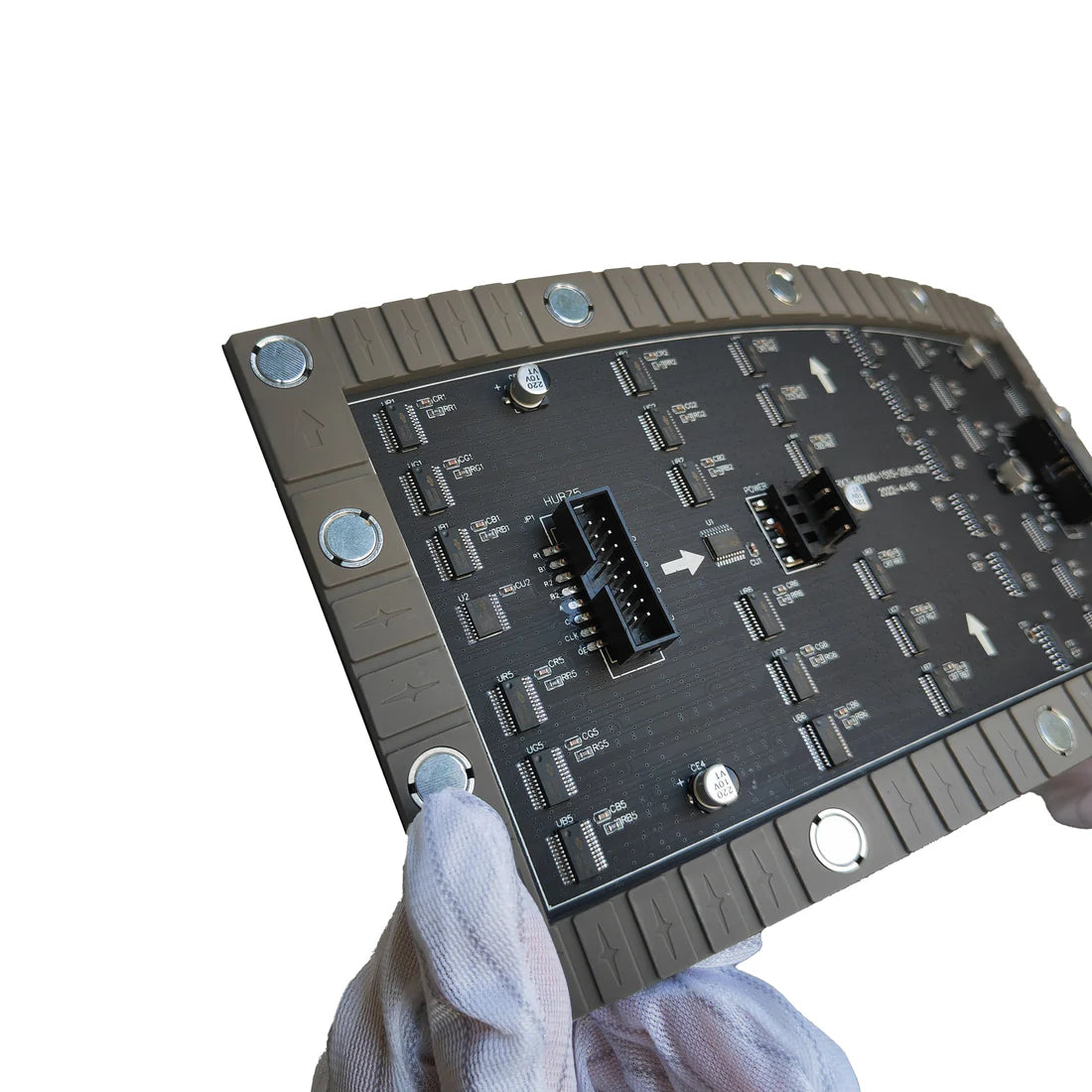

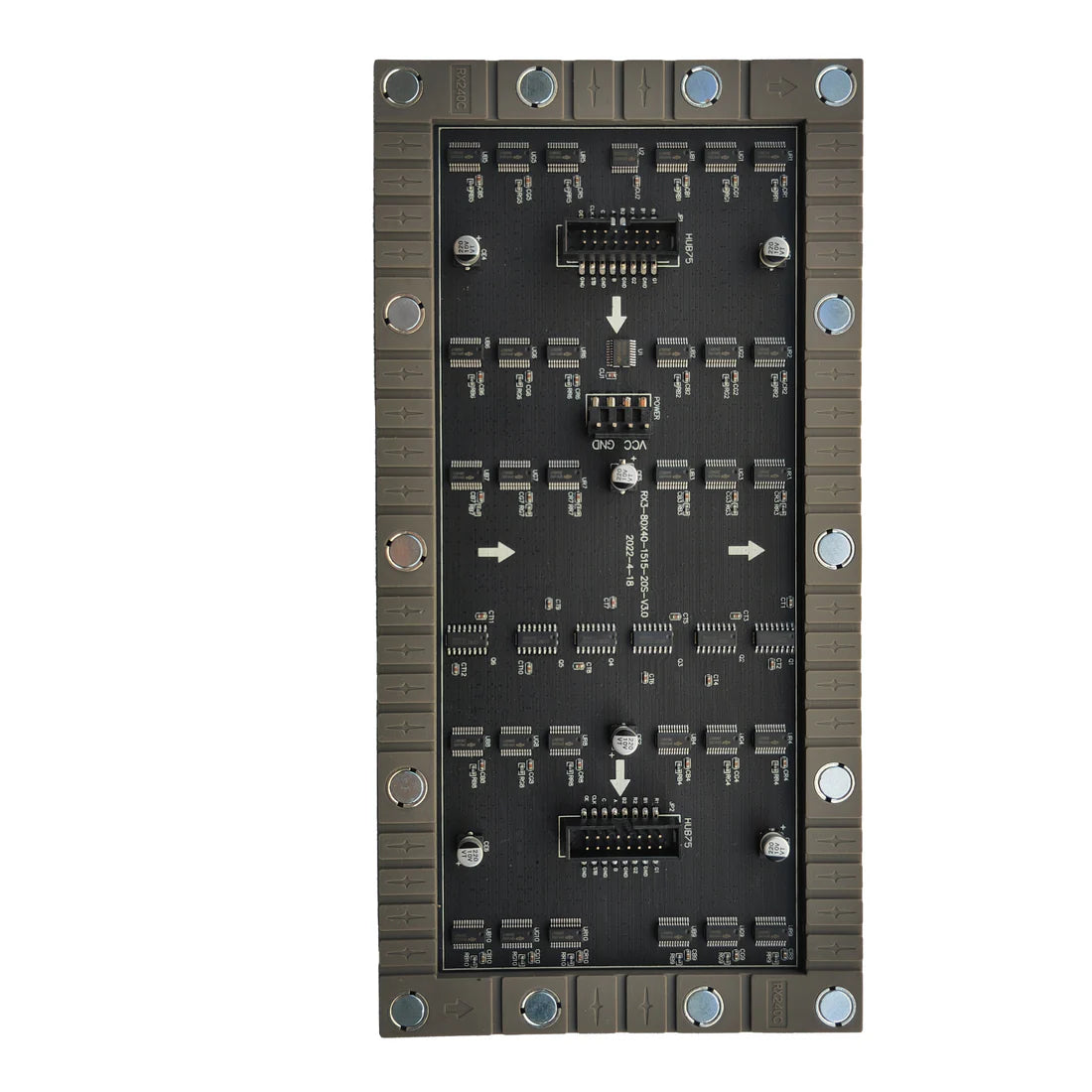

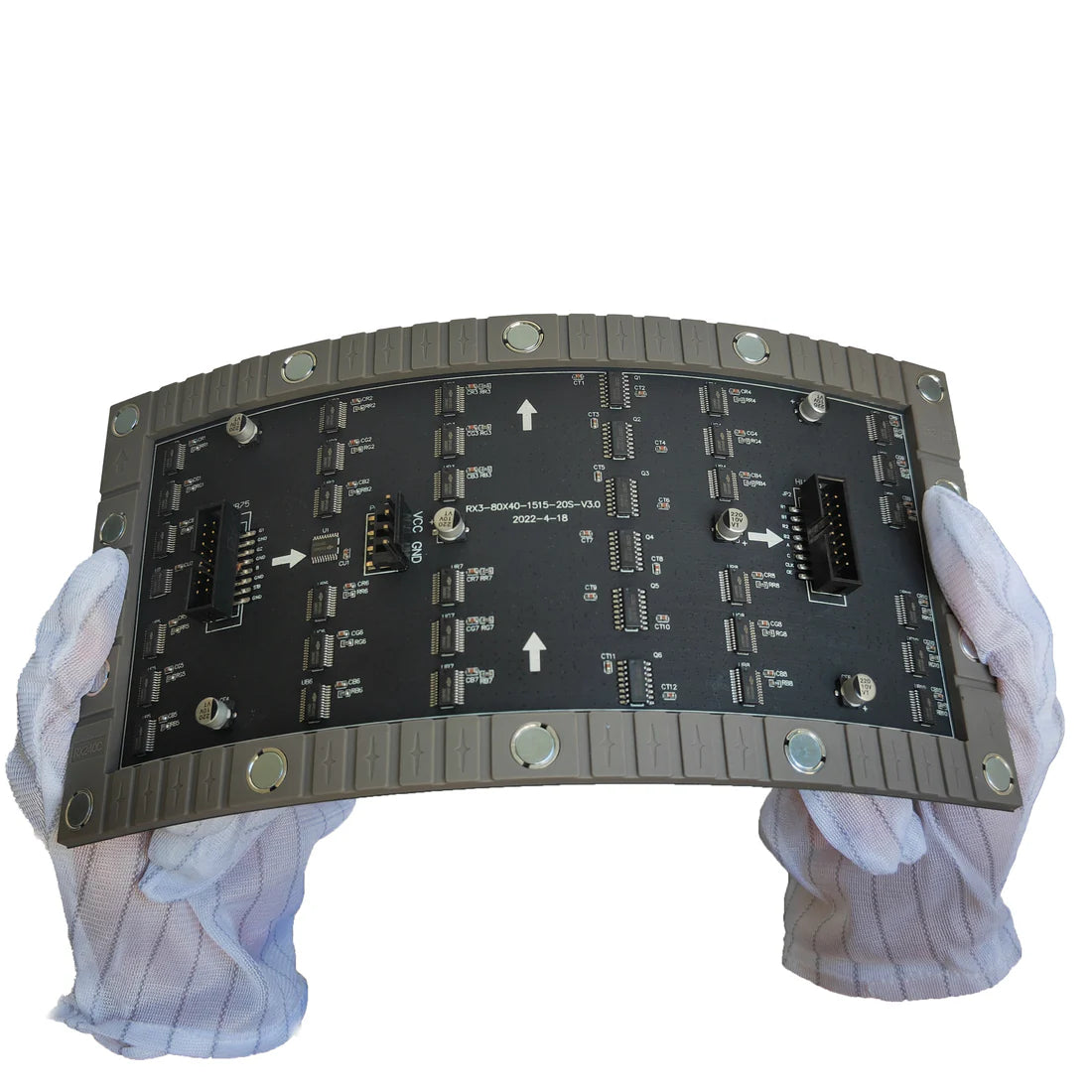

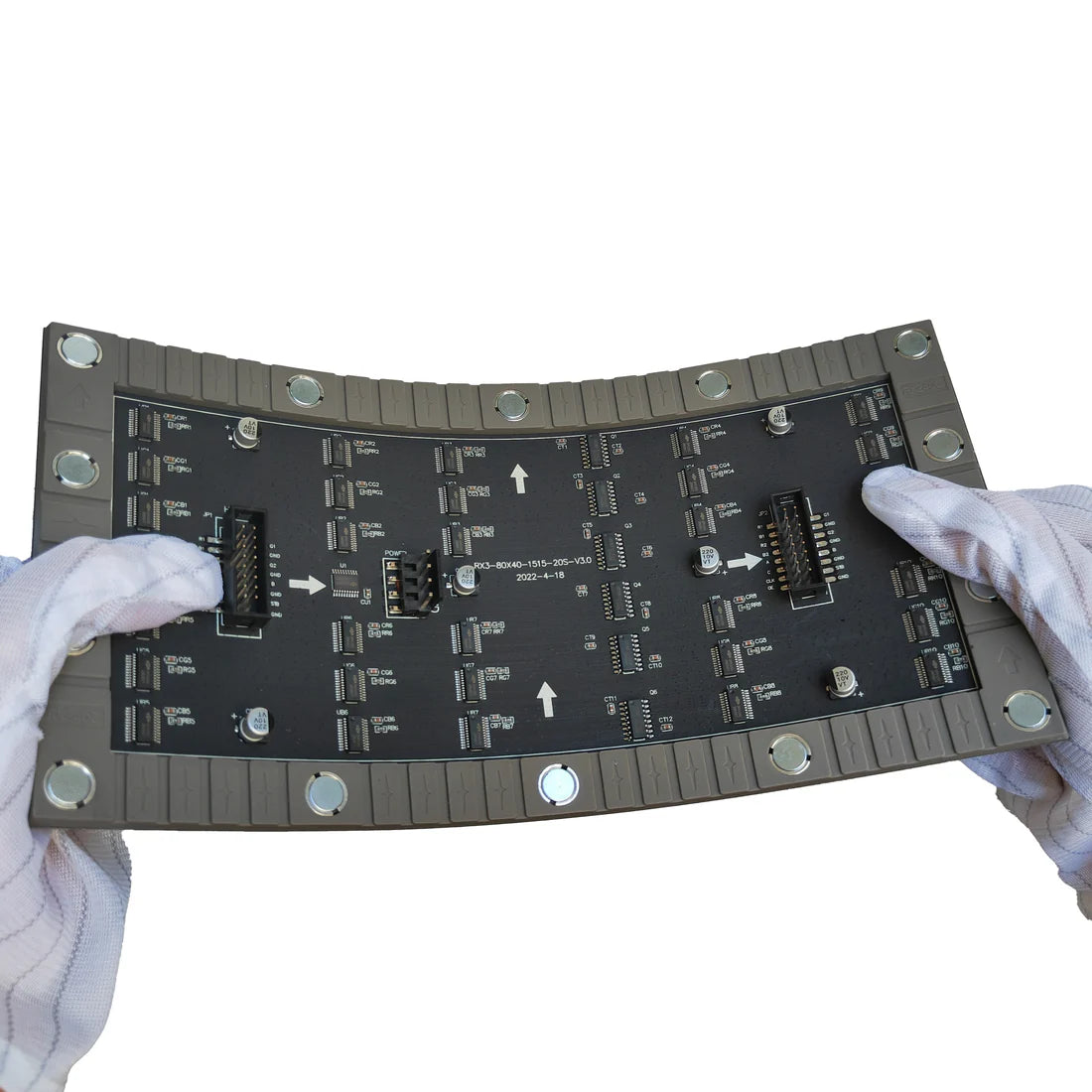

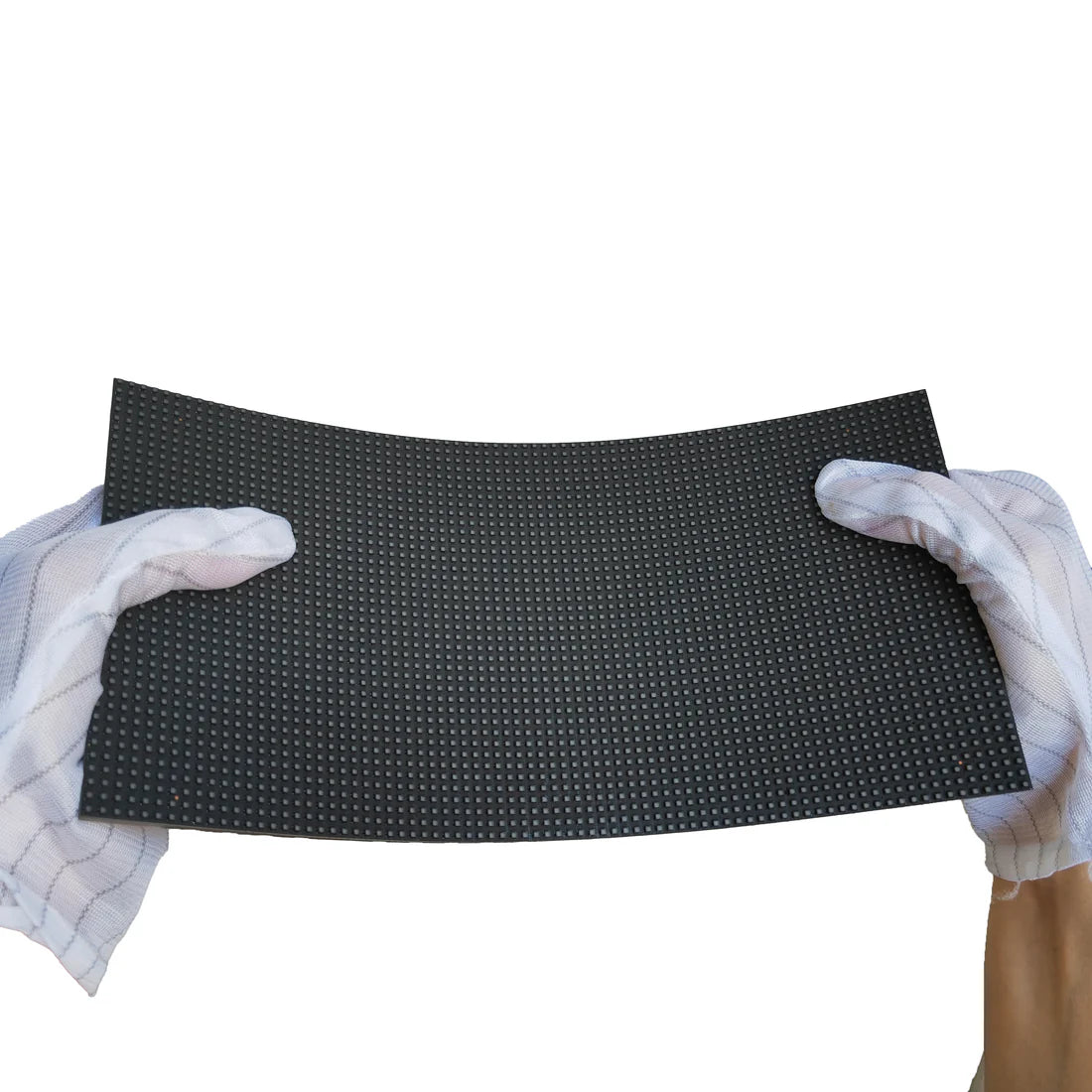

Flexible bendable design with soft PCB structure, ideal for curved, cylindrical, wave, or custom shaped LED displays
-

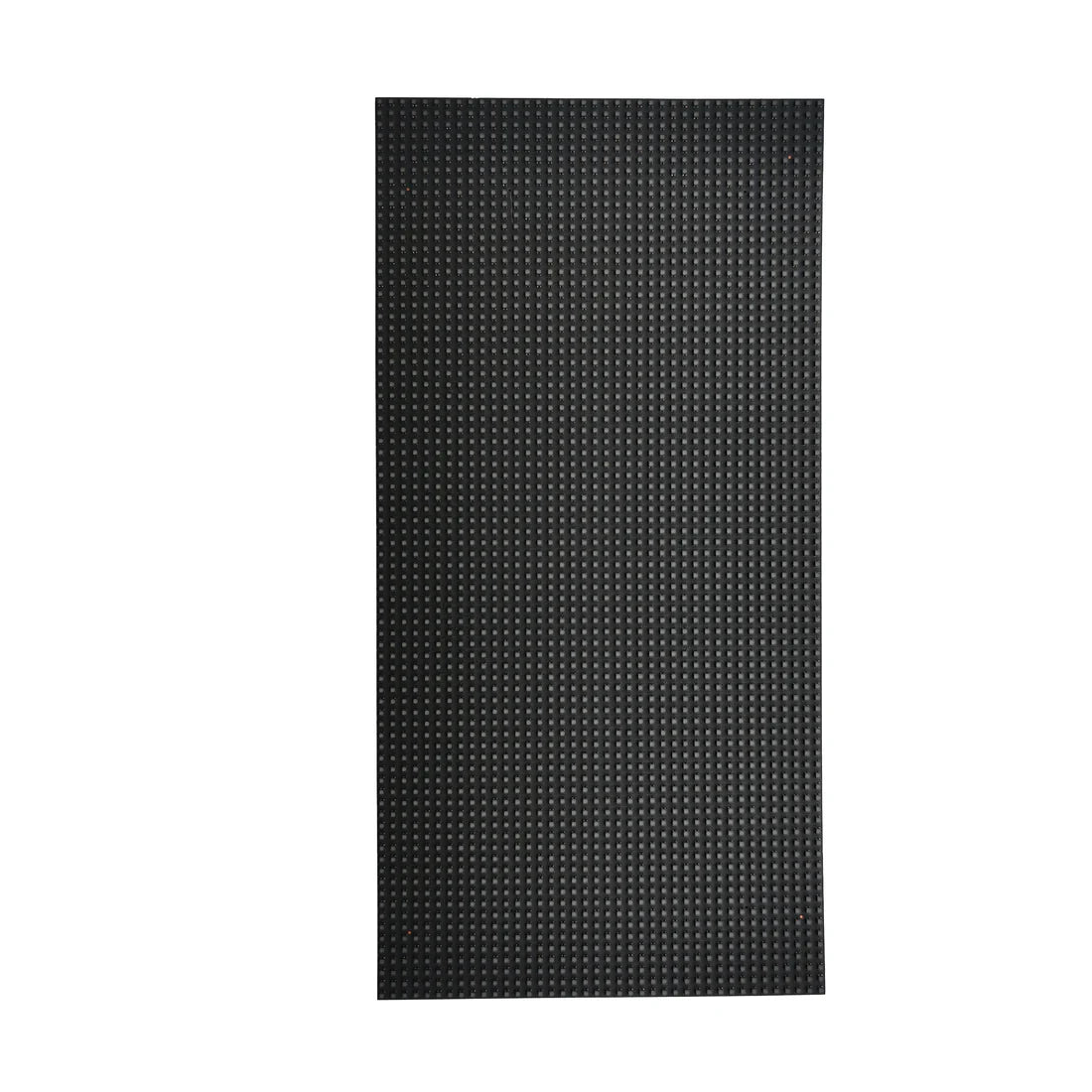

3.0 mm pixel pitch provides sharp image quality and smooth visual performance at close to medium viewing distances
-
High refresh rate up to 3840 Hz ensures flicker-free video playback and stable image output
-
SMD2121 LED technology offers uniform brightness, vivid colors, and long service life
-
Magnetic front maintenance design allows fast installation and easy servicing without rear access
-
Designed for creative LED walls, retail signage, exhibition displays, and immersive digital environments
Quick Specs
| Specification | Detail |
|---|---|
| Pixel Pitch | 3.0 mm |
| Module Size | 240 × 120 mm |
| Resolution | 80 × 40 dots |
| LED Configuration | SMD2121 |
| Pixel Density | 111,111 dots/m² |
| Brightness | ≥ 600 nits |
| Refresh Rate | 3840 Hz |
| Scan Mode | 1/20 |
| Viewing Angle | 140° (H) / 120° (V) |

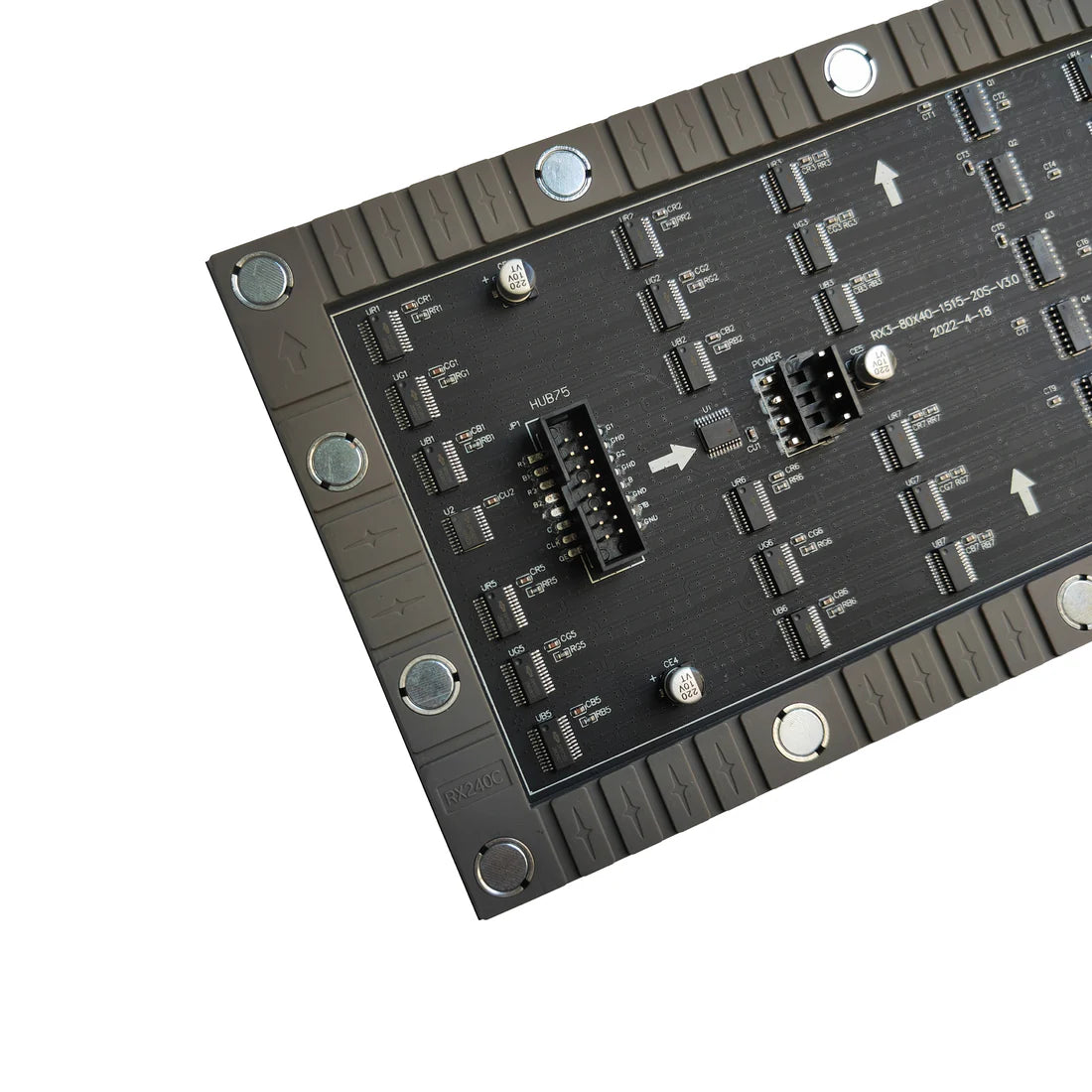

| Port Type | HUB75 |
| Input Voltage | DC 5 V |
| Maintenance Method | Magnetic Front Access |
| Curvature Capability | ≥ 135° |
| Protection Rating | IP20 |
Installation & Maintenance Tips
-
Use LED modules from the same production batch to ensure consistent brightness and color uniformity across the entire display
-
Ensure the mounting surface is flat and stable to prevent stress on the flexible PCB
-
Do not exceed the recommended bending radius to avoid damaging internal circuits
-
Magnetic front access allows quick module replacement, especially suitable for curved and enclosed structures
-
Use compatible controllers, power supplies, and cabling for optimal signal stability and image performance
-
Perform regular inspections to confirm module alignment and secure magnetic contact
Shipping Information
-
Lead Time: In-stock products ship within 1–3 business days
-
Packaging: Safe packaging with foam padding to ensure safe transport
-
Shipping Origin: All products ship directly from our warehouse
-
Standard Shipping: 9–18 days
-
Express Shipping: 5–9 days
-
Shipping Costs: Calculated based on cart weight, dimensions, and destination
Full Specifications
| Specification | Detail |
|---|---|
| Model Series | PIF-2S Series |
| Item Type | Flexible Indoor LED Module |
| Pixel Pitch | 3.0 mm |
| LED Configuration | SMD2121 |
| Module Resolution | 80 × 40 dots |
| Pixel Density | 111,111 dots/m² |
| Module Size | 240 × 120 × 8.6 mm |
| Module Weight | 0.2 kg |
| Port Type | HUB75 |
| Curvature Capability | ≥ 135° |
| Color Processing | 12-bit adjustable |
| Gray Level | 16–4096 adjustable |
| Refresh Rate | 3840 Hz |
| Scan Mode | 1/20 |
| Brightness | ≥ 600 nits |
| Viewing Angle (H/V) | 140° / 120° |
| Input Voltage | DC 5 V |
| Max Power Consumption | 15 W per module |
| Operating Temperature | −20 °C to 40 °C |
| Storage Temperature | −20 °C to 40 °C |
| Operating Humidity | 20% to 75% RH |
| Lifetime | ≥ 100,000 hours |
| Maintenance Method | Magnetic Front Access |
| Protection Rating | IP20 |
| Color Uniformity | ≥ 97% |
| Blind Spot Rate | ≤ 0.0003 |
Applications
This flexible indoor LED module is ideal for:
-
Curved LED walls and artistic digital installations
-
Creative LED display structures and immersive environments
-
Retail stores, shopping malls, and showroom visual displays
-
Exhibition booths and trade show LED backdrops
-
Stage backgrounds and event LED screens
-
Architectural LED projects and custom-shaped indoor video walls
