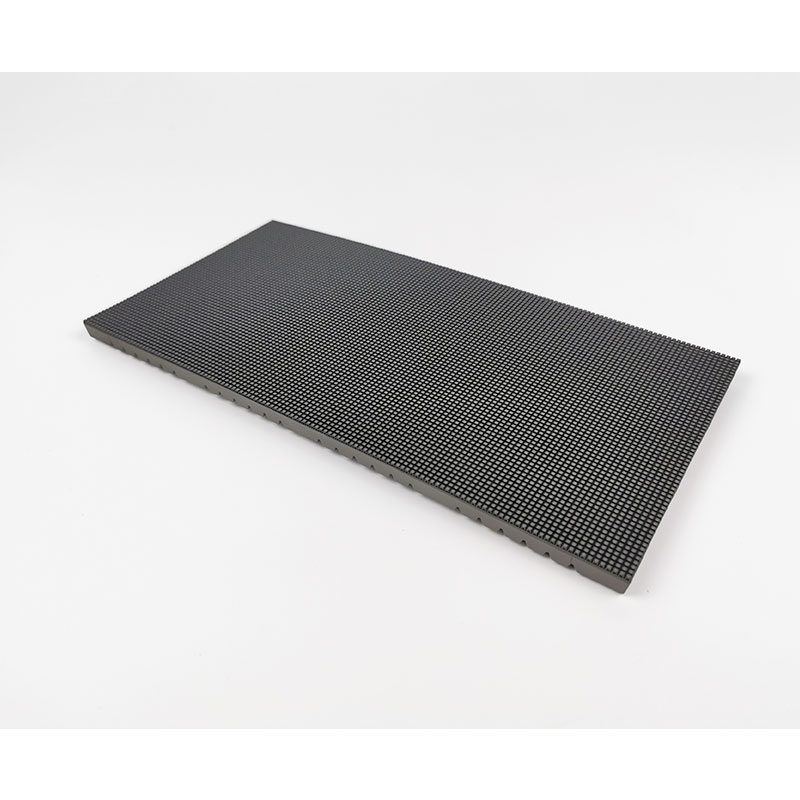

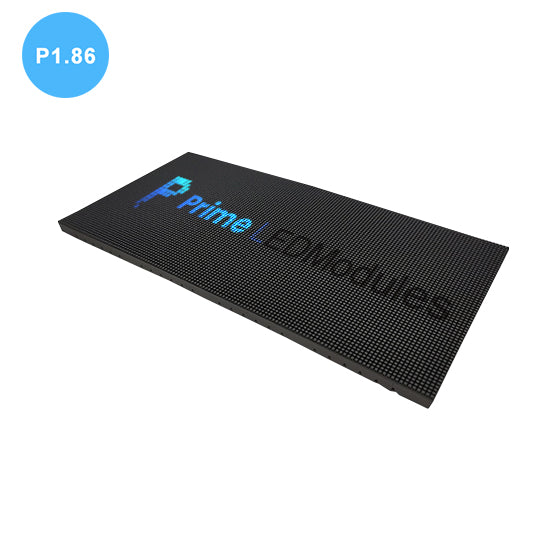

P1.86 Indoor Flexible GOB LED Display Module – 320×160mm SMD1515 LED Module for High Resolution LED Display Projects

The P1.86 Indoor Flexible GOB LED Display Module is a professional 320mm × 160mm high-resolution flexible LED module designed for indoor flexible LED screens, premium LED video walls, and creative display projects requiring enhanced surface protection, detailed image quality, flexible structures, and reliable long-term operation. Featuring a 1.86mm pixel pitch, SMD1515 LED technology with GOB protection, 600 nits brightness, and ≥3840Hz refresh rate, this flexible GOB LED module delivers smooth image output, stable visual performance, and improved LED surface durability for professional indoor LED applications.

With a standardized 320×160mm flexible GOB LED module design, this P1.86 module provides a high-resolution 172×86 pixel layout with 289,062 dots/m² pixel density. Supporting front and rear bending directions with up to 150° bending capability, the module combines GOB surface protection, flexible PCB structure, soft back shell, and magnetic mounting system to enable high-resolution LED video walls, curved LED displays, broadcast studio LED screens, architectural LED installations, and customized indoor flexible LED display projects where traditional rigid modules cannot be applied.

Package Included

About This Item

• P1.86 High Resolution Flexible GOB LED Display Module: Designed with a 1.86mm pixel pitch and 320×160mm flexible module structure, this GOB LED module provides detailed image quality for professional indoor LED video walls, broadcast studios, architectural displays, and high-resolution visualization projects.
• SMD1515 LED Technology with GOB Surface Protection: Built with SMD1515 LED packaging technology and GOB protection, the module delivers 600 nits brightness, ≥3840Hz refresh rate, enhanced LED surface durability, and stable visual performance for professional flexible LED display applications.
• High Pixel Density for Professional Display Applications: With 172×86 module resolution and 289,062 dots/m² pixel density, this P1.86 flexible GOB LED module provides refined image details and excellent visual consistency for close-viewing indoor display environments.

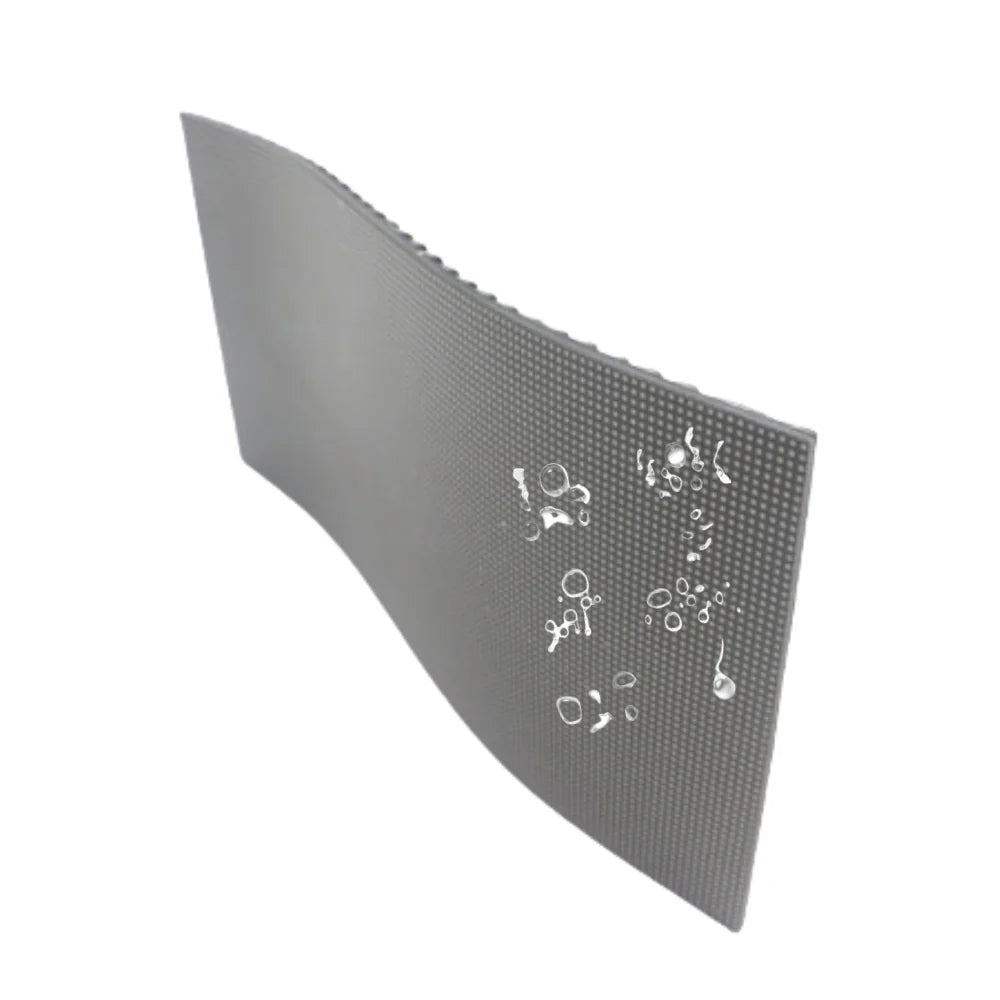

• Enhanced Surface Protection for Reliable Display Performance: The GOB protection layer improves resistance against accidental contact, dust, and surface impact, making this flexible LED module suitable for professional indoor environments requiring additional LED surface protection.

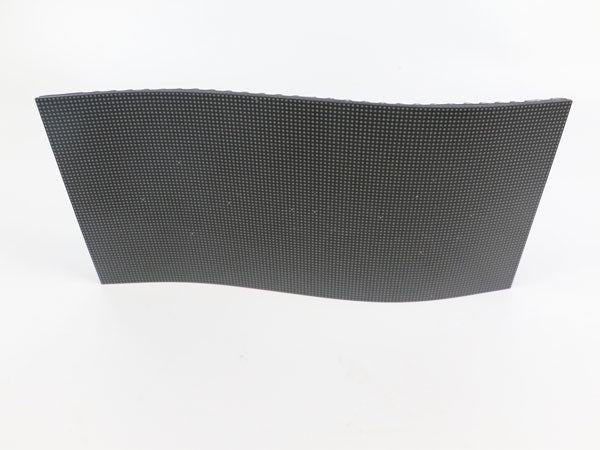

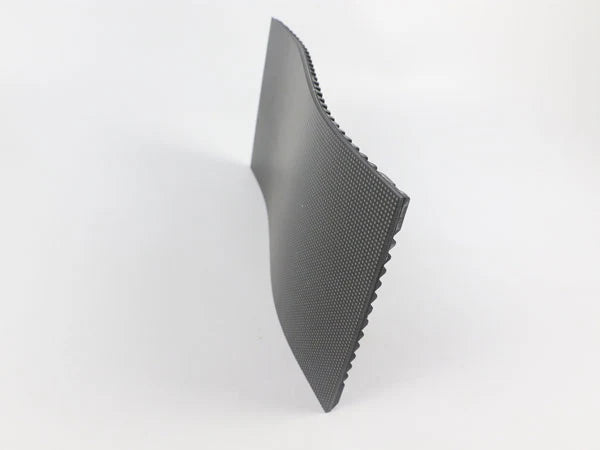

• Flexible Structure for Curved LED Display Designs: The flexible PCB structure supports front and rear bending directions with up to 150° bending capability, allowing integration into curved LED walls, creative display structures, and customized architectural LED installations.
• Project-Based Flexible GOB LED Module Supply: Available in sample, standard, and bulk package options to support product testing, system integration, engineering procurement, and large-scale flexible GOB LED display project requirements.

Order & Logistics

Lead Time

PIF-G Series: Handling time 15–20 business days.

Freight & Delivery

Shipping fees are not included in product pricing and will be charged separately based on actual freight cost.

• Available shipping methods: Standard shipping / Express shipping / Project logistics.
• Estimated shipping time: Standard delivery takes 9–18 business days, while express delivery takes 5–9 business days.
• Express options: DHL / UPS / FedEx options may be available depending on destination and order quantity.
• Shipping Terms: DDP TERM, all fees included, except for destination countries where this service is unavailable.
• Project logistics: This product supports bulk purchasing, engineering procurement, system integration, and project-based delivery.

For large quantity orders, please contact us to confirm freight arrangements, production schedules, and delivery plans.

Specifications

Protection & Design Features

• GOB Surface Protection Technology: The GOB protection layer enhances LED surface durability and reliability, making this flexible GOB LED module suitable for professional indoor environments requiring improved protection performance.
• Flexible PCB Structure with Magnetic Mounting: The flexible PCB design combined with soft back shell and magnetic installation enables curved display construction, efficient assembly, and convenient front service maintenance.
• High-Performance Fine Pitch GOB Display Technology: Combining SMD1515 LED technology with GOB protection and high refresh performance, the module delivers reliable image quality for premium flexible LED display applications.

Installation Guide

• Confirm the LED screen design requirements, module layout, cabinet structure, receiving card configuration, and power supply capacity before installation.
• Install the P1.86 320×160mm flexible GOB LED modules according to the designed curved or creative display structure and ensure accurate alignment.
• Secure the modules using the magnetic mounting system and ensure the soft connection between adjacent modules is properly connected.
• Connect the 16pin data cables and DC 5V power cables correctly before powering on the LED display system.
• For front service maintenance, remove and replace modules from the front side using suitable tools and anti-static handling methods.
• Avoid excessive bending, impact, pressure, or surface damage during transportation, installation, and maintenance procedures.

Applications

• Indoor Flexible GOB LED Display Screens
• P1.86 Fine Pitch GOB LED Modules
• High Resolution GOB LED Video Walls
• Broadcast Studio LED Displays
• Curved LED Display Projects
• Architectural LED Installations
• Control Room LED Displays
• Corporate Visualization Systems
• Museum Digital Display Systems
• Immersive Experience Spaces
• Exhibition LED Display Systems
• Brand Experience LED Displays
• Premium Commercial Indoor LED Displays
• Custom Flexible GOB LED Screen Projects
• Large-Scale Fine Pitch GOB LED Display Projects

Waterproof	Shock-proof	Dust-proof
