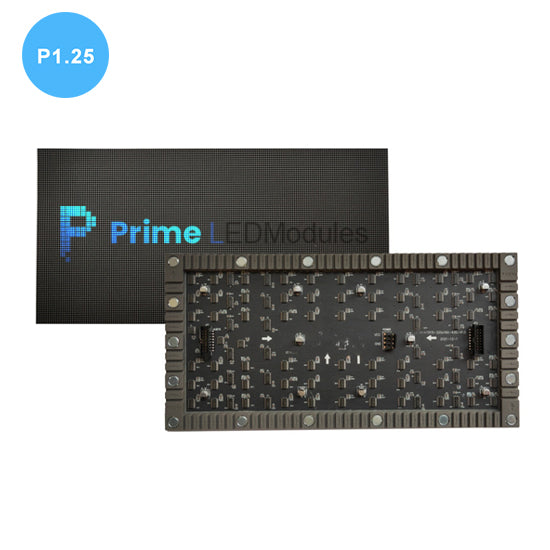

P1.25 Indoor Flexible LED Display Module – 320×160mm SMD1010 Front Service Flexible LED Module for Virtual Production LED Screens

The P1.25 Indoor Flexible LED Display Module is an ultra-fine-pitch 320×160mm flexible LED module engineered for high-resolution curved LED screens, cylindrical LED displays, wave LED walls, spiral LED displays, ribbon-style screens, and customized indoor creative LED installations. Featuring a 1.25mm pixel pitch, SMD1010 LEDs, 256×128 module resolution, 640,000 dots/m² pixel density, 600–650cd/m² brightness, and a 3840Hz refresh rate, the module delivers detailed image reproduction for close-viewing fine-pitch indoor LED display applications.

The current-generation module features an upgraded 320×160×4.5mm ultra-thin flexible structure combining a flexible PCB, silicone soft bottom case, and enhanced 32-magnet mounting configuration. With a specified 1222mm assembly diameter, ≥165° bending angle, HUB320 26PIN signal interface without cascading, and support for front or rear installation and maintenance, this P1.25 flexible LED module provides a professional solution for fine-pitch creative displays where conventional rigid LED modules cannot accommodate curved or irregular surfaces.

Package Included

About This Item

• P1.25 Ultra-Fine-Pitch Indoor Flexible LED Module: Built around a 1.25mm pixel pitch and standardized 320×160mm module format, this flexible LED module provides a 256×128 resolution and 640,000 dots/m² pixel density for detailed close-viewing visual presentation. It is designed for fine-pitch curved LED screens, cylindrical displays, creative commercial installations, exhibition spaces, museums, planning halls, experience centers, and customized indoor LED display projects.
• Upgraded 4.5mm Ultra-Thin Flexible Structure: The current-generation module uses a 4.5mm ultra-thin structure with a flexible PCB and silicone soft bottom case. The slim flexible construction reduces module depth while providing the controlled flexibility required for curved and irregular indoor LED display surfaces.
• Enhanced 32-Magnet Mounting Design: Each module incorporates an upgraded 32-magnet configuration for stronger magnetic attachment, improved module flatness, better edge stability, and more consistent installation. The enhanced magnetic layout is designed to help reduce common flexible-module issues such as edge lifting, corner deformation, and uneven positioning.
• SMD1010, 600–650nits & 3840Hz: Fine-pitch SMD1010 LEDs combined with 600–650cd/m² brightness, a 3840Hz refresh rate, 60Hz frame rate, 14bit grayscale, and a 6000:1 contrast ratio provide smooth, detailed visual performance for professional indoor LED display environments.
• Designed for Curved & Creative LED Displays: The flexible PCB and silicone soft bottom case support inner and outer curved display structures. The module is specified with a ≥165° bending angle and a 1222mm assembly diameter, making it suitable for cylindrical LED displays, spiral LED screens, wave LED walls, ribbon displays, and other customized creative LED forms.
• HUB320 26PIN & Front/Rear Installation: The module uses a HUB320 26PIN signal interface with no cascading interface and supports front or rear installation and maintenance. Combined with DC 5V operation and magnetic mounting, this configuration supports professional system integration, replacement requirements, channel procurement, and project-based LED installations.

Order & Logistics

Lead Time

PIF-S Series: Handling time 3–5 business days.

Freight & Delivery

Shipping fees are not included in product pricing and will be charged separately based on actual freight cost.

• Available Shipping Methods: Standard shipping / Express shipping / Project logistics.
• Estimated Shipping Time: Standard delivery takes 9–18 business days, while express delivery takes 5–9 business days.
• Express Options: DHL / UPS / FedEx options may be available depending on destination and order quantity.
• Shipping Terms: DDP TERM (all fees included), except for destination countries where this shipping service is unavailable. In such cases, we will contact the buyer if this clause does not apply to their country.
• Project Procurement: This product supports bulk purchasing, channel stocking orders, system integration, replacement requirements, and project-based procurement.

For large quantity orders, please contact us to confirm freight arrangements, production schedules, and delivery plans.

Specifications

Structure & Design Features

• 4.5mm Ultra-Thin Upgraded Design: The current-generation P1.25 flexible LED module uses a 4.5mm ultra-thin structure to reduce installation depth while maintaining the controlled flexibility required for curved and irregular indoor LED display surfaces.
• 32-Magnet Enhanced Mounting Structure: Each module uses 32 magnets to improve magnetic attachment, surface flatness, edge stability, and installation consistency. The enhanced magnet layout helps address common flexible-module issues such as edge lifting, corner deformation, and uneven positioning.
• Flexible PCB & Silicone Soft Bottom Case: The flexible PCB works together with the silicone soft bottom structure to provide controlled bending performance for cylindrical LED displays, wave screens, spiral displays, ribbon-style structures, and customized creative LED installations.
• Ultra-Fine-Pitch High-Refresh Display Architecture: The combination of 1.25mm pixel pitch, SMD1010 LEDs, 640,000 dots/m² pixel density, 3840Hz refresh rate, 14bit grayscale, 600–650cd/m² brightness, and 6000:1 contrast ratio supports detailed visual presentation for close-viewing professional indoor environments.
• Project-Oriented Installation & Maintenance: Magnetic mounting, HUB320 26PIN connectivity, no-cascading signal architecture, and support for front or rear installation and maintenance provide flexible integration for system integrators, channel customers, replacement applications, and project procurement.

Compatibility Notice

This P1.25 320×160mm indoor flexible LED module uses the current-generation 4.5mm ultra-thin structure and upgraded 32-magnet configuration. The new structure differs from earlier versions, including previous thicker module designs. For repeat orders, replacement modules, or existing LED display installations, please confirm the module version, mounting positions, and structural compatibility before ordering.

Installation Guide

• Confirm the required display shape, module arrangement, power supply capacity, receiving card configuration, signal distribution, installation direction, and maintenance method before installation.
• Install the P1.25 320×160×4.5mm flexible LED modules according to the designed curved, cylindrical, spiral, wave, ribbon-style, or customized display structure.
• Use the integrated 32-magnet mounting structure to secure each module. Ensure that all modules are correctly aligned and maintain consistent surface flatness without excessive compression, edge lifting, or structural interference.
• Connect the HUB320 26PIN signal interface and DC 5V power connections according to the specified wiring configuration. This module uses a no-cascading signal interface structure, so receiving card and signal distribution layouts should be planned accordingly.
• The product specification defines a ≥165° bending angle. During installation and operation, maintain the module within the recommended 165°–180° safe bending range and avoid violent, excessive, or repeated reverse bending.
• For cylindrical display construction, the specified assembly diameter is 1222mm. Confirm the required display curvature and module arrangement before installation.
• Wear anti-static gloves when handling the LED modules. Avoid directly touching the LED surface with bare hands.
• Handle the flexible LED modules carefully during transportation, unpacking, installation, and maintenance. Avoid dropping, impact, edge compression, sharp objects, hard tools, and excessive pressure on the LED surface.
• Front or rear installation and maintenance can be selected according to project requirements. Always switch off power before installing, removing, connecting, or servicing modules.
• Ensure sufficient ventilation and heat dissipation around the LED display system. This is an indoor LED module and should be protected from rain, direct water exposure, condensation, corrosive gases, excessive dust, strong vibration, and unsuitable environmental conditions.

Applications

• P1.25 Indoor Flexible LED Displays
• Ultra Fine Pitch Flexible LED Screens
• Fine Pitch Curved LED Walls
• Cylindrical LED Displays
• Spiral LED Display Structures
• Wave LED Screens
• Ribbon LED Displays
• Creative Indoor LED Installations
• Urban Planning Hall LED Displays
• Science & Technology Museum Displays
• City Planning Center LED Screens
• Museum Digital Display Systems
• Art Museum LED Displays
• Creative Center LED Displays
• Exhibition Hall LED Displays
• Immersive Experience Spaces
• Experience Center LED Displays
• Commercial Indoor LED Displays
• Retail Creative LED Screens
• Brand Experience Center Displays
• Architectural Curved LED Installations
• Customized Creative LED Display Projects
