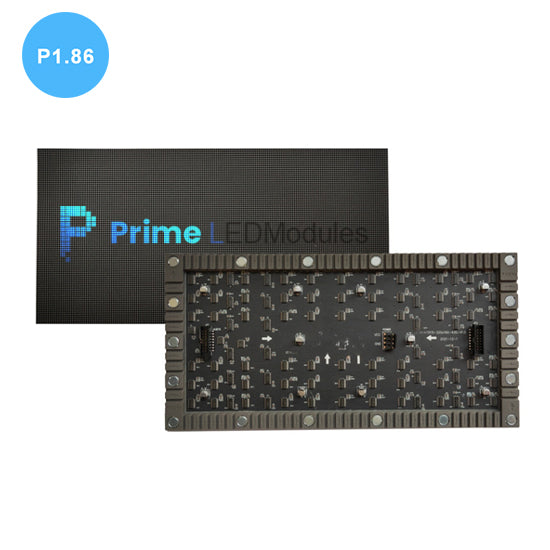

PIF-3S Series P1.86 Indoor Flexible LED Display Module – 320 × 160 mm Bendable LED Screen Panel
The PIF-3S Series P1.86 Indoor Flexible LED Module is engineered for fine-pitch creative stage displays that demand high image clarity and structural flexibility. With a 1.86 mm pixel pitch and a large 320 × 160 mm module size, it delivers sharp visuals, smooth motion performance, and efficient installation for curved indoor LED walls.
Ideal for premium stage productions, exhibitions, and immersive creative environments where visual detail and flexibility are essential.
Package & Packing Details
| Version | Package Included |
|---|---|
| 1-Pack Sample Kit | 1 × Power Supply Cable 1 × Data Cable 1 × P1.86 Flexible LED Module |
| 48-Pack Standard Pack | 48 × Power Supply Cables 48 × Data Cables 48 × P1.86 Flexible LED Modules |
About this item
-
Fine 1.86 mm pixel pitch delivers high-definition image quality and excellent detail for close-viewing indoor applications
-
Large 320 × 160 mm module size improves installation efficiency and reduces assembly time for large creative LED walls
-
Flexible soft PCB structure supports curved, cylindrical, wave-shaped, and custom creative LED screen designs
-
High refresh rate up to 3840 Hz ensures flicker-free visuals, suitable for filming, broadcasting, and live stage performances
-
High-quality SMD LED technology provides uniform brightness, stable color performance, and long operating life
-
Magnetic front maintenance design enables fast installation and convenient module replacement without rear access
-
Designed for fine-pitch creative stage displays, exhibition projects, immersive installations, and architectural LED designs
Quick Specs
| Specification | Detail |
|---|---|
| Pixel Pitch | 1.86 mm |
| Module Size | 320 × 160 mm |
| Resolution | 172 × 86 dots |
| LED Configuration | SMD |
| Pixel Density | 289,000 dots/m² |
| Brightness | ≥ 600 nits |
| Refresh Rate | 3840 Hz |
| Scan Mode | 1/22 |
| Viewing Angle | 140° (H) / 120° (V) |
| Port Type | HUB75 |
| Input Voltage | DC 5 V |
| Maintenance Method | Magnetic Front Access |
| Curvature Capability | ≥ 135° |
| Protection Rating | IP20 |
Installation & Maintenance Tips
-
Always use LED modules from the same production batch to ensure consistent brightness and color uniformity across the entire display
-
Ensure the mounting surface is flat, smooth, and stable to protect the flexible PCB structure
-
Do not exceed the recommended bending radius to avoid damage to internal circuits and solder joints
-
Magnetic front access allows fast replacement of faulty modules, especially in curved or enclosed installations
-
Use compatible controllers, stable power supplies, and high-quality signal cables to guarantee optimal display performance
-
Regularly inspect module alignment and magnetic fixation to maintain a seamless visual surface
Shipping Information
-
Lead Time: In-stock products ship within 1–3 business days
-
Packaging: Safe packaging with foam padding to ensure safe transport
-
Shipping Origin: All products ship directly from our warehouse
-
Standard Shipping: 9–18 days
-
Express Shipping: 5–9 days
-
Shipping Costs: Calculated based on cart weight, dimensions, and destination
Full Specifications
| Specification | Detail |
|---|---|
| Model Series | PIF-3S Series |
| Item Type | Flexible Indoor LED Module |
| Pixel Pitch | 1.86 mm |
| LED Configuration | SMD |
| Module Resolution | 172 × 86 dots |
| Pixel Density | 289,000 dots/m² |
| Module Size | 320 × 160 × 8.6 mm |
| Module Weight | 0.35 kg |
| Port Type | HUB75 |
| Curvature Capability | ≥ 135° |
| Color Processing | 12-bit adjustable |
| Gray Level | 16–4096 adjustable |
| Refresh Rate | 3840 Hz |
| Scan Mode | 1/22 |
| Brightness | ≥ 600 nits |
| Viewing Angle (H/V) | 140° / 120° |
| Input Voltage | DC 5 V |
| Max Power Consumption | 20 W per module |
| Operating Temperature | −20 °C to 40 °C |
| Storage Temperature | −20 °C to 40 °C |
| Operating Humidity | 20% to 75% RH |
| Lifetime | ≥ 100,000 hours |
| Maintenance Method | Magnetic Front Access |
| Protection Rating | IP20 |
| Color Uniformity | ≥ 97% |
| Blind Spot Rate | ≤ 0.0003 |
Applications
This P1.86 flexible indoor LED module is ideal for:
-
Fine-pitch stage LED backdrops and live performance displays
-
Creative curved LED walls for concerts and entertainment venues
-
Exhibition halls and trade show visual installations
-
Premium retail stores, flagship shops, and brand showrooms
-
Architectural LED art projects and immersive indoor environments
-
Custom-shaped indoor video walls requiring high image clarity and flexible installation
