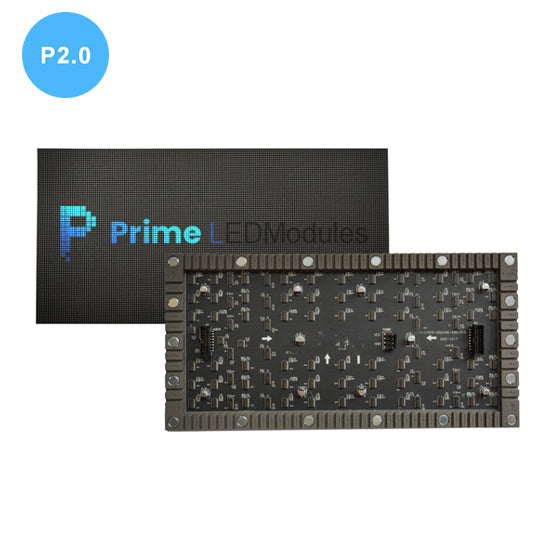

P2 Indoor Flexible LED Display Module – 320×160×4.5mm SMD1515 Ultra-Thin Magnetic Module for Curved LED Walls & Creative Indoor Displays

The P2 Indoor Flexible LED Display Module is a professional 320mm × 160mm fine pitch flexible LED module designed for curved LED walls, cylindrical LED displays, wave LED screens, spiral LED displays, and customized indoor creative visualization projects. Featuring a 2mm pixel pitch, SMD1515 LED technology, 650cd/m² brightness, and a 3840Hz refresh rate, this flexible LED module delivers detailed image reproduction, smooth video performance, and reliable visual consistency for professional indoor LED display applications.

The upgraded 320×160×4.5mm ultra-thin module structure combines a flexible PCB, silicone soft bottom case, and enhanced 32-magnet mounting configuration. With a 160×80 module resolution, 250,000 dots/m² pixel density, 1/40 scan, support for front or rear installation and maintenance, a 611mm assembly diameter, and bending capability of ≥150°, this P2 flexible LED module is engineered for creative indoor LED projects where conventional rigid modules cannot meet curved or irregular structural requirements.

Package Included

About This Item

• P2 Fine Pitch Indoor Flexible LED Display Module: Designed with a 2mm pixel pitch, 320×160mm standardized format, 160×80 module resolution, and 250,000 dots/m² pixel density, this flexible LED module delivers detailed image performance for curved LED walls, cylindrical displays, commercial indoor screens, museums, planning halls, technology centers, and creative visualization projects.
• Upgraded 4.5mm Ultra-Thin Flexible Structure: The current-generation module uses an ultra-thin 4.5mm structure, reducing installation depth and supporting compact cabinet designs while maintaining the flexibility required for curved, cylindrical, and irregular indoor LED structures.
• Enhanced 32-Magnet Mounting Configuration: Each module is equipped with 32 magnets to improve magnetic holding force, module flatness, edge stability, and installation consistency. The enhanced magnetic structure helps reduce common flexible-module issues such as edge lifting and corner deformation.
• SMD1515 Fine Pitch Display Performance: Equipped with SMD1515 LEDs, 650cd/m² brightness, 3840Hz refresh rate, 14bit grayscale, and a 5000:1 contrast ratio, the module provides smooth visual performance, stable color reproduction, and reliable image output for professional indoor applications.
• Flexible Engineering for Cylindrical & Curved Displays: The flexible PCB and silicone soft bottom case support inner and outer curved structures. The product specification defines a 611mm assembly diameter and bending capability of ≥150°, making the module suitable for cylindrical, wave, spiral, ribbon-style, and other customized display structures.
• Front or Rear Installation & Maintenance: The module supports front or rear installation and maintenance according to cabinet and project requirements. The HUB75 signal interface without cascading and DC 5V module power system support professional indoor LED display integration.

Order & Logistics

Lead Time

PIF-S Series: Handling time 3–5 business days.

Freight & Delivery

Shipping fees are not included in product pricing and will be charged separately based on actual freight cost.

• Available shipping methods: Standard shipping / Express shipping / Project logistics.
• Estimated shipping time: Standard delivery takes 9–18 business days, while express delivery takes 5–9 business days.
• Express options: DHL / UPS / FedEx options may be available depending on destination and order quantity.
• Shipping Terms: DDP TERM, all fees included, except for destination countries where this shipping service is unavailable. In such cases, we will contact the buyer if this clause does not apply to their country.
• Project logistics: This product supports bulk purchasing, channel stocking orders, engineering procurement, system integration, and project-based delivery.

For large quantity orders, please contact us to confirm freight arrangements, production schedules, and delivery plans.

Specifications

Structure & Design Features

• 4.5mm Ultra-Thin Upgraded Module Structure: The current module generation uses a 4.5mm ultra-thin design that reduces installation depth and provides greater flexibility for compact curved cabinets and customized creative display structures.
• 32-Magnet Enhanced Mounting Design: Each module uses 32 magnets to improve magnetic attachment, module flatness, corner stability, and long-term installation consistency compared with earlier flexible module structures.
• Flexible PCB with Silicone Soft Bottom Case: The flexible PCB and silicone structure provide the bending capability required for cylindrical, spiral, wave, ribbon, and other customized indoor LED display forms.
• High-Refresh Fine Pitch Display Architecture: The combination of SMD1515 LEDs, 650cd/m² brightness, 3840Hz refresh rate, 14bit grayscale, and 5000:1 contrast ratio supports smooth and stable visual performance for professional indoor creative display applications.
• No-Cascade HUB75 Signal Structure: The module uses a HUB75 signal interface without a cascading interface, so cabinet wiring and receiving card layouts should be planned according to the specified module signal architecture before installation.

Compatibility Notice

This 320×160mm flexible LED module uses the current 4.5mm ultra-thin structure with an enhanced magnet configuration. Mounting-hole positions and cabinet structural requirements may differ from earlier module versions. For replacement modules, repeat orders, existing cabinet upgrades, or projects using previously supplied cabinet structures, please confirm the module version and cabinet compatibility before ordering.

Installation Guide

• Confirm the LED display shape, cabinet structure, module layout, receiving card configuration, power supply capacity, installation direction, and maintenance requirements before installation.
• Install the P2 320×160×4.5mm flexible LED modules according to the designed curved, cylindrical, spiral, wave, ribbon, or customized display structure and ensure accurate module alignment.
• Use the magnetic mounting structure to secure each module and ensure the module surface remains evenly aligned without excessive compression, corner lifting, or structural interference.
• Connect the HUB75 signal interface and DC 5V power connections according to the module wiring configuration. This model does not support signal cascading, so receiving card and signal distribution layouts should be planned accordingly.
• The product specification defines a bending angle of ≥150°. During installation and use, keep the module within the recommended 150°–180° safe bending range and avoid violent or repeated excessive bending.
• Wear anti-static gloves before touching the module or display surface. Do not directly touch the LED surface with bare hands.
• Handle modules carefully during transportation, assembly, installation, and maintenance. Avoid dropping, impact, edge compression, sharp objects, hard tools, and excessive pressure.
• Use front or rear installation and maintenance procedures according to the cabinet structure and project requirements. Always switch off power before module installation, removal, cable connection, or maintenance.
• Ensure sufficient ventilation and heat dissipation around the display. Keep the screen away from water vapor, corrosive gases, strong vibration, strong magnetic fields, direct air-conditioning outlets, rain, and direct outdoor exposure.

Applications

• P2 Indoor Flexible LED Display Screens
• Fine Pitch Flexible LED Modules
• Curved LED Wall Projects
• Cylindrical LED Displays
• Spiral LED Display Structures
• Wave LED Screens
• Ribbon LED Displays
• Retail Creative LED Displays
• Commercial Indoor LED Video Walls
• Digital Signage LED Displays
• Urban Planning Hall LED Displays
• Science & Technology Museum Displays
• City Planning Center LED Screens
• Art Museum LED Displays
• Museum Digital Display Systems
• Creative Center LED Displays
• Exhibition LED Display Systems
• Immersive Experience Spaces
• Architectural Flexible LED Installations
• Custom Curved LED Screen Projects
