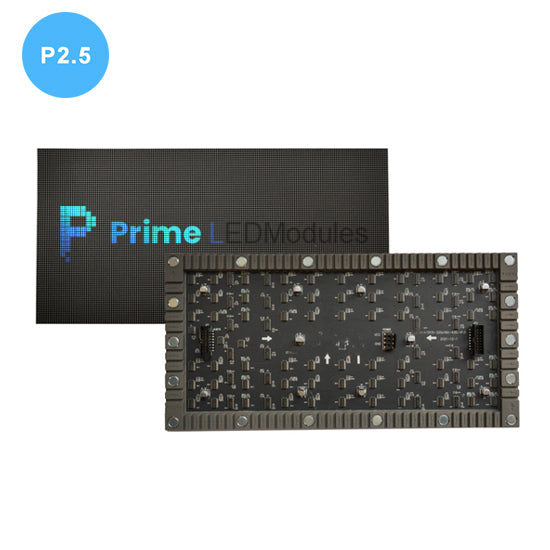

P2.5 Indoor Flexible LED Display Module – 320×160×4.5mm SMD1515 Magnetic Soft LED Module for Curved LED Walls & Creative Indoor Displays

The P2.5 Indoor Flexible LED Display Module is a professional 320mm × 160mm flexible SMD LED module designed for curved LED walls, cylindrical LED displays, wave LED screens, ribbon-style LED displays, and customized indoor creative visualization projects. Featuring a 2.5mm pixel pitch, SMD1515 LED technology, 700cd/m² brightness, and a 3840–7680Hz refresh rate, this flexible LED module provides detailed image reproduction, smooth visual performance, and reliable operation for professional indoor display applications.

The upgraded 320×160×4.5mm ultra-thin module structure combines a flexible PCB, silicone soft bottom case, and enhanced magnetic mounting design for creative curved display construction. With a 128×64 module resolution, 160,000 dots/m² pixel density, HUB75 16PIN signal interface, and support for front or rear installation and maintenance, this P2.5 flexible LED module is suitable for planning halls, museums, technology centers, creative centers, commercial displays, and customized indoor LED engineering projects.

Package Included

About This Item

• P2.5 Indoor Flexible LED Display Module: Designed with a 2.5mm pixel pitch, 320×160mm standardized size, 128×64 module resolution, and 160,000 dots/m² pixel density, this flexible LED module provides detailed visual performance for curved LED walls, cylindrical displays, creative commercial screens, and professional indoor visualization projects.
• Upgraded 4.5mm Ultra-Thin Structure: The current-generation module uses a 4.5mm ultra-thin structure, reducing installation depth and supporting compact cabinet designs while maintaining the flexibility required for curved and irregular LED display structures.
• Enhanced 32-Magnet Mounting Configuration: The upgraded module uses 32 magnets per board to improve magnetic holding force, module flatness, edge stability, and installation consistency, helping reduce lifting and corner deformation in flexible LED display applications.
• SMD1515 with 3840–7680Hz High Refresh Performance: Equipped with SMD1515 LEDs, 700cd/m² brightness, 14bit grayscale, 6000:1 contrast ratio, and 3840–7680Hz refresh performance, the module provides smooth image reproduction and stable visual output for commercial and professional indoor displays.
• Flexible Design for Cylindrical & Curved LED Screens: The flexible PCB and silicone soft bottom case support curved display structures. The product specification defines a 407mm assembly diameter and bending capability of ≥135°, supporting cylindrical, wave, ribbon, and other creative display forms.
• Front or Rear Installation & Maintenance: The module supports front or rear installation and maintenance according to project structure. The HUB75 16PIN signal interface and DC 5V power system provide practical integration for professional LED display cabinets and customized engineering projects.

Order & Logistics

Lead Time

PIF-S Series: Handling time 3–5 business days.

Freight & Delivery

Shipping fees are not included in product pricing and will be charged separately based on actual freight cost.

• Available shipping methods: Standard shipping / Express shipping / Project logistics.
• Estimated shipping time: Standard delivery takes 9–18 business days, while express delivery takes 5–9 business days.
• Express options: DHL / UPS / FedEx options may be available depending on destination and order quantity.
• Shipping Terms: DDP TERM, all fees included, except for destination countries where this shipping service is unavailable. In such cases, we will contact the buyer if this clause does not apply to their country.
• Project logistics: This product supports bulk purchasing, channel stocking orders, engineering procurement, system integration, and project-based delivery.

For large quantity orders, please contact us to confirm freight arrangements, production schedules, and delivery plans.

Specifications

Structure & Design Features

• 4.5mm Ultra-Thin Upgraded Module Structure: The current version has been upgraded from the previous thicker design to a 4.5mm structure, reducing installation depth and improving suitability for compact curved cabinet systems.
• 32-Magnet Enhanced Mounting Design: The upgraded magnetic configuration improves module attachment, flatness, and edge stability, helping address common soft-module issues such as corner lifting and uneven module positioning.
• Flexible PCB with Silicone Soft Bottom Case: The flexible PCB and silicone soft shell provide the bending performance required for cylindrical, spiral, wave, ribbon, and other customized indoor LED display forms.
• High Refresh & High Contrast Visual Performance: The combination of SMD1515 LEDs, 700cd/m² brightness, 3840–7680Hz refresh rate, 14bit grayscale, and 6000:1 contrast ratio supports smooth, stable image performance for professional indoor LED display systems.
• Front & Rear Project Installation Flexibility: The module supports front or rear installation and maintenance depending on cabinet design and project requirements, improving adaptability for customized display structures and engineering applications.

Compatibility Notice

This 320×160mm flexible LED module has been upgraded from the previous 8.6mm structure to the current 4.5mm ultra-thin design with an increased magnet configuration. Mounting-hole positions and cabinet compatibility may differ between the previous and upgraded versions. For replacement modules, repeat orders, existing cabinet upgrades, or projects using previously supplied cabinet structures, please confirm the module version and cabinet mounting-hole compatibility before ordering.

Installation Guide

• Confirm the LED display shape, cabinet structure, module layout, receiving card configuration, power supply capacity, installation direction, and maintenance requirements before installation.
• For repeat orders or existing cabinets, confirm whether the mounting-hole positions are compatible with the upgraded 4.5mm module structure before placing or installing replacement modules.
• Install the P2.5 320×160×4.5mm flexible LED modules according to the designed curved, cylindrical, spiral, wave, ribbon, or customized display structure and ensure accurate module alignment.
• Use the magnetic mounting system to secure each module and ensure that the module surface remains evenly aligned without excessive compression or structural interference.
• Connect the HUB75 16PIN signal interface and DC 5V power connections according to the module wiring configuration. Verify signal direction, power polarity, grounding, and receiving card settings before powering on the display system.
• Keep the module within the specified bending requirements. The product specification defines bending capability of ≥135°, while the installation instructions recommend a safe operating angle range of 135°–180°. Avoid violent or repeated excessive bending.
• Wear anti-static gloves before touching the display surface or module. Avoid direct hand contact with the LEDs.
• Handle modules carefully and avoid dropping, impact, edge compression, hard objects, sharp tools, or excessive pressure during transportation, installation, and maintenance.
• Power must be switched off before module installation, removal, cable connection, or maintenance. Live installation or removal is not permitted.
• Ensure adequate ventilation and heat dissipation around the LED display. Keep the screen away from water vapor, corrosive gases, strong vibration, strong magnetic fields, and direct air-conditioning outlets.

Applications

• Indoor Flexible LED Display Screens
• P2.5 Flexible LED Display Modules
• Curved LED Wall Projects
• Cylindrical LED Displays
• Spiral LED Display Structures
• Wave LED Screens
• Ribbon LED Displays
• Creative Indoor LED Installations
• Urban Planning Hall LED Displays
• Science & Technology Museum Displays
• City Planning Center LED Screens
• Art Museum LED Displays
• Museum Digital Display Systems
• Creative Center LED Displays
• Exhibition LED Display Systems
• Immersive Experience Spaces
• Architectural Flexible LED Installations
• Commercial Indoor LED Displays
• Brand Experience LED Displays
• Custom Curved LED Screen Projects
