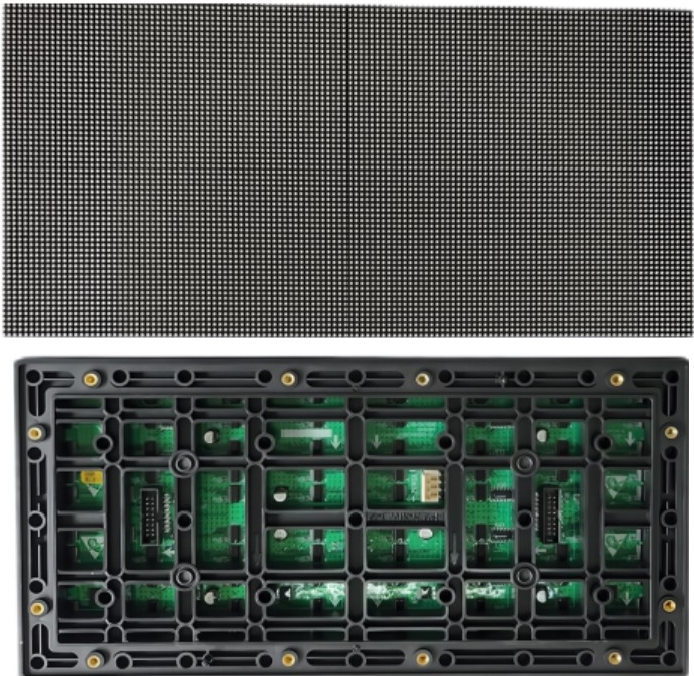

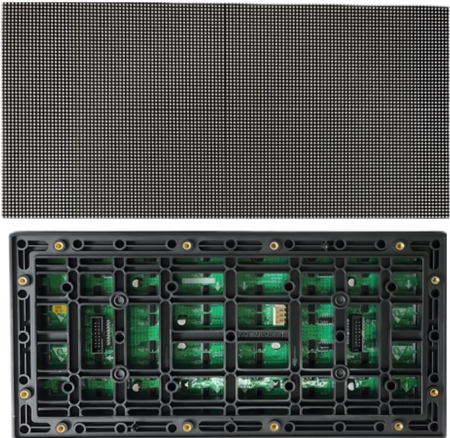

P2.5 GOB-Protected Outdoor LED Display Module – 320×160mm SMD1415 IP65 Rear-Service Module for Fine Pitch Outdoor LED Displays

The P2.5 GOB-Protected Outdoor LED Display Module is a professional 320mm × 160mm outdoor GOB LED module designed for fine pitch outdoor LED displays, commercial advertising screens, and fixed outdoor display projects requiring enhanced surface protection, high brightness performance, and reliable long-term operation. Featuring a 2.5mm pixel pitch, SMD1415 LED technology with GOB protection, ≥5500 nits brightness, and 3840Hz refresh rate, this outdoor GOB LED module delivers detailed image quality, stable visual performance, and improved LED surface durability for professional outdoor applications.

The standardized 320×160mm outdoor LED module format provides a 128×64 pixel resolution and supports efficient cabinet integration, module replacement, and scalable LED screen construction. With an IP65-rated module structure, rear service maintenance design, and fine pitch display capability, this P2.5 GOB LED module is suitable for commercial outdoor LED displays, digital advertising screens, smart city displays, shopping mall outdoor advertising, and other outdoor LED projects requiring high image quality and reliable operation.

Package Included

About This Item

• P2.5 Fine Pitch GOB-Protected Outdoor LED Display Module: Designed with a 2.5mm pixel pitch and 320×160mm module structure, this outdoor GOB LED module provides detailed image performance for commercial outdoor LED displays, advertising screens, and close-viewing outdoor applications.
• SMD1415 LED Technology with GOB Front-Surface Protection: Built with SMD1415 LED technology and GOB surface protection, the module provides enhanced LED surface durability, ≥5500 nits brightness, and reliable visual performance for outdoor display environments.

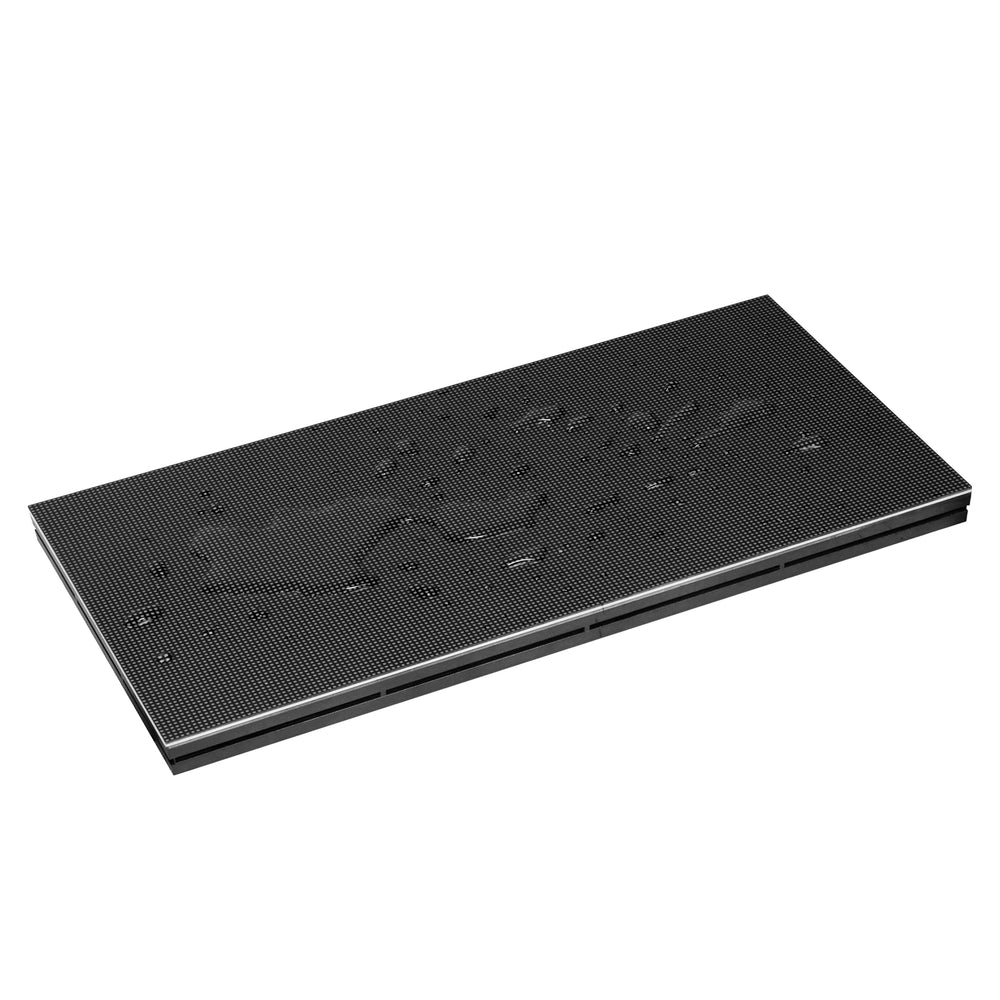

• IP65 Outdoor Protection Structure: The module features IP65-rated module designed for outdoor fixed installation, helping the module resist dust and water exposure when correctly integrated during long-term outdoor operation.
• Dynamic 1/16 Scan Display Performance: The constant current dynamic 1/16 scan structure provides stable LED driving performance and supports smooth image output for professional outdoor LED display applications.
• Rear Service Outdoor Module Design: The rear maintenance structure provides convenient access for module replacement, secure cabinet integration, and efficient maintenance for large-scale outdoor LED display systems.
• Bulk Project Procurement Ready: Available in sample, standard, and bulk package options to support product evaluation, engineering procurement, system integration, and large-scale outdoor LED display projects.

Order & Logistics

Lead Time

PO-G Series: Usually ships within 3–5 business days.

Freight & Delivery

Shipping fees are not included in product pricing and will be charged separately based on actual freight cost.

• Available shipping methods: Standard shipping / Express shipping / Project logistics.
• Estimated shipping time: Standard delivery takes 9–18 business days, while express delivery takes 5–9 business days. For faster delivery, express options like DHL / UPS / FedEx are available during checkout.
• Shipping Terms: DDP TERM (all fees included), except for destination countries where this shipping service is unavailable. In such cases, we will contact the buyer if this clause does not apply to their country.
• Project Procurement: This collection supports bulk purchasing, channel stocking orders, and project-based procurement.

For large quantity orders, please contact us to confirm freight arrangements, production schedules, and delivery plans.

Specifications

Compatibility Notice

Matching the module size and pixel pitch does not guarantee direct compatibility with an existing LED display. Before replacement, expansion, or mixed installation, confirm the cabinet opening, mounting points, module thickness, power connector and polarity, data-interface pinout, scan configuration, driver IC, receiving-card settings, firmware, and calibration data. Modules used within the same screen should use the same verified configuration and, whenever possible, the same production batch.

Structure & Design Features

• GOB Surface Protection Structure: The GOB protection layer enhances LED surface durability and improves resistance against environmental exposure, making the module suitable for demanding outdoor display applications.
• Fine Pitch Outdoor Display Structure: The 2.5mm pixel pitch combined with SMD1415 LED technology provides detailed image performance for commercial outdoor LED displays requiring closer viewing distances.
• Rear Service Outdoor Module Platform: The rear maintenance structure supports efficient module replacement, secure cabinet installation, and large-scale deployment for outdoor LED display projects.

Installation Guide

• Confirm the cabinet size, module layout, pixel pitch, receiving card configuration, power supply capacity, and rear service structure before installation.
• Install the P2.5 320×160mm outdoor GOB LED modules according to the cabinet layout and ensure each module is securely fixed.
• Connect the HUB75 data cables according to the signal direction, receiving card configuration, and outdoor LED screen wiring plan.
• Connect the DC 5V power cables correctly and check polarity before powering on the LED display system.
• For rear service maintenance, remove and replace the LED module from the rear side using proper tools and maintenance procedures.
• Avoid strong impact, scratching, or improper handling of the GOB LED surface during transportation, installation, and maintenance.

Protection & Service-Life Notice

The stated IP rating applies to the specified module structure under the applicable test conditions; the weather resistance of the completed LED display also depends on the cabinet, seals, connectors, cable entries, ventilation, drainage, and installation workmanship. GOB improves protection of the LED-facing surface but does not automatically protect the rear PCB, connectors, power interfaces, cabinet, or complete display system. Rated service life is a reference value rather than a guaranteed operating period and varies with brightness settings, operating hours, temperature, humidity, power quality, ventilation, maintenance, and environmental exposure.

Applications

• Outdoor GOB LED Display Screens
• P2.5 Outdoor LED Display Modules
• Fine Pitch Outdoor LED Displays
• Commercial Outdoor LED Screens
• Outdoor Advertising Displays
• Shopping Mall Outdoor Advertising
• Digital Signage Systems
• Smart City LED Displays
• Public Information Displays
• Transportation Hub LED Screens
• Brand Experience Outdoor Displays
• Large-Scale Outdoor LED Display Projects
