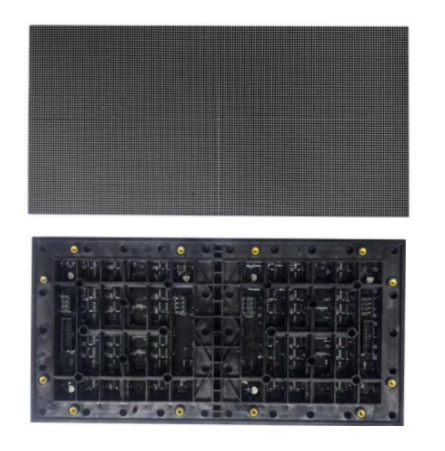

P2 GOB-Protected Outdoor LED Display Module – 320×160mm SMD1211 IP65 Front / IP54 Rear Cover Module for Fine Pitch Outdoor Digital Signage

The P2 GOB-Protected Outdoor LED Display Module is a professional 320mm × 160mm outdoor GOB LED module designed for fine pitch outdoor LED displays, commercial digital signage, and outdoor advertising projects requiring enhanced surface protection, high refresh performance, and reliable long-term operation. Featuring a 2mm pixel pitch, SMD1211 LED technology with GOB protection, ≥5000 nits brightness, and 7680Hz refresh rate, this outdoor GOB LED module delivers detailed image performance, smooth video output, and improved LED surface durability for professional outdoor applications.

The standardized 320×160mm outdoor LED module format provides a 160×80 pixel resolution and supports efficient cabinet integration, module replacement, and scalable LED screen construction. With an IP65 front protection rating, IP54 rear protection structure, integrated rear cover design, and rear service maintenance method, this P2 GOB LED module is suitable for outdoor digital signage, commercial LED screens, smart city displays, and other outdoor LED projects requiring fine pitch image quality and reliable environmental protection.

Package Included

About This Item

• P2 Fine Pitch GOB-Protected Outdoor LED Display Module: Designed with a 2mm pixel pitch and 320×160mm module structure, this outdoor GOB LED module provides high-resolution image performance for commercial outdoor LED displays, digital signage systems, and close-viewing outdoor applications.
• SMD1211 LED Technology with GOB Surface Protection: Built with SMD1211 LED technology and GOB protection, the module improves LED surface durability while providing ≥5000 nits brightness and reliable visual performance for outdoor display environments.
• High Refresh Rate Outdoor LED Performance: Featuring a 7680Hz refresh rate and 14bit grayscale processing capability, this GOB LED module delivers smooth image output and stable visual performance for professional outdoor LED applications.
• IP65 Front and IP54 Rear Protection Structure: The integrated protection design combines IP65 front protection and IP54 rear protection to improve environmental resistance for outdoor fixed LED display installations.

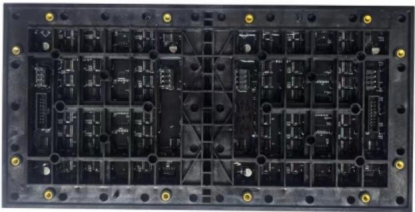

• Rear Cover Structure with Rear Service Maintenance: The integrated rear cover design provides additional structural protection, while the rear service method supports convenient module maintenance and replacement.
• Bulk Project Procurement Ready: Available in sample, standard, and bulk package options to support product evaluation, engineering procurement, system integration, and large-scale outdoor LED display projects.

Order & Logistics

Lead Time

PO-G Series: Usually ships within 3–5 business days.

Freight & Delivery

Shipping fees are not included in product pricing and will be charged separately based on actual freight cost.

• Available shipping methods: Standard shipping / Express shipping / Project logistics.
• Estimated shipping time: Standard delivery takes 9–18 business days, while express delivery takes 5–9 business days. For faster delivery, express options like DHL / UPS / FedEx are available during checkout.
• Shipping Terms: DDP TERM (all fees included), except for destination countries where this shipping service is unavailable. In such cases, we will contact the buyer if this clause does not apply to their country.
• Project Procurement: This collection supports bulk purchasing, channel stocking orders, and project-based procurement.

For large quantity orders, please contact us to confirm freight arrangements, production schedules, and delivery plans.

Specifications

Compatibility Notice

Matching the module size and pixel pitch does not guarantee direct compatibility with an existing LED display. Before replacement, expansion, or mixed installation, confirm the cabinet opening, mounting points, module thickness, power connector and polarity, data-interface pinout, scan configuration, driver IC, receiving-card settings, firmware, and calibration data. Modules used within the same screen should use the same verified configuration and, whenever possible, the same production batch.

Structure & Design Features

• Outdoor GOB Surface Protection Structure: The GOB protection layer enhances LED surface durability and improves resistance against environmental exposure, making the module suitable for demanding outdoor LED applications.
• Integrated Rear Cover Protection Design: The rear cover structure improves module protection, enhances structural stability, and supports reliable deployment in outdoor fixed LED display projects.
• Fine Pitch Outdoor LED Display Platform: Combining SMD1211 LED technology, 2mm pixel pitch, and high refresh performance, the module delivers detailed image quality for commercial outdoor display applications.

Installation Guide

• Confirm the cabinet size, module layout, pixel pitch, receiving card configuration, power supply capacity, and rear cover structure before installation.
• Install the P2 320×160mm outdoor GOB LED modules according to the cabinet layout and ensure each module is securely fixed.
• Connect the HUB75 data cables according to the signal direction, receiving card configuration, and outdoor LED screen wiring plan.
• Connect the DC 5V power cables correctly and check polarity before powering on the LED display system.
• For rear service maintenance, remove and replace the LED module from the rear side using proper tools and maintenance procedures.
• Avoid strong impact, scratching, or improper handling of the GOB LED surface during transportation, installation, and maintenance.

Protection & Service-Life Notice

The stated IP rating applies to the specified module structure under the applicable test conditions; the weather resistance of the completed LED display also depends on the cabinet, seals, connectors, cable entries, ventilation, drainage, and installation workmanship. GOB improves protection of the LED-facing surface but does not automatically protect the rear PCB, connectors, power interfaces, cabinet, or complete display system. Rated service life is a reference value rather than a guaranteed operating period and varies with brightness settings, operating hours, temperature, humidity, power quality, ventilation, maintenance, and environmental exposure.

Applications

• Outdoor GOB LED Display Screens
• P2 Outdoor LED Display Modules
• Fine Pitch Outdoor LED Displays
• Commercial Digital Signage Systems
• Outdoor Advertising Displays
• Smart City LED Displays
• Shopping Mall Outdoor Displays
• Public Information Displays
• Transportation Hub LED Screens
• Brand Experience Outdoor Displays
• Commercial Outdoor LED Screens
• Large-Scale Outdoor LED Display Projects
