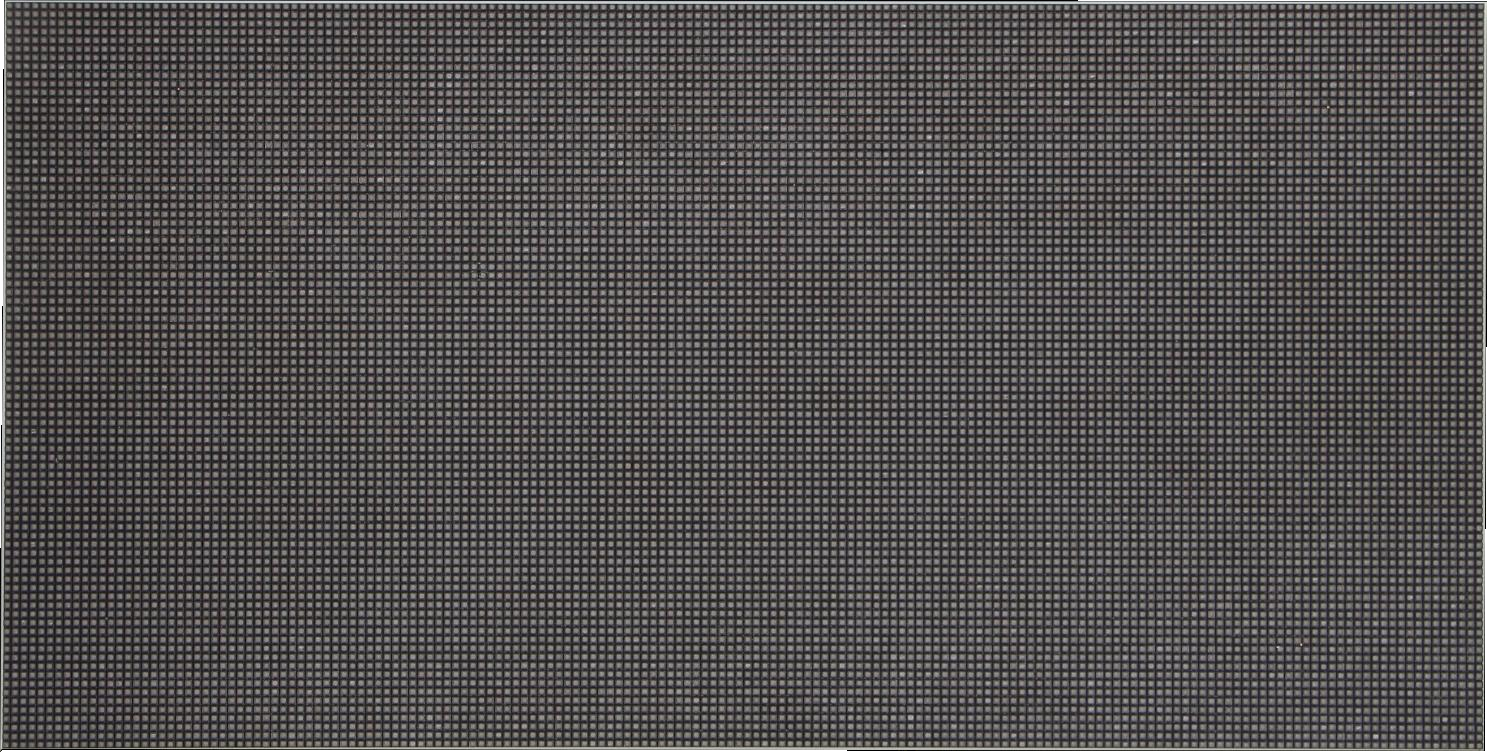

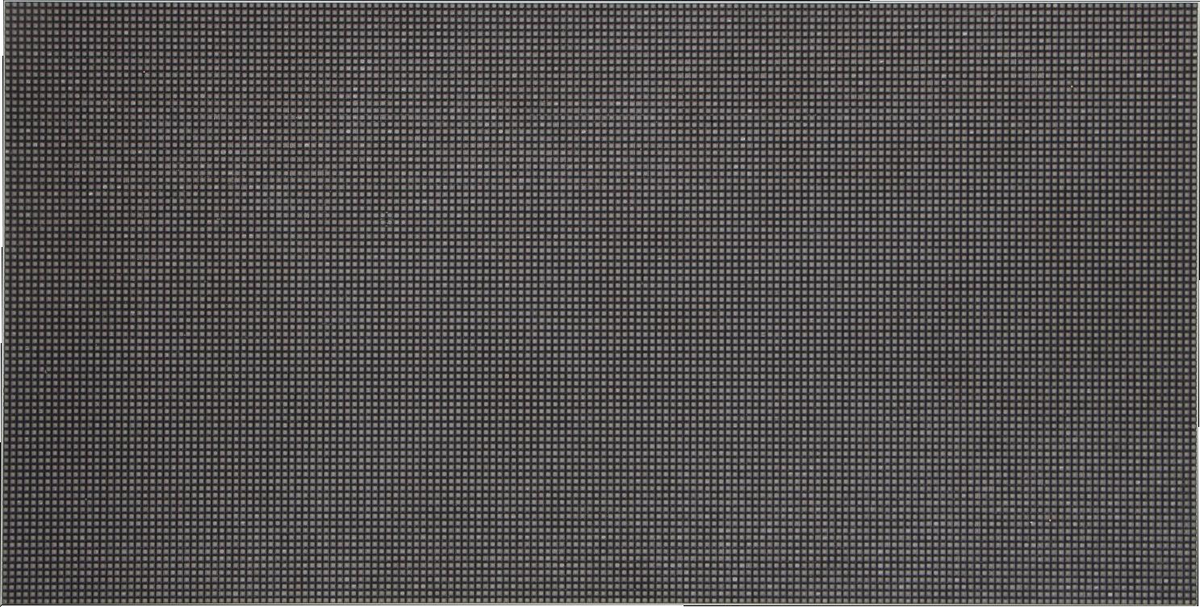

P1.53 Outdoor MIP LED Display Module – 320×160mm MIP1010 Double-Sided IP65 Module for Ultra Fine-Pitch Outdoor LED Displays

The P1.53 Outdoor MIP LED Display Module is a professional 320×160mm outdoor full-color LED module designed for ultra fine-pitch outdoor LED display projects requiring very high pixel density, strong daylight visibility, weather resistance, and reliable long-term operation. Featuring a 1.53mm pixel pitch, MIP1010 LED package, 422,500 pixels/m², ≥4000 nits brightness, and double-sided IP65-rated protection, the module delivers exceptionally detailed image reproduction for close-viewing outdoor LED screens, smart city displays, transportation information systems, and premium commercial digital signage.

With a 208×104 module resolution, 1/26 scan, ≥3840Hz refresh rate, and HUB320 data interface, this P1.53 outdoor MIP module supports smooth video playback, detailed grayscale performance, and stable system integration. Its 320×160mm format, 15.5mm module thickness, 0.45kg weight, lamp-driver integrated structure, and double-sided IP65-rated outdoor protection make it suitable for high-density outdoor LED display projects with recommended viewing distances of 1.5–20m.

Package Included

About This Item

• Ultra Fine-Pitch P1.53 Outdoor MIP LED Module: The 1.53mm pixel pitch and 422,500 pixels/m² provide exceptionally high pixel density for outdoor LED displays that require very fine image detail and close-viewing performance.
• MIP1010 High-Density Display Performance: Built with MIP1010 LED packaging in a 1R1G1B pixel configuration, the module supports vivid full-color image reproduction and stable operation for premium outdoor display applications.
• Double-Sided IP65 Outdoor Protection: IP65 protection on both the front and rear sides of the module improves resistance to dust, moisture, rain, and demanding outdoor environmental conditions.
• High-Brightness High-Refresh Performance: ≥4000 nits white-balance brightness, ≥3840Hz refresh rate, and 16-bit grayscale driving support strong outdoor visibility, smooth video playback, and stable image output.
• Standard 320×160mm Module Format: The 208×104-pixel module layout supports scalable cabinet assembly, consistent module replacement, and high-density fixed outdoor LED screen construction.
• Bulk Project Procurement Ready: Available in 40pcs, 200pcs, and 500pcs package options to support channel stocking, engineering procurement, system integration, and large-scale outdoor LED display projects.

Order & Logistics

Lead Time

MIP Series: Handling time 15–25 business days.

Freight & Delivery

Shipping fees are not included in product pricing and will be charged separately based on actual freight cost.

• Available shipping methods: Standard shipping / Express shipping / Project logistics.
• Estimated shipping time: Standard delivery takes 9–18 business days, while express delivery takes 5–9 business days. For faster delivery, express options such as DHL / UPS / FedEx may be available depending on destination and order quantity.
• Shipping Terms: DDP TERM (all fees included), except for destination countries where this shipping service is unavailable. In such cases, we will contact the buyer if this term does not apply to their destination.
• Project Procurement: This product supports bulk purchasing, channel stocking orders, and project-based procurement.

For large quantity orders, please contact us to confirm freight arrangements, production schedules, and delivery plans.

Specifications

Compatibility Notice

Matching the module size and pixel pitch does not guarantee direct compatibility with an existing LED display. Before replacement, expansion, or mixed installation, confirm the cabinet opening, mounting points, module thickness, power connector and polarity, data-interface type and pinout, scan configuration, driver IC, receiving-card settings, firmware, and calibration data. Modules installed within the same screen should use the same verified configuration and, whenever possible, the same production batch.

Structure & Design Features

• MIP1010 Ultra Fine-Pitch LED Architecture: The MIP1010 package and 1.53mm pixel pitch support 422,500 pixels/m² for extremely detailed full-color outdoor image reproduction and close-viewing applications.
• Double-Sided IP65 Outdoor Protection Structure: IP65 protection on both the front and rear sides of the module improves resistance to dust, moisture, rain, and long-term outdoor environmental exposure.
• Lamp-Driver Integrated & Multi-Layer PCB Design: The lamp-driver integrated structure combines the LED display and driving system within one compact module, while the multi-layer PCB design supports uniform current distribution, effective heat dissipation, and improved electromagnetic interference resistance.

Installation Guide

• Confirm the cabinet structure, module layout, pixel pitch, receiving card configuration, power supply capacity, and installation method before assembly.
• Install the P1.53 320×160mm outdoor MIP LED modules according to the cabinet design and ensure each module is securely fixed and correctly aligned.
• Connect the HUB320 data interface according to the signal direction and receiving card wiring plan.
• Connect the DC 5V power supply correctly and verify polarity before powering on the display system.
• Use appropriate anti-static and lightning-protection measures, and ensure the cabinet and supporting steel structure are properly grounded.
• Avoid strong impact and contact with sharp tools during transportation, installation, and maintenance.
• For surface cleaning, use a soft cloth with alcohol or another non-corrosive cleaning liquid; do not use corrosive chemicals on the module surface.

Protection & Service-Life Notice

The double-sided IP65 rating applies to the specified module structure under the applicable test conditions; it does not independently establish the protection rating of the completed LED display. Final outdoor protection depends on the cabinet, seals, connectors, cable entries, ventilation, drainage, grounding, and installation workmanship. Any stated service-life figure is a rated reference rather than a guaranteed operating period and varies with brightness settings, operating hours, temperature, humidity, power quality, ventilation, maintenance, and environmental exposure.

Applications

• P1.53 Outdoor MIP LED Display Modules
• Ultra Fine-Pitch Outdoor LED Displays
• Close-Viewing Outdoor LED Screens
• Smart City Information Displays
• Commercial Digital Signage
• Transportation Information Displays
• Outdoor Public Information Displays
• Commercial Outdoor LED Displays
• DOOH Advertising Displays
• Traffic Information Systems
• Outdoor Media Screens
• Large-Scale Fixed Outdoor LED Projects
