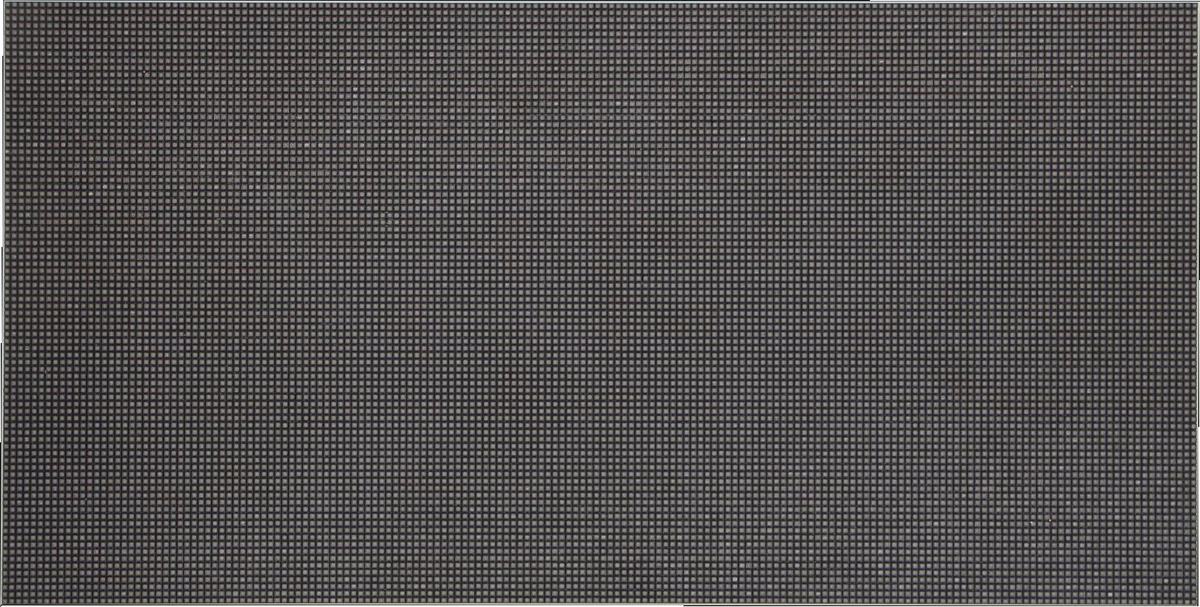

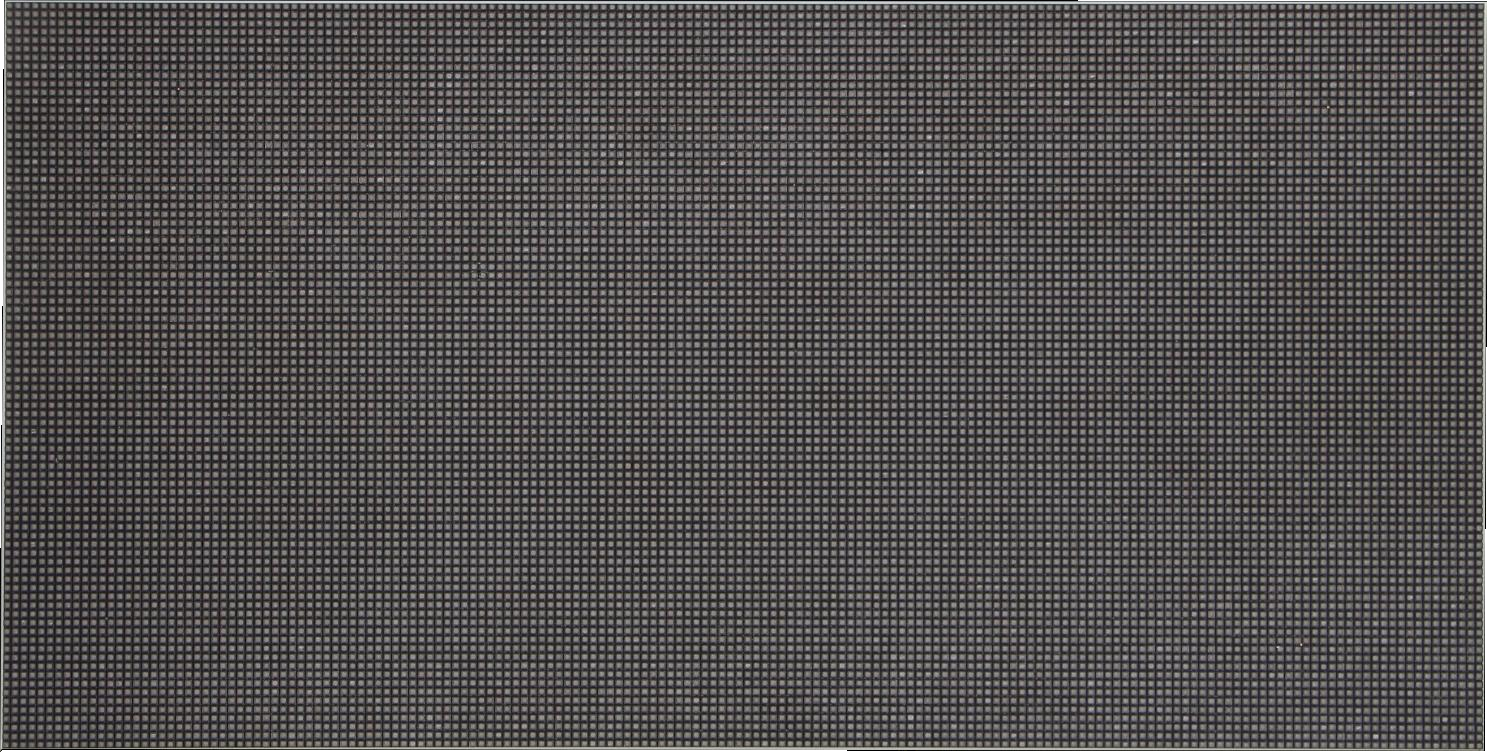

P2.5 Outdoor MIP LED Display Module – 320×160mm High-Brightness SMD1415 Double-Sided IP65 Module for Fine-Pitch Outdoor LED Displays
The P2.5 Outdoor MIP LED Display Module is a professional 320×160mm outdoor full-color LED module designed for fine-pitch outdoor LED displays and close-viewing commercial screen projects. Featuring a 2.5mm pixel pitch, high-brightness SMD1415 LEDs, 160,000 pixels/m², ≥4000 nits brightness, and double-sided IP65-rated protection, the module delivers detailed image reproduction, strong outdoor visibility, and dependable weather resistance for high-density outdoor LED display systems.
With a 128×64 module resolution, 1/32 scan, ≥3840Hz refresh rate, and HUB75 data interface, this P2.5 outdoor MIP module supports smooth video playback and stable system integration. Its 320×160mm format, 16.5mm module thickness, 0.45kg weight, lamp-driver integrated structure, and double-sided IP65-rated outdoor protection make it suitable for outdoor digital signage, public information displays, transportation information screens, commercial outdoor LED displays, and other projects requiring fine image detail at recommended viewing distances of 2.5–20m.
Package Included
| Version |
Package Included |
| 40pcs Standard Pack |
40 × P2.5 320×160mm Outdoor MIP LED Display Module
20 × 5V Power Cable 1-to-2 Split
40 × Flat Data Cable |
| 200pcs Pack |
200 × P2.5 320×160mm Outdoor MIP LED Display Module
100 × 5V Power Cable 1-to-2 Split
200 × Flat Data Cable |
| 500pcs Pack |
500 × P2.5 320×160mm Outdoor MIP LED Display Module
250 × 5V Power Cable 1-to-2 Split
500 × Flat Data Cable |
About This Item
-
Fine-Pitch P2.5 Outdoor MIP LED Module: The 2.5mm pixel pitch and 160,000 pixels/m² provide high pixel density and detailed image performance for outdoor LED screens that require closer viewing than conventional large-pitch outdoor displays.
-
High-Brightness SMD1415 Display Performance: High-brightness 1415 LEDs and ≥4000 nits white-balance brightness support clear outdoor visibility and vivid full-color image reproduction.
-
Double-Sided IP65 Outdoor Protection: IP65 protection on both the front and rear sides of the module improves resistance to dust, moisture, rain, and demanding outdoor environmental conditions.
-
High-Refresh Video Performance: A ≥3840Hz refresh rate, 16-bit grayscale driving system, and constant-current driver architecture support smooth video playback and stable image performance for professional outdoor display applications.
-
Standard 320×160mm Module Format: The 128×64-pixel module layout supports scalable cabinet assembly and practical replacement planning for fixed outdoor LED display systems.
-
Bulk Project Procurement Ready: Available in 40pcs, 200pcs, and 500pcs package options to support channel stocking, engineering procurement, and large-volume outdoor LED display projects.
Order & Logistics
Lead Time
MIP Series: Handling time 15–25 business days.
Freight & Delivery
Shipping fees are not included in product pricing and will be charged separately based on actual freight cost.
-
Available shipping methods: Standard shipping / Express shipping / Project logistics.
-
Estimated shipping time: Standard delivery takes 9–18 business days, while express delivery takes 5–9 business days. For faster delivery, express options such as DHL / UPS / FedEx may be available depending on destination and order quantity.
-
Shipping Terms: DDP TERM (all fees included), except for destination countries where this shipping service is unavailable. In such cases, we will contact the buyer if this term does not apply to their destination.
-
Project Procurement: This product supports bulk purchasing, channel stocking orders, and project-based procurement.
For large quantity orders, please contact us to confirm freight arrangements, production schedules, and delivery plans.
Specifications
| Specification |
Value |
| Model |
P2.5-1415-32S |
| Product Type |
Outdoor Full-Color LED Display Module |
| Technology System |
MIP Series |
| Module Structure |
Lamp-Driver Integrated |
| Protection Level |
Double-Sided IP65 |
| Module Size |
320×160mm |

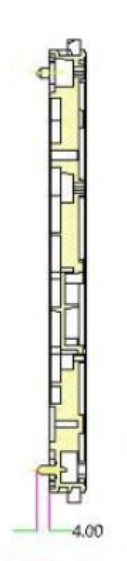

| Module Thickness |
16.5mm |
| Module Weight |
0.45kg |
| Pixel Pitch |
2.5mm |
| Pixel Density |
160,000 pixels/m² |
| Pixel Configuration |
1R1G1B |
| LED Package |
High-Brightness SMD1415 |
| Module Resolution |
128×64 pixels |
| Recommended Viewing Distance |
2.5–20m |
| Panel Current |
4–6A |
| Max. Module Power |
30W |
| Drive Type |
1065L Constant-Current Drive |
| Scan Mode |
1/32 Scan |
| Data Interface |
HUB75 |
| White-Balance Brightness |
≥4000cd/m² |
| Refresh Rate |
≥3840Hz |
| Operating Temperature |
-20°C to 70°C |
Compatibility Notice
Matching the module size and pixel pitch does not guarantee direct compatibility with an existing LED display. Before replacement, expansion, or mixed installation, confirm the cabinet opening, mounting points, module thickness, power connector and polarity, data-interface type and pinout, scan configuration, driver IC, receiving-card settings, firmware, and calibration data. Modules installed within the same screen should use the same verified configuration and, whenever possible, the same production batch.

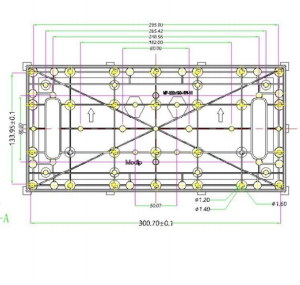

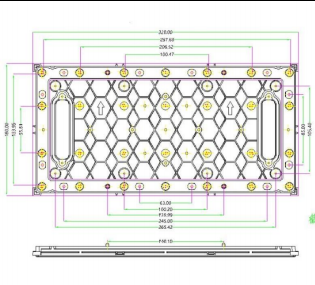

Structure & Design Features
-
MIP Series Outdoor Module with High-Brightness SMD1415 LEDs: The module combines the MIP series platform with high-brightness 1415 LED packaging to support fine-pitch, high-density outdoor full-color display applications.
-
Double-Sided IP65 Outdoor Protection Structure: IP65 protection on both the front and rear sides of the module improves resistance to dust, moisture, rain, and long-term outdoor environmental exposure.
-
Lamp-Driver Integrated & Multi-Layer PCB Design: The lamp-driver integrated structure combines the LED display and driving system within one compact module, while the multi-layer PCB design supports more uniform current distribution, heat dissipation, and improved electromagnetic interference resistance.
Installation Guide
- Confirm the cabinet structure, module layout, pixel pitch, receiving card configuration, power supply capacity, and installation method before assembly.
- Install the P2.5 320×160mm outdoor MIP LED modules according to the cabinet design and ensure each module is securely fixed and correctly aligned.
- Connect the HUB75 data interface according to the signal direction and receiving card wiring plan.
- Connect the DC 5V power supply correctly and verify polarity before powering on the display system.
- Use appropriate anti-static and lightning-protection measures, and ensure the cabinet and supporting steel structure are properly grounded.
- Avoid strong impact and contact with sharp tools during transportation, installation, and maintenance.
- For surface cleaning, use a soft cloth with alcohol or another non-corrosive cleaning liquid; do not use corrosive chemicals on the module surface.
Protection & Service-Life Notice
The double-sided IP65 rating applies to the specified module structure under the applicable test conditions; it does not independently establish the protection rating of the completed LED display. Final outdoor protection depends on the cabinet, seals, connectors, cable entries, ventilation, drainage, grounding, and installation workmanship. Any stated service-life figure is a rated reference rather than a guaranteed operating period and varies with brightness settings, operating hours, temperature, humidity, power quality, ventilation, maintenance, and environmental exposure.
Applications
- P2.5 Outdoor MIP LED Display Modules
- Fine-Pitch Outdoor LED Displays
- Close-Viewing Outdoor LED Screens
- Outdoor Digital Signage
- Commercial Outdoor LED Displays
- Transportation Information Displays
- Public Information Displays
- Smart City Information Screens
- DOOH Advertising Displays
- Outdoor Media Screens
- Large-Scale Fixed Outdoor LED Projects
