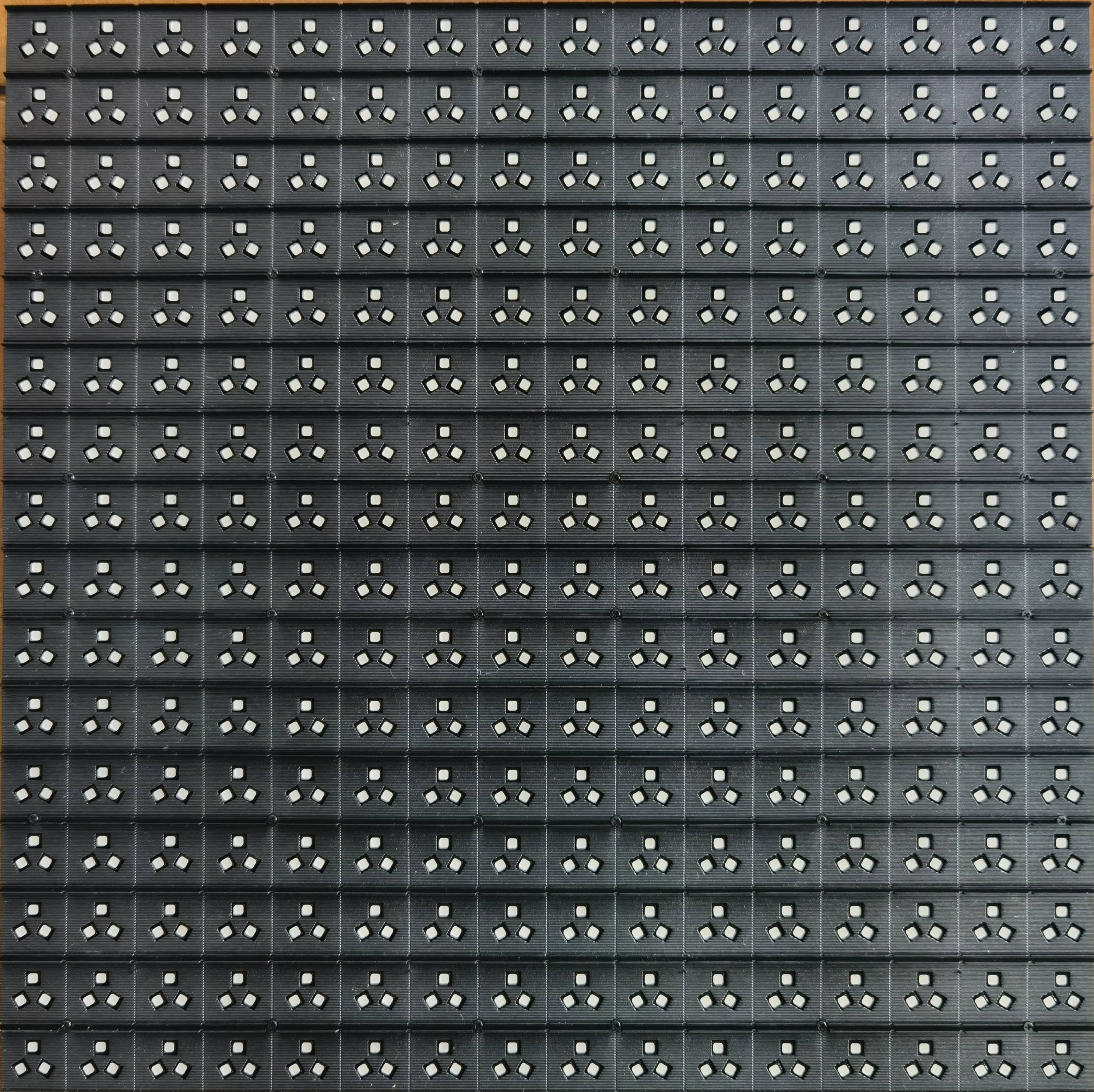

P16 High Brightness Outdoor LED Display Module – 256×256mm SMD2728 IP65 Rear Service Module for Ultra Long Distance Billboard Displays
The P16 High Brightness Outdoor LED Display Module is a professional 256mm × 256mm high brightness outdoor SMD LED module designed for ultra long distance billboard displays, highway advertising screens, and large-format outdoor LED projects requiring exceptional brightness, weather protection, and reliable long-term operation. Featuring a 16mm pixel pitch, SMD2728 LED technology, 8000 nits brightness, and 1920Hz / 3840Hz refresh rate, this high brightness outdoor LED module provides excellent daylight visibility and stable image performance for demanding outdoor environments.
The standardized 256×256mm outdoor LED module format supports efficient cabinet integration and scalable LED display construction. With a static scan driving structure, IP65 outdoor protection, rear service design, and a recommended viewing distance of 10–200 meters, this P16 LED module is suitable for large outdoor advertising displays, highway billboards, DOOH advertising networks, airport media screens, and other ultra long-distance outdoor LED display projects.
Package Included
| Version |
Package Included |
| 100pcs Pack |
100 × P16 High Brightness 256×256mm Outdoor LED Display Module
50 × 5V Power Cable 1-to-2 Split
100 × Power Connection Cable |
| 200pcs Pack |
200 × P16 High Brightness 256×256mm Outdoor LED Display Module
100 × 5V Power Cable 1-to-2 Split
200 × Power Connection Cable |
| 500pcs Pack |
500 × P16 High Brightness 256×256mm Outdoor LED Display Module
250 × 5V Power Cable 1-to-2 Split
500 × Power Connection Cable |
About This Item
-
8000 Nits High Brightness Outdoor LED Module: Designed with a 16mm pixel pitch and 256×256mm module structure, this high brightness LED module delivers strong daylight visibility for ultra long-distance outdoor advertising displays, highway billboards, and large media screen projects.
-
SMD2728 LED Technology for Large Outdoor Displays: Built with SMD2728 LED technology, the module provides stable brightness performance, reliable color output, and long-term operation for fixed outdoor LED display applications.
-
Static Scan Structure for High Brightness Performance: The static scan driving design improves display stability and supports consistent image output for outdoor environments requiring high brightness and long viewing distances.
-
IP65 Outdoor Protection Design: The module features an IP65 protection structure designed for outdoor fixed installation, helping protect the LED display system against dust and water exposure during continuous outdoor operation.
-

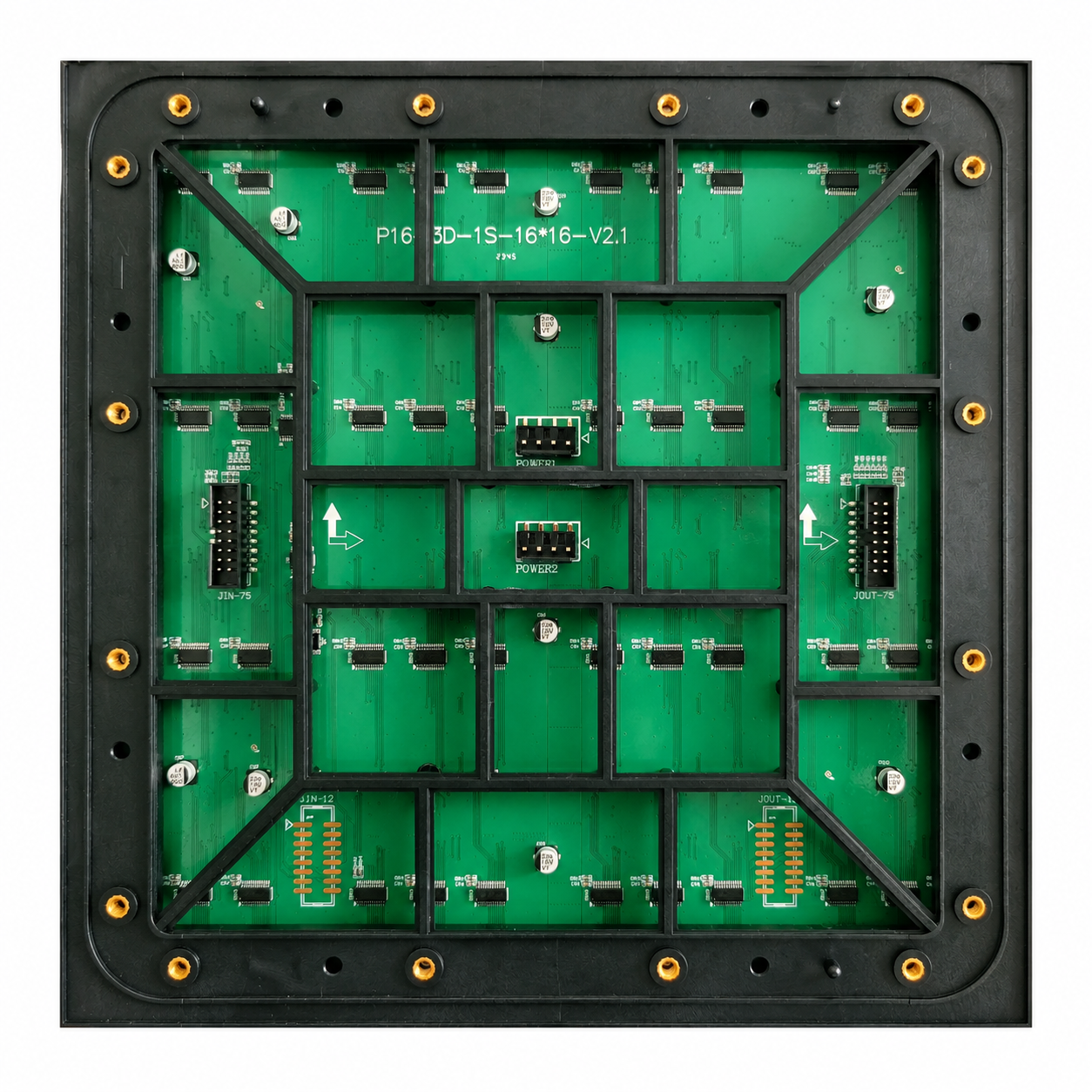

Rear Service Large Format LED Module Design: The rear service structure provides convenient maintenance access, secure cabinet integration, and efficient module replacement for large-scale outdoor LED display systems.
-
Bulk Project Procurement Ready: Available in 100pcs, 200pcs, and 500pcs package options to support engineering procurement, system integration, and large-scale outdoor advertising deployments.
Order & Logistics
Lead Time
MOQ 100pcs items in PO-S Series: Handling time 7-15 business days.
Freight & Delivery
Shipping fees are not included in product pricing and will be charged separately based on actual freight cost.
-
Available shipping methods: Standard shipping / Express shipping / Project logistics.
-
Estimated shipping time: Standard delivery takes 9–18 business days, while express delivery takes 5–9 business days. For faster delivery, express options like DHL / UPS / FedEx are available during checkout.
-
Shipping Terms: DDP TERM (all fees included), except for destination countries where this shipping service is unavailable. In such cases, we will contact the buyer if this clause does not apply to their country.
-
Project Procurement: This collection supports bulk purchasing, channel stocking orders, and project-based procurement.
For large quantity orders, please contact us to confirm freight arrangements, production schedules, and delivery plans.
Specifications
| Specification |
Value |
| Module Size |
256×256mm |
| Module Weight |
650±10g |
| Module Thickness |
20mm |
| Pixel Pitch |
16mm |
| Module Resolution |
16×16 dots |
| Pixel Density |
11,718 dots/m² |
| LED Type |
SMD2728 |
| Technology System |
High Brightness Outdoor SMD LED Module |
| Brightness |
≥8000 nits |
| Scan Rate |
Static Scan (1/1 Scan) |
| Refresh Rate |
1920Hz / 3840Hz |
| Pixel Configuration |
3R3G3B |
| Viewing Angle |
H:110°+ / V:140°+ |
| Input Voltage |
DC 5V |
| Data Interface |
HUB75 |
| Installation Method |
Screw Lock |
| Protection Level |
IP65 |
| Maintenance Method |
Rear Service |
| Cascade Support |
Yes |
| Recommended Viewing Distance |
10–200m |
| Operating Temperature |
-20°C to 65°C |
| Operating Humidity |
10%–90% RH |
| Lifetime |
≥100,000 Hours |
Structure & Design Features
-
Ultra High Brightness Outdoor Display Structure: Designed with SMD2728 LED technology and 8000 nits brightness, the module provides excellent daylight visibility for large-format outdoor advertising and long-distance media display applications.
-
IP65 Weather Protection Design: The outdoor protection structure helps maintain stable operation in outdoor environments exposed to dust, moisture, and changing weather conditions.
-
Static Scan Rear Service Module Platform: The static scan structure combined with rear service design supports high brightness output, efficient maintenance, and large-scale outdoor LED display deployment.
Installation Guide
- Confirm the cabinet size, module layout, receiving card configuration, power supply capacity, and rear service structure before installation.
- Install the P16 high brightness 256×256mm outdoor LED modules according to the cabinet layout and ensure each module is securely fixed.
- Connect the HUB75 data cables according to the signal direction, receiving card configuration, and outdoor LED screen wiring plan.
- Connect the DC 5V module power supply correctly and verify polarity before powering on the LED display system.
- For rear service maintenance, remove and replace the LED module from the rear side using proper tools and maintenance procedures.
- Avoid strong impact, scratching, or improper handling of the LED surface during transportation, installation, and maintenance.
Applications
- Ultra Long Distance Billboard Displays
- P16 High Brightness Outdoor LED Modules
- Highway Advertising LED Screens
- Large Format LED Advertising Displays
- DOOH Advertising Networks
- Outdoor Media Screens
- Airport Advertising Displays
- Transportation Hub LED Screens
- Commercial Outdoor LED Displays
- Smart City Information Displays
- Public Information Displays
- Large-Scale Fixed Outdoor LED Display Projects
