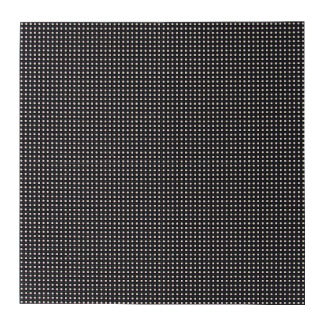

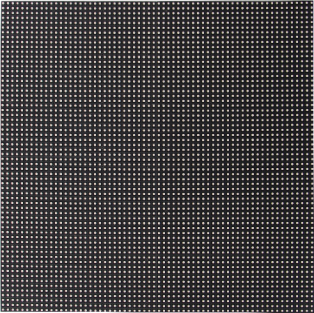

P3 Outdoor LED Display Module – 192×192mm SMD1415 IP65 Screw-Lock Rear Service Module for Commercial Outdoor LED Displays
The P3 Outdoor LED Display Module is a professional 192mm × 192mm outdoor SMD LED module designed for commercial outdoor LED displays, digital advertising displays, and fixed outdoor display projects requiring high brightness, IP65 protection, and reliable long-term operation. Featuring a 3mm pixel pitch, SMD1415 LED technology, 5,000 nits brightness, and 1920Hz refresh rate, this outdoor LED module provides clear image quality, stable color performance, and smooth visual output for professional outdoor display applications.
The standardized 192×192mm outdoor LED module format supports efficient cabinet integration, module replacement, and scalable LED screen construction. With an IP65 outdoor protection structure, screw-lock rear service design, and long-distance viewing capability, this P3 LED module is suitable for outdoor advertising displays, commercial LED screens, DOOH networks, smart city displays, and other outdoor LED projects requiring dependable operation in various environments.
Two hardware versions are available. Both versions meet the same listed specifications and performance requirements. The version supplied depends on confirmed stock availability and should not be mixed within the same display without compatibility and visual-consistency verification.
Package Included
| Version |
Package Included |
| 100pcs Pack |
100 × P3 192×192mm Outdoor LED Display Module
50 × 5V Power Cable 1-to-2 Split
100 × Flat Data Cable |
| 200pcs Pack |
200 × P3 192×192mm Outdoor LED Display Module
100 × 5V Power Cable 1-to-2 Split
200 × Flat Data Cable |
| 500pcs Pack |
500 × P3 192×192mm Outdoor LED Display Module
250 × 5V Power Cable 1-to-2 Split
500 × Flat Data Cable |
About This Item
-
P3 Outdoor LED Display Module for Commercial Screens: Designed with a 3mm pixel pitch and 192×192mm module structure, this outdoor LED module provides a balanced combination of image detail, viewing distance, and project value for commercial outdoor LED displays and advertising applications.
-
SMD1415 LED Technology for Outdoor Display Performance: Built with SMD1415 LED technology, the module delivers 5,000 nits brightness, 1920Hz refresh rate, and stable color reproduction for outdoor LED displays requiring clear visibility and reliable operation.
-
IP65 Outdoor Protection Design: The module features an IP65 protection structure designed for outdoor fixed installation, helping protect the module against dust and water exposure when correctly installed in a compatible outdoor cabinet during long-term outdoor operation.
-

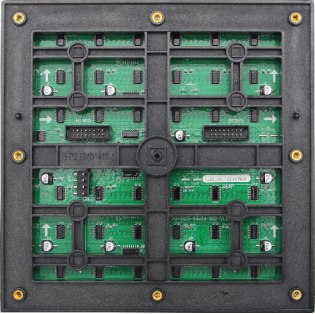

Screw-Lock Rear Service Structure: The rear service screw-lock design provides secure module installation, convenient maintenance access, and reliable structural support for large-scale outdoor LED display projects.
-
Standard 192×192mm Module Compatibility: The standardized module size supports efficient cabinet assembly, replacement maintenance, and scalable outdoor LED screen deployment across different project requirements.
-
Bulk Project Procurement Ready: Available in sample, standard, and bulk package options to support product evaluation, engineering procurement, system integration, and large-scale outdoor LED display projects.
Order & Logistics
Lead Time
MOQ 100pcs items in PO-S Series: Handling time 7–15 business days.
Freight & Delivery
Shipping fees are not included in product pricing and will be charged separately based on actual freight cost.
-
Available shipping methods: Standard shipping / Express shipping / Project logistics.
-
Estimated shipping time: Standard delivery takes 9–18 business days, while express delivery takes 5–9 business days. For faster delivery, express options like DHL / UPS / FedEx are available during checkout.
-
Shipping Terms: DDP TERM (all fees included), except for destination countries where this shipping service is unavailable. In such cases, we will contact the buyer if this clause does not apply to their country.
-
Project Procurement: This collection supports bulk purchasing, channel stocking orders, and project-based procurement.
For large quantity orders, please contact us to confirm freight arrangements, production schedules, and delivery plans.
Specifications
| Specification |
Value |
| Module Size |
192×192mm |
| Module Weight |
0.41kg |
| Pixel Pitch |
3mm |
| Module Resolution |
64×64 dots |
| Pixel Density |
111,111 dots/m² |
| LED Type |
SMD1415 |
| Technology System |
Outdoor SMD LED Module |
| Brightness |
5,000 nits |
| Scan Rate |
1/16 scan |
| Refresh Rate |
1920Hz |
| Contrast Ratio |
≥4000:1 |
| Gray Level |
65,536 Levels |
| Viewing Angle |
H:170° / V:120° |
| Input Voltage |
DC 5V |
| Module Average Power |
16W |
| Data Interface |
HUB75 |
| Installation Method |
Screw Lock + Magnetic |
| Protection Level |
IP65-Rated Module Structure |
| Maintenance Method |
Rear Service (Screw-Lock) |
| Recommended Viewing Distance |
3–10m (Approximate Reference) |
| Lifetime |
Up to 100,000 Hours (Rated) |
| Operating Humidity |
10%–90% RH |
Compatibility Notice: Matching module dimensions do not guarantee direct replacement compatibility. Before replacement or mixed installation, confirm the cabinet opening, mounting points, module thickness, power connector and polarity, data interface and pinout, scan configuration, driver IC, receiving-card settings, firmware, and calibration data. For consistent brightness and color, use modules from the same confirmed product configuration and production batch whenever possible.
Structure & Design Features
-
IP65 Outdoor Protection Structure: Designed for outdoor fixed LED display applications, the module provides reliable protection against dust and water exposure for stable long-term outdoor operation.
-
Screw-Lock Rear Service Module Design: The rear service structure provides secure cabinet integration, convenient maintenance access, and efficient module replacement for outdoor LED screen projects.
-
SMD1415 Outdoor LED Technology Platform: Built with SMD1415 LED technology, the module provides stable brightness, detailed image performance, and reliable operation for commercial outdoor LED display deployments.
Installation Guide
- Confirm the cabinet size, module layout, pixel pitch, receiving card configuration, power supply capacity, and rear service structure before installation.
- Install the P3 192×192mm outdoor LED modules according to the cabinet layout and ensure each module is securely fixed with screw-lock connections.
- Connect the flat data cables according to the signal direction, receiving card configuration, and outdoor LED screen wiring plan.
- Connect the DC 5V power cables correctly and check polarity before powering on the LED display system.
- For rear service maintenance, remove and replace the LED module from the rear side using proper tools and maintenance procedures.
- Avoid strong impact, scratching, or improper handling of the LED surface during transportation, installation, and maintenance.
Protection & Service-Life Notice: The stated IP rating applies to the specified module structure, not automatically to the completed LED display. Final outdoor protection depends on the cabinet, connectors, cable entries, seals, drainage, grounding, and installation quality. Rated service life is a reference under specified operating conditions; actual service life varies with brightness settings, thermal management, power quality, weather exposure, and maintenance.
Applications
- Outdoor Advertising Displays
- P3 Outdoor LED Display Modules
- Commercial Outdoor LED Displays
- Digital Billboards
- DOOH Advertising Networks
- Smart City LED Displays
- Traffic Information Display Systems
- Transportation Hub LED Screens
- Commercial Building LED Displays
- Public Information Displays
- Retail Outdoor Digital Signage
- Outdoor Event LED Screens
- Fixed Outdoor LED Display Projects
- Large-Scale Commercial LED Screen Installations
