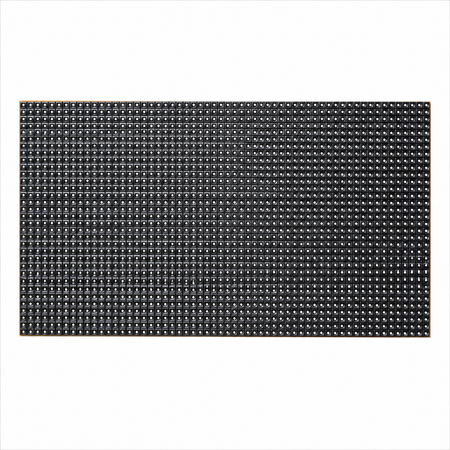

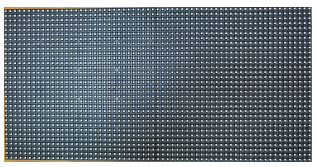

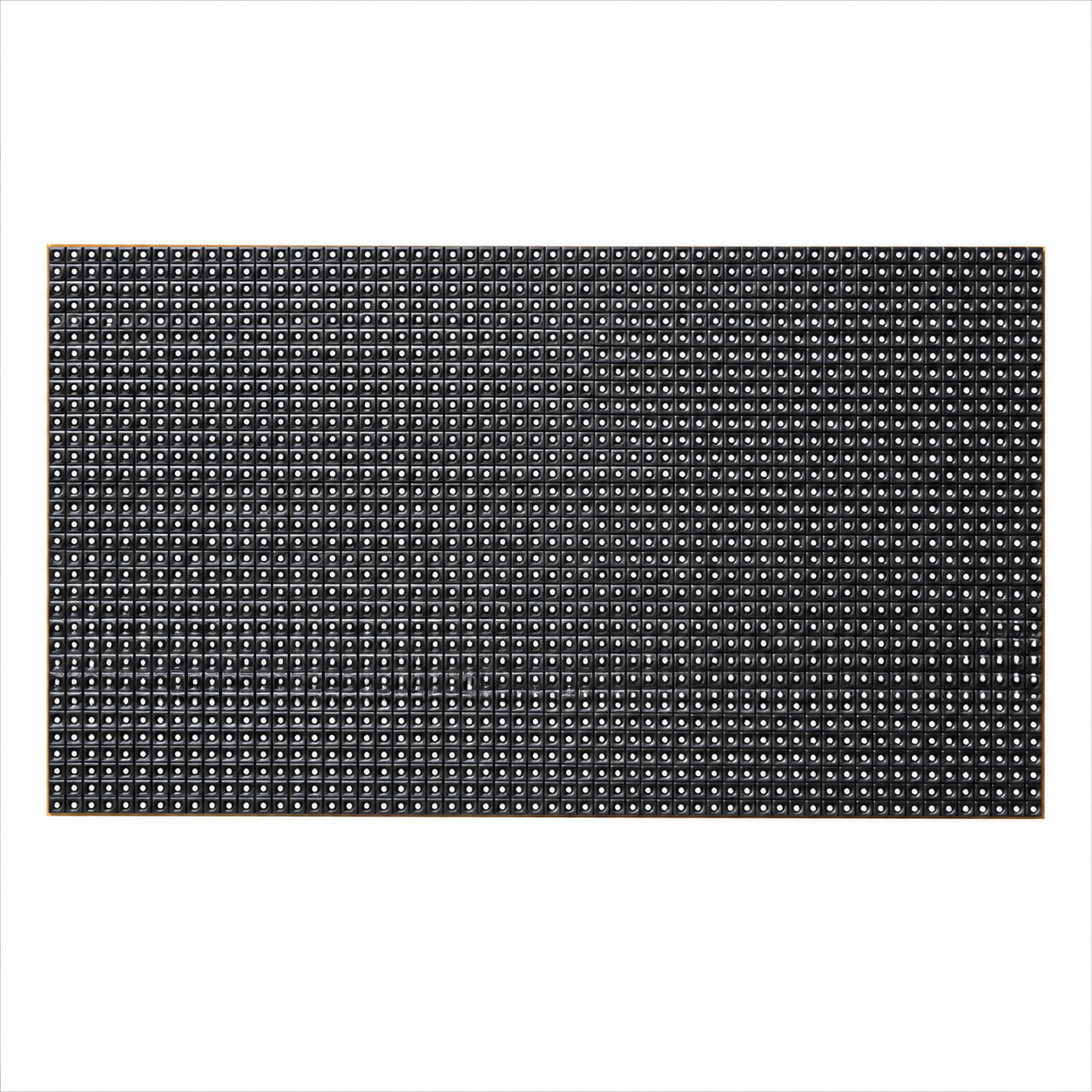

P5 High-Brightness Outdoor LED Display Module – 320×160mm SMD1921 IP65 Rear Service Module for Daylight Outdoor Media Screens
The P5 High-Brightness Outdoor LED Display Module is a professional 320mm × 160mm outdoor SMD LED module designed for daylight outdoor media screens, high brightness LED advertising displays, and fixed outdoor LED projects requiring exceptional visibility, IP65 protection, and reliable long-term operation. Featuring a 5mm pixel pitch, SMD1921 LED technology, 8,000 nits brightness, and ≥3840Hz refresh rate, this high brightness outdoor LED module delivers clear image performance even under strong daylight conditions.
The standardized 320×160mm outdoor LED module format supports efficient cabinet integration, module replacement, and scalable LED screen construction. With an IP65 outdoor protection structure, rear service design, 4-scan driving mode, and optimized long-distance viewing performance, this P5 high brightness LED module is suitable for outdoor media screens, digital billboards, highway advertising displays, commercial outdoor LED screens, and other high-visibility outdoor display projects.
Package Included
| Version |
Package Included |
| 100pcs Pack |
100 × P5 High Brightness 320×160mm Outdoor LED Display Module
50 × 5V Power Cable 1-to-2 Split
100 × Power Connection Cable |
| 200pcs Pack |
200 × P5 High Brightness 320×160mm Outdoor LED Display Module
100 × 5V Power Cable 1-to-2 Split
200 × Power Connection Cable |
| 500pcs Pack |
500 × P5 High Brightness 320×160mm Outdoor LED Display Module
250 × 5V Power Cable 1-to-2 Split
500 × Power Connection Cable |
About This Item
-
8000 Nits High-Brightness Outdoor LED Module: Designed with a 5mm pixel pitch and 320×160mm module structure, this high brightness LED module delivers 8,000 nits brightness for outdoor applications requiring strong daylight visibility, including media screens, advertising displays, and large outdoor LED projects.
-
SMD1921 LED Technology for High Visibility Displays: Built with SMD1921 LED technology, the module provides stable brightness output, ≥3840Hz refresh rate, and reliable color performance for outdoor environments with demanding visual requirements.
-
IP65 Outdoor Protection Structure: The module features IP65 protection designed for fixed outdoor installation, helping protect the module against dust and water exposure when correctly installed in a compatible outdoor cabinet during long-term operation.
-
4-Scan Driving Performance: The optimized 1/4 scan driving mode provides efficient LED control performance and supports stable image output for high brightness outdoor LED display applications.
-

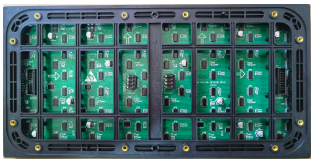

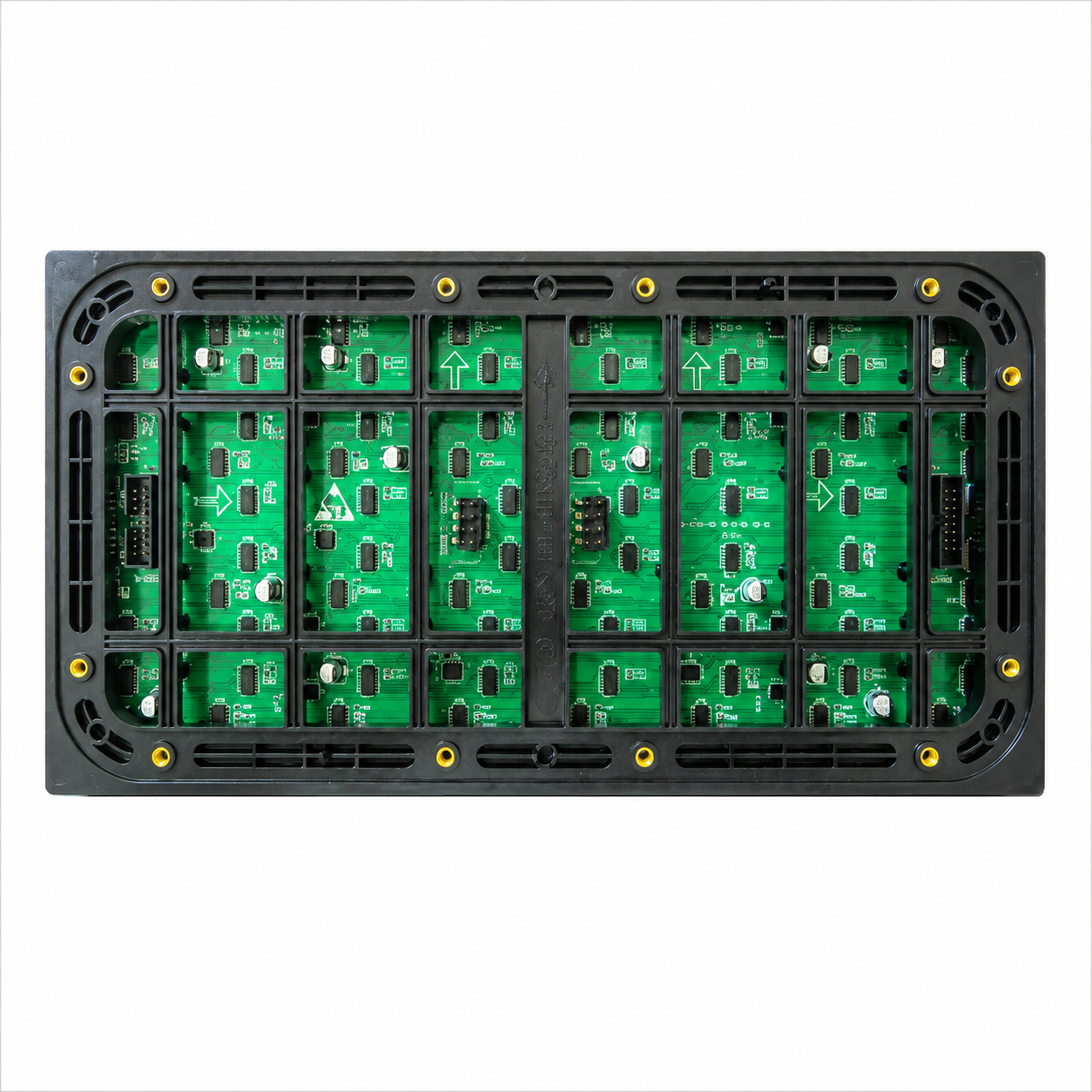

Rear Service Outdoor Module Design: The rear service structure provides convenient maintenance access, secure module installation, and efficient replacement for large-scale outdoor LED display systems.
-
Bulk Project Procurement Ready: Available in 100pcs, 200pcs, and 500pcs package options to support engineering procurement, system integration, and large-scale outdoor media display projects.
Order & Logistics
Lead Time
MOQ 100pcs items in PO-S Series: Handling time 7-15 business days.
Freight & Delivery
Shipping fees are not included in product pricing and will be charged separately based on actual freight cost.
-
Available shipping methods: Standard shipping / Express shipping / Project logistics.
-
Estimated shipping time: Standard delivery takes 9–18 business days, while express delivery takes 5–9 business days. For faster delivery, express options like DHL / UPS / FedEx are available during checkout.
-
Shipping Terms: DDP TERM (all fees included), except for destination countries where this shipping service is unavailable. In such cases, we will contact the buyer if this clause does not apply to their country.
-
Project Procurement: This collection supports bulk purchasing, channel stocking orders, and project-based procurement.
For large quantity orders, please contact us to confirm freight arrangements, production schedules, and delivery plans.
Specifications
| Specification |
Value |
| Module Size |
320×160mm |
| Pixel Pitch |
5mm |
| Module Resolution |
64×32 dots |
| Pixel Density |
40,000 dots/m² |
| LED Type |
SMD1921 |
| Technology System |
High-Brightness Outdoor SMD LED Module |
| Brightness |
≥8,000 nits |
| Scan Rate |
1/4 scan |
| Refresh Rate |
≥3840Hz |
| Pixel Configuration |
1R1G1B Full Color |
| Viewing Angle |
H:120°+ / V:140°+ |
| Input Voltage |
DC 4.2V |
| Data Interface |
HUB75 |
| Installation Method |
Screw Lock |
| Protection Level |
IP65-Rated Module Structure |
| Maintenance Method |
Rear Service |
| Cascade Support |
Yes |
| Recommended Viewing Distance |
10–200m |
| Operating Temperature |
-20°C to 65°C |
| Operating Humidity |
10%–90% RH |
| Lifetime |
Up to 100,000 Hours (Rated) |
Compatibility Notice: Matching module dimensions do not guarantee direct replacement compatibility. Before replacement or mixed installation, confirm the cabinet opening, mounting points, module thickness, power connector and polarity, data interface and pinout, scan configuration, driver IC, receiving-card settings, firmware, and calibration data. For consistent brightness and color, use modules from the same confirmed product configuration and production batch whenever possible.
Structure & Design Features
-
Ultra-High-Brightness Outdoor Display Structure: Designed with SMD1921 LED technology and 8,000 nits brightness, the module provides excellent daylight visibility for outdoor media screens and high-impact advertising applications.
-
IP65 Weather Protection Design: The outdoor protection structure helps maintain stable operation in outdoor environments with exposure to dust, moisture, and changing weather conditions.
-
Rear Service High Brightness Module Platform: The rear service structure supports efficient maintenance, secure installation, and large-scale deployment for premium outdoor LED display projects.
Installation Guide
- Confirm the cabinet size, module layout, receiving card configuration, power supply capacity, and rear service structure before installation.
- Install the P5 high brightness 320×160mm outdoor LED modules according to the cabinet layout and ensure each module is securely fixed.
- Connect the HUB75 data cables according to the signal direction, receiving card configuration, and outdoor LED screen wiring plan.
- Connect the DC 4.2V module power supply correctly and verify polarity before powering on the LED display system.
- For rear service maintenance, remove and replace the LED module from the rear side using proper tools and maintenance procedures.
- Avoid strong impact, scratching, or improper handling of the LED surface during transportation, installation, and maintenance.
Protection & Service-Life Notice: The stated IP rating applies to the specified module structure, not automatically to the completed LED display. Final outdoor protection depends on the cabinet, connectors, cable entries, seals, drainage, grounding, and installation quality. Rated service life is a reference under specified operating conditions; actual service life varies with brightness settings, thermal management, power quality, weather exposure, and maintenance.
Applications
- High-Brightness Outdoor LED Screens
- Outdoor Media Screens
- Daylight-Visible LED Displays
- Digital Billboard Displays
- DOOH Advertising Networks
- Highway Advertising LED Screens
- Commercial Outdoor Advertising Displays
- Large Outdoor Media Installations
- Smart City Information Displays
- Transportation Hub LED Screens
- Public Information Displays
- Outdoor Event LED Screens
- Fixed Outdoor LED Display Projects
