P6 Outdoor LED Display Module – 192×192mm SMD2727 IP65 Front / IP54 Rear Cover Module for Weather-Resistant Building Facade Displays
The P6 Outdoor LED Display Module is a professional 192mm × 192mm outdoor SMD LED module with patent rear cover structure designed for weather-resistant building facade displays, outdoor LED screens, and fixed outdoor display projects requiring compact module design, enhanced structural protection, and reliable long-term operation. Featuring a 6mm pixel pitch, SMD2727 / SMD2525 LED technology, ≥4200 nits brightness, and up to 3840Hz refresh rate, this outdoor LED module delivers stable image performance and clear visibility for professional outdoor applications.
The compact 192×192mm outdoor LED module format provides a 32×32 pixel resolution and supports flexible cabinet integration, module replacement, and scalable LED display construction. With an IP65 front protection structure, patent rear cover design, and front & rear service maintenance capability, this P6 rear cover LED module is suitable for building facade displays, commercial outdoor LED screens, smart city displays, and other weather-resistant outdoor LED projects requiring reliable protection and convenient maintenance.

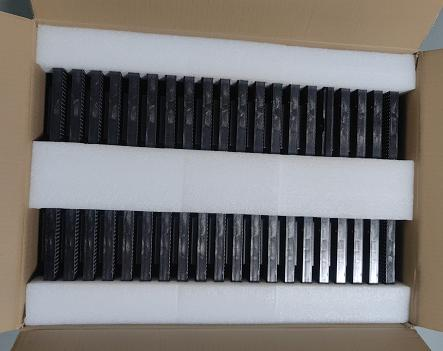

Package Included
| Version |
Package Included |
| 100 pcs Pack |
100 × P6 192×192mm Outdoor LED Display Module |
|
50 × 5V Power Cable 1-to-2 Split |
|
100 × Flat Data Cable |
| 200 pcs Pack |
200 × P6 192×192mm Outdoor LED Display Module |
|
100 × 5V Power Cable 1-to-2 Split |
|
200 × Flat Data Cable |
| 500 pcs Pack |
500 × P6 192×192mm Outdoor LED Display Module |
|
250 × 5V Power Cable 1-to-2 Split |
|
500 × Flat Data Cable |
About This Item
-

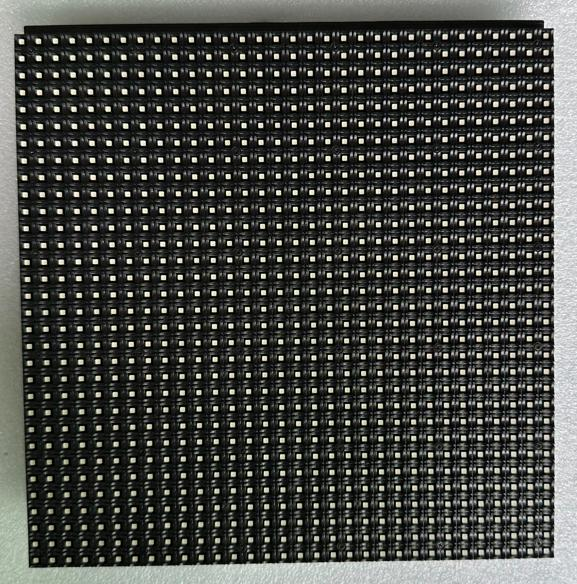

P6 Compact Outdoor LED Display Module: Designed with a 6mm pixel pitch and 192×192mm module structure, this outdoor LED module provides a compact solution for building facade displays, commercial outdoor screens, and weather-resistant LED display projects.
-
SMD2727 / SMD2525 LED Technology for Outdoor Applications: Built with SMD2727 / SMD2525 LED technology, the module provides ≥4200 nits brightness, stable color performance, and reliable operation for long-term outdoor LED display installations.
-
IP65 Outdoor Protection Structure: The module features an IP65 front protection structure designed for outdoor fixed installation, helping protect the LED display system against dust and water exposure in changing outdoor environments.
-
Patent Rear Cover Protection Design: The integrated rear cover structure improves module protection, enhances structural stability, and supports reliable deployment for outdoor LED display projects requiring additional mechanical protection.
-
Front & Rear Service Maintenance Structure: The dual-side maintenance design provides flexible access for installation, inspection, and module replacement, improving maintenance efficiency for outdoor LED display systems.
-
Bulk Project Procurement Ready: Available in bulk package options to support product evaluation, engineering procurement, system integration, and large-scale outdoor LED display projects.
Order & Logistics
Lead Time
MOQ 100pcs items in PO-SR Series: Usually ship within 7–15 business days.
Freight & Delivery
Shipping fees are not included in product pricing and will be charged separately based on actual freight cost.
-
Available shipping methods: Standard shipping / Express shipping / Project logistics.
-
Estimated shipping time: Standard delivery takes 9–18 business days, while express delivery takes 5–9 business days. For faster delivery, express options like DHL / UPS / FedEx are available during checkout.
-
Shipping Terms: DDP TERM (all fees included), except for destination countries where this shipping service is unavailable. In such cases, we will contact the buyer if this clause does not apply to their country.
-
Project Procurement: This collection supports bulk purchasing, channel stocking orders, and project-based procurement.
For large quantity orders, please contact us to confirm freight arrangements, production schedules, and delivery plans.
Specifications
| Specification |
Value |
| Module Size |

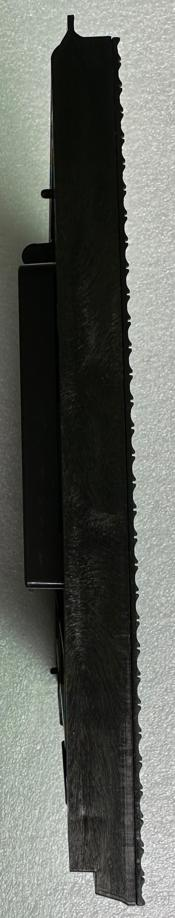

192×192×16mm |
| Module Weight |
0.36kg ±0.01kg |
| Pixel Pitch |
6mm |
| Module Resolution |
32×32 dots |
| Pixel Density |
27,777 dots/m² |
| LED Type |
SMD2525 / SMD2727 |
| Technology System |
Outdoor SMD LED Module with Rear Cover |
| Brightness |
≥4200 nits |
| Scan Rate |
1/8 Constant Current Drive |
| Refresh Rate |
Up to 3840Hz |
| Gray Scale |
14–16bit |
| Viewing Angle |
H:140°±10° / V:130°±10° |
| Input Voltage |
DC 5V ±0.1V |
| Maximum Current |
≤5A |
| Module Power |
≤25W |
| Installation Method |
Screw Lock + Magnetic |
| Front Protection Rating |
IP65 |
| Rear Cover Structure |
Patent Rear Cover Structure |
| Maintenance Method |
Front & Rear Service |
| Recommended Viewing Distance |
≥6m |
| Lifetime |
Up to 100,000 Hours (Rated) |
| Operating Temperature |
-20°C to 40°C |
| Operating Humidity |
10%–90% RH |
Compatibility Notice
Matching the module size and pixel pitch does not guarantee direct compatibility with an existing LED display. Before replacement, expansion, or mixed installation, confirm the cabinet opening, mounting points, module thickness, power connector and polarity, data-interface pinout, scan configuration, driver IC, receiving-card settings, firmware, and calibration data. Modules used within the same screen should use the same verified configuration and, whenever possible, the same production batch.
Structure & Design Features
-

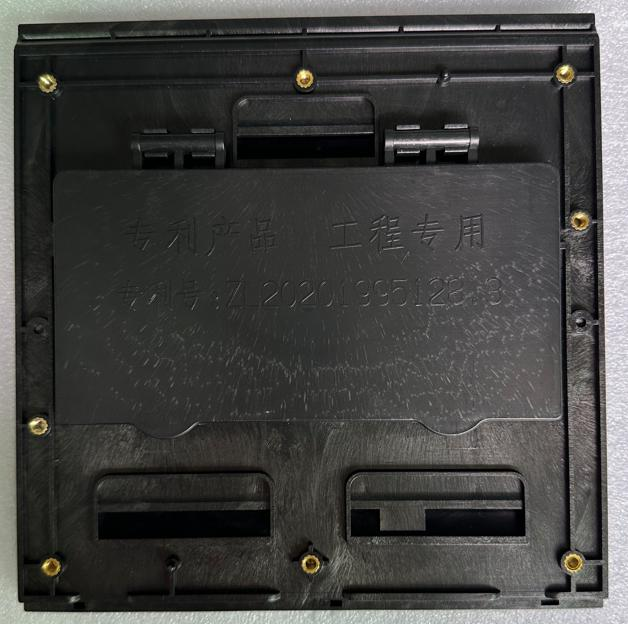

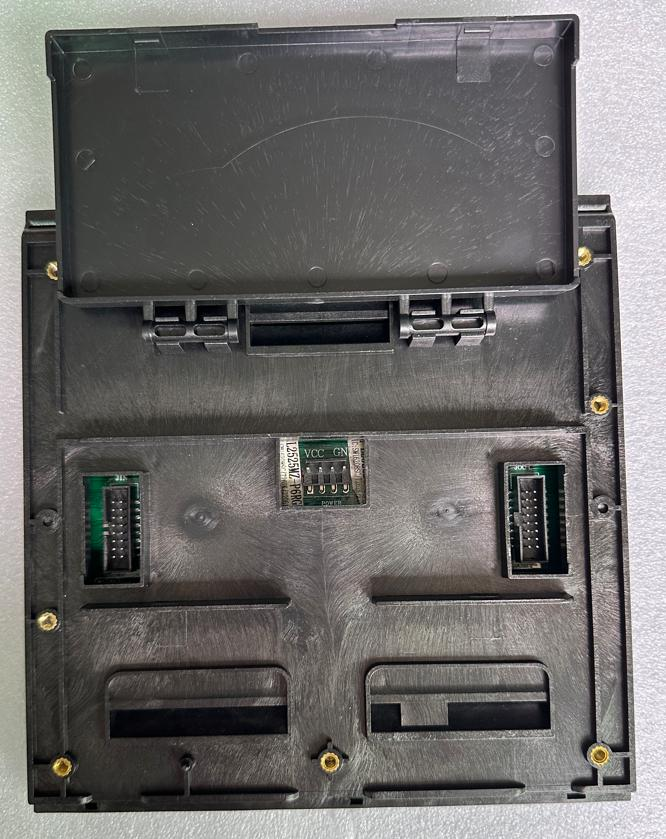

Patent Rear Cover Protection Structure: The rear cover design provides additional physical protection, improves module stability, and supports reliable outdoor LED display deployment.
-
IP65 Weather-Resistant Outdoor Structure: The protection design helps maintain stable operation in outdoor environments exposed to dust, moisture, and changing weather conditions.
-
Compact Outdoor LED Display Platform: The 192×192mm module structure combined with SMD2727 technology provides flexible deployment options for building facade displays and commercial outdoor LED applications.
Installation Guide
- Confirm the cabinet size, module layout, pixel pitch, receiving card configuration, power supply capacity, and rear cover structure before installation.
- Install the P6 192×192mm outdoor rear cover LED modules according to the cabinet layout and ensure each module is securely fixed.
- Connect the data cables according to the signal direction, receiving card configuration, and outdoor LED screen wiring plan.
- Connect the DC 5V power cables correctly and check polarity before powering on the LED display system.
- Use front or rear maintenance access according to project structure requirements when replacing modules.
- Avoid strong impact, scratching, or improper handling of the LED surface and rear cover structure during transportation, installation, and maintenance.
Protection & Service-Life Notice
The IP65 front rating and IP54 rear rating apply to the specified module structure under the applicable test conditions; they do not by themselves establish the IP rating of the completed LED display. Final weather resistance depends on the cabinet, seals, connectors, cable entries, ventilation, drainage, and installation workmanship. Rated service life is a reference value rather than a guaranteed operating period and varies with brightness settings, operating hours, temperature, humidity, power quality, ventilation, maintenance, and environmental exposure.
Applications
- Building Facade LED Displays
- P6 Rear Cover Outdoor LED Modules
- Weather-Resistant Outdoor LED Screens
- Commercial Outdoor LED Displays
- Smart City Display Systems
- Outdoor Digital Signage
- DOOH Advertising Displays
- Transportation Information Displays
- Public Information Displays
- Outdoor Media Screens
- Architectural LED Display Projects
- Large-Scale Fixed Outdoor LED Display Projects
