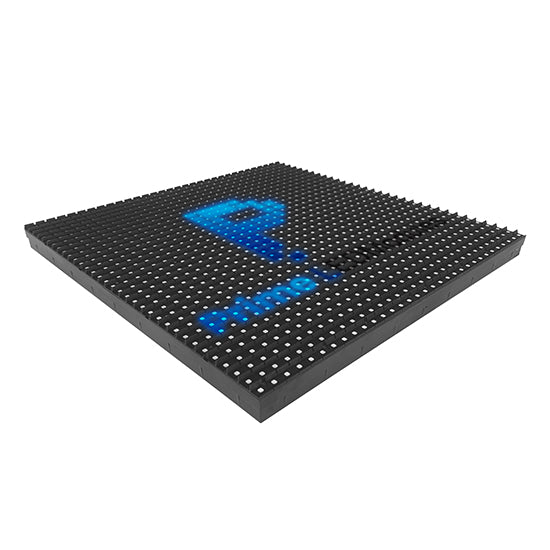

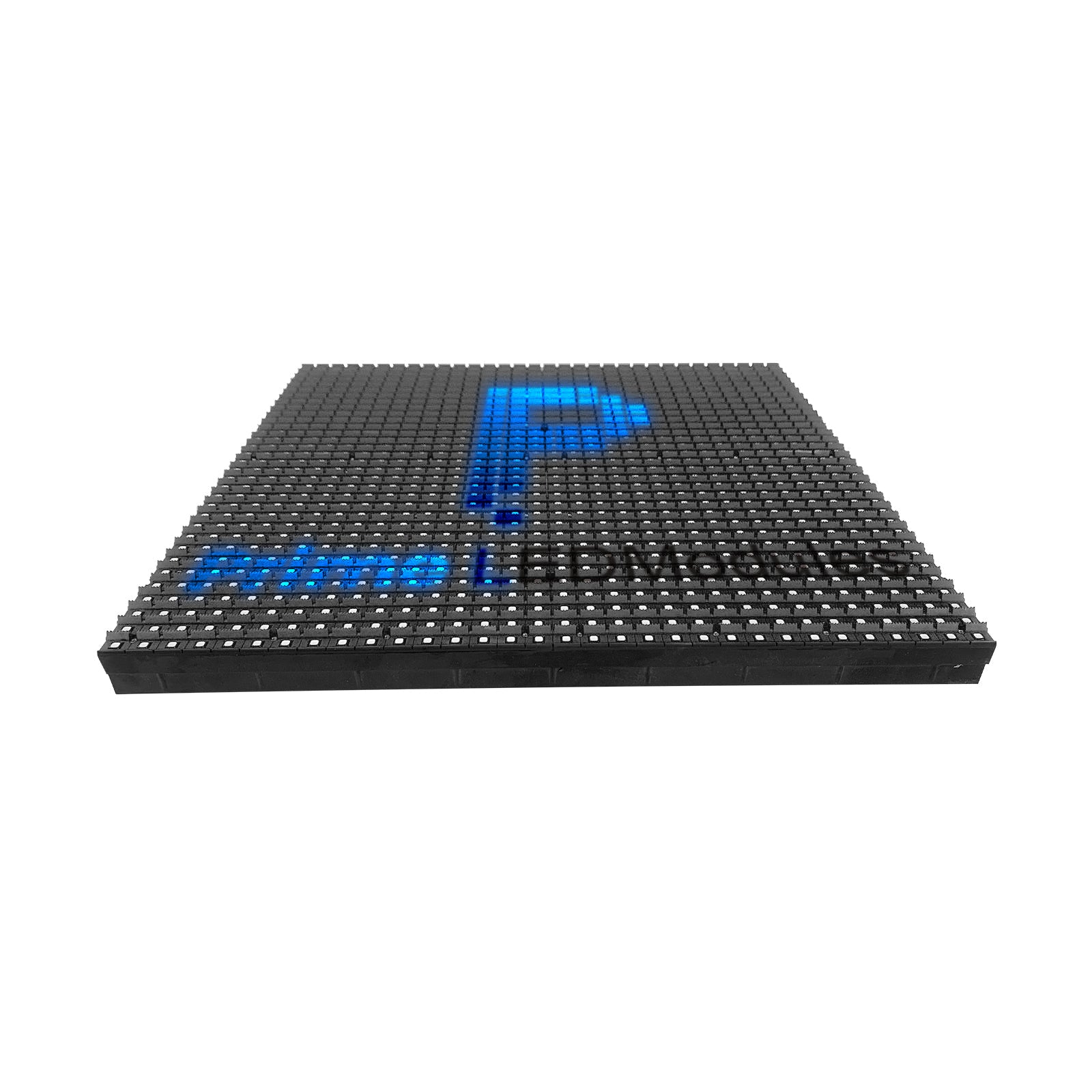

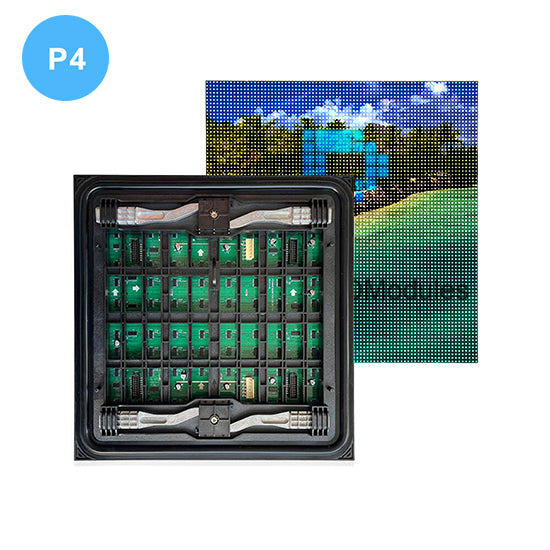

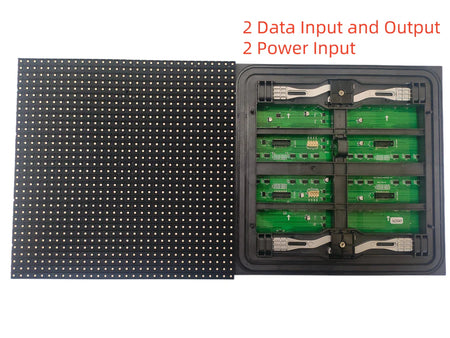

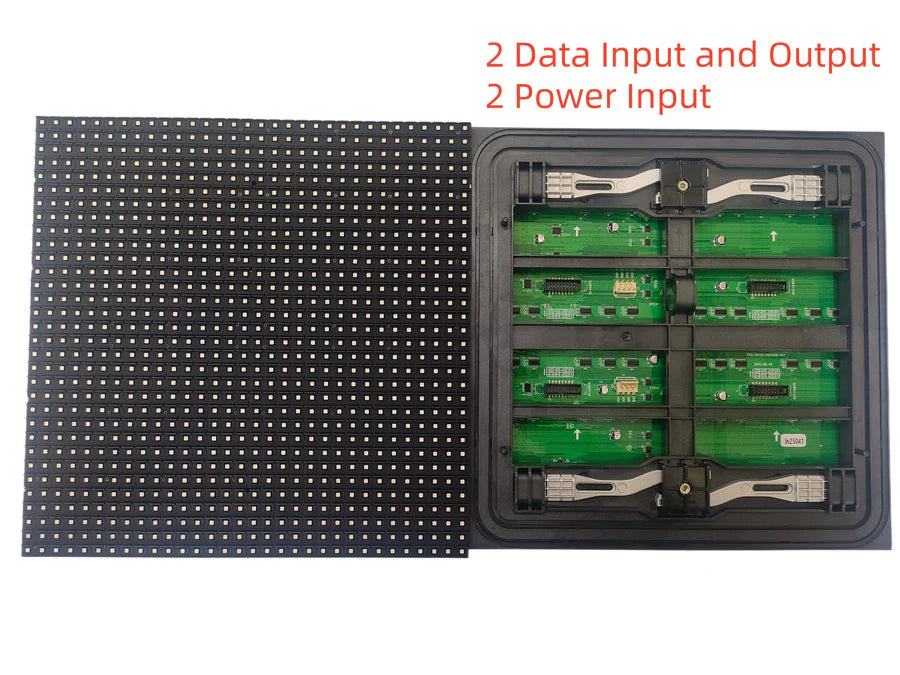

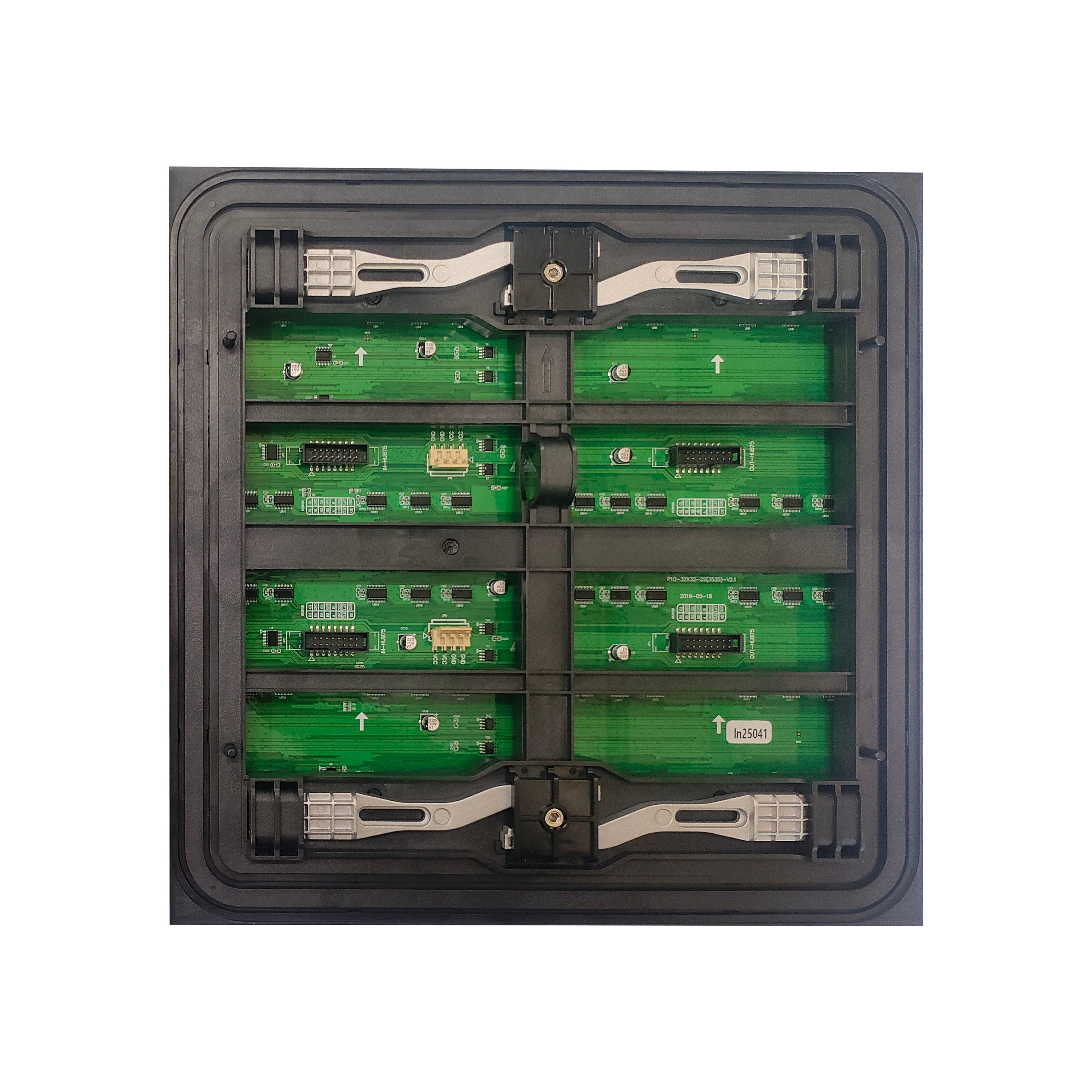

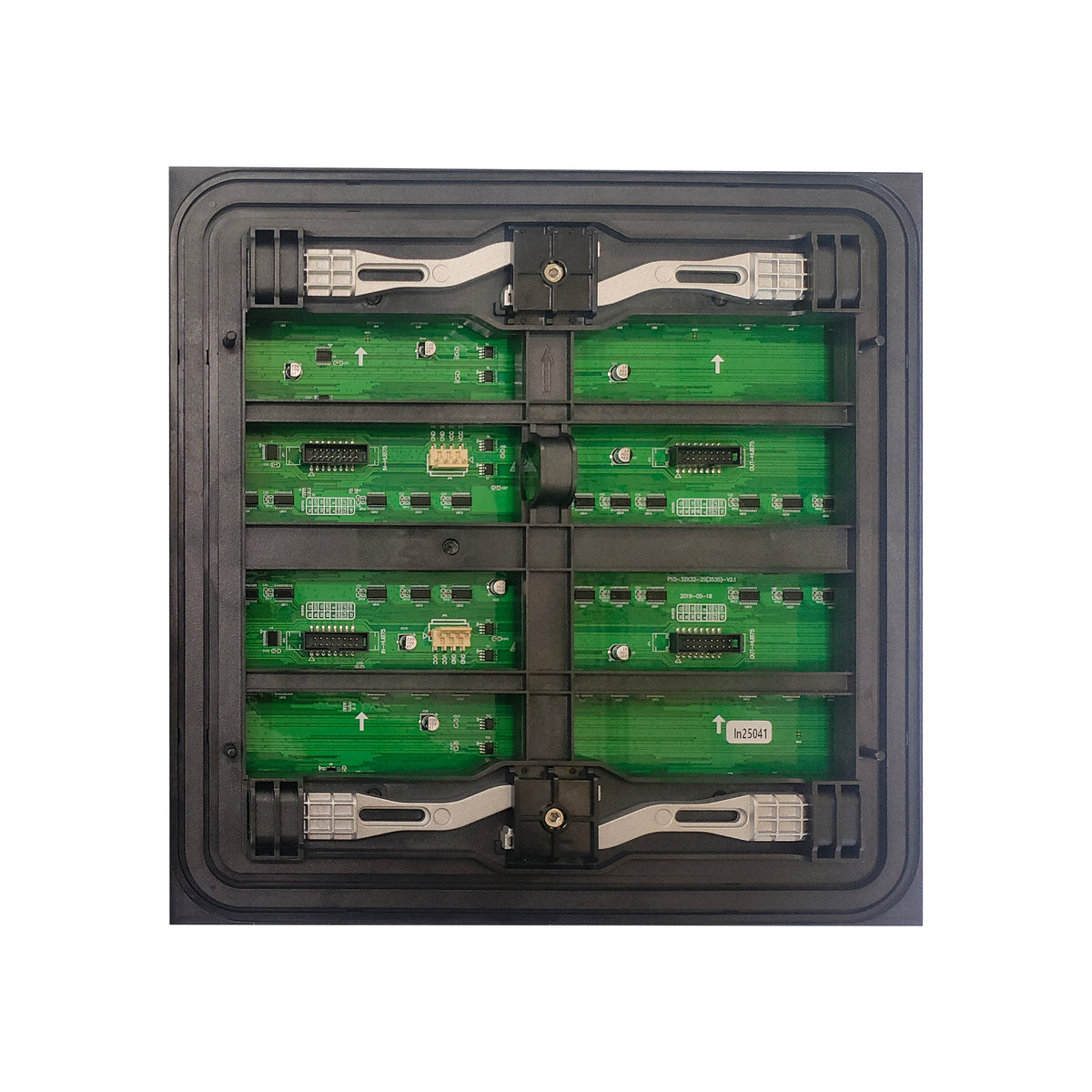

POD-PM Series P4 Outdoor LED Module – 320 × 320 mm IP65 Panel for Billboard Displays
The POD-PM Series P4 outdoor LED module is designed for high-brightness billboard and large-format outdoor advertising screens, combining stable performance with excellent weather resistance.
With IP65 protection and a standard 320 × 320 mm size, it delivers reliable image quality and long-term durability in demanding outdoor environments.
Package & Packing Details
| Version | Package Included |
|---|---|
| 1-Pack Sample Kit | 1 × Power Supply Cable 1 × Data Cable 1 × P4 Outdoor LED Module |
| 10-Pack Standard Pack | 10 × Power Supply Cables 10 × Data Cables 10 × P4 Outdoor LED Modules |
About this item
-
4.0 mm pixel pitch provides a balanced combination of clarity and cost efficiency for outdoor billboards and large-format LED screens
-
IP65 waterproof and dustproof design ensures stable operation in rain, dust, and harsh outdoor conditions
-
High-brightness LEDs deliver excellent visibility even under strong sunlight
-
Standard 320 × 320 mm module size allows easy integration with mainstream outdoor LED cabinets
-
Robust structure supports long-term outdoor installation with minimal maintenance
-
High refresh rate ensures flicker-free images for video playback and camera recording
-
Uniform brightness and accurate color calibration enhance overall visual consistency
-
Designed for continuous outdoor operation with high reliability and long service life
Quick Specs
| Specification | Detail |
|---|---|
| Pixel Pitch | 4.0 mm |
| Module Size | 320 × 320 mm |
| Resolution | 80 × 80 dots |

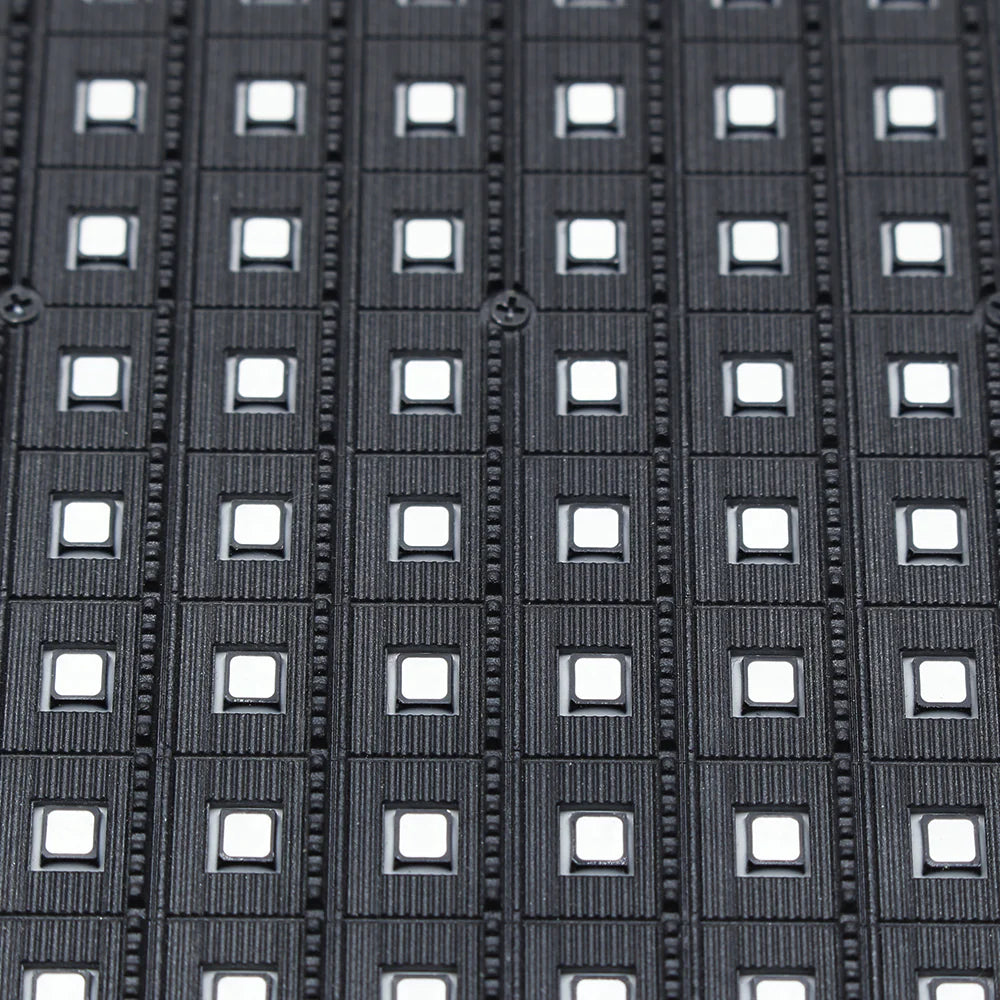

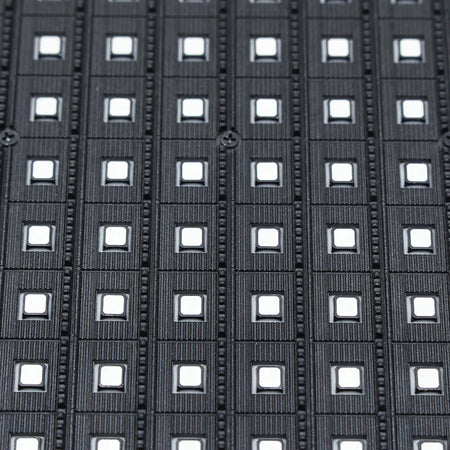

| LED Type | SMD |
| Pixel Density | 62,500 dots/m² |
| Brightness | ≥ 5,000 nits |
| Refresh Rate | ≥ 3,840 Hz |
| Scan Mode | 1/10 |
| Viewing Angle | 140° (H) / 120° (V) |
| Input Voltage | DC 5 V |

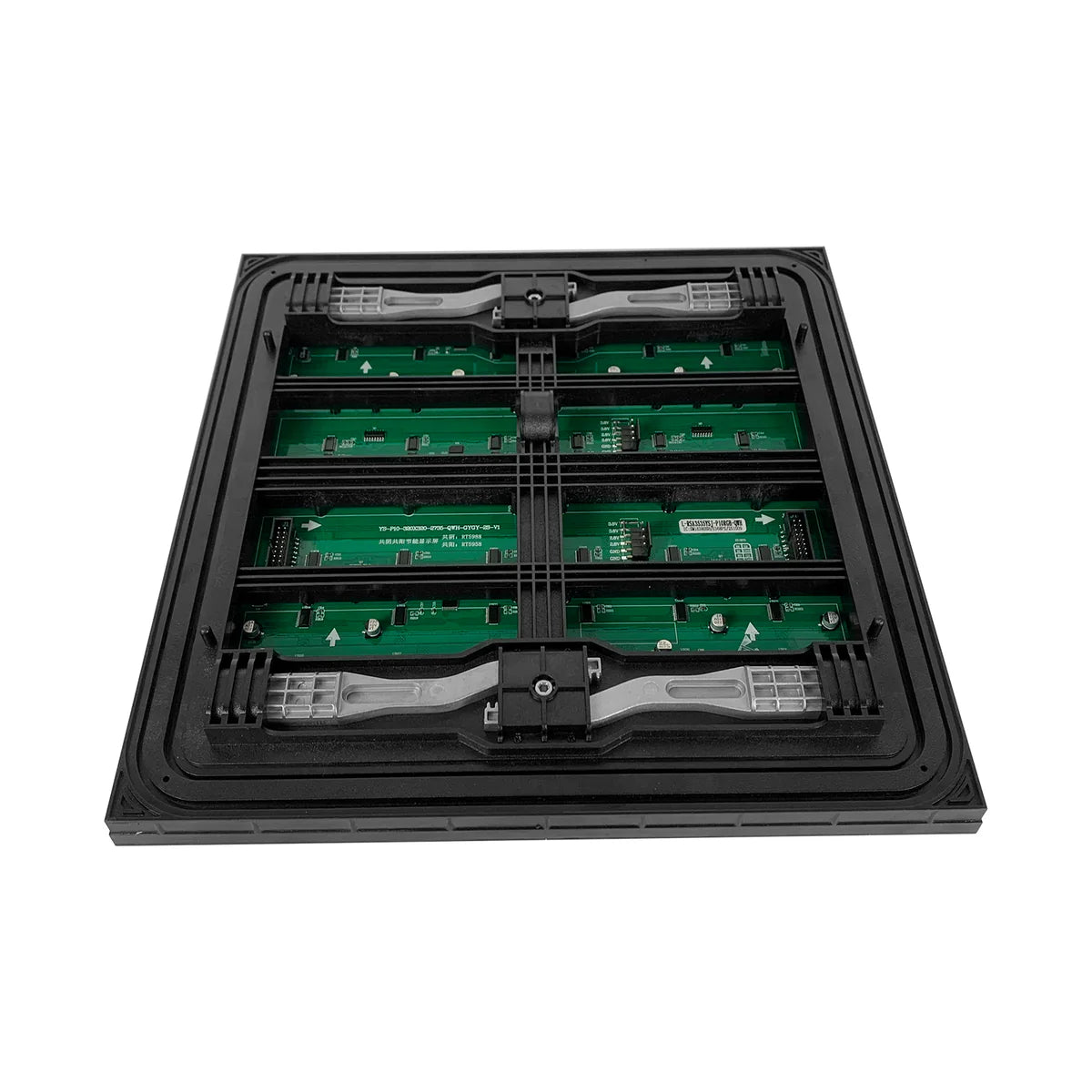

| Maintenance | Front or Rear Service |
| Protection Grade | IP65 (front), IP54 (rear) |
Installation & Maintenance Tips
-
Always install modules from the same production batch to maintain color and brightness uniformity
-
Ensure cabinets are properly sealed to preserve the IP65 waterproof rating
-
Use waterproof power and signal connectors for outdoor installations
-
Avoid bending or impacting the module surface during handling and installation
-
Perform routine inspections to check waterproof seals and cable connections
-
Clean the surface with soft cloth and fresh water if dust or dirt accumulates
Shipping Information
-
Lead Time: In-stock products ship within 1–3 business days
-
Packaging: Waterproof and shock-absorbing packaging with reinforced foam protection
-
Shipping Origin: Shipped directly from warehouse
-
Standard Shipping: 9–18 days
-
Express Shipping: 5–9 days
-
Shipping Costs: Calculated automatically based on destination, weight, and dimensions
Full Specifications
| Specification | Detail |
|---|---|
| Series | POD-PM |
| Product Type | Outdoor LED Module |
| Pixel Pitch | 4.0 mm |
| LED Configuration | SMD |
| Module Resolution | 80 × 80 dots |
| Pixel Density | 62,500 dots/m² |
| Module Dimensions | 320 × 320 × 17 mm |
| Module Weight | 1.35 kg |

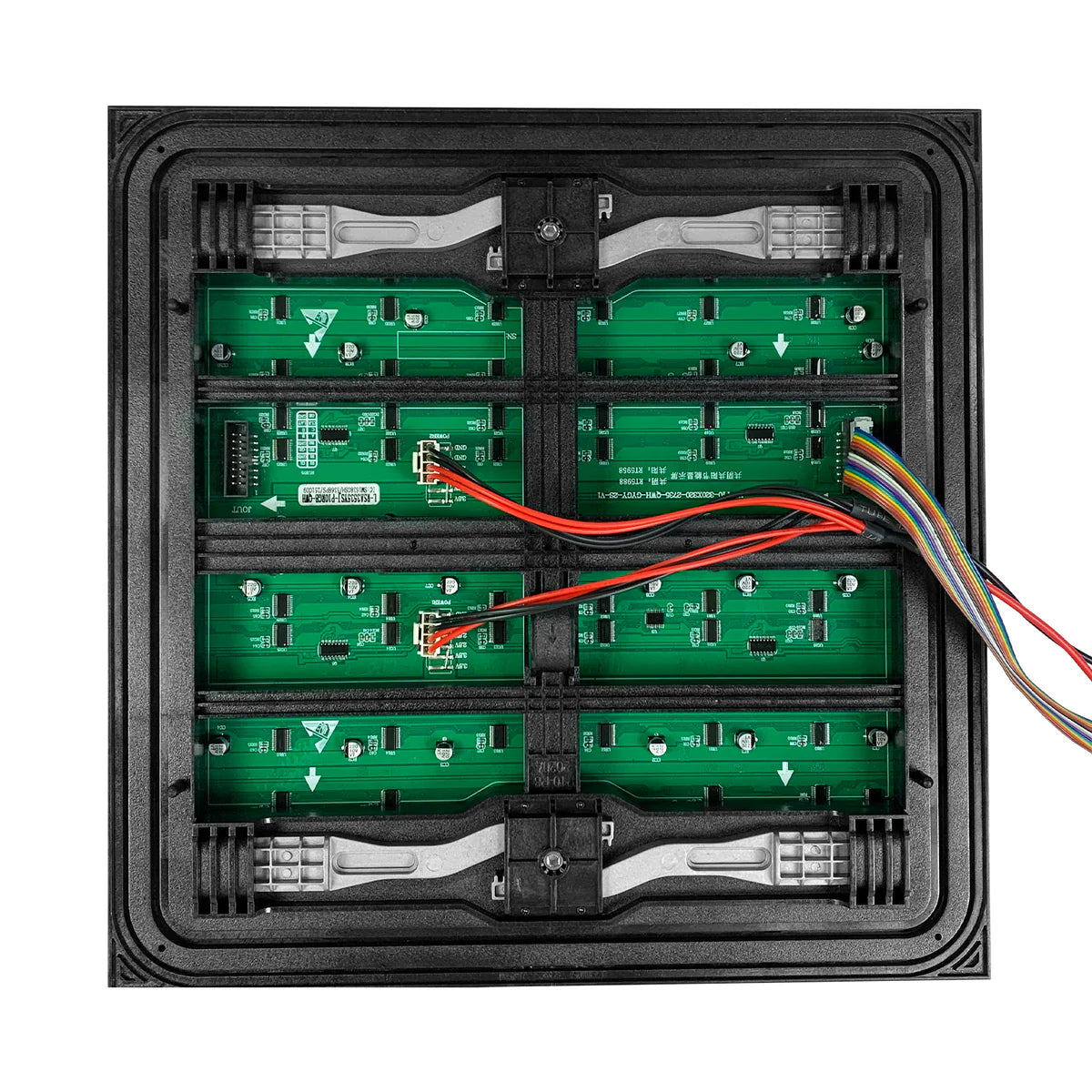

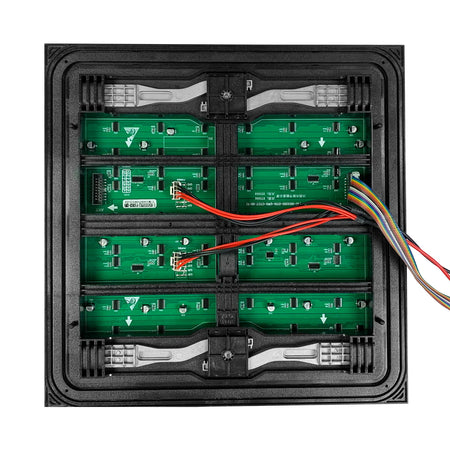

| Connector Type | HUB75 |
| Color Processing | 12-bit |
| Gray Level | 16–4096 |
| Refresh Rate | ≥ 3,840 Hz |
| Scan Mode | 1/10 |
| Brightness | ≥ 5,000 nits |
| Viewing Angle | 140° horizontal / 120° vertical |
| Input Voltage | DC 5 V |
| Max Power Consumption | 45 W per module |
| Average Power Consumption | 15 W per module |
| Operating Temperature | −20 °C to 50 °C |
| Storage Temperature | −20 °C to 60 °C |
| Operating Humidity | 10%–90% RH |
| Lifetime | ≥ 100,000 hours |
| Maintenance Method | Front or rear service |
| IP Rating | IP65 front / IP54 rear |
| Color Uniformity | ≥ 97% |
| Dead Pixel Rate | ≤ 0.0003 |
| Weather Resistance | Suitable for long-term outdoor installation |
Applications
-
Outdoor billboard advertising screens
-
Commercial building façade LED displays
-
Highway and roadside digital signage
-
Shopping mall exterior video walls
-
Stadium perimeter advertising boards
-
Public information and city landmark LED screens
