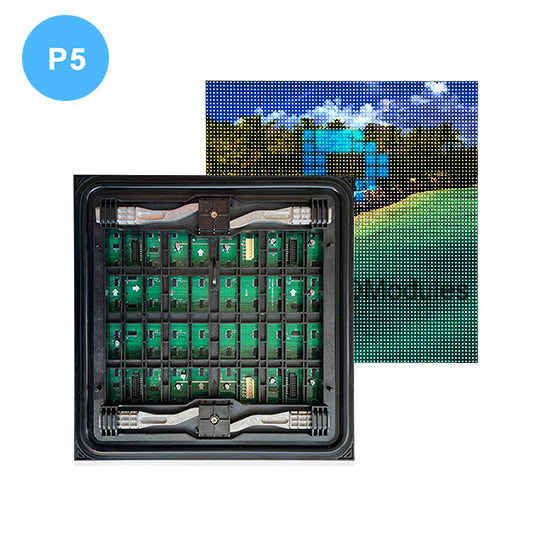

P5 Outdoor LED Display Module – 320×320mm SMD1921 Double-sided IP65 Module with Front Service for Weatherproof LED Billboard Applications

The P5 Outdoor LED Display Module is a professional 320mm × 320mm outdoor SMD LED module designed for weatherproof LED billboards, commercial outdoor advertising displays, and large-format LED installation projects requiring high brightness, double-sided IP65 protection, and reliable long-term operation. Featuring a 5mm pixel pitch, SMD1921 LED technology, ≥5500 nits brightness, and 3840Hz refresh rate, this outdoor LED module delivers clear image performance and stable visibility for demanding outdoor environments.

The standardized 320×320mm outdoor LED module format provides a 64×64 pixel resolution and supports efficient cabinet integration, scalable LED display construction, and front maintenance installation. With a double-sided IP65 protection structure, front service design, and high brightness outdoor performance, this P5 LED module is suitable for weatherproof LED billboards, outdoor advertising screens, commercial LED displays, and other fixed outdoor LED projects requiring reliable operation in changing environments.

Two hardware versions are available. Both versions meet the same specifications and performance standards, and the version shipped depends on current stock availability.

Package Included

About This Item

• P5 Outdoor LED Display Module with Double-sided IP65 Protection: Designed with a 5mm pixel pitch and 320×320mm module structure, this outdoor LED module provides high brightness performance and reliable protection for outdoor billboards, commercial advertising displays, and fixed LED installations.
• SMD1921 LED Technology for High Brightness Outdoor Applications: Built with SMD1921 LED technology, the module provides ≥5500 nits brightness, 3840Hz refresh rate, and stable color performance for long-term outdoor LED display operation.
• Double-sided IP65 Outdoor Protection Structure: The module features IP65 protection on both sides of the module structure, improving resistance against dust, moisture, and changing weather conditions for outdoor fixed installations.
• Front Service Maintenance Design: The front service structure allows convenient module installation, inspection, and replacement without requiring rear access, making it suitable for outdoor LED projects with limited maintenance space.
• 320×320mm Large Module Format: The standardized module size supports efficient cabinet integration and large-scale outdoor LED display construction for billboard and advertising applications.
• Bulk Project Procurement Ready: Available in engineering package quantities to support system integrators, project contractors, and large-scale outdoor LED display deployments.

Order & Logistics

Lead Time

PO-SD Series: Handling time 15–25 business days.

Freight & Delivery

Shipping fees are not included in product pricing and will be charged separately based on actual freight cost.

• Available shipping methods: Standard shipping / Express shipping / Project logistics.
• Estimated shipping time: Standard delivery takes 9–18 business days, while express delivery takes 5–9 business days. For faster delivery, express options like DHL / UPS / FedEx are available during checkout.
• Shipping Terms: DDP TERM (all fees included), except for destination countries where this shipping service is unavailable. In such cases, we will contact the buyer if this clause does not apply to their country.
• Project Procurement: This collection supports bulk purchasing, channel stocking orders, and project-based procurement.

For large quantity orders, please contact us to confirm freight arrangements, production schedules, and delivery plans.

Specifications

NOTE

This series of module, we have it with 1 Data Input & 2 Power Input  and 2 Data Input&Output & 2 Power Input, we will ship what we have in stock. If you have special request, please tell us when place the order.

Structure & Design Features

• Double-sided IP65 Protection Structure: The module is designed with IP65 protection on both sides of the module structure, improving weather resistance for outdoor billboard and advertising installations.
• High Brightness Outdoor Display Platform: Combining SMD1921 LED technology and ≥5500 nits brightness, the module provides strong visibility for outdoor environments with direct sunlight exposure.
• Front Service Outdoor Module Design: The front maintenance structure supports efficient installation and servicing where rear access is limited.

Installation Guide

• Confirm the cabinet structure, module layout, pixel pitch, receiving card configuration, and power supply requirements before installation.
• Install the P5 320×320mm outdoor LED modules according to the cabinet design and ensure each module is securely fixed.
• Connect the 4Pin power and data connections according to the LED display system wiring plan.
• Connect the DC 5V power supply correctly and check polarity before powering on the LED display system.
• Perform front-side maintenance when replacing modules or checking system components.
• Avoid strong impact, scratching, or improper handling of the LED surface during transportation, installation, and maintenance.

Applications

• Weatherproof LED Billboards
• P5 Double-sided Outdoor LED Modules
• Outdoor Advertising Displays
• Commercial Outdoor LED Screens
• High Brightness LED Displays
• Digital Billboard Systems
• Outdoor Media Screens
• Smart City Advertising Displays
• Transportation Advertising Displays
• Public Information Displays
• Large-Scale Fixed Outdoor LED Projects
