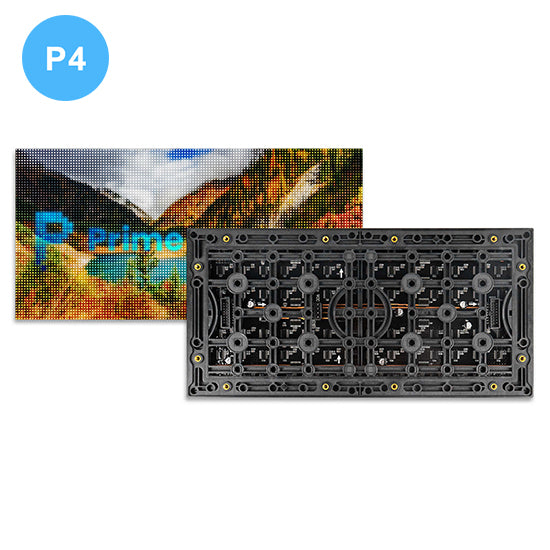

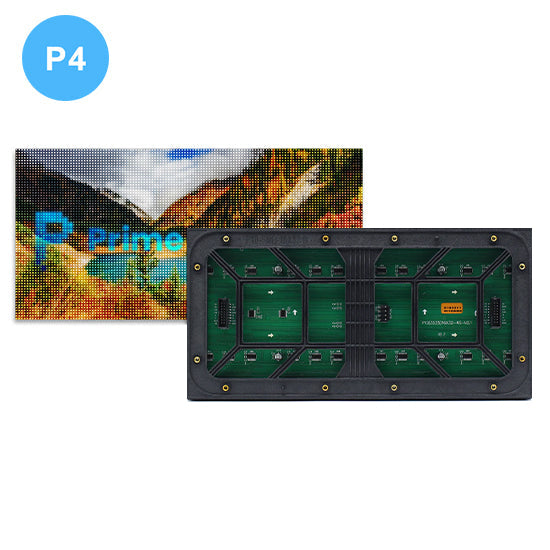

POD-SL Series P4 Outdoor LED Module – 320 × 160 mm IP65 Screw-Lock Panel for Commercial Outdoor Displays
The POD-SL Series P4 outdoor LED module is engineered for commercial outdoor screens that demand high brightness, structural stability, and long-term weather resistance.
With a 4 mm pixel pitch and a screw-lock IP65 waterproof structure, it delivers reliable performance for advertising displays, building façades, and outdoor digital signage projects.
Package & Packing Details
| Version | Package Included |
|---|---|
| 1-Pack Sample Kit | 1 × P4 Outdoor LED Module 1 × 5V Power Cable 1 × Data Cable |
| 40-Pack Standard Carton | 40 × P4 Outdoor LED Module 20 × 5V Power Cables 40 × Data Cables |
About this item
• 4 mm pixel pitch provides an ideal balance between resolution, viewing distance, and project cost for outdoor LED screens
• IP65 screw-lock waterproof structure improves sealing strength and mechanical stability for long-term outdoor installations
• High-brightness outdoor SMD LEDs ensure excellent visibility even under direct sunlight
• Standard 320 × 160 mm module size allows easy replacement and wide cabinet compatibility
• Screw-lock mounting system enhances flatness and vibration resistance for fixed outdoor displays
• High refresh rate enables smooth, flicker-free video playback for live broadcasting and camera shooting
• Uniform brightness and accurate color calibration ensure consistent image quality across large LED walls
• Designed for commercial outdoor projects requiring durability, stability, and high visual impact
Quick Specs
| Specification | Detail |
|---|---|
| Pixel Pitch | 4 mm |
| Module Size | 320 × 160 mm |
| Resolution | 80 × 40 dots |
| LED Type | Outdoor SMD |
| Pixel Density | 62,500 dots/m² |
| Brightness | ≥ 5,000 nits |
| Refresh Rate | ≥ 3,840 Hz |
| Scan Mode | 1/10 |
| Viewing Angle | 140° (H) / 120° (V) |
| Input Voltage | DC 5 V |
| Maintenance | Screw-Lock Rear Service |
| Protection Grade | IP65 |
Installation & Maintenance Tips
• Use LED modules from the same production batch to ensure consistent brightness and color performance
• Tighten all screw-lock fasteners evenly to maintain flatness and waterproof sealing
• Always use outdoor-rated waterproof power and signal connectors
• Avoid bending, dropping, or applying strong impact during installation
• Regularly inspect screws, gaskets, and sealing components
• Ensure a stable DC 5 V power supply to prevent voltage drop and brightness instability
• Clean the module surface periodically to maintain optimal brightness and heat dissipation
Shipping Information
• Lead Time: In-stock products ship within 1–3 business days
• Packaging: Shock-absorbing foam and reinforced cartons for safe transportation
• Shipping Origin: All products ship directly from our warehouse
• Standard Shipping: 9–18 days
• Express Shipping: 5–9 days
• Shipping Costs: Calculated automatically based on destination, weight, and dimensions
Full Specifications
| Specification | Detail |
|---|---|
| Series | POD-SL |
| Product Type | Outdoor LED Module |
| Pixel Pitch | 4 mm |
| LED Configuration | Outdoor SMD |
| Module Resolution | 80 × 40 dots |
| Pixel Density | 62,500 dots/m² |
| Module Dimensions | 320 × 160 × 16 mm |
| Module Weight | ≈ 0.65 kg |
| Connector Type | HUB75 |
| Color Processing | 12-bit |
| Gray Level | 16–4096 |
| Refresh Rate | ≥ 3,840 Hz |
| Scan Mode | 1/10 |
| Brightness | ≥ 5,000 nits |
| Viewing Angle | 140° (H) / 120° (V) |
| Input Voltage | DC 5 V |
| Max Power Consumption | ≤ 28 W per module |
| Average Power Consumption | ≤ 10 W per module |
| Operating Temperature | −20 °C to 70 °C |
| Storage Temperature | −20 °C to 60 °C |
| Operating Humidity | 10%–90% RH |
| Lifetime | ≥ 100,000 hours |
| Maintenance Method | Screw-Lock Rear Service |
| IP Rating | IP65 |
| Color Uniformity | ≥ 97% |
| Dead Pixel Rate | ≤ 0.0003 |
| Weather Resistance | Designed for continuous commercial outdoor operation |
Applications
• Outdoor commercial LED advertising screens
• Building façade LED media walls
• Shopping mall exterior digital signage
• Stadium ribbon boards and sports venues
• Public squares and transportation hubs
• Retail storefront outdoor LED displays
• Outdoor branding and information screens
