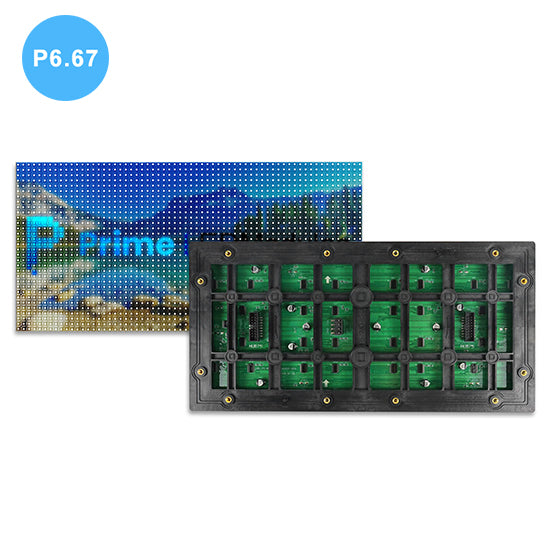

POD-SL Series P6.67 Outdoor LED Module – 320 × 160 mm IP65 Screw-Lock Panel for Large Outdoor Displays
The POD-SL Series P6.67 outdoor LED module is engineered for large-format outdoor LED screens that require strong waterproof performance, high structural stability, and long-term durability.
With a 6.67 mm pixel pitch and IP65 screw-lock design, it delivers reliable brightness, fast installation, and excellent visibility for outdoor advertising, event displays, and commercial signage.
Package & Packing Details
| Version | Package Included |
|---|---|
| 1-Pack Sample Kit | 1 × P6.67 Outdoor LED Module 1 × 5V Power Cable 1 × Data Cable |
| 40-Pack Standard Carton | 40 × P6.67 Outdoor LED Module 20 × 5V Power Cables 40 × Data Cables |
About this item
• 6.67 mm pixel pitch is optimized for large outdoor LED screens with clear visibility at long viewing distances
• IP65 screw-lock waterproof structure ensures excellent sealing performance for demanding outdoor environments
• High-brightness outdoor SMD LEDs provide strong visibility under direct sunlight
• Screw-lock mechanical design improves cabinet flatness and vibration resistance, ideal for rental and permanent installations
• Standard 320 × 160 mm module size ensures strong compatibility with common outdoor LED cabinets
• High refresh rate delivers smooth, flicker-free video playback for live broadcasting and camera recording
• Uniform brightness and precise color calibration ensure consistent image quality across large video walls
• Designed for continuous outdoor operation with excellent weather resistance and long service life
Quick Specs
| Specification | Detail |
|---|---|
| Pixel Pitch | 6.67 mm |
| Module Size | 320 × 160 mm |
| Resolution | 48 × 24 dots |
| LED Type | Outdoor SMD |
| Pixel Density | 22,500 dots/m² |
| Brightness | ≥ 5,000 nits |
| Refresh Rate | ≥ 3,840 Hz |
| Scan Mode | 1/6 |
| Viewing Angle | 140° (H) / 120° (V) |
| Input Voltage | DC 5 V |
| Maintenance | Screw-Lock Rear Service |
| Protection Grade | IP65 |
Installation & Maintenance Tips
• Use modules from the same production batch to ensure uniform brightness and color consistency
• Tighten all screw-lock fasteners evenly to maintain cabinet flatness and waterproof sealing
• Use outdoor-rated waterproof power and signal connectors
• Ensure stable DC 5 V power supply to avoid voltage drops over long cable runs
• Avoid impact or excessive bending during handling and installation
• Regularly inspect screws, sealing strips, and connectors, especially for rental applications
• Clean module surfaces periodically to maintain optimal brightness and heat dissipation
Shipping Information
• Lead Time: In-stock products ship within 1–3 business days
• Packaging: Shock-absorbing foam with reinforced cartons for safe long-distance transport
• Shipping Origin: All products ship directly from our warehouse
• Standard Shipping: 9–18 days
• Express Shipping: 5–9 days
• Shipping Costs: Calculated automatically based on destination, weight, and dimensions
Full Specifications
| Specification | Detail |
|---|---|
| Series | POD-SL |
| Product Type | Outdoor LED Module |
| Pixel Pitch | 6.67 mm |
| LED Configuration | Outdoor SMD |
| Module Resolution | 48 × 24 dots |
| Pixel Density | 22,500 dots/m² |
| Module Dimensions | 320 × 160 × 16 mm |
| Module Weight | ≈ 0.65 kg |
| Connector Type | HUB75 |
| Color Processing | 12-bit |
| Gray Level | 16–4096 |
| Refresh Rate | ≥ 3,840 Hz |
| Scan Mode | 1/6 |
| Brightness | ≥ 5,000 nits |
| Viewing Angle | 140° (H) / 120° (V) |
| Input Voltage | DC 5 V |
| Max Power Consumption | ≤ 28 W per module |
| Average Power Consumption | ≤ 9 W per module |
| Operating Temperature | −20 °C to 70 °C |
| Storage Temperature | −20 °C to 60 °C |
| Operating Humidity | 10%–90% RH |
| Lifetime | ≥ 100,000 hours |
| Maintenance Method | Screw-Lock Rear Service |
| IP Rating | IP65 |
| Color Uniformity | ≥ 97% |
| Dead Pixel Rate | ≤ 0.0003 |
| Weather Resistance | Designed for long-term outdoor advertising and rental applications |
Applications
• Large-format outdoor advertising LED screens
• Building façade LED video walls
• Outdoor rental LED screens for events and festivals
• Stadium perimeter and sports advertising displays
• Outdoor commercial digital signage
• Public squares and transportation hub LED screens
• Temporary outdoor exhibition and branding displays
