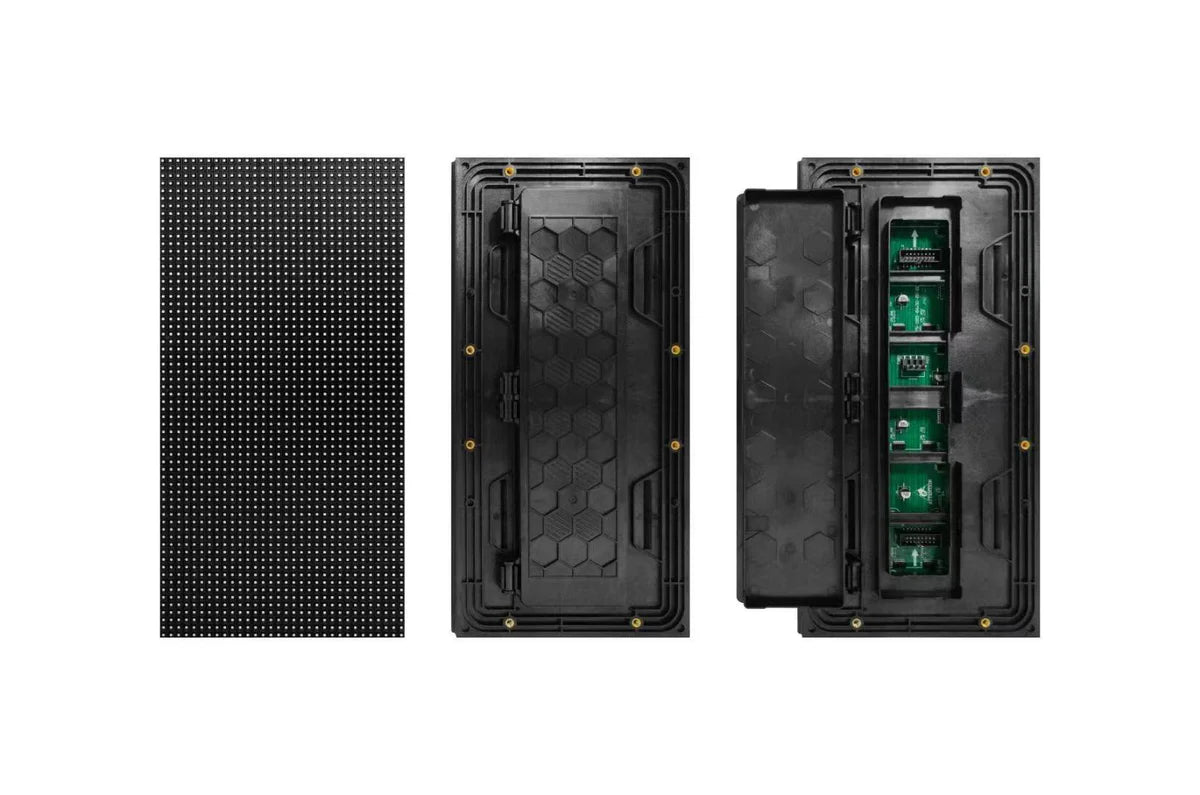

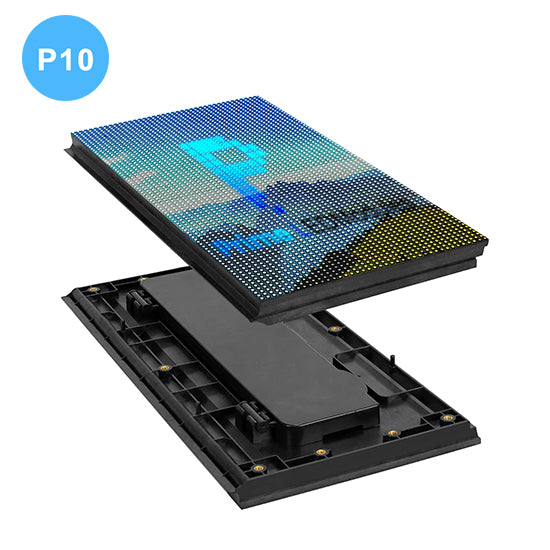

POD-WS Series P10 Outdoor LED Module – 320 × 160 mm IP65 Panel for Large Outdoor Screens
The POD-WS Series P10 outdoor LED module is engineered for large-format outdoor LED screens that demand high brightness, long-distance visibility, and maximum environmental durability.
With a 10 mm pixel pitch and IP65 waterproof protection, it is ideal for highway billboards, stadium displays, and large-scale outdoor advertising projects.
Package & Packing Details

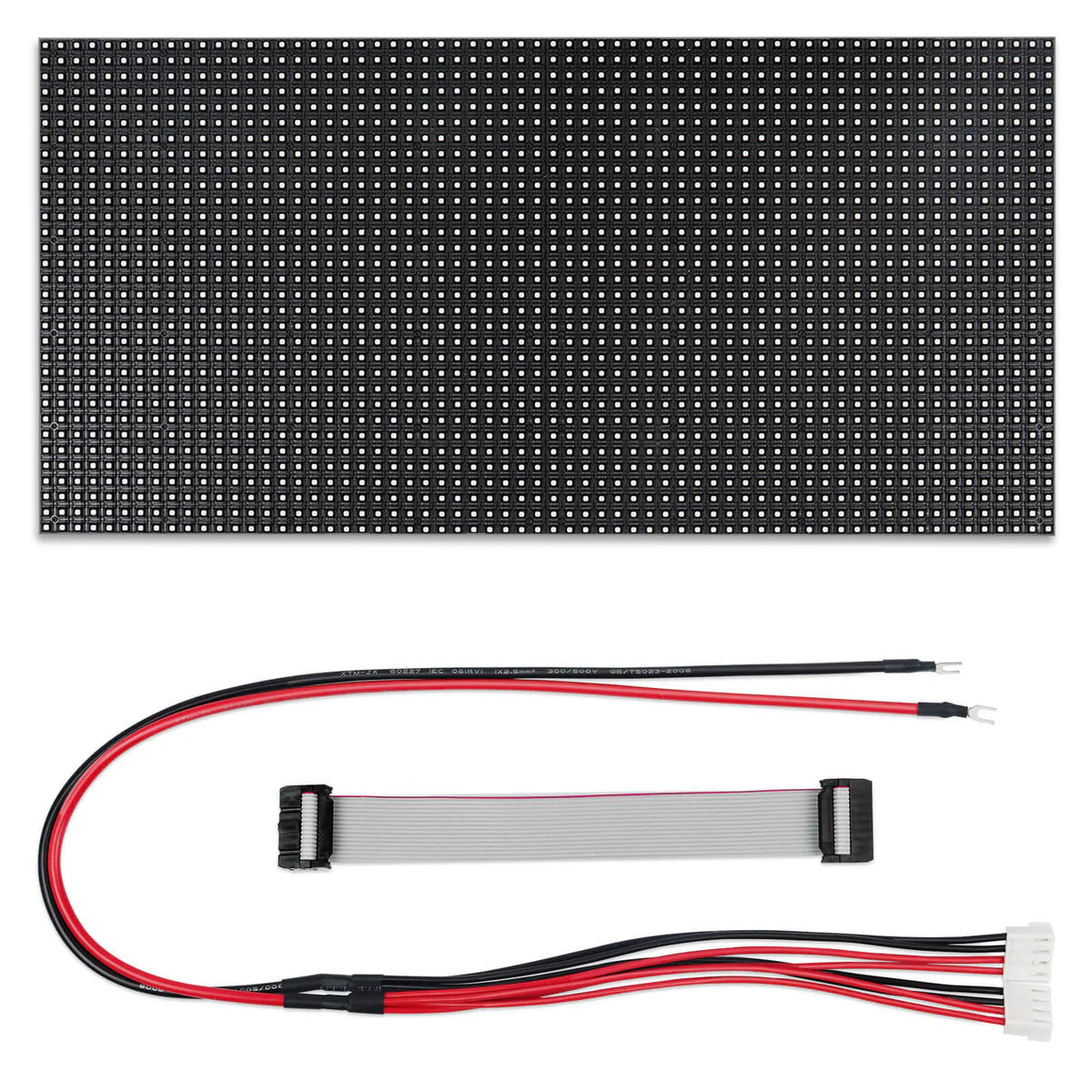

| Version | Package Included |
|---|---|
| 1-Pack Sample Kit | 1 × P10 Outdoor LED Module 1 × 5V Power Cable 1 × Data Cable |
| 30-Pack Standard Carton | 30 × P10 Outdoor LED Module 15 × 5V Power Cables 30 × Data Cables |
About this item
• 10 mm pixel pitch optimized for long-distance viewing and large outdoor LED display installations
• IP65 waterproof and dustproof design ensures reliable performance in rain, dust, and harsh weather conditions
• High-brightness outdoor SMD LEDs deliver strong visibility even under direct sunlight
• Standard 320 × 160 mm module size ensures easy replacement and wide cabinet compatibility
• Copper-wired LED configuration enhances electrical stability and long service life
• High refresh rate enables smooth, flicker-free video playback for broadcasting and camera shooting
• Wide viewing angle maintains consistent image quality across large public viewing areas
• Uniform brightness and accurate color calibration guarantee stable performance across large LED walls
• Designed for outdoor advertising screens, stadium displays, and large commercial LED video walls
Quick Specs
| Specification | Detail |
|---|---|
| Pixel Pitch | 10 mm |
| Module Size | 320 × 160 mm |
| Resolution | 32 × 16 dots |
| LED Type | SMD |
| Pixel Density | 10,000 dots/m² |
| Brightness | ≥ 6,000 nits |
| Refresh Rate | ≥ 3,840 Hz |
| Scan Mode | 1/4 |
| Viewing Angle | 140° (H) / 120° (V) |
| Input Voltage | DC 5 V |
| Maintenance | Magnetic Front Service / Screw Rear Service |
| Protection Grade | IP65 |
Installation & Maintenance Tips
• Use LED modules from the same batch to ensure uniform color and brightness
• Seal cabinet joints properly to maintain full waterproof protection
• Apply outdoor-grade waterproof connectors for power and signal cables
• Avoid mechanical impact, bending, or excessive force during installation
• Regularly inspect power cables, data cables, and waterproof gaskets
• Ensure stable DC5V power supply to prevent voltage drop and flickering
• Clean the module surface periodically to maintain optimal brightness and heat dissipation
Shipping Information
• Lead Time: In-stock products ship within 1–3 business days
• Packaging: Safe packaging with shock-absorbing foam for secure transport
• Shipping Origin: All products ship directly from our warehouse
• Standard Shipping: 9–18 days
• Express Shipping: 5–9 days
• Shipping Costs: Calculated automatically based on destination, weight, and dimensions
Full Specifications
| Specification | Detail |
|---|---|
| Series | POD-WS |
| Product Type | Outdoor LED Module |
| Pixel Pitch | 10 mm |
| LED Configuration | Copper Wired SMD |
| Module Resolution | 32 × 16 dots |
| Pixel Density | 10,000 dots/m² |
| Module Dimensions | 320 × 160 × 16 mm |
| Connector Type | HUB75 |
| Refresh Rate | ≥ 3,840 Hz |
| Scan Mode | 1/4 |
| Brightness | ≥ 6,000 nits |
| Viewing Angle | 140° (H) / 120° (V) |
| Input Voltage | DC 5 V |
| Max Power Consumption | ≤ 40 W per module |
| Average Power Consumption | ≤ 14 W per module |
| Operating Temperature | −20 °C to 70 °C |
| Storage Temperature | −20 °C to 60 °C |
| Operating Humidity | 10%–90% RH |
| Lifetime | ≥ 100,000 hours |
| Maintenance Method | Magnetic Front Service / Screw Fixing Rear Service |
| IP Rating | IP65 |
| Color Uniformity | ≥ 97% |
| Dead Pixel Rate | ≤ 0.0003 |
| Weather Resistance | Designed for long-term outdoor commercial use |
Applications
• Large outdoor LED billboards and highway advertising screens
• Stadium perimeter displays and digital scoreboards
• Commercial building façade LED walls
• Shopping mall exterior LED signage
• Transportation hubs and large public information displays
• Outdoor event and large-scale rental LED video walls
