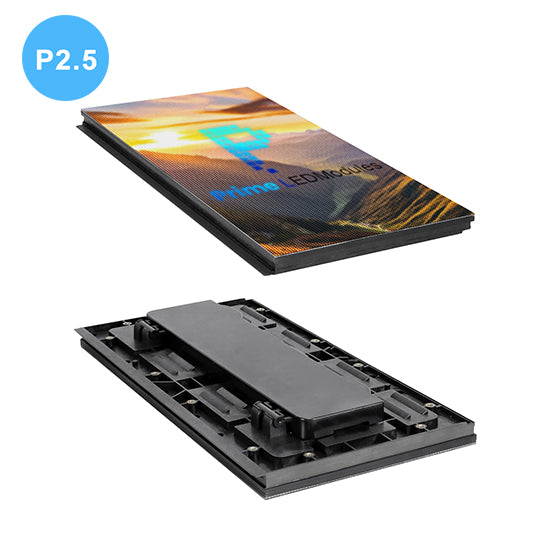

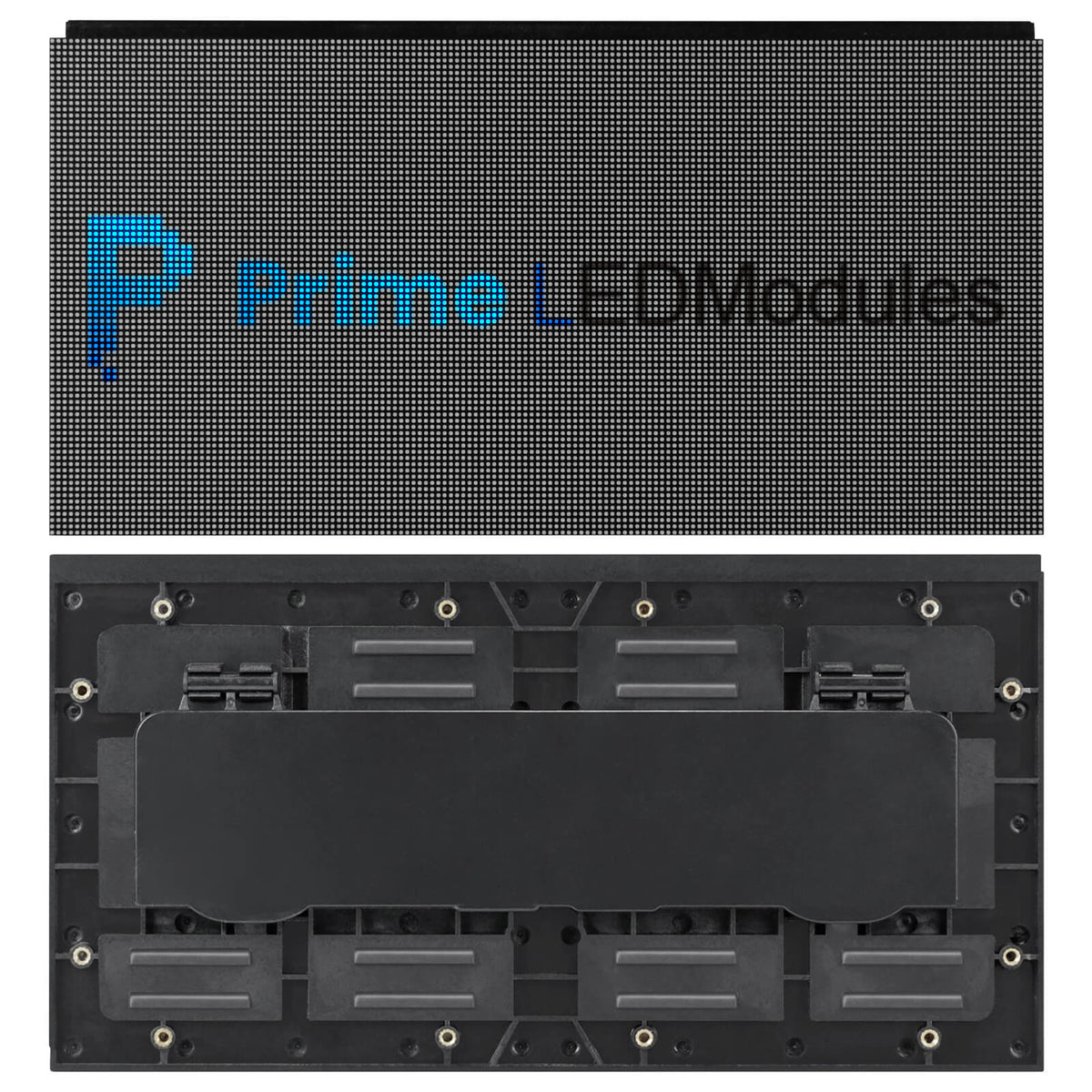

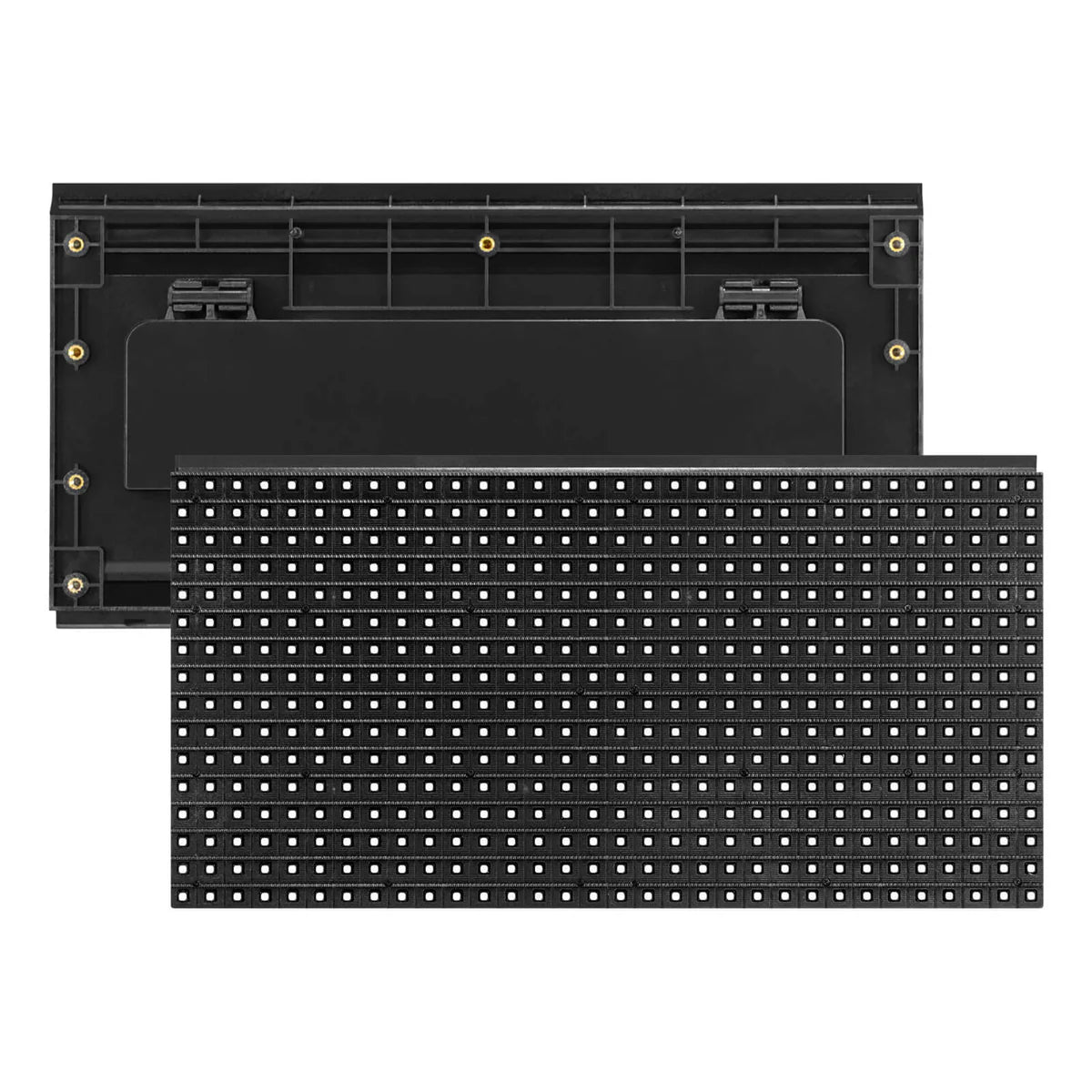

POD-WS Series P2.5 Outdoor LED Module – 320 × 160 mm IP65 Panel for High-Resolution Outdoor Screens
The POD-WS Series P2.5 outdoor LED module is engineered for high-resolution outdoor LED screens that demand sharp image quality and stable long-term performance.
With a fine 2.5 mm pixel pitch and IP65 waterproof protection, it is ideal for premium outdoor video walls, storefront displays, and close-viewing commercial applications.
Package & Packing Details
| Version | Package Included |
|---|---|
| 1-Pack Sample Kit | 1 × Power Supply Cable 1 × Data Cable 1 × P2.5 Outdoor LED Module |
| 30-Pack Standard Pack | 30 × Power Supply Cables 30 × Data Cables 30 × P2.5 Outdoor LED Modules |
About this item
-
2.5 mm pixel pitch delivers high-resolution visuals for close-viewing outdoor LED screens
-
IP65 waterproof and dustproof design ensures stable operation in rain, dust, and harsh outdoor environments
-
High-brightness LED chips provide excellent visibility even under strong sunlight
-
Standard 320 × 160 mm module size allows easy replacement and compatibility with mainstream outdoor cabinets
-
Designed for outdoor applications that require both fine image detail and strong environmental resistance
-
High refresh rate guarantees flicker-free performance for video playback and camera shooting
-
Uniform brightness and precise color calibration ensure consistent image quality across the entire display
-
Long service life with high reliability, suitable for continuous outdoor operation
Quick Specs
| Specification | Detail |
|---|---|
| Pixel Pitch | 2.5 mm |
| Module Size | 320 × 160 mm |
| Resolution | 128 × 64 dots |
| LED Type | SMD |
| Pixel Density | 160,000 dots/m² |
| Brightness | ≥ 4,500 nits |
| Refresh Rate | ≥ 3,840 Hz |
| Scan Mode | 1/16 |
| Viewing Angle | 140° (H) / 120° (V) |
| Input Voltage | DC 5 V |
| Maintenance | Front or Rear Service |
| Protection Grade | IP65 (front), IP54 (rear) |
Installation & Maintenance Tips
-
Always use LED modules from the same production batch to maintain color and brightness consistency
-
Ensure cabinets are properly sealed to preserve the IP65 waterproof rating
-
Use outdoor-rated waterproof power and signal connectors
-
Avoid strong impact, bending, or dropping during installation and transportation
-
Regularly inspect waterproof gaskets, connectors, and cable entries
-
Clean the surface with a soft cloth and clean water to remove dust and dirt
Shipping Information
-
Lead Time: In-stock products ship within 1–3 business days
-
Packaging: Waterproof and shock-absorbing packaging with reinforced foam protection
-
Shipping Origin: Shipped directly from warehouse
-
Standard Shipping: 9–18 days
-
Express Shipping: 5–9 days
-
Shipping Costs: Calculated automatically based on destination, weight, and dimensions
Full Specifications
| Specification | Detail |
|---|---|
| Series | POD-WS |
| Product Type | Outdoor LED Module |
| Pixel Pitch | 2.5 mm |
| LED Configuration | SMD |
| Module Resolution | 128 × 64 dots |
| Pixel Density | 160,000 dots/m² |
| Module Dimensions | 320 × 160 × 16 mm |
| Module Weight | 0.62 kg |
| Connector Type | HUB75 |
| Color Processing | 12-bit |
| Gray Level | 16–4096 |
| Refresh Rate | ≥ 3,840 Hz |
| Scan Mode | 1/16 |
| Brightness | ≥ 4,500 nits |
| Viewing Angle | 140° horizontal / 120° vertical |
| Input Voltage | DC 5 V |
| Max Power Consumption | 28 W per module |
| Average Power Consumption | 9 W per module |
| Operating Temperature | −20 °C to 50 °C |
| Storage Temperature | −20 °C to 60 °C |
| Operating Humidity | 10%–90% RH |
| Lifetime | ≥ 100,000 hours |
| Maintenance Method | Front or rear service |
| IP Rating | IP65 front / IP54 rear |
| Color Uniformity | ≥ 97% |
| Dead Pixel Rate | ≤ 0.0003 |
| Weather Resistance | Designed for long-term outdoor operation and close-viewing environments |
Applications
-
High-resolution outdoor LED video walls
-
Storefront and shopping mall façade displays
-
Outdoor advertising screens with close viewing distance
-
Commercial building exterior signage
-
Outdoor digital signage for premium branding
-
Public information and smart city display systems
