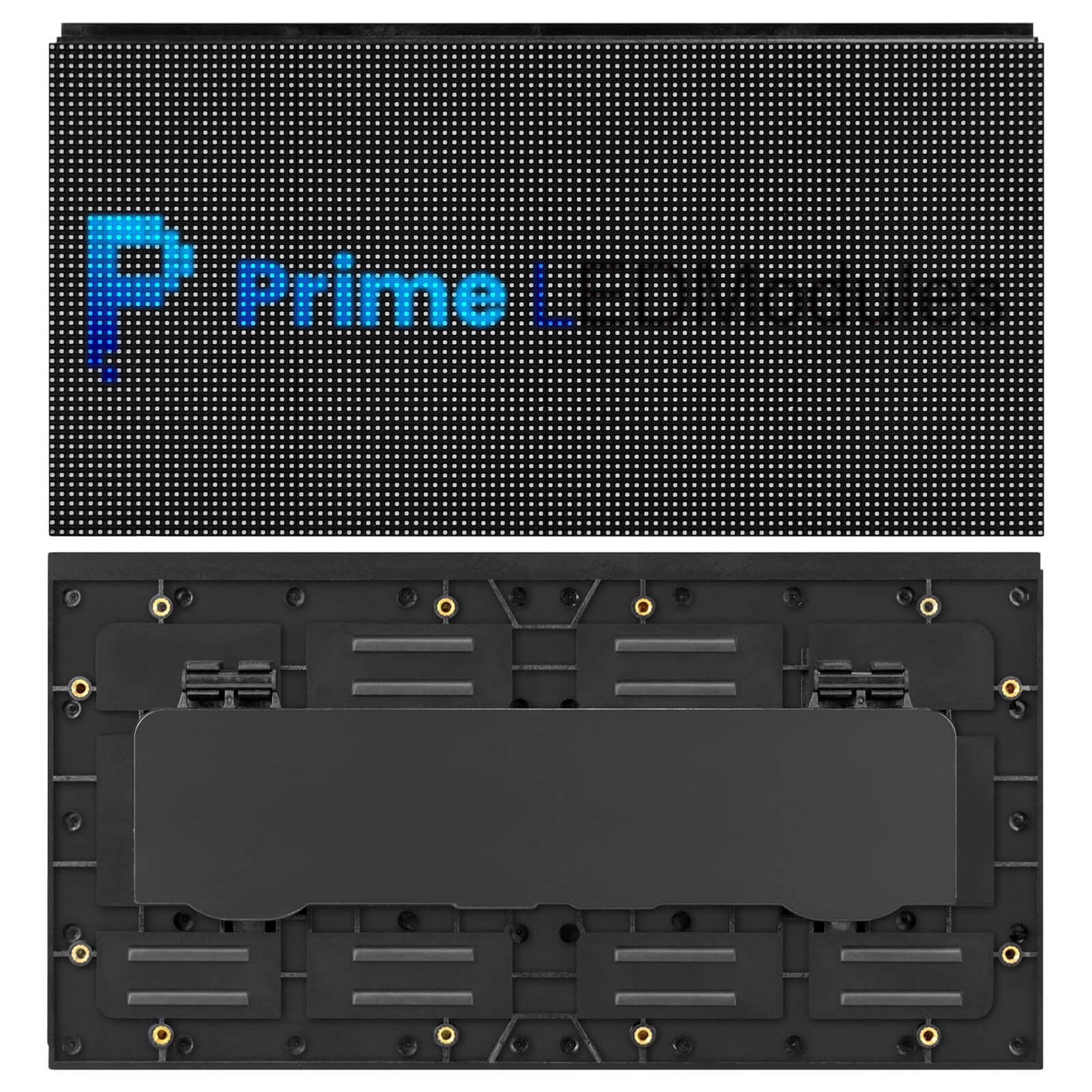

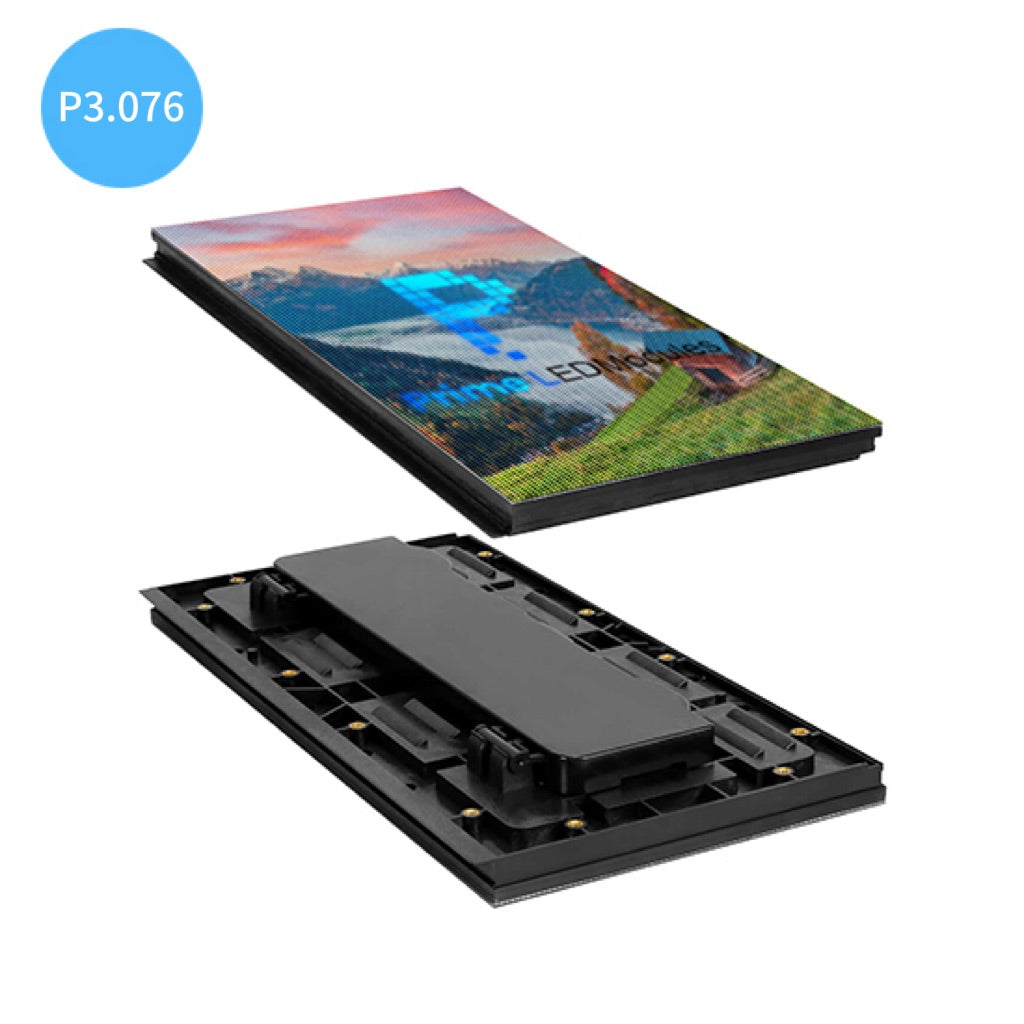

POD-WS Series P3.076 Outdoor LED Module – 320 × 160 mm IP65 Panel for Commercial Outdoor Displays
The POD-WS Series P3.076 outdoor LED module is designed for commercial LED screens that require a perfect balance between image clarity, brightness, and long-term outdoor reliability.
With a 3.076 mm pixel pitch and IP65 waterproof protection, it delivers stable performance for advertising displays, building façades, and outdoor digital signage projects.
Package & Packing Details
| Version | Package Included |
|---|---|
| 1-Pack Sample Kit | 1 × Power Supply Cable 1 × Data Cable 1 × P3.076 Outdoor LED Module |
| 30-Pack Standard Pack | 30 × Power Supply Cables 30 × Data Cables 30 × P3.076 Outdoor LED Modules |
About this item
-
3.076 mm pixel pitch offers a cost-effective balance between resolution and viewing distance for outdoor LED screens
-
IP65 waterproof and dustproof protection ensures reliable operation in rain, dust, and harsh outdoor environments
-
High-brightness SMD LEDs deliver excellent visibility even under direct sunlight
-
Standard 320 × 160 mm module size ensures easy replacement and strong compatibility with outdoor LED cabinets
-
Designed for commercial outdoor applications requiring durability and stable visual performance
-
High refresh rate provides smooth, flicker-free video playback for broadcasting and camera shooting
-
Uniform brightness and accurate color calibration guarantee consistent image quality across large displays
-
Long service life supports continuous outdoor operation with minimal maintenance
Quick Specs
| Specification | Detail |
|---|---|
| Pixel Pitch | 3.076 mm |
| Module Size | 320 × 160 mm |
| Resolution | 104 × 52 dots |
| LED Type | SMD |
| Pixel Density | 105,625 dots/m² |
| Brightness | ≥ 5,000 nits |
| Refresh Rate | ≥ 3,840 Hz |
| Scan Mode | 1/13 |
| Viewing Angle | 140° (H) / 120° (V) |
| Input Voltage | DC 5 V |
| Maintenance | Front or Rear Service |
| Protection Grade | IP65 (front), IP54 (rear) |
Installation & Maintenance Tips
-
Use LED modules from the same batch to ensure uniform color and brightness
-
Seal all cabinet joints properly to maintain IP65 waterproof performance
-
Apply outdoor-rated waterproof connectors for both power and signal cables
-
Avoid bending, impact, or excessive force during handling and installation
-
Regularly inspect power cables, signal cables, and waterproof gaskets
-
Clean the surface periodically to maintain optimal brightness and heat dissipation
Shipping Information
-
Lead Time: In-stock products ship within 1–3 business days
-
Packaging: Waterproof packaging with shock-absorbing foam protection
-
Shipping Origin: Shipped directly from warehouse
-
Standard Shipping: 9–18 days
-
Express Shipping: 5–9 days
-
Shipping Costs: Calculated automatically based on destination, weight, and dimensions
Full Specifications
| Specification | Detail |
|---|---|
| Series | POD-WS |
| Product Type | Outdoor LED Module |
| Pixel Pitch | 3.076 mm |
| LED Configuration | SMD |
| Module Resolution | 104 × 52 dots |
| Pixel Density | 105,625 dots/m² |
| Module Dimensions | 320 × 160 × 16 mm |
| Module Weight | 0.65 kg |
| Connector Type | HUB75 |
| Color Processing | 12-bit |
| Gray Level | 16–4096 |
| Refresh Rate | ≥ 3,840 Hz |
| Scan Mode | 1/13 |
| Brightness | ≥ 5,000 nits |
| Viewing Angle | 140° horizontal / 120° vertical |
| Input Voltage | DC 5 V |
| Max Power Consumption | 30 W per module |
| Average Power Consumption | 10 W per module |
| Operating Temperature | −20 °C to 50 °C |
| Storage Temperature | −20 °C to 60 °C |
| Operating Humidity | 10%–90% RH |
| Lifetime | ≥ 100,000 hours |
| Maintenance Method | Front or Rear Service |
| IP Rating | IP65 front / IP54 rear |
| Color Uniformity | ≥ 97% |
| Dead Pixel Rate | ≤ 0.0003 |
| Weather Resistance | Designed for long-term commercial outdoor use |
Applications
-
Outdoor commercial LED advertising screens
-
Building façade digital signage
-
Shopping mall exterior LED displays
-
Public square and transportation hub screens
-
Retail storefront outdoor LED video walls
-
Outdoor information and branding displays
