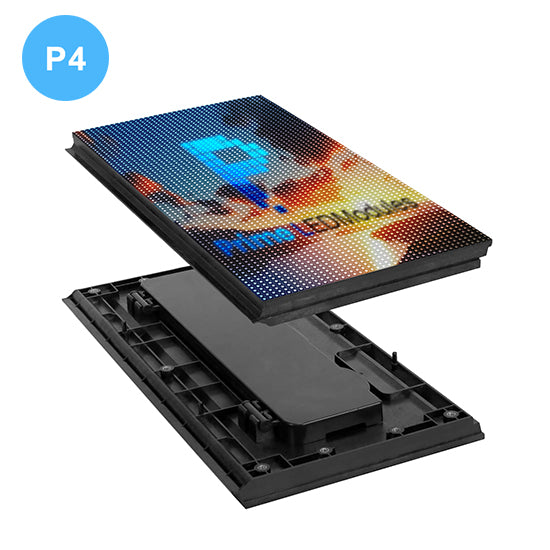

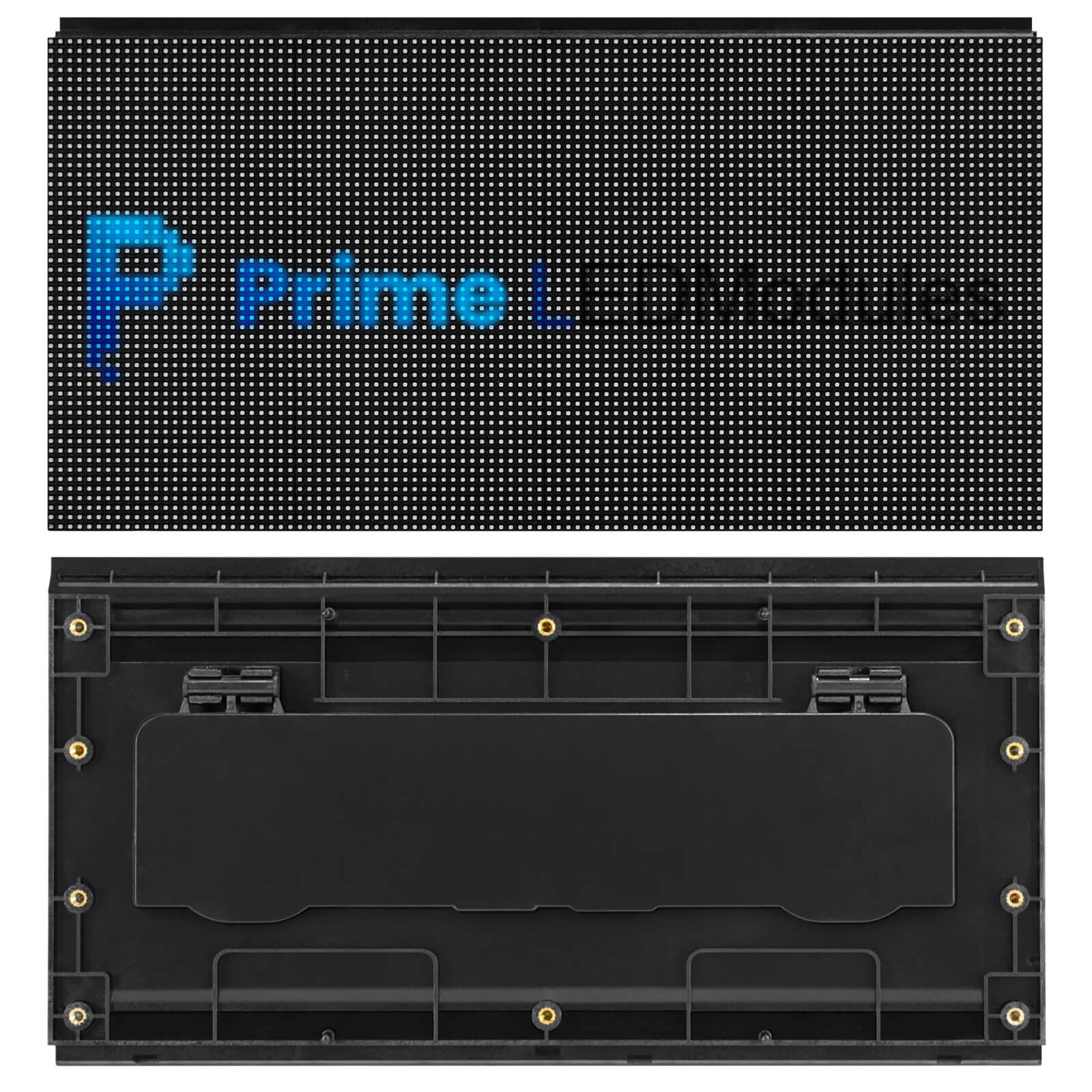

POD-WS Series P4 Outdoor LED Module – 320 × 160 mm IP65 Panel for Outdoor Signage Displays
The POD-WS Series P4 outdoor LED module is engineered for stable and long-lasting outdoor signage systems that require high brightness and clear visual performance.
With a 4 mm pixel pitch and IP65 waterproof protection, it is ideal for advertising screens, building façades, and commercial outdoor LED display projects.
Package & Packing Details
| Version | Package Included |
|---|---|
| 1-Pack Sample Kit | 1 × Power Supply Cable 1 × Data Cable 1 × P4 Outdoor LED Module |
| 30-Pack Standard Pack | 30 × Power Supply Cables 30 × Data Cables 30 × P4 Outdoor LED Modules |
About this item
-
4 mm pixel pitch provides an excellent balance between cost efficiency and image clarity for medium- to long-distance outdoor viewing
-
IP65 waterproof and dustproof design ensures reliable operation under rain, humidity, and harsh outdoor environments
-
High-brightness SMD LEDs deliver strong visibility even in direct sunlight
-
Standard 320 × 160 mm module size guarantees easy installation, replacement, and cabinet compatibility
-
Designed for outdoor signage, commercial advertising screens, and architectural LED display systems
-
High refresh rate ensures flicker-free images for video recording, broadcasting, and camera shooting
-
Uniform brightness and precise color calibration maintain consistent image quality across large LED walls
-
Long service life supports continuous outdoor operation with minimal maintenance requirements
Quick Specs
| Specification | Detail |
|---|---|
| Pixel Pitch | 4 mm |
| Module Size | 320 × 160 mm |
| Resolution | 80 × 40 dots |
| LED Type | SMD |
| Pixel Density | 62,500 dots/m² |
| Brightness | ≥ 5,000 nits |
| Refresh Rate | ≥ 3,840 Hz |
| Scan Mode | 1/10 |
| Viewing Angle | 140° (H) / 120° (V) |
| Input Voltage | DC 5 V |
| Maintenance | Front or Rear Service |
| Protection Grade | IP65 (front), IP54 (rear) |
Installation & Maintenance Tips
-
Always use modules from the same production batch to ensure consistent color and brightness
-
Seal cabinet joints carefully to preserve IP65 waterproof performance
-
Apply outdoor-grade waterproof connectors for power and signal connections
-
Avoid bending, dropping, or applying impact force to the module surface
-
Inspect cables, connectors, and sealing gaskets regularly
-
Clean the module surface periodically to maintain brightness and heat dissipation efficiency
Shipping Information
-
Lead Time: In-stock products ship within 1–3 business days
-
Packaging: Waterproof packaging with shock-absorbing foam protection
-
Shipping Origin: Shipped directly from warehouse
-
Standard Shipping: 9–18 days
-
Express Shipping: 5–9 days
-
Shipping Costs: Calculated automatically based on destination, weight, and dimensions
Full Specifications
| Specification | Detail |
|---|---|
| Series | POD-WS |
| Product Type | Outdoor LED Module |
| Pixel Pitch | 4 mm |
| LED Configuration | SMD |
| Module Resolution | 80 × 40 dots |
| Pixel Density | 62,500 dots/m² |
| Module Dimensions | 320 × 160 × 16 mm |
| Module Weight | 0.65 kg |
| Connector Type | HUB75 |
| Color Processing | 12-bit |
| Gray Level | 16–4096 |
| Refresh Rate | ≥ 3,840 Hz |
| Scan Mode | 1/10 |
| Brightness | ≥ 5,000 nits |
| Viewing Angle | 140° horizontal / 120° vertical |
| Input Voltage | DC 5 V |
| Max Power Consumption | 28 W per module |
| Average Power Consumption | 9 W per module |
| Operating Temperature | −20 °C to 50 °C |
| Storage Temperature | −20 °C to 60 °C |
| Operating Humidity | 10%–90% RH |
| Lifetime | ≥ 100,000 hours |
| Maintenance Method | Front or Rear Service |
| IP Rating | IP65 front / IP54 rear |
| Color Uniformity | ≥ 97% |
| Dead Pixel Rate | ≤ 0.0003 |
| Weather Resistance | Designed for long-term commercial outdoor use |
Applications
-
Outdoor LED advertising billboards
-
Commercial outdoor signage systems
-
Building façade LED video walls
-
Shopping mall exterior display screens
-
Transportation hub information displays
-
Retail storefront outdoor LED displays
