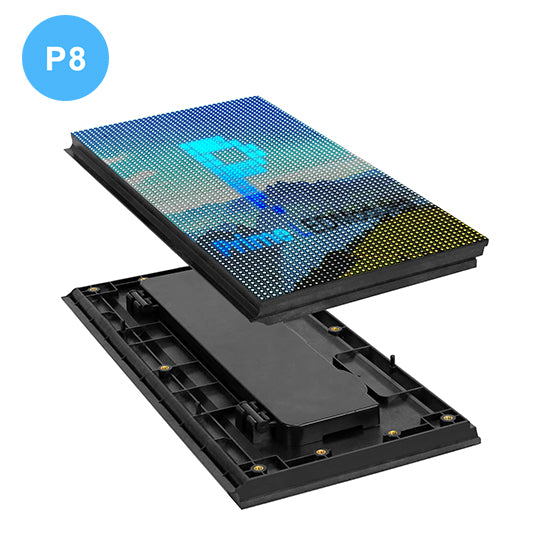

POD-WS Series P8 Outdoor LED Module – 320 × 160 mm IP65 Panel for Outdoor Displays
The POD-WS Series P8 outdoor LED module is built for large-format outdoor LED screens that prioritize high brightness, stability, and strong environmental resistance.
With an 8 mm pixel pitch and IP65 waterproof protection, it is ideal for billboards, roadside advertising, stadium displays, and commercial outdoor video walls.
Package & Packing Details
| Version | Package Included |
|---|---|
| 1-Pack Sample Kit | 1 × P8 Outdoor LED Module 1 × 5V Power Cable 1 × Data Cable |
| 30-Pack Standard Carton | 30 × P8 Outdoor LED Module 15 × 5V Power Cables 30 × Data Cables |
About this item
• 8 mm pixel pitch optimized for long-distance viewing in outdoor LED display projects
• IP65 waterproof and dustproof protection ensures stable performance in rain, dust, and harsh weather
• High-brightness outdoor SMD LEDs provide excellent visibility under strong sunlight
• Standard 320 × 160 mm module size ensures easy replacement and strong cabinet compatibility
• Copper-wired LED configuration enhances electrical stability and long operational lifespan
• High refresh rate supports smooth, flicker-free video playback and camera shooting
• Wide viewing angle delivers consistent image quality from multiple directions
• Uniform brightness and accurate color calibration guarantee consistent performance across large screens
• Designed for outdoor advertising screens, stadium displays, and commercial LED video walls
Quick Specs
| Specification | Detail |
|---|---|
| Pixel Pitch | 8 mm |
| Module Size | 320 × 160 mm |
| Resolution | 40 × 20 dots |
| LED Type | SMD |
| Pixel Density | 15,625 dots/m² |
| Brightness | ≥ 5,000 nits |
| Refresh Rate | ≥ 3,840 Hz |
| Scan Mode | 1/5 |
| Viewing Angle | 140° (H) / 120° (V) |
| Input Voltage | DC 5 V |
| Maintenance | Magnetic Front Service / Screw Rear Service |
| Protection Grade | IP65 |
Installation & Maintenance Tips
• Always use LED modules from the same batch to ensure consistent color and brightness
• Seal cabinet joints carefully to maintain overall waterproof performance
• Use outdoor-rated waterproof connectors for both power and signal lines
• Avoid mechanical impact or excessive bending during installation
• Regularly inspect cables, connectors, and waterproof gaskets
• Ensure stable DC5V power supply to prevent voltage drop
• Clean module surfaces periodically to maintain brightness and heat dissipation
Shipping Information
• Lead Time: In-stock products ship within 1–3 business days
• Packaging: Safe packaging with shock-absorbing foam for secure transport
• Shipping Origin: All products ship directly from our warehouse
• Standard Shipping: 9–18 days
• Express Shipping: 5–9 days
• Shipping Costs: Calculated automatically based on destination, weight, and dimensions
Full Specifications
| Specification | Detail |
|---|---|
| Series | POD-WS |
| Product Type | Outdoor LED Module |
| Pixel Pitch | 8 mm |
| LED Configuration | Copper Wired SMD |
| Module Resolution | 40 × 20 dots |
| Pixel Density | 15,625 dots/m² |
| Module Dimensions | 320 × 160 × 16 mm |
| Connector Type | HUB75 |
| Refresh Rate | ≥ 3,840 Hz |
| Scan Mode | 1/5 |
| Brightness | ≥ 5,000 nits |
| Viewing Angle | 140° (H) / 120° (V) |
| Input Voltage | DC 5 V |
| Max Power Consumption | ≤ 35 W per module |
| Average Power Consumption | ≤ 12 W per module |
| Operating Temperature | −20 °C to 70 °C |
| Storage Temperature | −20 °C to 60 °C |
| Operating Humidity | 10%–90% RH |
| Lifetime | ≥ 100,000 hours |
| Maintenance Method | Magnetic Front Service / Screw Fixing Rear Service |
| IP Rating | IP65 |
| Color Uniformity | ≥ 97% |
| Dead Pixel Rate | ≤ 0.0003 |
| Weather Resistance | Designed for long-term outdoor commercial use |
Applications
• Large outdoor LED billboards
• Roadside and highway advertising displays
• Stadium perimeter and scoreboard screens
• Commercial building façade LED walls
• Shopping mall exterior LED signage
• Transportation hubs and public information displays
• Outdoor event and rental LED video walls
