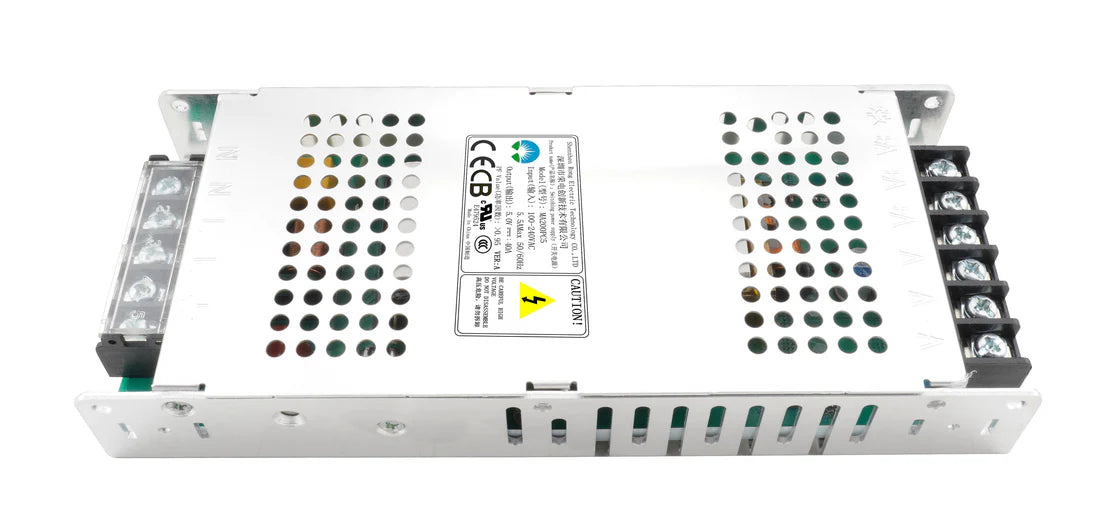

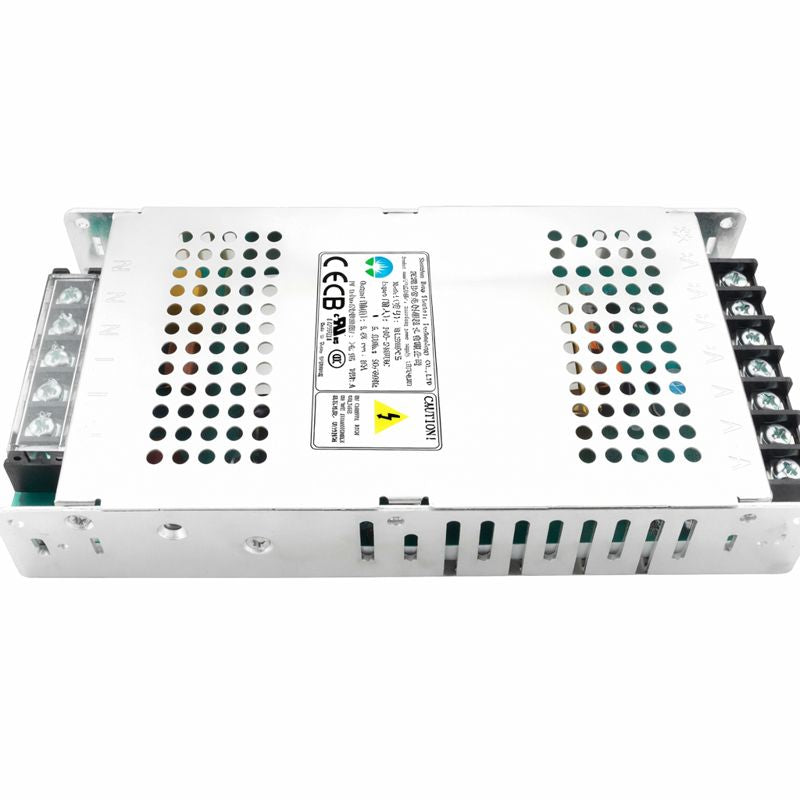

RD Series Switching Power Supply MD200PC5 / MQ300PC5 | 5V Output | 200W / 300W | CE & UL Certified | For Indoor & Outdoor LED Display Projects

In stock
SKU: PLM-MZ06-RD-MD200PC5
$15.85
Output Voltage
Model | Output Power

RD Series Switching Power Supply MD200PC5 / MQ300PC5 | 5V Output | 200W / 300W | CE & UL Certified | For Indoor & Outdoor LED Display Projects

About This Item

  • 5V constant voltage output, optimized for indoor and outdoor LED display cabinets, LED modules, and control systems

  • Compact, lightweight design (MD200PC5 / MQ300PC5) with small footprint for easy integration into slim LED cabinets

  • High efficiency ≥ 86% (see efficiency curve) and power factor ≥ 0.95 for reduced energy consumption

  • Wide input voltage range 90–264Vac and wide operating temperature –30°C to +70°C (with linear derating from +50°C to +70°C)

  • Low leakage current ≤ 1.0mA (Vin = 242Vac), suitable for sensitive LED and electronic systems

  • Ventilation cooling design with fanless operation for quiet, reliable performance

  • Comprehensive protection features: output over-current protection and short-circuit protection for safer operation

Order & Logistics

  • Lead Time: Usually ships within 3–5 business days from local warehouses.
  • Shipping Note: HQ Fulfillment: Standard 9–18 days | Express 5–9 days.

Key Features

  • Models Available: MD200PC5 (200W) / MQ300PC5 (300W)

  • Output Voltage: 5V DC single-output switching power supplies

  • Small size & light weight: MD200PC5 / MQ300PC5 approx. L190mm × W83mm × H30mm; about 600g

  • High efficiency up to ≥ 86% (see efficiency curve), helping reduce operating costs

  • Wide input voltage: 90–264Vac for global deployment

  • Wide operating temperature: –30°C to +70°C (with linear derating from +50°C to +70°C)

  • Low leakage current: ≤ 1.0mA (Vin = 242Vac)

  • Cooling mode: ventilation cooling, fanless design

  • Protection functions: output over-current protection and short-circuit protection

Technical Specifications

Item MD200PC5 MQ300PC5
Output rating voltage 5.0 Vdc 5.0 Vdc
Output current range 0 – 40 A 0 – 60 A
Peak output pulse current – 66 A max (average ≤ 60 A)
Derating output current – / (unaided heat dissipation)
Output voltage range 4.9 – 5.1 Vdc 4.90 – 5.10 Vdc
Voltage regulation accuracy ±1 % V0 ±1 % V0
Load regulation accuracy ±1 % V0 ±2 % V0
Regulation accuracy ±2 % V0 ±2 % V0
Ripple and noise ≤ 200 mVp-p ≤ 200 mVp-p
Power output delay ≤ 3500 ms ≤ 3000 ms
Hold-up time ≥ 10 ms (Vin = 220 Vac) ≥ 10 ms (Vin = 220 Vac)
Output voltage rise time ≤ 250 ms ≤ 100 ms
Off overshoot ±5 % V0 ±10 % V0
Output dynamic response Voltage change < ±5 % V0; dynamic response ≤ 250 μs Voltage change < ±5 % V0; dynamic response ≤ 250 μs
Start-up with capacitive load – ≤ 15000 μF (full load)

Applications

  • LED signage displays and LED TV walls

  • Moving signs and LED channel letters

  • Indoor and outdoor LED display cabinets

  • Factory control and automation equipment

  • Test and measurement instruments, laser-related machines, burn-in facilities, and RF applications

MD200PC5

MQ300PC5
