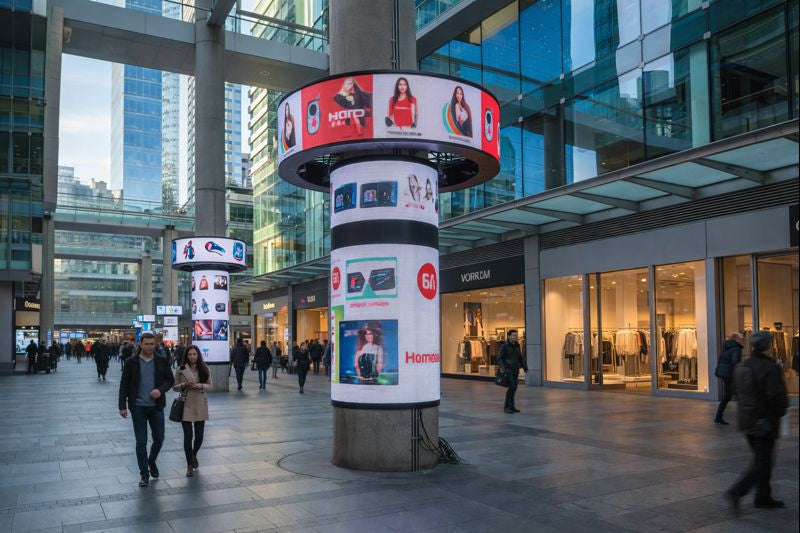

Outdoor cylindrical LED screens can transform columns, entrance features, plazas, transportation facilities, and architectural landmarks into continuous digital surfaces. Unlike a flat display, a cylinder distributes content around a curved field of view and may be visible from several directions. That visual advantage also makes the engineering more demanding: the radius, module direction, frame tolerance, seam layout, cable routing, service method, weather protection, and safety restraints must work together.
This guide explains how to plan an outdoor cylindrical LED screen with flexible LED modules—from geometry and pixel pitch to structure, electrical layout, installation, commissioning, and maintenance.
1. Why Cylindrical Screens Use Flexible LED Modules
Rigid cabinets can approximate a large curve by forming a polygon, but the visible surface may show faceted transitions and wider seams. Flexible modules follow a continuous, accurately formed support structure, allowing a smoother radius and more consistent visual surface.
The module does not create structural accuracy by itself. Its flexible PCB and rear construction permit controlled curvature, while the frame establishes the final geometry. If the frame is out of round, uneven, or incorrectly spaced, flexible modules can be placed under local stress and the seams may become inconsistent.
Different models permit different bending directions and limits. Concave and convex capability must be confirmed from the selected product specification. Sharp folding, twisting, reverse bending, or forcing the module onto an inaccurate frame should be avoided.
2. Start with Geometry, Not Pixel Pitch
The first design inputs are the required cylinder diameter, display height, visible circumference, viewing directions, and whether the screen is a complete 360-degree cylinder or a partial curved surface. These dimensions determine the supporting frame and the number of modules—not pixel pitch alone.
For a complete cylinder, the theoretical circumference is calculated as:
Circumference = π × Diameter
The circumference must then be reconciled with the module orientation and usable module dimension. Because the current POF range uses a nominal 320 × 160 mm format, the designer must decide whether 320 mm or 160 mm follows the circumference. The chosen orientation affects module count, signal loading, cable layout, and permitted bending direction.
A theoretical calculation rarely produces an exact whole number of modules. Do not stretch modules or introduce a sharp closing seam to compensate. Instead, adjust the frame diameter, select another orientation, or redesign the visible arc so the final module count and curvature remain within the model-specific limit.
3. Select Pixel Pitch from Viewing and Resolution Requirements
A smaller pixel pitch provides more pixels within the same screen area and is useful when viewers stand closer or when the content contains fine text and detailed graphics. A larger pitch is generally more appropriate for large cylinders viewed from farther away. Power consumption, however, cannot be predicted from pitch alone; LED package, brightness, scan configuration, driver design, image content, and operating settings also matter.
| Pitch Range | Design Priority | Current POF Platforms | Typical Cylinder Use |
|---|---|---|---|
| P2.5–P4 | Closer viewing and finer detail | POF-S and POF-SR | Entrance columns, branded features, detailed information, and compact architectural cylinders |
| P5–P6.67 | Medium-distance viewing and larger surfaces | POF-S | Plazas, building columns, public information, and medium-to-large cylindrical advertising |
| P8–P10 | Longer viewing distance and large-format coverage | POF-S | Large landmark columns, transportation environments, and long-distance commercial displays |
Do not assign a universal minimum cylinder diameter to a pixel pitch. Minimum diameter depends on the selected model, rear structure, PCB design, bending direction, module orientation, and permitted reference angle. Confirm those details before the frame is released for fabrication.
4. Choose the Appropriate POF Structure
The POF Series contains two different structural platforms. POF-S uses an all-in-one silicone flexible back with magnetic alignment and M3 mechanical fixing. It covers P2.5, P3.076, P4, P5, P6.67, P8, and P10. POF-SR uses a flexible PCB, silicone bottom case, protective rear cover, magnetic positioning, and front-service access in P2.5, P3.076, and P4.
POF-S is suitable when a broad pitch range and defined M3 fixing are priorities. POF-SR is useful when front module replacement and a protective rear cover are required. Its protection definition must remain clear: the front is rated IP65 and the rear cover is rated IP54, so an exposed rear side requires additional project protection.
For closer-viewing cylinders, compare POF-SR P2.5, POF-SR P3.076, and the corresponding POF-S models. The final choice should be based on structure, service access, brightness, protection, and fixing—not only image resolution.
5. Design a Continuous and Serviceable Frame
A true cylindrical frame provides continuous support around the full circumference. A segmented frame can simplify fabrication and transport, but its mounting faces must still approximate the required curve closely enough that the flexible modules are not forced across abrupt transitions.
The structure should include consistent module mounting zones, reinforcing rings, vertical members, cable paths, drainage, ventilation, access points, and independent attachment to the building or foundation. Structural calculations should consider dead load, wind pressure, vibration, installation height, public access, local codes, and the effect of service openings.
Outdoor frames also require suitable material and corrosion protection. Coastal and high-humidity sites may need upgraded coatings, stainless hardware, isolation between dissimilar metals, and a maintenance plan for exposed fasteners and seals.
6. Use Magnets for Alignment, Not as a Universal Safety System
Magnetic positioning can accelerate alignment and front-side removal, but an outdoor cylinder is subject to wind, vibration, thermal movement, and gravity. The final restraint must follow the selected module and engineered frame.
POF-S models provide M3 screw fixing in addition to magnetic alignment. POF-SR installations should use model-appropriate mechanical retention or safety restraints where required, particularly on elevated, overhead, open, temporary-event, or publicly accessible screens. Anti-fall measures should be planned before the frame is manufactured rather than added after installation.
Maintenance tools and removal paths also require planning. Front-service access is only useful when technicians can safely reach the modules, isolate power, release the selected fixing system, and remove a module without sharply bending adjacent units.
7. Plan Power, Signal, and Control as One System
A cylindrical screen usually contains repeated vertical or horizontal module groups. Before installation, prepare a map showing receiving-card areas, data direction, power-injection points, cable lengths, distribution zones, and service labels. Avoid routing power and signal cables where they will be pinched by the curved frame or forced against sharp metal edges.
Control-system compatibility depends on module resolution, data interface and pinout, scan rate, driver IC, receiving-card loading, firmware, configuration file, and calibration data. A shared connector family does not guarantee direct compatibility.
Synchronous playback for live video and asynchronous playback for scheduled or looped content are functions of the selected controller and media architecture, not the LED module itself. Automatic brightness adjustment also requires a compatible ambient-light sensor, controller, software, and commissioning.
Power supplies, receiving cards, distribution equipment, and cable connections should be placed in protected, serviceable enclosures with appropriate ventilation. The design should include grounding, surge and lightning protection, safe isolation, and separation between power and signal paths where practical.
8. Treat Environmental Protection as a Complete-System Requirement
Module-level protection does not certify the completed cylinder. Water can enter through seams, cable passages, service doors, frame joints, connectors, or poorly designed top and bottom terminations. A cylinder can also trap warm air if ventilation is inadequate.
The completed display should therefore include controlled drainage, protected cable entries, suitable seals, sheltered or rated electrical equipment, corrosion-aware materials, ventilation that does not create uncontrolled water paths, and inspection access. Top caps and lower drainage zones deserve particular attention because they often receive the greatest water load.
9. Installation Workflow
Confirm the display brief. Define diameter, height, visible arc, viewing distance, target resolution, content, brightness conditions, mounting height, and service access.
Select the module configuration. Confirm POF-S or POF-SR, pitch, bending direction, permitted radius, orientation, fixing method, protection definition, control requirements, and production batch.
Complete structural and electrical drawings. Resolve module count, closing seam, reinforcing members, anti-fall provisions, receiving-card zones, power distribution, drainage, ventilation, grounding, and access.
Fabricate and inspect the frame. Measure diameter, roundness, mounting-surface continuity, connection points, corrosion protection, and attachment to the primary structure before modules arrive on site.
Build and test in controlled sections. Install a defined ring or zone, verify alignment and seam consistency, then test power, signal, scan configuration, and image orientation before continuing.
Commission the complete screen. Check current draw, temperature, brightness uniformity, grayscale, color calibration, signal redundancy where specified, drainage, seals, safety restraints, and service procedures.
10. Content Mapping for a Cylindrical Canvas
A technically correct cylinder can still look wrong if conventional flat content is wrapped without planning. Designers should decide whether the content is continuous around 360 degrees, divided into viewing zones, or concentrated toward primary approaches.
The media resolution should match the commissioned pixel canvas. Important text and logos should not cross the closing seam unless the content is designed for it. Test perspective, motion speed, typography, and transitions from the actual viewing positions rather than relying only on a flat desktop preview.
11. Maintenance and Spare-Module Planning
Record the module model, batch, receiving-card configuration, firmware, wiring map, calibration files, and physical location of each service zone. Spare modules should match the installed configuration and production batch whenever possible. Before replacing a module, isolate power and avoid pulling cables or connectors by the wire.
Periodic inspection should cover mechanical fixings, anti-fall restraints, seals, cable entries, corrosion, drainage, ventilation, power connections, brightness consistency, and abnormal temperature. Maintenance should restore the designed protection and restraint system after every intervention.
Conclusion
An outdoor cylindrical LED screen is not simply a flexible module wrapped around a column. It is a coordinated system in which module curvature, frame geometry, mechanical safety, environmental protection, electrical design, control configuration, content mapping, and maintenance access must be resolved together.
Beginning with accurate geometry and model-specific limits prevents forced bending and inconsistent seams. Selecting the correct POF structure, providing mechanical retention, and treating weather protection at system level produces a safer, more serviceable, and more visually consistent installation.
Explore the complete POF Series Outdoor Flexible LED Modules, or contact PrimeLEDModules with the required cylinder diameter, screen dimensions, drawings, and control-system information for configuration review.
