Outdoor flexible LED modules allow display surfaces to follow columns, cylinders, arches, concave walls, convex façades, and other engineered curves. Their flexibility is controlled rather than unlimited. Every module has a defined construction, permitted bending direction, mechanical interface, and model-specific limit. Exceeding those conditions can damage copper traces, solder joints, LED pads, encapsulation, connectors, or the weather-protection structure.
This guide explains how bending geometry, mechanical strain, frame design, installation handling, and long-term outdoor loads affect flexible LED modules—and how to reduce avoidable damage before, during, and after installation.
1. Bending Radius and Reference Angle Are Not the Same
A minimum bending radius describes the smallest permitted radius of the finished curve. Some product drawings instead use an included angle or another geometric reference. These values cannot be substituted for one another without understanding the drawing and bending direction.
The final cylinder diameter or curved-frame radius should be calculated from the model-specific specification and confirmed against the physical module orientation. A 320 × 160 mm module may behave differently depending on which dimension follows the curve, because the flexible PCB and rear structure may be designed to bend primarily along one axis.
Never derive a universal minimum diameter from pixel pitch alone. Two modules with the same pitch and size can use different PCB layouts, masks, back structures, connectors, or fixing systems and therefore have different curvature limits.
2. What Happens When a Module Is Bent Too Far?
Excessive curvature increases tensile and compressive strain across the module. The visible result may not appear immediately. A module can initially light normally while internal damage develops into intermittent pixels, color errors, open circuits, unstable connectors, delamination, or weakened sealing later.
Areas requiring particular attention include solder joints around LEDs and driver components, copper traces near slots or narrow sections, connector transitions, fixing points, and locations where the frame produces a sudden change in curvature.
A continuous, gradual curve distributes strain more evenly than a sharp fold. Flexible LED modules should not be creased or folded along a narrow line unless a product is expressly designed for that geometry. Adding soft material at a fold does not make an unsupported sharp bend safe.
3. Concave, Convex, and Reverse Bending
Concave or convex installation capability depends on the selected model, PCB design, rear construction, bending axis, connector clearance, and documented direction. A module described as flexible should not automatically be assumed to bend equally inward and outward.
Reverse bending can move components, solder joints, and encapsulation from compression into tension in a direction for which they were not designed. Repeatedly changing the direction can be more damaging than holding a module at one approved, stable radius.
Before fabrication, mark the permitted bending direction on the engineering drawing and confirm whether the target surface is concave, convex, cylindrical, or a changing-radius curve. Compound curves and partial spherical surfaces require special review because a module intended to bend along one axis may not tolerate simultaneous curvature in two axes.
4. The Supporting Frame Controls Long-Term Stress
A flexible module should rest against a support surface that already matches the intended geometry. It should not be used as a spring to pull an inaccurate structure into shape. If the frame is uneven, too tight, or discontinuous, the module remains under local force after installation.
The support structure should provide continuous curvature, suitable flatness at fixing areas, adequate load capacity, wind-load resistance, drainage, ventilation, cable clearance, grounding, and safe maintenance access. Frame joints should not create steps or sharp transitions beneath the flexible PCB.

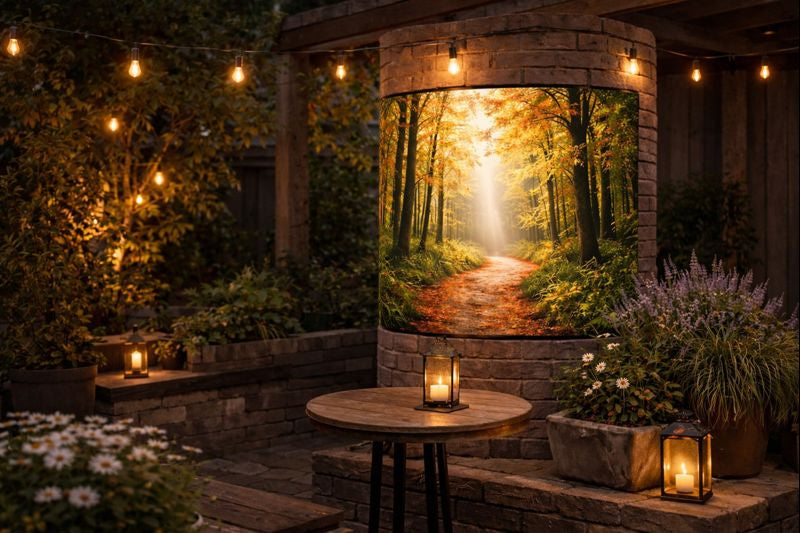

For cylindrical screens, reinforcing rings and accurately spaced vertical members help control roundness. For long curved walls, survey points and templates can be used to verify the radius before modules are fitted. Correcting the structure early is safer than compensating with module tension.
5. POF-S and POF-SR Require Different Structural Planning
The POF Series contains two platforms rather than one universal flexible structure.
| Platform | Rear Structure | Current Pitch Range | Fixing & Service Consideration |
|---|---|---|---|
| POF-S | All-in-one silicone flexible back | P2.5–P10 | Magnets support positioning; M3 mechanical fixing is part of the installation design |
| POF-SR | Silicone bottom case with protective rear cover | P2.5, P3.076, P4 | Magnetic positioning and front service; project-appropriate mechanical restraint may be required |
The rear cover on POF-SR changes stiffness, clearance, environmental protection, and service behavior. Its front is rated IP65 and its rear cover is rated IP54. POF-S models use a different integrated structure and should be evaluated from the individual specification. These differences are important when determining the support surface and allowable curve.
6. Pixel Pitch Is Only One Factor in Curvature
Fine-pitch modules contain more pixels within the same area, but it is too simple to conclude that smaller pitch always means a proportionally larger minimum radius. Curvature also depends on PCB stack-up, copper layout, component placement, rear design, mask geometry, encapsulation, and bending axis.
Pixel pitch should primarily be selected for viewing distance, screen size, content detail, and required native resolution. Curvature should then be verified against the selected model. Current POF options range from P2.5 through P10: P2.5–P4 serve closer-viewing and more detailed applications, while P5–P10 extend coverage for larger displays and longer viewing distances.
For example, the POF-S P2.5 and POF-SR P2.5 share pitch and nominal dimensions but use different rear structures. They should not be treated as identical mechanical products.
7. Installation Handling and Fatigue Control
Flexible modules are normally installed at a stable project radius; they are not intended to function as continuously moving display surfaces. Repeated bending during unpacking, trial fitting, maintenance, or transport can accumulate strain even when each individual movement appears modest.
Handle modules with anti-static precautions and support the full panel rather than lifting it by a cable, connector, corner, magnet, or narrow PCB section. Do not stack modules in a way that imposes uneven curvature. During trial installation, use a verified template or sample frame so the module is not repeatedly bent while the final structure is adjusted.
When removing a front-service module, release its restraint and connectors using the approved method, maintain even support, and avoid levering one edge into a reverse bend. Technicians should document the intended removal path before the finished structure limits access.
8. Magnetic Positioning and Mechanical Retention
Magnets can help locate a module and maintain contact with a compatible support surface. They do not automatically provide sufficient resistance to wind, vibration, gravity, impact, or accidental release in every outdoor installation.
POF-S models combine magnetic alignment with M3 screw fixing. For POF-SR and other front-service structures, the engineer should determine whether safety ropes, secondary clips, captive fasteners, or another anti-fall system is required. Elevated façades, overhead displays, public areas, and temporary events deserve particular attention.
The temperature rating of a magnet applies to that component alone. It does not define the allowable operating temperature of the LED module, PCB, connectors, or complete display.
9. Outdoor Loads Continue After Installation
A module on a curved outdoor structure experiences more than the initial installation bend. Wind pressure and suction, vibration, thermal expansion, frame movement, moisture, and service activity can add cyclic loading. A stable support structure should transfer these loads without allowing the module to flap, lift, or move repeatedly.
Environmental protection must also remain intact around the curve. An IP-rated module does not certify the completed display. Seams, cable entries, connectors, power supplies, control equipment, drainage, ventilation, grounding, and lightning protection must be designed at system level.
POF-SR rear-cover protection is IP54, so it should not be treated as a permanently open, fully rain-exposed rear surface. The project should provide the required shelter or enclosure while preserving ventilation and service access.
10. Inspection Before Power-On
After the modules are mounted, inspect the display before applying power. Check that every module follows the intended curve without local buckling, lifted edges, pinched cables, compressed connectors, or forced fixing points. Verify that screws, restraints, frame joints, cable glands, grounding, drainage, and electrical enclosures are complete.
Then confirm DC voltage and polarity, module resolution, data interface and pinout, scan rate, driver IC, receiving-card configuration, firmware, signal direction, and power loading. Test the screen by controlled zones before operating the full display.
After commissioning, inspect for abnormal temperature, intermittent pixels, color variation, seam movement, or mechanical noise under site conditions. Early correction prevents a small structural problem from becoming a repeated electrical failure.
11. Practical Damage-Prevention Checklist
Confirm the exact module model, bending direction, and documented limit before frame fabrication.
Use the frame to define the curve; never force the module to correct an inaccurate radius.
Avoid sharp folds, twisting, reverse bending, and unnecessary repeated flexing.
Support the entire module during transport, installation, removal, and replacement.
Use model-defined mechanical fixing and project-appropriate anti-fall restraints.
Protect connectors and cables from tension, pinching, sharp edges, and uncontrolled water entry.
Restore seals, restraints, grounding, and drainage after every maintenance intervention.
Keep configuration records and batch-matched spare modules for future service.
Conclusion
Reliable curved displays begin with controlled geometry. The selected module must match the intended bending direction and radius, while the structure must support that curve without forcing, folding, or repeatedly moving the PCB. Mechanical retention, outdoor system protection, electrical compatibility, and safe maintenance are as important as flexibility itself.
When those limits are confirmed before fabrication and respected during installation, outdoor flexible LED modules can deliver smooth architectural curves and stable long-term performance without turning flexibility into a source of hidden stress.
