How to Choose the Right LED Receiving Card for Your LED Display

When designing an LED display system, many people naturally focus on visible specifications such as pixel pitch, brightness level, cabinet size, or screen resolution. These parameters are indeed important for determining the final visual quality of the display. However, behind every stable and high-performance LED display, there is a sophisticated control system that processes image signals and distributes pixel data across the screen.

One of the most critical components in this system is the LED receiving card.

The receiving card acts as the core signal processing unit installed inside each LED cabinet or module group. Its job is to receive digital image data transmitted from the LED sending card, decode that information, and convert it into electrical control signals that LED modules can understand. These signals ultimately control how each pixel on the LED screen lights up, including its brightness, color, and timing.

Selecting the correct LED receiving card is therefore essential for ensuring stable system operation, smooth video playback, and consistent image quality across the entire LED display. If the receiving card does not match the requirements of the display system, problems such as signal instability, limited refresh rate, or compatibility issues with LED driver ICs may occur.

In this guide, we will explore the most important factors to consider when selecting an LED display receiving card, including pixel loading capacity, module compatibility, signal processing performance, interface types, and system architecture.

Understanding the Role of an LED Receiving Card

Before selecting a receiving card, it is important to understand how it functions within an LED display control system.

A standard LED display control architecture usually consists of three primary components:

1. A video source such as a computer, media player, or video processor

2. An LED sending card or LED display controller

3. Multiple LED receiving cards installed inside LED display cabinets

The sending card receives the video signal from the source device and converts it into digital display data that can be transmitted across the LED control network. This data is then sent through Ethernet cables to multiple receiving cards distributed throughout the LED screen.

Each receiving card is responsible for controlling a specific section of the display. After receiving the data from the sending card, the receiving card processes the signal and distributes pixel control information to the LED modules connected to it.

Because receiving cards operate at the final stage of the signal chain before the LEDs are activated, their performance directly affects important display parameters such as refresh rate, grayscale performance, signal stability, and overall image consistency.

Consider the Pixel Loading Capacity

One of the most important specifications to consider when selecting an LED receiving card is its pixel loading capacity. This parameter indicates the maximum number of pixels that a receiving card can control.

A receiving card with higher loading capacity can control more LED modules, which allows system designers to reduce the number of receiving cards required in large LED displays.

For smaller LED screens or indoor display applications, receiving cards with moderate loading capacity are usually sufficient.

For example, the NovaStar MRV208-N Receiving Card is commonly used in compact indoor LED displays where pixel loading requirements are relatively modest.

When designing medium-sized LED displays or commercial advertising screens, higher capacity models such as the NovaStar MRV412-N Receiving Card or the NovaStar MRV416-N Receiving Card are often selected because they can handle larger display areas.

For even larger LED video wall projects that require enhanced stability and monitoring features, receiving cards such as the NovaStar MRV532 Receiving Card and the NovaStar MRV570-1 Receiving Card provide advanced signal processing capabilities and improved system reliability.

Choosing a receiving card with appropriate pixel capacity ensures that the LED display system can scale efficiently as the screen size increases.

Check Compatibility with LED Modules and Driver ICs

Another important factor when selecting an LED screen receiver card is compatibility with LED modules and driver ICs.

LED modules from different manufacturers may use different driver chips and scanning configurations. The receiving card must support these driver ICs in order to correctly control the LED pixels.

If the receiving card does not support the required driver IC or scan mode, the LED modules may not function correctly, resulting in display errors or incomplete image output.

Many modern receiving cards are designed with wide compatibility in mind, allowing them to support a large number of driver IC models and scanning structures.

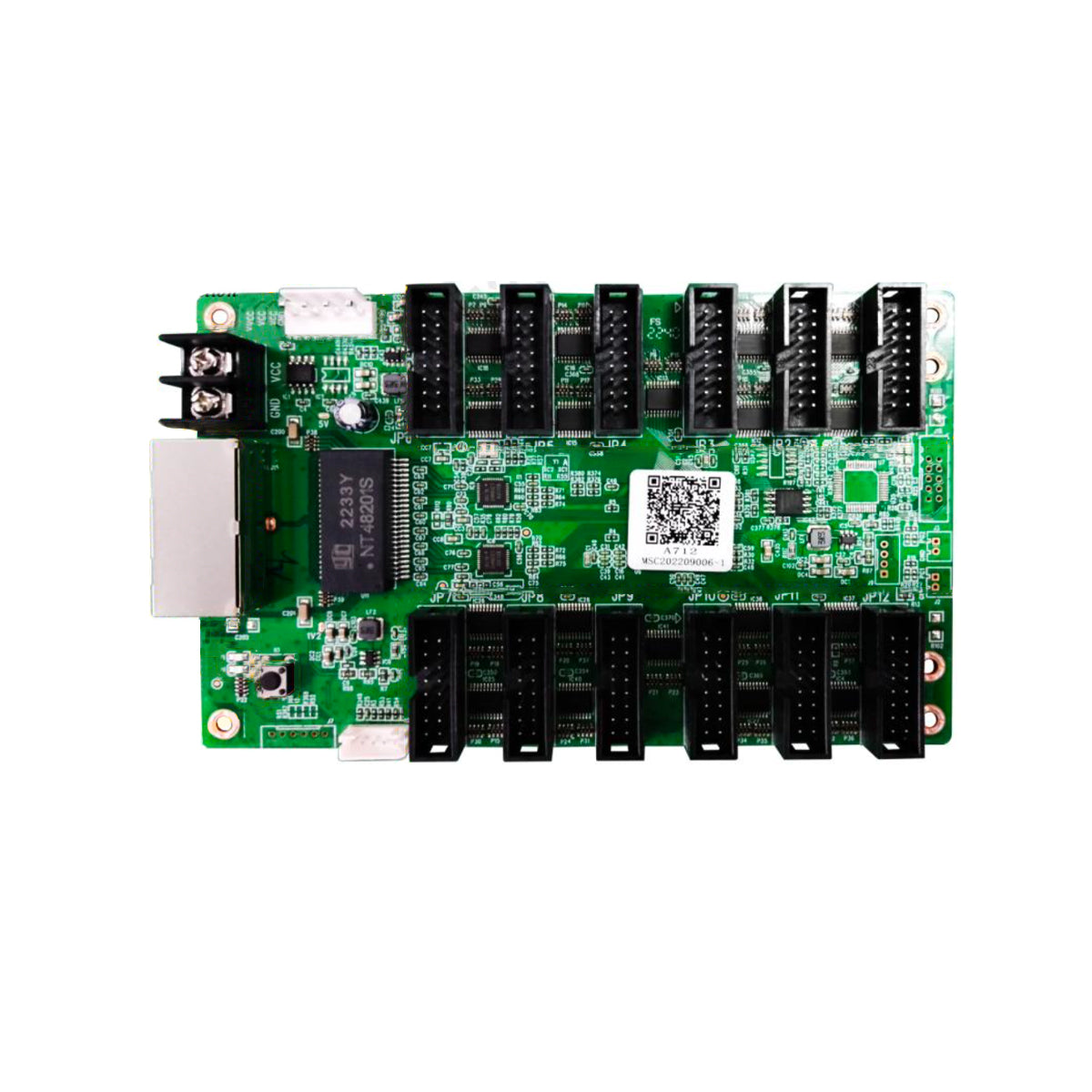

For example, the Mooncell A708 Receiving Card provides stable signal processing and compatibility with many LED driver IC types.

The Mooncell A712 Receiving Card and Mooncell A716 Receiving Card further expand this compatibility, making them suitable for LED displays that use different module configurations or driver chipsets.

Ensuring driver IC compatibility is critical when building large LED display systems that may include modules from different production batches or suppliers.

Evaluate Refresh Rate and Image Quality

The refresh rate of an LED display determines how frequently the screen updates its image during each second. A higher refresh rate improves motion smoothness and reduces visible flicker, especially when LED displays are recorded by cameras.

Receiving cards play an important role in achieving high refresh rates because they control the timing of scanning signals and grayscale modulation.

Professional-grade receiving cards are designed to support high refresh rates, deep grayscale processing, and advanced signal timing control. These capabilities allow LED displays to produce smoother color transitions, improved contrast, and more accurate color reproduction.

For example, the NovaStar A5s Plus Receiving Card is optimized for high dynamic range image processing and advanced grayscale performance.

Similarly, the NovaStar A8s-N Receiving Card provides high loading capacity and enhanced signal processing features, making it suitable for large LED video wall installations that require excellent image quality.

These types of receiving cards are commonly used in demanding environments such as broadcast studios, command and control centers, and high-end indoor LED display projects.

Consider Interface Types and Module Connections

The type of interface used by a receiving card determines how it connects to LED modules inside the cabinet.

Most LED modules use standardized HUB interfaces such as HUB75, HUB320, or HUB75E to connect to receiving cards.

HUB75 remains the most widely used interface for standard indoor LED modules due to its broad compatibility and straightforward wiring structure.

Receiving cards such as Huidu HD-R708, Huidu HD-R712, and Huidu HD-R716 are commonly used in LED display systems that rely on HUB75 module connections.

For high-density LED displays that require more advanced signal routing, receiving cards such as the Huidu HD-R732 Receiving Card support HUB320 interfaces, which allow higher signal density and improved cable management.

In addition, receiving cards such as the Colorlight i5 Receiving Card and Colorlight 5A-75E Receiving Card are widely used in professional LED display systems where precise signal control and stable communication are essential.

Understanding the interface type used by the LED modules helps ensure that the receiving card can be connected correctly and operate reliably.

Integrated Control Solutions for Digital Signage

In certain LED display applications, particularly digital signage systems, integrated control devices may replace the traditional sending card and receiving card combination.

For example, the Huidu HD-D16 LED Controller integrates LED display control and media playback functionality into a single device. This type of controller allows LED modules to be connected directly to the control unit without requiring additional sending cards.

Integrated LED controllers are commonly used in retail displays, advertising screens, and information boards where scheduled content playback and simple installation are important considerations.

These integrated systems simplify hardware requirements while maintaining stable display performance.

LED Receiving Card Selection Guide by Interface Type

Choosing the right LED receiving card interface can make system design much easier, especially when you need to match the controller with the LED module structure, signal density, and project application. The following selection table groups common receiving cards and controllers by HUB75, HUB320, and HUB75E interfaces, so customers can quickly identify the most suitable option for their LED display project.

HUB75 LED Receiving Cards

Standard interface for most indoor LED display modules

HUB320 LED Receiving Cards

Used for high-resolution LED displays and simplified cabinet wiring

HUB75E LED Receiving Cards / Controllers

Enhanced HUB75 interface with higher scan capability
