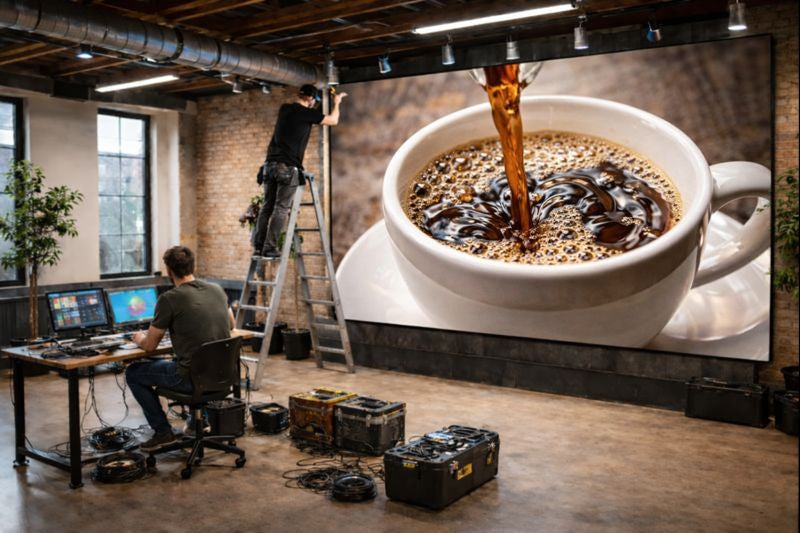

How to Build and Install an Indoor LED Video Wall: Engineering Guide from Planning to Maintenance

In indoor environments, an LED video wall is no longer just a “display tool.” It has evolved into a comprehensive visual medium that integrates information delivery, visual impact, and spatial atmosphere. Whether it serves as the central presentation window in a conference room to support decision-making and data visualization, enhances brand image and visual attraction in a commercial space, or creates an immersive background in stage and exhibition settings, a stable, clear, and well-structured LED video wall always becomes one of the most valuable and eye-catching elements in the space.

However, a truly high-quality LED video wall is never achieved simply by “putting several screens together.” Behind it lies a systematic engineering approach that involves selection logic, structural design, electrical safety, signal stability, and long-term maintenance planning. This guide focuses on the PID series indoor LED modules and explains in detail how to build a reliable and sustainable indoor LED video wall system from professional engineering perspectives, covering everything from early planning and installation to commissioning and maintenance.

1. Pre-Installation Planning and Selection

1.1 Determining the Installation Location and Overall Size

At the early stage of a project, the first question to consider is the “role” of the LED video wall within the space:
Is it intended to be the visual focal point, or an auxiliary information display?
Will it primarily present high-definition content, or emphasize large-scale visual impact?

Different positioning directly affects later decisions on resolution, brightness, and structural design. After determining the installation location, measurements should be carried out using a laser distance meter or a high-precision tape measure, taking architectural conditions and viewing angles into account. The following information should be clearly recorded:

• The effective width and height available for the screen

• Areas that may be blocked by columns, lighting fixtures, ventilation systems, or fire-fighting facilities

• Whether front maintenance or rear maintenance space is available

These measurements form the basis for calculating the number of modules and the splicing layout. They also influence load-bearing design, power distribution, and signal routing. Inaccurate measurements at this stage often lead to later structural modification or layout adjustments, which increase costs and compromise both flatness and aesthetics.

1.2 Selecting the Pixel Pitch According to Viewing Distance

Pixel pitch is one of the most critical parameters affecting display quality. It determines pixel density per unit area and directly impacts image detail and optimal viewing distance.

In engineering practice, the following formula is commonly used as a reference:

Optimal viewing distance (m) ≈ Pixel pitch (mm) × 1–2

For example:

• P1.25: suitable for viewing distances of 1.5–2.5 m

• P2.0: suitable for 2–4 m, such as conference rooms or medium-sized display spaces

• P3.076: suitable for 3–6 m, commonly used in commercial displays and stage backgrounds

• P4: more suitable for large venues with longer viewing distances

If the project mainly serves close-range viewing, such as conference rooms, control centers, or interactive areas, choosing P1.25–P2.0 provides sharper text edges and more realistic image details. In stage backgrounds or shopping mall atriums where viewers are farther away, P3 or even P4 often offers a better balance between clarity and cost.

Whenever possible, it is highly recommended to conduct on-site testing with actual video content. Human visual perception is often more intuitive and reliable than theoretical calculations.

1.3 Selecting Appropriate Module Specifications

After determining pixel pitch, other technical parameters must be evaluated, as they directly affect long-term stability and user experience:

• Whether the brightness can adapt to varying indoor lighting conditions

• Whether the refresh rate meets the requirements for photography, broadcasting, and slow-motion shooting

• Whether grayscale performance ensures smooth transitions in dark areas

• Whether the scanning method supports image stability and power efficiency

• Whether front maintenance is supported to reduce long-term maintenance difficulty

• Whether module interchangeability is good for spare part management

Together, these indicators define whether a display is truly “engineering-grade” rather than simply “able to light up.”

1.4 Advantages of the PID Series Standard Size and Magnetic Front Maintenance

PID series indoor LED modules adopt a unified 320 × 160 mm standard size and feature a magnetic front-maintenance design. This structure offers significant advantages in engineering projects:

• During installation, modules can be directly attached from the front to the metal frame, enabling fast positioning and higher efficiency

• During adjustment, fine tuning can easily eliminate seam deviations, ensuring overall flatness and uniformity

• During maintenance, individual modules can be removed from the front without dismantling walls or leaving rear service space

This “modular + front-service” design transforms the LED video wall into a long-term maintainable, expandable, and upgradable engineering system rather than a one-time installation.

1.5 Planning Module Quantity and Screen Aspect Ratio

Using 320 × 160 mm as the basic unit:

• Screen width = Number of modules × 320 mm

• Screen height = Number of modules × 160 mm

During design, the overall aspect ratio should be as close as possible to the source content ratio, such as 16:9 or 21:9. This minimizes scaling and cropping, making images more natural and improving effective resolution utilization.

Additional margins should be reserved at the edges to absorb installation tolerances and facilitate future adjustments.

1.6 Preparation of Installation Accessories and System Components

Before construction begins, ensure that all components are available:

• Metal frames and mounting hardware

• Sending cards, receiving cards, and video processors

• Power supplies and redundancy units

• DC power cables, ribbon cables, and network cables

• Insulation sleeves, cable ties, and identification labels

Having everything prepared in advance avoids interruptions during installation and significantly improves efficiency.

1.7 Checking the Environment and Structural Safety

Before installation, verify:

• Load-bearing capacity of walls or steel structures

• Strength and location of anchoring points

• Rational layout of power and signal entry points

• Separation routing for high-voltage and low-voltage cables

These are fundamental requirements for long-term safe operation.

2. Installation and Wiring

2.1 Installing the Frame

The first step is constructing the metal frame that supports the entire display system. Its flatness and stability directly determine final splicing quality. Horizontal and vertical reference lines should be marked on the wall or steel structure according to design drawings.

During installation, leveling tools and laser alignment instruments must be repeatedly used to ensure that horizontal, vertical, and diagonal dimensions are consistent. Even a deviation of 1–2 mm can result in visible seam inconsistency or image distortion across the entire screen.

If the wall surface is uneven or the steel structure has deviations, adjustable feet or shims should be used until the frame reaches the required precision. A solid and perfectly level frame is the foundation of seamless splicing and high-quality display.

2.2 Installing the Modules

Once the frame is complete, LED module installation begins, usually from a reference edge such as the bottom left corner or the center.

Thanks to the magnetic front-service design of the PID series, modules automatically attach and achieve initial positioning when brought close to the frame. However, fine adjustment is still required using alignment pins or micro-adjustment mechanisms to ensure uniform seams and overall flatness.

The principle of “install one, check one” should be followed. After completing each section, rulers or leveling tools should be used to confirm flatness, preventing cumulative errors that are difficult to correct later.

2.3 Connecting Power

The power system is the core of stable long-term operation. Power supplies are usually installed behind the frame or inside dedicated electrical compartments with adequate ventilation.

Power distribution should be zoned according to module power density, keeping each power supply operating at 70–80% of its rated load. This improves safety and extends power supply lifespan.

DC power cables must have sufficient cross-sectional area and clear polarity markings. All connections should be firmly crimped, routed in short and direct paths, and clearly labeled for future maintenance.

2.4 Routing Signal

Signal routing must follow the receiving card topology, typically cascading data from left to right or from top to bottom.

High-quality network cables should be used for main signal transmission. For large screens or complex systems, switches or fiber converters can be added to enhance signal stability.

All signal cables should be neatly bundled, maintaining proper bending radii to prevent long-term stress damage that could cause instability.

2.5 Safety Inspection

Before powering on, a comprehensive safety check is essential:

• Confirm correct voltage and polarity for all power inputs and outputs

• Verify reliable grounding

• Check signal direction and sequence

• Ensure all exposed terminals are properly insulated

These measures prevent short circuits, electric arcs, and accidental electric shocks, ensuring a safe environment for commissioning.

3. Commissioning and Maintenance

3.1 Power-On and System Debugging

After installation, power on the system and use control software to verify that sending and receiving cards are correctly recognized and communication is stable.

Load the correct mapping file according to the splicing layout, and set target resolution, refresh rate, and grayscale levels to bring the system into standard operating condition.

Carefully observe whether flickering, banding, color deviation, or localized black screens appear, and resolve issues immediately.

3.2 Color and Brightness Calibration

Once stable display is achieved, detailed color and brightness calibration should follow. Use standard color charts or built-in test patterns to unify white balance and gamma curves.

Check for local brightness or color temperature inconsistencies and fine-tune the corresponding modules. In high-end projects, professional colorimeters can be used to precisely measure and compensate each module, achieving superior uniformity and camera-friendly performance.

3.3 Routine Maintenance

The magnetic front-maintenance design of the PID series significantly improves maintenance efficiency. Faulty modules can be removed and replaced directly from the front without dismantling the entire wall, minimizing downtime.

A regular inspection schedule is recommended, focusing on:

• Power indicator status

• Cable looseness or aging

• Ventilation condition

• Dust accumulation

Good maintenance habits are essential to extending system lifespan.

3.4 Troubleshooting

When display anomalies occur, troubleshooting should proceed from simple to complex:

• Bright/dark spots or dead pixels: replace the affected module

• Garbled images or tearing: check signal chains and receiving card settings

• Local black screen or abnormal heating: inspect power output and terminal connections

A systematic troubleshooting process ensures rapid problem resolution and system recovery.

PID Series Indoor LED Module Selection Table

Conclusion

A truly excellent LED video wall system reflects comprehensive capabilities in project planning, structural precision, and systematic maintenance thinking.

With its standardized 320 × 160 mm module size and magnetic front-service design, the PID series modularizes and systematizes what was once a complex and fragmented display engineering process. It transforms LED video walls from one-time construction projects into professional display platforms that are long-lasting, expandable, maintainable, and upgradable.

When selection is appropriate, structure is stable, installation is standardized, and calibration is precise, an LED video wall can maintain long-term reliable operation while continuously delivering strong visual impact and information capacity, becoming the most valuable and influential visual centerpiece in any indoor space.
