Standard SMD Flexible LED Modules vs. GOB Flexible LED Modules: A Complete Guide to Structure, Durability, and Applications

In today’s commercial displays, stage visuals, and immersive spatial design, LED display systems are no longer limited to traditional flat video walls. More and more projects are moving toward curved, wraparound, column-wrapping, wave-shaped, and other irregular geometries. As a result, “flexible LED modules” have shifted from a niche option to a core building block for creative display engineering.

The PIF Series Indoor Flexible LED Modules are developed precisely for these application demands. The series covers pixel pitches from P1.25 to P4, and includes two mainstream module sizes—240×120 mm and 320×160 mm. All models feature a highly flexible PCB structure with magnetic front-service design, and the lineup offers both standard SMD and GOB versions—allowing flexible displays to balance image quality, stability, and engineering reliability based on project needs.

From the perspective of engineering structure and long-term operation, this article provides a systematic comparison of standard SMD flexible modules and GOB flexible modules across four dimensions: structural technology, durability and lifespan, application scenarios, and selection recommendations—helping different indoor LED display projects build a clearer decision logic.

1) Two Fundamentals First: Packaging Type + Size Platform

In indoor flexible LED display projects, the module type affects not only image quality, but also system stability, durability, and long-term maintenance cost. Differences in packaging technology are clearly reflected in protection performance, maintenance methods, and overall reliability.

The two most widely used product types in the market are:

• Standard flexible modules (IF-2S, IF-3S): prioritize brightness, display performance, and maintenance flexibility

• GOB flexible modules (IF-2G, IF-3G): prioritize protection, durability, and long-term stability

At the same time, 2S/2G and 3S/3G form a clear engineering hierarchy by size:

• IF-2S, IF-2G: 240 × 120 mm

• IF-3S, IF-3G: 320 × 160 mm

In most cases, 240 × 120 mm is better for complex curvature and fine-form shaping, while 320 × 160 mm is better for large-area assembly, installation efficiency, and structural consistency in stage and mid-to-large installations.

2) “Flexible” Is Not Random Bending—It’s Controlled Conformal Fit

Many people think “flexible” means a module can be folded like paper. In engineering practice, however, the core value of flexible LED modules is not unlimited deformation, but stable conformal fitting to complex structures within a controlled curvature range.

The PIF Series uses a highly flexible PCB substrate so modules can follow curved surfaces, while the magnetic front-service structure ensures:

• Close, stable attachment to steel frames or custom-shaped substructures

• Geometric consistency of the pixel matrix even when bent

• Controlled installation efficiency and serviceability over the project lifecycle

From a structural standpoint, a high-flex PCB is not just “thinner” or “softer.” It is optimized through substrate formulation and copper trace layout so it can maintain electrical stability and solder-joint reliability through repeated bending. This is especially important for long-term fixed installations, because once installed, flexible modules often remain in a sustained “stress-fit” state. If fatigue performance is insufficient, hidden failures may appear over time.

So whether you choose standard SMD or GOB, you’re essentially selecting different packaging and maintenance strategies on the same flexible engineering foundation—based on the project’s risk profile.

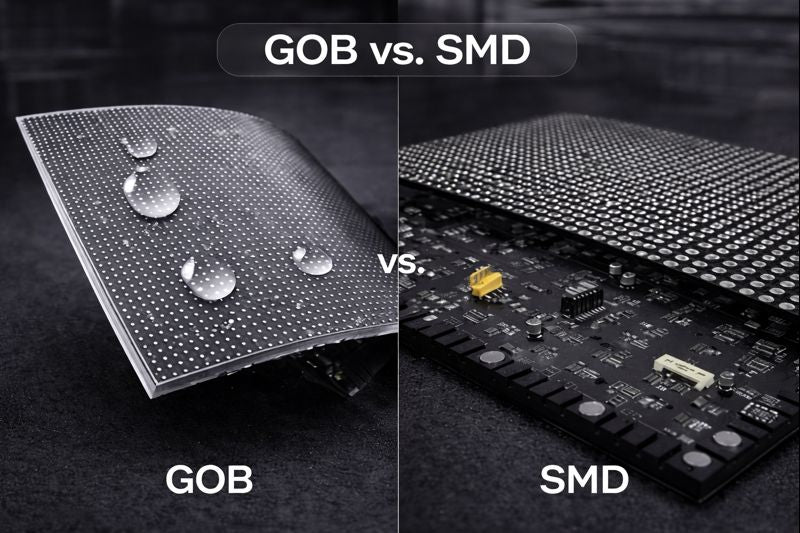

3) Core Structural Differences: SMD vs. GOB—The Key Is the Surface Protection Layer

3.1 Standard Flexible Modules (IF-S Series): Display Performance + Maintenance Flexibility

Standard SMD flexible modules use traditional SMD 3-in-1 LED packaging. The LEDs are mounted directly onto the flexible PCB, forming a standard pixel array. The rear side includes a soft housing and a magnetic mounting base, enabling easy installation and efficient front servicing.

In the 240×120 mm size platform, the IF-2S line covers pixel pitches from P3 to P1.25. Typical models include:

• PIF-2S P3 Standard SMD Flexible Module

• PIF-2S P2.5 Standard SMD Flexible Module

• PIF-2S P2.0 High-Resolution SMD Flexible Module

• PIF-2S P1.875 Fine-Pitch SMD Flexible Module

• PIF-2S P1.579 Ultra Fine-Pitch SMD Flexible Module

• PIF-2S P1.25 Ultra-HD SMD Flexible Module

The strengths of this structure center on image performance and flexible maintenance:

• High brightness and high luminous efficiency for performance-focused indoor visuals

• Mature grayscale control and color reproduction; tuning experience can carry over from flat modules

• Flexible servicing; damaged LEDs can theoretically be repaired at the pixel level (lowering single-event repair cost)

• Highly standardized parameter system, supporting smoother project delivery and controller compatibility

However, because the LED surface is exposed, it is more susceptible to dust, humidity, and physical impact—so it is best suited for controlled indoor environments.

In the 320×160 mm platform, IF-3S is more oriented toward installation efficiency in stage and mid-to-large structures. For example:

• PIF-3S P4 SMD Flexible Module for Stage & Creative Displays

• PIF-3S P3.076 SMD Flexible Module for Stage Creative Displays

• PIF-3S P2.5 SMD Flexible Module for Stage Rental & Commercial Displays

• PIF-3S P1.86 Fine-Pitch SMD Flexible Module

• PIF-3S P1.53 Ultra Fine-Pitch SMD Flexible Module

• PIF-3S P1.25 Ultra-HD SMD Flexible Module

In stage systems, the 320×160 mm format supports modular fast assembly—especially for projects requiring frequent setup and teardown—bringing clear benefits in both efficiency and structural stability.

The core value of standard SMD flexible modules is: delivering high display quality while effectively controlling cost, commissioning complexity, and overall engineering difficulty.

3.2 GOB Flexible Modules (IF-G Series): Protection + Long-Term Reliability

GOB (Glue On Board) applies a transparent optical encapsulation layer over the entire display surface after SMD mounting, forming an integrated protective layer over LEDs, solder points, and the PCB surface. The key improvement is not “making the picture look better,” but making the module more durable and risk-resistant.

In the 240×120 mm platform, typical IF-2G models include:

• PIF-2G P1.875 GOB Flexible Module

• PIF-2G P1.579 GOB Flexible Module

• PIF-2G P1.25 High-Resolution GOB Flexible Module

In the 320×160 mm platform, typical IF-3G models include:

• PIF-3G P1.86 GOB Flexible Module

• PIF-3G P1.53 GOB Flexible Module

• PIF-3G P1.25 High-Resolution GOB Flexible Module

The GOB structure primarily improves engineering reliability:

• Significantly higher impact resistance, reducing damage risk during transport, handling, and installation

• Better moisture and dust protection, ideal for entrances, semi-open commercial areas, or challenging indoor environments

• Surface can be wiped and cleaned directly, making maintenance easier

• More tolerant of human touch, reducing failure caused by scratches, accidental contact, or minor impacts

• Better for long-term fixed operation and installations that are difficult to service frequently

In terms of maintenance strategy, GOB is usually serviced via whole-module replacement. While the single replacement cost may be higher, the value in high-traffic environments is often “faster restoration”: shorter downtime, higher on-site recovery efficiency, and better system availability.

4) Durability & Lifespan: The Difference Is Not the Rated Hours, but the Stability Curve

In controlled indoor environments, both module types can operate for 50,000+ hours. But in more challenging conditions, GOB modules can maintain image quality and structural stability for longer.

If “lifespan” is defined as long-term image consistency, strong structural integrity, and controllable maintenance frequency, then in environments with higher dust, humidity, and touch risk, the benefits of GOB become more pronounced.

5) Application Scenarios

5.1 Standard Modules (IF-2S / IF-3S) Fit These Indoor Scenarios Better

Standard modules are ideal for stable indoor environments with controlled temperature and humidity, where the screen has little to no physical contact, such as:

• Meeting rooms and corporate conference spaces

• Exhibition halls and art galleries

• Command and control centers

• Stage backdrops and large event screens

Key benefits: high brightness, vivid color, flexible maintenance, and strong cost-effectiveness.

5.2 GOB Modules (IF-2G / IF-3G) Fit These High-Traffic Scenarios Better

GOB modules are ideal for high-traffic or more challenging environments where screens may be touched or exposed to dust and moisture, such as:

• Interactive displays in shopping malls

• Interactive museum exhibits

• Wayfinding screens in public transport hubs (airports, subways)

• Retail window advertising displays

Key benefits: superior protection, touch-safe surface, and longer-lasting image clarity.

6) Selection Recommendations: Work Backward from Maintenance Strategy

When choosing between standard and GOB modules, prioritize the installation environment, usage pattern, maintenance accessibility, and budget structure—not only purchase cost, but also long-term O&M cost and downtime impact.

Choose IF-2S / IF-3S Standard Modules If the Project Meets These Conditions

• The site uses climate control and has clean air quality

• The screen is installed high or physically separated from viewers

• Maximum brightness and color accuracy are critical (stage, exhibitions, data visualization walls)

• Budget is limited but high image quality is still required

• Flexible, low-cost maintenance is important (pixel-level service strategy)

• The project is temporary or short-term and needs fast installation and commissioning

Choose IF-2G / IF-3G GOB Modules If the Project Meets These Conditions

• The display is installed in public or interactive spaces where people can touch it

• Higher humidity or heavier dust in the environment (near entrances, basement areas, industrial sites)

• The installation location is hard to access, making frequent maintenance inconvenient

• The display is part of long-term operation (flagship store windows, public information screens)

• Close viewing distance and interaction are core requirements (museums, retail experience zones, immersive halls)

• Content value is very high and requires consistently flawless presentation (artworks, luxury branding, high-end imagery)

Conclusion: There Is No Absolute “Better”—Only “More Suitable”

Standard and GOB flexible modules each have their own strengths. There is no universal “better” choice—the key is selecting what best matches the project environment and usage model.

In clean, climate-controlled indoor spaces, standard SMD flexible modules can deliver bright, vivid visuals at a more economical level while retaining maintenance flexibility. In high-traffic areas where the screen may be touched, or in environments with higher humidity and dust, GOB flexible modules provide stronger protection and more durable stability—helping ensure the display remains clear and consistent over a longer operating cycle.

We hope this comparison helps you build a more engineering-driven selection approach, so indoor flexible LED display projects are not only visually impactful, but also reliable, maintainable, and sustainable over time.
