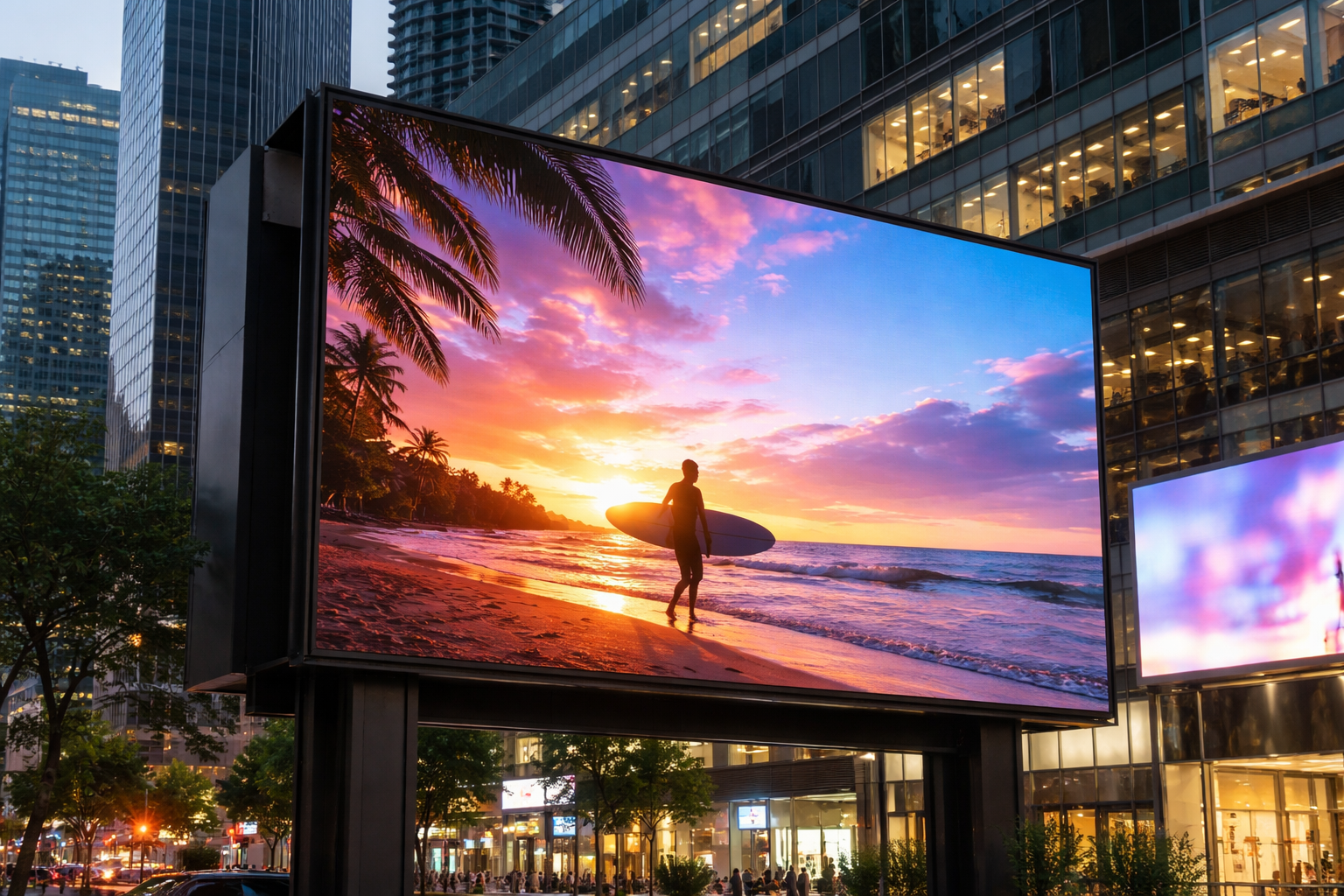

Outdoor LED displays have become an essential part of modern digital advertising and public information systems. From highway billboards and stadium scoreboards to shopping mall façades and transportation hubs, large LED screens are now widely used to deliver dynamic visual content in outdoor environments.
Unlike indoor displays, however, outdoor LED screens must operate under much harsher conditions. They are constantly exposed to sunlight, rain, wind, dust, and temperature changes. In many cases, these displays run continuously for long periods of time, often operating day and night without interruption.
Because of these environmental challenges, the LED modules used in outdoor displays require specialized engineering. A reliable outdoor LED module must not only deliver high brightness and clear image quality, but also maintain stable performance in difficult weather conditions while allowing convenient installation and maintenance.
Understanding the technologies behind outdoor LED modules can help engineers and project planners design display systems that are both visually impressive and operationally reliable.
1. The Modular Architecture of Outdoor LED Display Modules
One of the key advantages of LED display technology is its modular architecture. Unlike LCD displays that are limited to fixed panel sizes, LED displays are built by combining many smaller modules into a larger screen structure.
Each LED module functions as a self-contained display unit. It typically includes LED lamp beads, a printed circuit board (PCB), driver IC chips, signal connectors, power connectors, and a protective housing structure. When hundreds or even thousands of these modules are assembled together, they form a complete LED display screen capable of showing images and video content.
This modular design provides several practical advantages. First, it allows LED screens to be built in almost any size or aspect ratio, making them ideal for large outdoor installations such as building façades or roadside billboards. Second, it simplifies maintenance because individual modules can be replaced without dismantling the entire screen.
For example, high-resolution modules such as the
POD WS Series P2.5 Outdoor LED Module
and the
POD WS Series P3.076 Outdoor LED Module
are frequently used as building blocks in outdoor video walls where higher image clarity is required.
2. Pixel Pitch and Viewing Distance for Outdoor LED Displays
Another critical factor in LED display design is pixel pitch, which refers to the distance between the centers of two adjacent LED pixels. This measurement directly determines the resolution of the display and the optimal viewing distance.
A smaller pixel pitch means more LEDs are packed into a given area, resulting in higher pixel density and sharper images. This is especially important for outdoor displays located in areas where viewers may stand relatively close to the screen.
For instance, outdoor screens installed in busy commercial districts or retail environments often require finer pixel pitches to ensure that text and graphics remain clear at shorter viewing distances. Modules like the
POD WS Series P2.5 Outdoor LED Module
or
POD WS Series P3.076 Outdoor LED Module
are typically selected for these applications because they deliver higher visual detail.
On the other hand, very large outdoor billboards — such as those installed along highways — are usually viewed from much greater distances. In these cases, larger pixel pitches become more practical because they reduce overall system costs while still maintaining sufficient visibility.
Modules such as the
POD PM Series P4 Outdoor LED Module,
POD PM Series P5 Outdoor LED Module,
POD PM Series P6.67 Outdoor LED Module,
and even larger pitches such as
POD PM Series P8 Outdoor LED Module
or
POD PM Series P10 Outdoor LED Module
are widely used in these large-scale outdoor display projects.
Selecting the appropriate pixel pitch therefore requires balancing viewing distance, screen size, and project budget, rather than simply choosing the highest resolution available.
3. High Brightness Requirements for Outdoor LED Displays
Brightness is another essential performance factor for outdoor LED displays. While indoor displays typically operate at brightness levels between 600 and 1000 nits, outdoor displays must be significantly brighter in order to remain visible under direct sunlight.
High-performance outdoor LED modules are therefore designed to deliver brightness levels of 5000 nits or more, ensuring that images and video content remain clear even during the brightest parts of the day.
Achieving this level of brightness requires careful engineering. LED manufacturers must select high-efficiency LED chips and combine them with optimized driver circuits to maintain stable light output while controlling power consumption and heat generation.
For large outdoor installations such as stadium displays or roadside billboards, modules like the
POD WS Series P8 Outdoor LED Module
and the
POD WS Series P10 Outdoor LED Module
are often chosen because they combine strong brightness performance with durable outdoor construction.
4. Driver IC Technology and Refresh Rate in Outdoor LED Modules
Behind every LED display module is a complex electronic system responsible for controlling how each LED lights up. This system is managed by driver IC chips, which regulate the flow of electrical signals to individual LEDs.
High-quality driver ICs play a critical role in determining the visual performance of the display. They enable higher refresh rates, smoother video playback, and improved grayscale performance.
A higher refresh rate — typically above 1920 Hz in professional LED displays — helps reduce flicker and ensures that moving images appear smooth and stable. This is particularly important when LED screens are recorded by cameras or displayed in environments where viewers may be watching for extended periods.
Stable driver electronics also help maintain uniform brightness across the entire display surface, preventing visual inconsistencies that might otherwise appear when different modules operate under varying electrical loads.
5. IP65 Waterproof Structure in Outdoor LED Display Modules
Outdoor LED displays must be capable of operating reliably in rain, humidity, and dusty environments. To achieve this, most outdoor LED modules are designed with IP65 environmental protection, which provides resistance against both dust intrusion and water jets.
However, effective waterproofing involves more than simply sealing the front surface of the module. A well-designed outdoor LED module typically incorporates several protective features throughout its structure.
These features often include sealed rear covers, waterproof connectors for power and signal cables, protective coatings on the PCB, and reinforced module frames that help prevent water from penetrating internal electronic components.
Modules such as the
POD WS Series P4 Outdoor LED Module
and the
POD WS Series P5 Outdoor LED Module
are designed with reinforced sealing structures to ensure reliable outdoor operation even in challenging weather conditions.
Recommended Outdoor LED Modules for Different Display Applications
| Module Model | Pixel Pitch | Module Size | Typical Applications |
|---|---|---|---|
| P2.5 | 2.5 mm | 320×160 mm | High-resolution outdoor displays |
| P3.076 | 3.076 mm | 320×160 mm | Retail signage |
| P4 / P4.81 | 4–4.81 mm | 320×320 / 250×250 mm | Commercial billboards |
| P5 / P5.95 | 5–5.95 mm | Multiple sizes | Advertising displays |
| P6.67 | 6.67 mm | 320×320 mm | Highway LED screens |
| P8 | 8 mm | 320×320 mm | Stadium displays |
| P10 | 10 mm | 320×320 mm | Large outdoor billboards |
If you are planning a new outdoor LED display project, selecting the right LED module is the first step toward achieving the desired image quality and reliability.
The POD Series Outdoor LED Modules offer multiple pixel pitch options from P2.5 to P10, along with flexible module sizes and robust IP65 protection designed specifically for large outdoor video walls.
