Outdoor LED displays have become one of the most recognizable forms of digital communication in modern cities. From massive roadside billboards and stadium screens to architectural media façades and transportation hubs, large LED video walls are now used everywhere to deliver high-impact visual content.

However, for companies planning to build an outdoor LED display, one of the most confusing parts of the project is selecting the right outdoor LED display modules. At first glance, LED modules may look similar, but in reality they differ significantly in terms of pixel pitch, structural design, waterproof protection, installation methods, and long-term reliability.

Choosing the wrong module specification can result in poor image quality, higher maintenance costs, or even structural limitations when assembling the final display.

In this guide, we will walk through the key technical factors that buyers should understand before selecting outdoor LED screen modules, helping you choose the right solution for your large-scale LED display project.

Understanding the Role of Outdoor LED Display Modules

An LED display is not a single piece of hardware. Instead, it is a system built from many smaller components that work together to form a complete video wall.

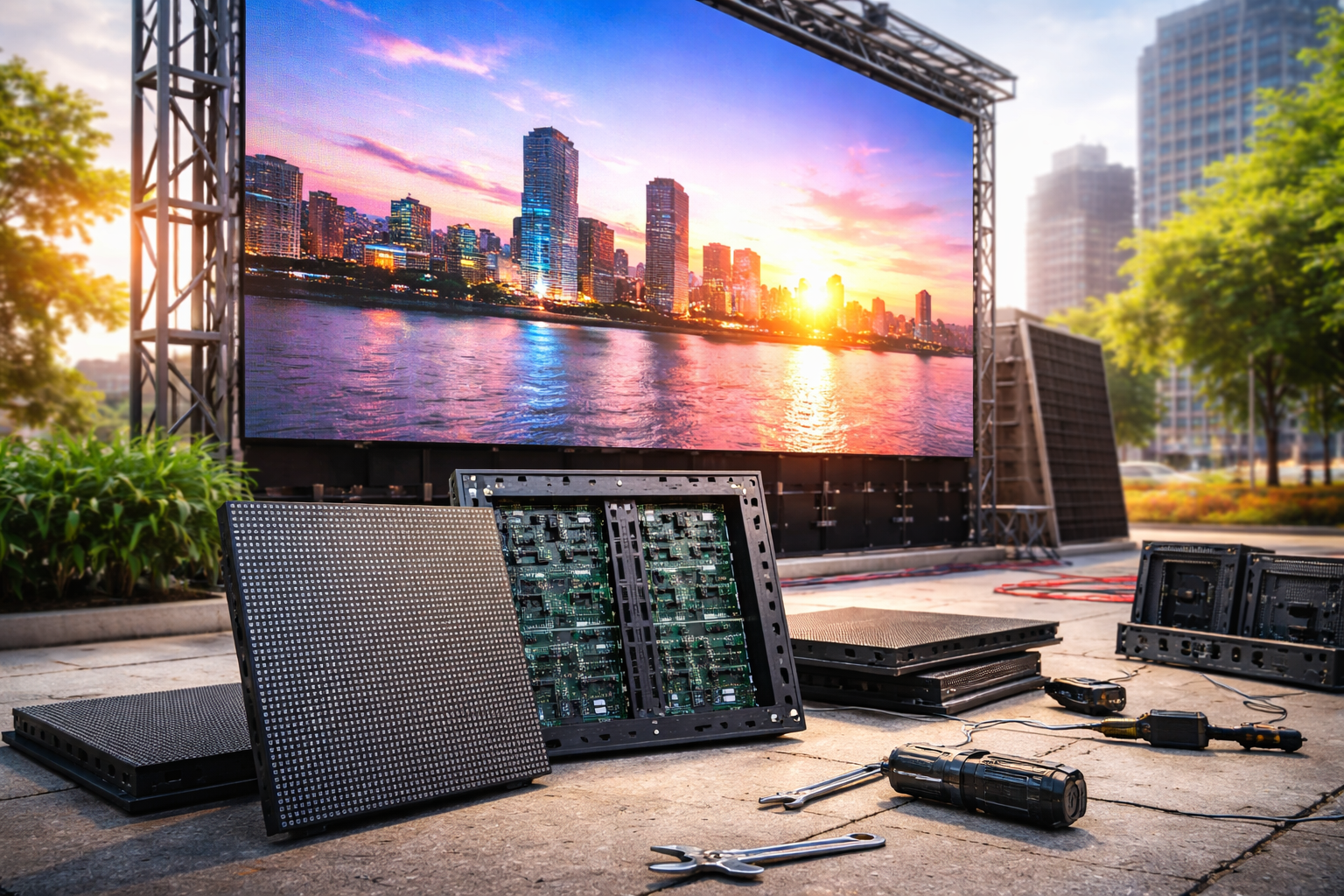

At the core of this system are LED display modules, which act as the fundamental building blocks of the entire screen. Each module contains a printed circuit board populated with LED pixels, driver ICs, signal connectors, and protective components that allow the module to operate reliably in outdoor environments.

When building a large outdoor screen, hundreds or even thousands of modules are assembled together into LED cabinets. These cabinets are then installed onto steel structures or architectural frames to create the final display.

Because outdoor LED screens operate in harsh environmental conditions, the design of the module itself plays an important role in determining the overall reliability of the system. High-quality outdoor modules usually include reinforced waterproof structures, sealed rear covers, corrosion-resistant materials, and stable connection interfaces that protect the electronics from moisture and dust.

For example, the POD Series outdoor LED modules are designed specifically for large outdoor video wall applications. They feature IP65 waterproof protection, durable housing structures, and flexible installation options that support both front-service and rear-service maintenance. These design elements allow the modules to operate continuously in outdoor environments such as advertising billboards, architectural media façades, and public signage systems.

Pixel Pitch: The Most Important Factor in Image Quality

Among all the specifications listed on an LED module, pixel pitch is by far the most important parameter to understand.

Pixel pitch refers to the distance between two neighboring LED pixels on the module surface, measured in millimeters. The smaller the pixel pitch, the more densely packed the LEDs are, which means the display can produce higher resolution images.

However, smaller pixel pitch also increases manufacturing cost, so choosing the right pitch requires balancing resolution with viewing distance.

For outdoor LED displays, the relationship between pixel pitch and viewing distance is critical. If the pixel pitch is too large for the viewing distance, the audience will be able to see individual pixels, which reduces image clarity. On the other hand, choosing a pitch that is too small for a long-distance display can unnecessarily increase the cost of the project without providing noticeable visual improvements.

A commonly used guideline in the LED display industry is:

Minimum viewing distance ≈ pixel pitch × 2–3

For outdoor screens where viewers are relatively close to the display, smaller pitch modules such as the P2.5 outdoor LED module or the P3.076 outdoor LED module are often selected because they provide higher pixel density and smoother visual performance.

For commercial outdoor advertising screens positioned along streets or building exteriors, modules such as the P4 outdoor LED module or the P5 outdoor LED module are commonly used because they provide a good balance between resolution, viewing distance, and system cost.

For extremely large outdoor billboards where viewers are typically far away, larger pixel pitches such as the P8 outdoor LED module or the P10 outdoor LED module are often more suitable. These modules allow the display to cover larger areas while keeping the total system cost under control.

Understanding pixel pitch and viewing distance is therefore one of the most important steps when planning a large outdoor LED screen.

Why Module Size Influences Screen Design

Another factor that many first-time buyers overlook is the physical size of the LED module.

Although modules may appear similar at first glance, they are produced in several standard sizes, such as:

• 320 × 160 mm

• 320 × 320 mm

• 250 × 250 mm

The size of the module directly affects how the screen is assembled and how flexible the final display layout can be.

Larger modules reduce the total number of pieces required to build the screen, which can simplify cabinet construction and installation. For instance, modules like the P4 320×320 mm outdoor LED module or the P5 320×320 mm LED module are often used in large fixed outdoor billboards because their larger surface area allows the screen to be assembled efficiently.

On the other hand, smaller modules provide greater flexibility when designing irregular or modular display structures. Rental LED screens used for stage events and touring installations often rely on compact modules such as the P4.81 250×250 mm outdoor LED module or the P5.95 250×250 mm LED module, which make it easier to assemble screens quickly for temporary events.

Selecting the appropriate module size therefore ensures that the display structure is both efficient to assemble and mechanically stable.

Waterproof Protection and Long-Term Outdoor Reliability

Outdoor LED displays operate continuously in environments that expose the equipment to rain, dust, sunlight, and temperature changes. Without proper protection, moisture and debris can quickly damage internal electronic components.

This is why IP65 waterproof protection is considered a standard requirement for outdoor LED modules.

IP65 protection ensures that the front surface of the module is fully sealed against dust and can withstand water jets from multiple directions. In addition to waterproof encapsulation around the LED pixels, high-quality modules also include protective coatings on the PCB, sealed signal connectors, and reinforced housings that prevent moisture from reaching the electronic circuitry.

Some outdoor modules also incorporate sealed rear covers that protect the internal wiring and power connections. This structural design significantly improves the durability of the module and reduces the risk of long-term failures caused by environmental exposure.

When planning a large outdoor LED display project, selecting modules with reliable waterproof structures is essential for ensuring stable operation and minimizing maintenance costs over the lifetime of the screen.

Installation and Maintenance Considerations

Another key factor when selecting outdoor LED display modules is how the screen will be installed and maintained.

Large outdoor displays often operate continuously for many years, so the ability to access and replace modules easily is extremely important.

Most outdoor LED screens support two main maintenance approaches.

Rear-service installation

In rear-service systems, technicians access the modules from behind the display structure. This is the most common installation method for large roadside billboards because it allows maintenance work to be performed without disturbing the front surface of the display.

Rear-service systems also tend to have simpler cabinet structures, which can reduce installation costs.

Front-service installation

In situations where there is limited space behind the display—such as building façades or wall-mounted screens—front-service installation becomes necessary. In this configuration, modules can be removed directly from the front of the display without accessing the rear side.

Some module designs also include mechanical locking systems that make installation faster and more secure. For example, modules like the P4 screw-lock outdoor LED module or the P6.67 screw-lock LED module are designed to provide stronger mechanical stability while simplifying the module replacement process.

Choosing modules that support the correct installation method for your project can greatly reduce maintenance complexity in the future.

Recommended Outdoor LED Modules for Large Display Projects

Selecting the right outdoor LED display module depends on several factors, including viewing distance, screen size, installation environment, and budget.

The table below summarizes common module choices for different outdoor display scenarios.

If you are currently planning a large outdoor LED display project and looking for reliable module options, the POD Series outdoor LED modules offer multiple pixel pitches, standard panel sizes, and durable waterproof designs suitable for long-term outdoor installations.

Their flexible structural design allows them to be used in a wide range of large LED video wall applications while maintaining stable performance in challenging outdoor environments. You can explore the full collection here: Outdoor LED Display Modules – POD Series
