When planning an LED display system, most people focus on the LED modules, pixel pitch, brightness, and cabinet structure. However, one of the most critical components that determines whether the entire display system works smoothly is actually the LED display control system.
Among all LED control brands, NovaStar has become the industry standard for professional LED display projects. From small digital signage screens to massive stadium video walls, NovaStar controllers are widely used because of their stability, scalability, and compatibility with most LED modules on the market.
But when browsing through the product catalog, many system integrators or project planners quickly realize something:
There are many different types of NovaStar controllers.
Some are receiving cards, some are sending cards, others are video processors, and some devices combine several functions together. For beginners or even experienced installers working on a new type of project, choosing the right controller can become confusing.
This guide explains how to choose the correct NovaStar LED controller based on display size, resolution, installation type, and control requirements, and introduces several commonly used controller models used in real LED display projects.
Understanding the Core Structure of an LED Display Control System
Before selecting any specific controller model, it helps to understand how a standard LED display signal system works.
Most professional LED display installations follow a signal chain similar to this:
Video Source → Sending Controller → Receiving Cards → LED Modules
The video source may be a computer, media server, camera system, or playback device. The sending controller processes the video signal and converts it into data packets that can be transmitted through Ethernet cables.

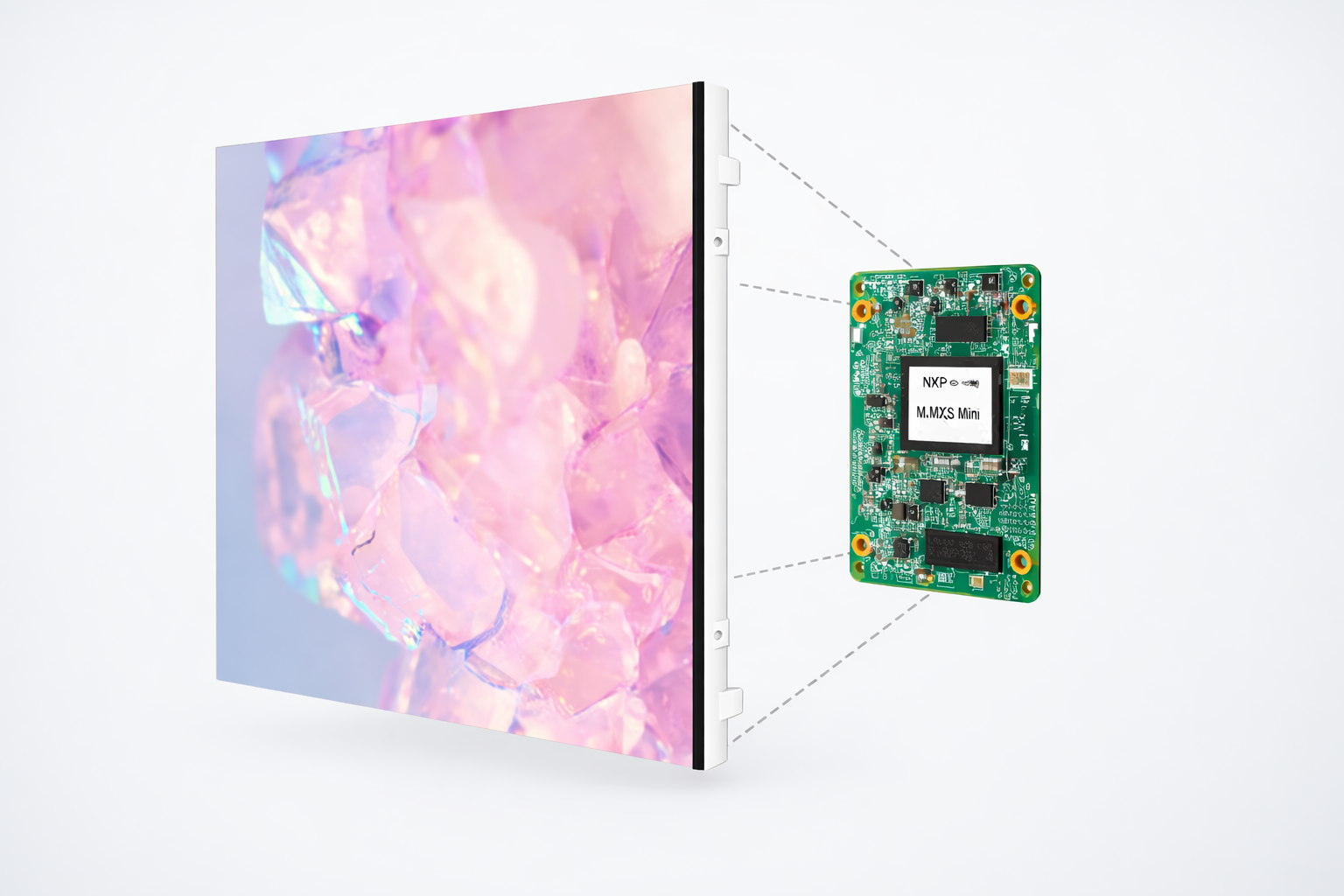

These signals are then distributed to receiving cards, which are installed inside the LED cabinets or LED modules. Each receiving card is responsible for controlling a specific portion of the screen's pixels.
Receiving cards are therefore the final control layer between the video signal and the physical LED pixels.
Some of the commonly used NovaStar receiving cards include models such as NovaStar MRV208-N, NovaStar MRV412-N, NovaStar MRV416-N, NovaStar MRV532, or NovaStar MRV570-1. These controllers are widely used in indoor LED displays, digital signage systems, and commercial LED video walls.
For more advanced applications requiring enhanced image quality and higher pixel capacity, models such as NovaStar A5S Plus and NovaStar A8S-N offer improved processing capabilities and support for HDR optimization.
Because receiving cards directly manage pixel mapping, grayscale processing, and module communication, choosing the correct model helps ensure stable image output and long-term system reliability.
When Should You Use a Video Processor?
Not every LED display system requires a dedicated video processor, but for many professional applications, a video processor plays an essential role in improving image quality and simplifying system management.
A video processor performs several important functions beyond basic signal transmission. It can handle tasks such as image scaling, multi-source switching, signal synchronization, and advanced color processing.
For example, large LED displays used in conferences, concerts, or broadcast environments often need to display content from multiple video sources simultaneously. These sources might include laptops, cameras, media servers, or streaming devices.
In such scenarios, video processors allow operators to quickly switch between signals while maintaining smooth playback.
NovaStar provides several widely used video processor models designed for different project sizes. Devices such as the NovaStar VX400 Pro and NovaStar VX600 Pro are practical options when the project requires compact control, professional image scaling, and multi-input flexibility. For larger and more demanding LED display systems, the NovaStar VX1000 Pro and NovaStar VX2000 Pro provide significantly higher pixel loading capacity, allowing them to control large LED video walls while supporting advanced image processing features such as HDR and seamless switching.
These processors combine video processing and sending functions into a single device, which simplifies system design and reduces the number of hardware components required.
Typical applications where video processors are commonly used include:
-
Stage LED screens for concerts and events
-
Broadcast studios and production environments
-
Corporate conference video walls
-
Exhibition and trade show displays
Whenever the LED display needs to process multiple video sources or dynamic live content, a video processor is usually the most efficient control solution.
When to Use Sending Card + Receiving Card Architecture
Although all-in-one processors have become more common in recent years, the traditional sending card plus receiving card architecture remains one of the most stable and widely used LED display control solutions.
In this configuration, the sending card is typically installed inside a computer or a dedicated control server. The computer outputs the video signal, which is then processed by the sending card and distributed to the receiving cards via network cables.
This architecture is especially common in fixed LED installations, where long-term stability and precise display control are more important than portability.
Entry-level sending cards such as the NovaStar MSD300 are often used for small to medium LED display systems, particularly in indoor environments where the display resolution does not exceed Full HD.
For slightly larger systems or applications requiring higher input resolution, the NovaStar MSD600 offers improved performance and supports additional signal formats.
In many installations, system integrators prefer using external sending boxes rather than internal PCI cards. Sender boxes like the NovaStar MCTRL300, NovaStar MCTRL600, and NovaStar MCTRL660 Pro convert HDMI or DVI video signals into Ethernet transmission signals that can be distributed to multiple receiving cards across the LED display system.
For extremely large LED screens, controllers such as the NovaStar MCTRL 4K provide ultra-high resolution input and significantly higher pixel loading capacity, making them suitable for high-resolution LED video walls.
Because this architecture separates the sending and receiving stages, it provides excellent scalability. Additional receiving cards and cabinets can easily be added as the display grows larger.
Small LED Screens vs Large LED Screens: Choosing the Right Control System
The physical size of the LED display is another major factor when selecting a control system.
Different types of controllers are optimized for different display sizes and content delivery methods.
Control Solutions for Small LED Displays
Small LED screens are commonly used for retail displays, shop signage, menu boards, and advertising panels. In many cases, these displays do not require real-time video input from external devices.
Instead, the content is often pre-loaded and scheduled to play automatically.
For these types of displays, asynchronous multimedia controllers provide a simple and cost-effective solution. Devices such as NovaStar TB10 Plus, NovaStar TB20 Plus, NovaStar TB30, and NovaStar TB40 multimedia players allow users to upload content using USB drives, Wi-Fi connections, or cloud management software.
These controllers can store video files internally and play them according to a preset schedule.
Because they do not require continuous video input from a computer, multimedia players are widely used in applications such as:
-
retail advertising displays
-
store window LED screens
-
restaurant digital menu boards
-
information kiosks
They are also popular in smart city infrastructure where LED screens display scheduled announcements or advertising content.
Control Solutions for Large LED Displays
Large LED screens require significantly more powerful control systems due to their higher pixel counts and larger physical dimensions.
In these cases, synchronous control systems are usually required to deliver real-time video signals to the display.
Hybrid controllers such as NovaStar TB50, NovaStar TB60, NovaStar TU15 Pro, NovaStar TU20 Pro, and NovaStar TU4K Pro combine both synchronous and asynchronous control capabilities. This allows system designers to use the same controller for scheduled playback and live video input when needed.
Such flexibility makes these controllers suitable for large digital signage networks, transportation hubs, and smart building display systems.
In addition, larger screens often require multiple receiving cards such as MRV416-N, MRV532, or A8S-N, which distribute the video signal across multiple LED cabinets to ensure stable image output.
Choosing Controllers Based on Screen Resolution (1080P, 4K, and Beyond)
The resolution of the LED display also plays a critical role when selecting the correct NovaStar controller.
Higher resolution screens require controllers capable of handling larger pixel loads and higher bandwidth video signals.
Controllers for 1080P LED Displays
For LED screens with standard Full HD resolution, entry-level controllers such as NovaStar MSD300 or NovaStar MCTRL300 are usually sufficient.
These devices provide enough pixel loading capacity to support many indoor LED screens commonly used in retail and commercial environments.
Because of their simplicity and reliability, these controllers remain widely used in many digital signage installations.
Controllers for 4K LED Displays
As LED displays become more advanced, many installations now target 4K resolution to achieve sharper image quality.
4K LED walls require controllers with higher input resolution support and stronger image processing capabilities.
Professional controllers such as NovaStar VX600 Pro and NovaStar VX1000 Pro are often used in these scenarios. They support high-resolution input signals and provide advanced scaling functions that ensure the content fits perfectly on the LED display.
For projects requiring true Ultra HD input processing, the NovaStar MCTRL 4K controller provides dedicated 4K signal support and significantly higher pixel loading capacity.
Ultra-Large LED Walls (8K and Beyond)
For extremely large LED displays used in stadiums, broadcast studios, or command centers, the total resolution may exceed 8K.
In these situations, the control system usually consists of multiple sending controllers, video processors, and large numbers of receiving cards working together.
Controllers such as the NovaStar VX2000 Pro are designed for these types of high-performance LED display environments, where extremely high pixel loads and complex signal routing are required.
Fixed Installation vs Rental LED Displays
The final consideration when choosing a NovaStar controller is the installation environment.
LED display systems used for permanent installations often have different requirements compared to rental displays used for events and touring productions.
Controllers for Fixed LED Installations
Fixed LED displays are typically installed in locations such as shopping malls, building facades, transportation hubs, or corporate offices.
These displays prioritize long-term stability and reliability.
As a result, the most common control solution remains the traditional sending controller plus receiving card architecture.
Receiving cards like NovaStar MRV412-N, NovaStar MRV416-N, and NovaStar MRV532 are widely deployed in these installations because of their proven stability and compatibility with most LED modules.
For simple digital signage systems, asynchronous controllers like the TB series multimedia players can also provide a reliable content playback solution.
Controllers for Rental LED Displays
Rental LED displays used in concerts, exhibitions, and stage productions require a completely different approach.
These displays must be quick to install, easy to configure, and capable of handling complex video inputs.
Therefore, rental LED systems frequently rely on video processors and integrated control devices, such as the NovaStar VX400 Pro, NovaStar VX600 Pro, NovaStar VX1000 Pro, and NovaStar VX2000 Pro
These processors allow technicians to adjust screen scaling, input switching, and mapping configurations quickly, which is essential for live events where display layouts may change frequently.
Final Thoughts
Selecting the right NovaStar LED controller is not simply about choosing the most powerful device available. Instead, it requires understanding the specific requirements of your LED display project.
Factors such as screen size, resolution, installation environment, and content delivery method all influence the optimal controller configuration.
Small advertising screens may only require a simple multimedia player, while large video walls often require a combination of sending controllers, receiving cards, and video processors working together.
By understanding how each component fits into the overall LED display control system, system integrators can design more efficient and reliable LED display solutions.
NovaStar's extensive controller lineup—from receiving cards like A5S Plus and A8S-N, to sending controllers like MCTRL600 and MCTRL 4K， or deploying advanced processors like VX2000 Pro—provides flexible options for nearly every LED display application.
Choosing the right controller ensures that the LED display delivers stable performance, accurate image reproduction, and long-term operational reliability.
